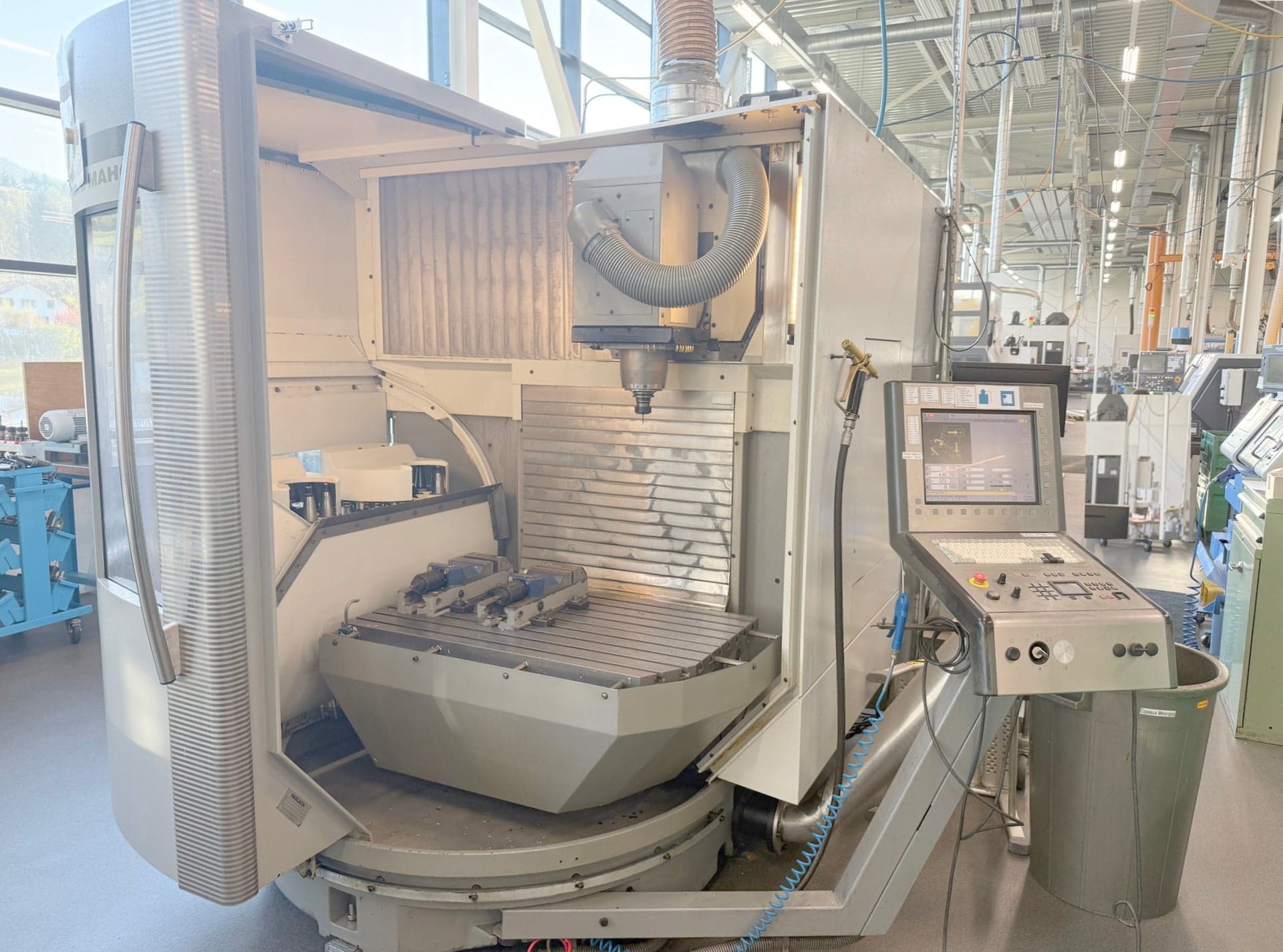

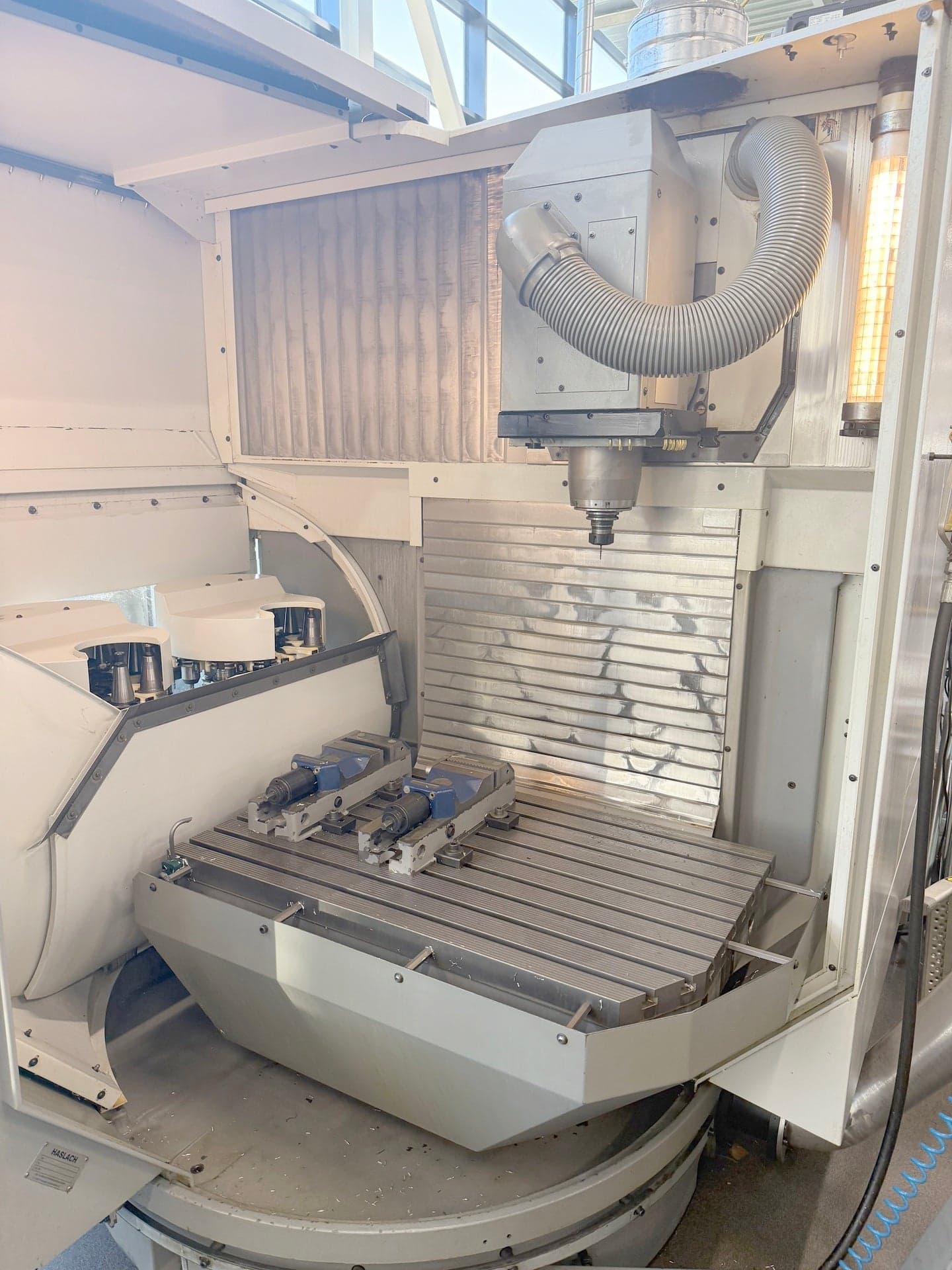

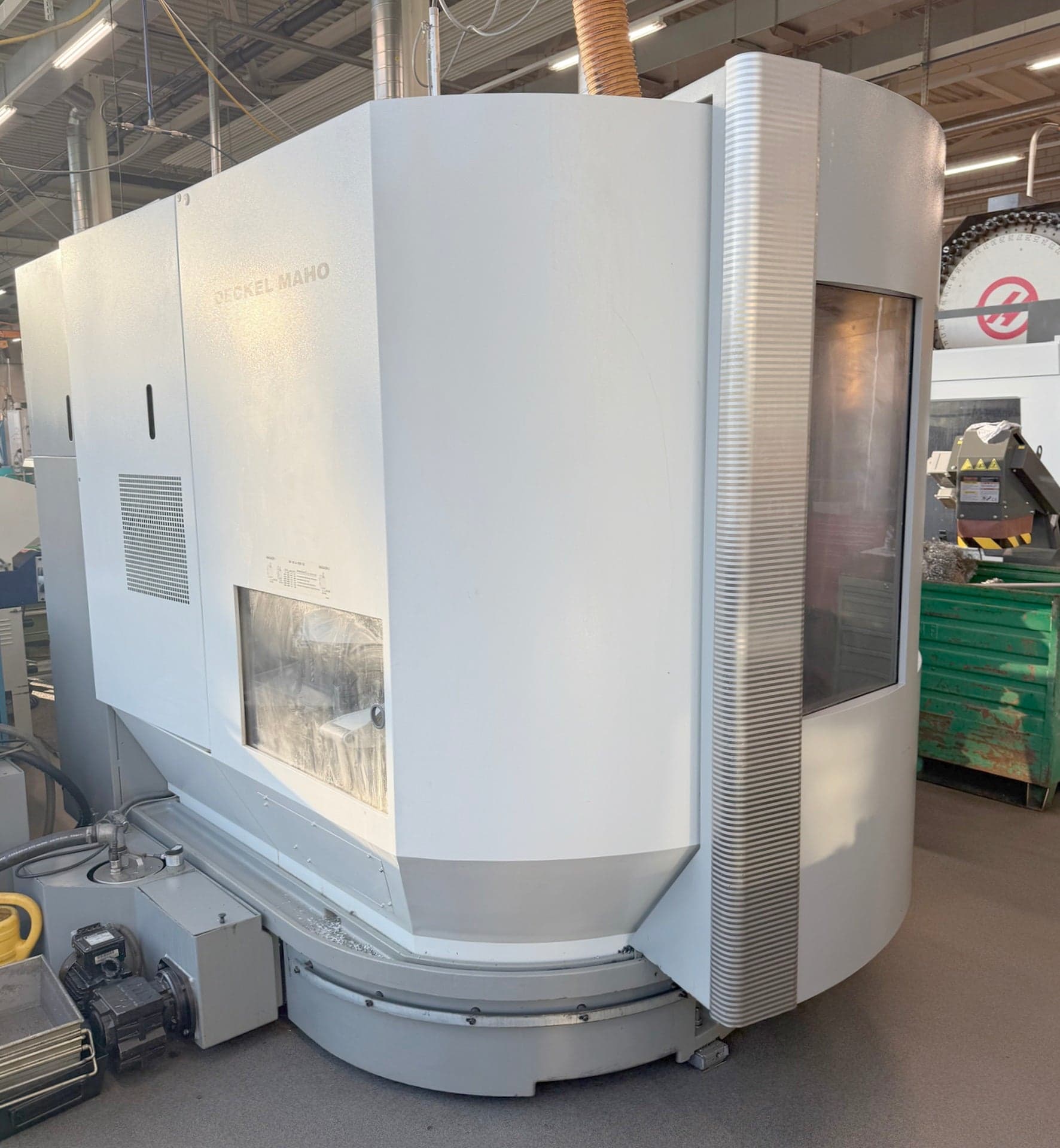

023175 - DMG DMU 60 T

Description

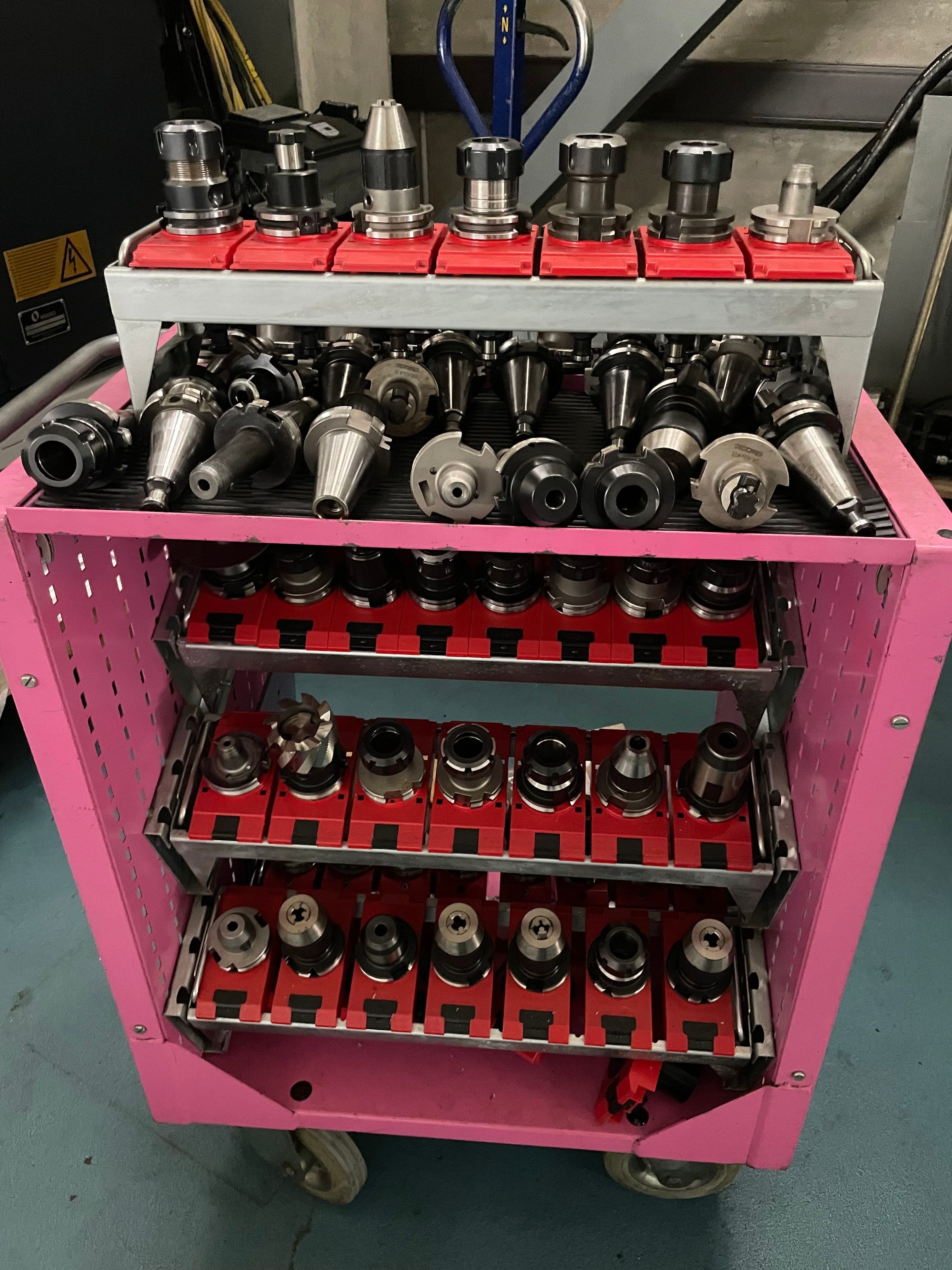

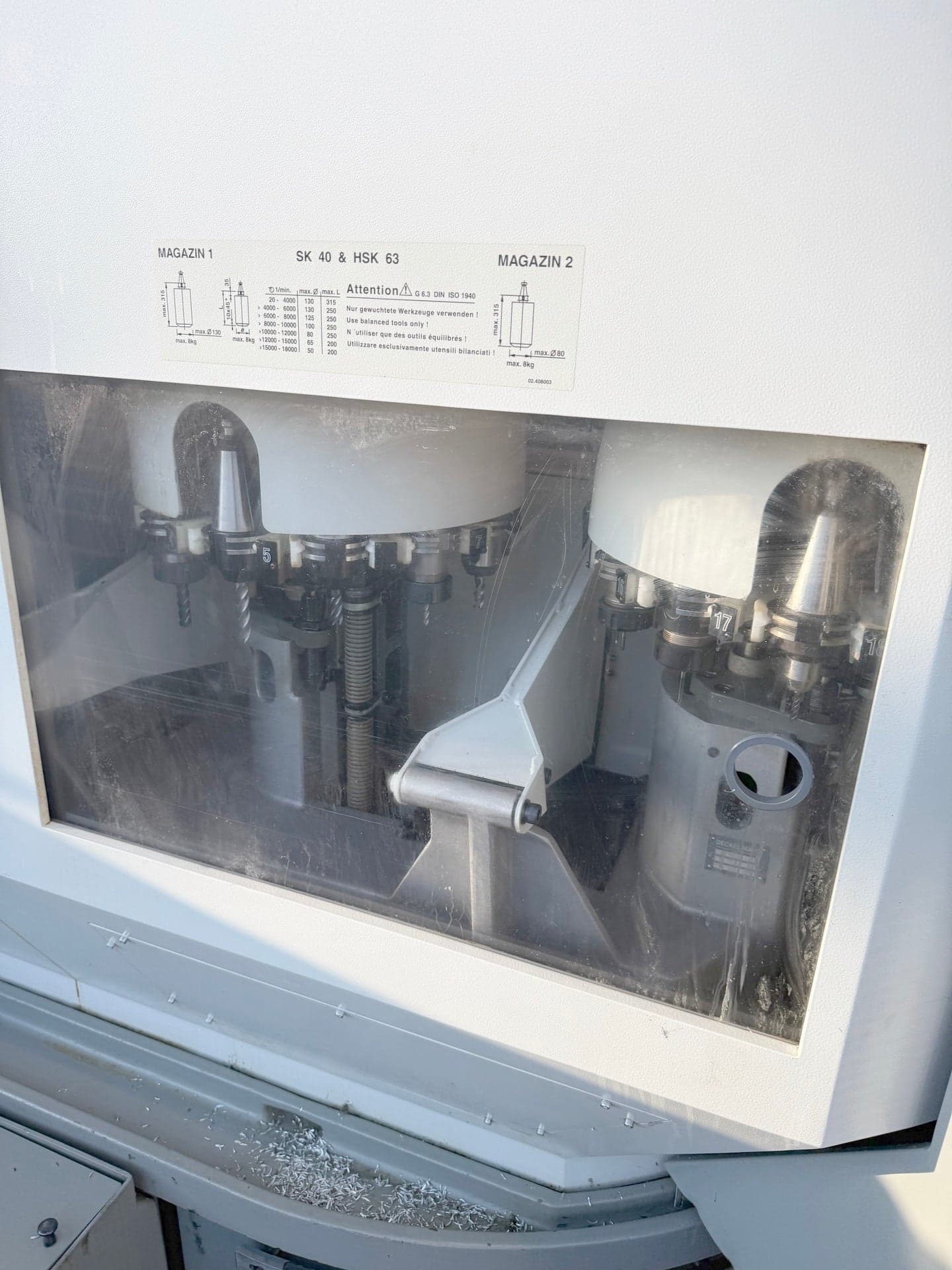

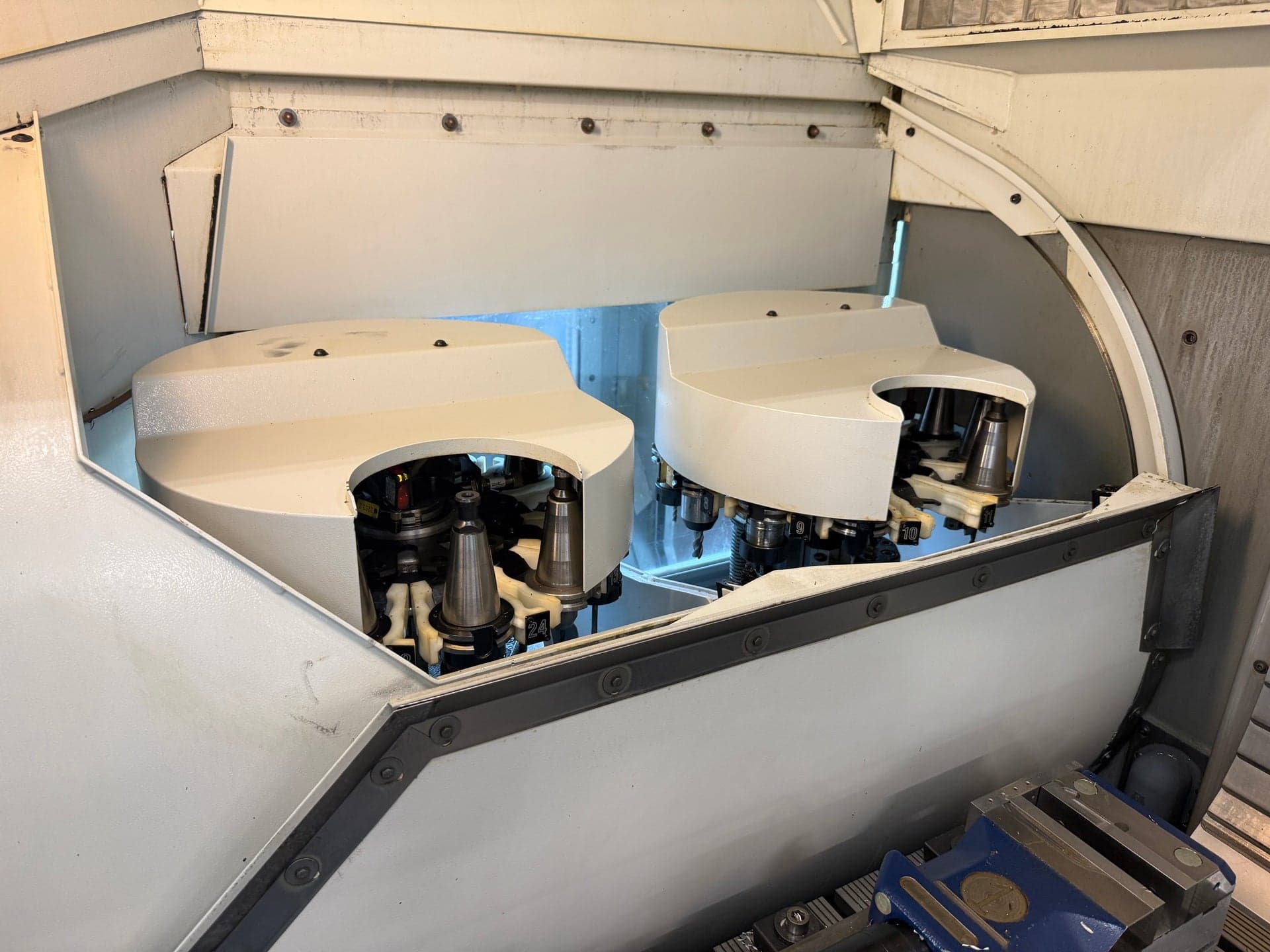

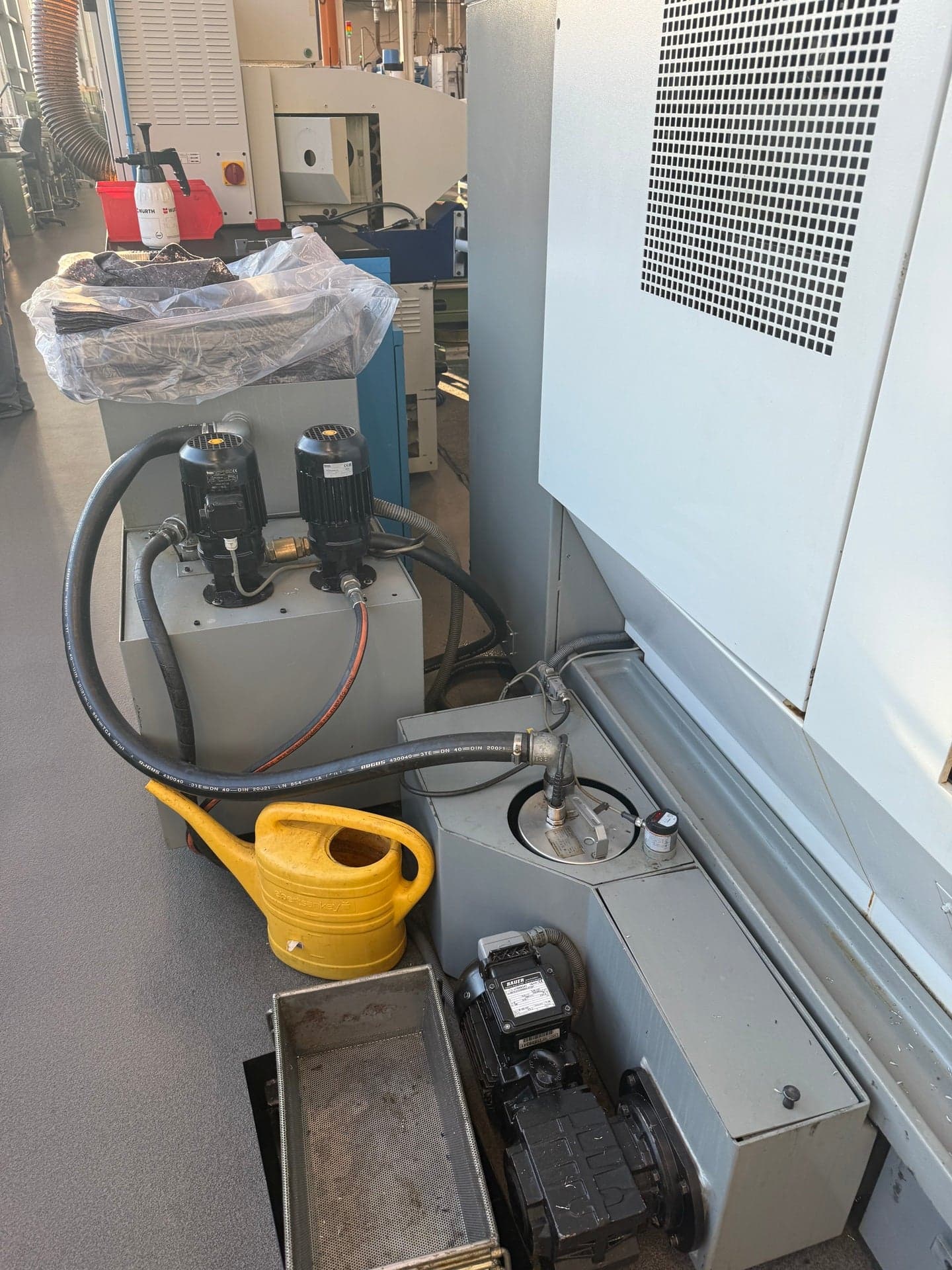

{"Number of axis total": "3", "Table length": "1000 mm", "Table width": "600 mm", "Number of T-channels": "9", "Distance of the T-slots": "63 mm", "T-channel width": "14H7 mm", "Table load max.": "350 kg", "Longitudinal travel (X-axis)": "630 mm", "Transversal travel (y-axis)": "560 mm", "Vertical travel (z axis)": "560 mm", "4th axis": "", "Tool changer:": "", "Number of tools": "20", "Tool diameter": "80 mm", "Diameter with free adjacent pockets": "130 mm", "Tool lenght": "315 mm", "Max. tool-weight": "8 kg", "Spindle nose SK": "40 DIN 69871", "Vertical spindle speeds:": "", "stepless": "", "from": "20 t/min", "up to": "12000 t/min", "Feed range": "20 - 10000 mm/min", "Rapid traverse: long.": "26 m/min", "Rapid traverse: transversal": "26 m/min", "Rapid traverse: vertical": "20 m/min", "Vertical quill travel": "90 mm", "Voltage 50 Hz 3x": "400 Volt", "Spindle motor": "7.5 kW", "Machine's weight about": "6500 kg", "Overall dimensions machine:": "", "Length": "2880 mm", "Width": "2135 mm", "Height": "2827 mm", "Various accessories:": "", "Set of toolholders": "", "Coolant system": "", "Lamp": ""}
