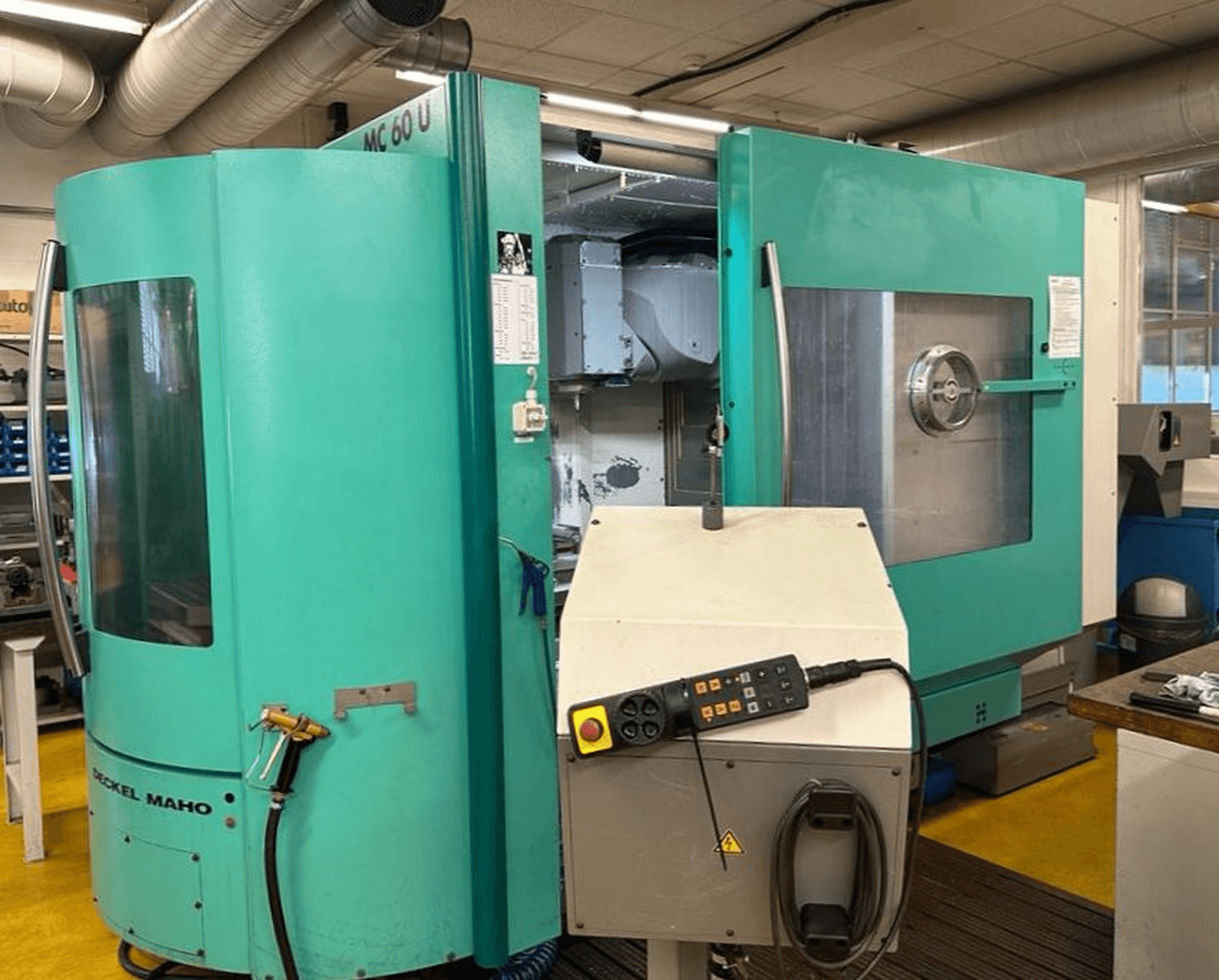

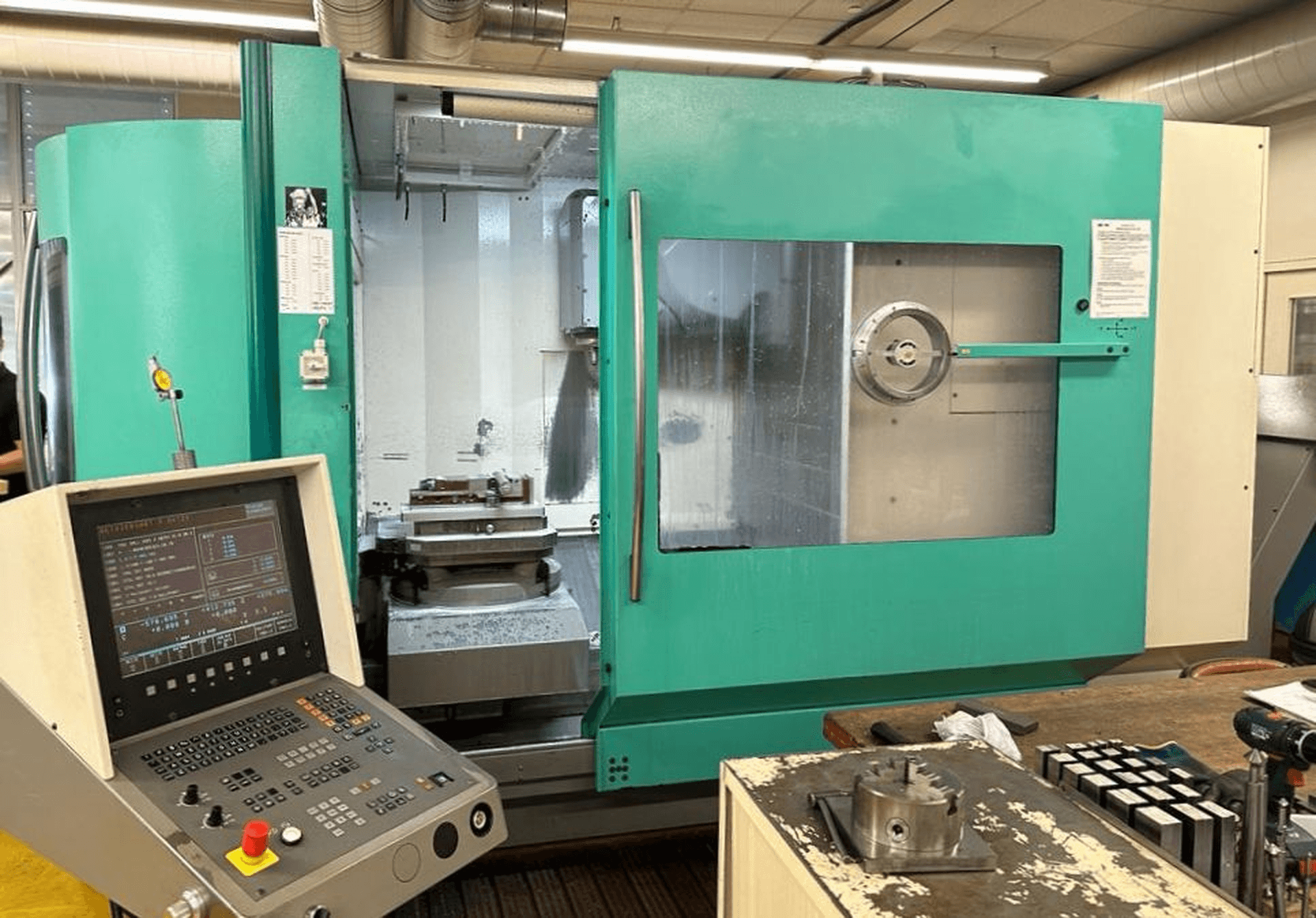

022585 - DMG DMC 60 U

Description

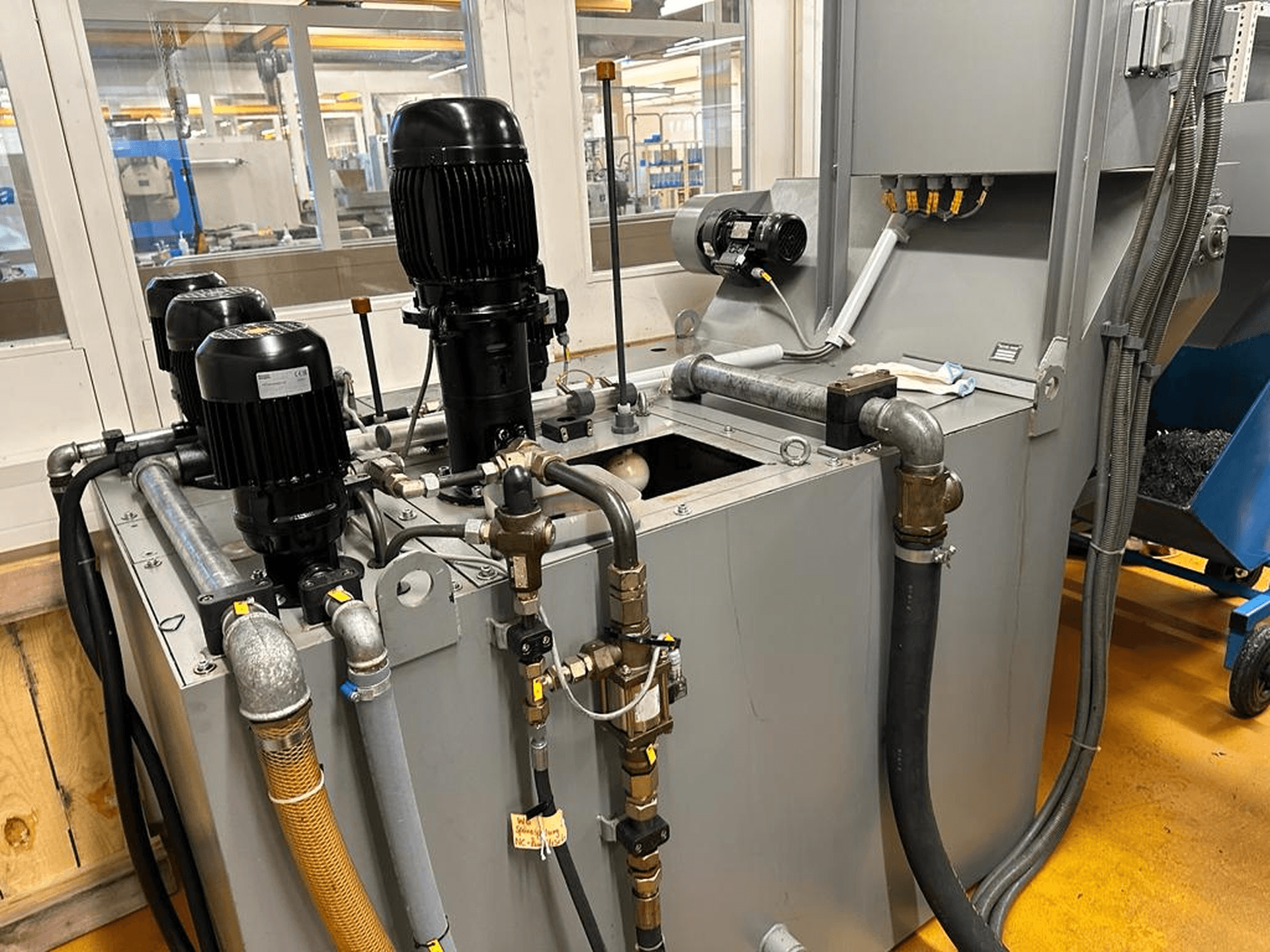

{"Operating time": "19467 Heures", "Number of axis total": "5", "Table length": "630 mm", "Table width": "500 mm", "Centering bore diameter": "50 mm", "Table load max.": "600 kg", "Longitudinal travel (X-axis)": "600 mm", "Transversal travel (y-axis)": "700 mm", "Vertical travel (z axis)": "550 mm", "Tool magazine number of tool places": "60", "Tool diameter max.": "100 mm", "Diameter with free adjacent pockets": "160 mm", "Tool lenght": "350 mm", "Max. tool-weight": "10 kg", "Spindle nose SK": "40 DIN 69871", "Spindle speeds:": "", "stepless": "", "from": "20 t/min", "up to": "12000 t/min", "Feed range": "1 - 10000 mm/min", "Voltage 50 Hz 3x": "400 Volt", "Machine's weight about": "9500 kg", "Overall dimensions machine:": "", "Length": "500 mm", "Width": "500 mm", "Height": "2484 mm", "Various accessories:": "", "Coolant system": "", "Coolant through spindle (cts)": "17 bar", "Pallets chanching device:": "", "Pallets: number": "2", "Max. Load": "600 kg", "Lamp": "", "Rotating viewing window": "", "Notes:": "", "Spindle changed": "2016"}
