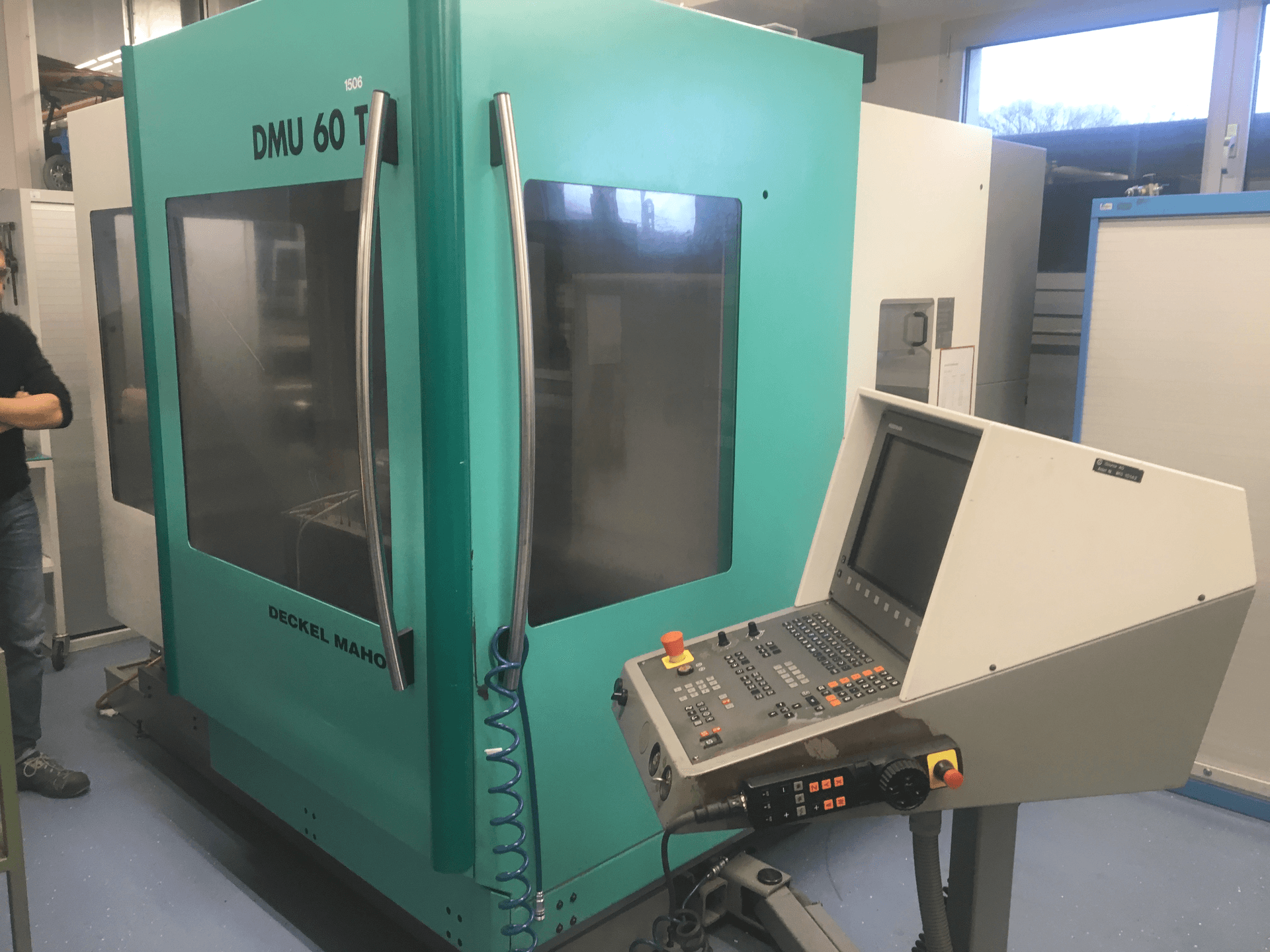

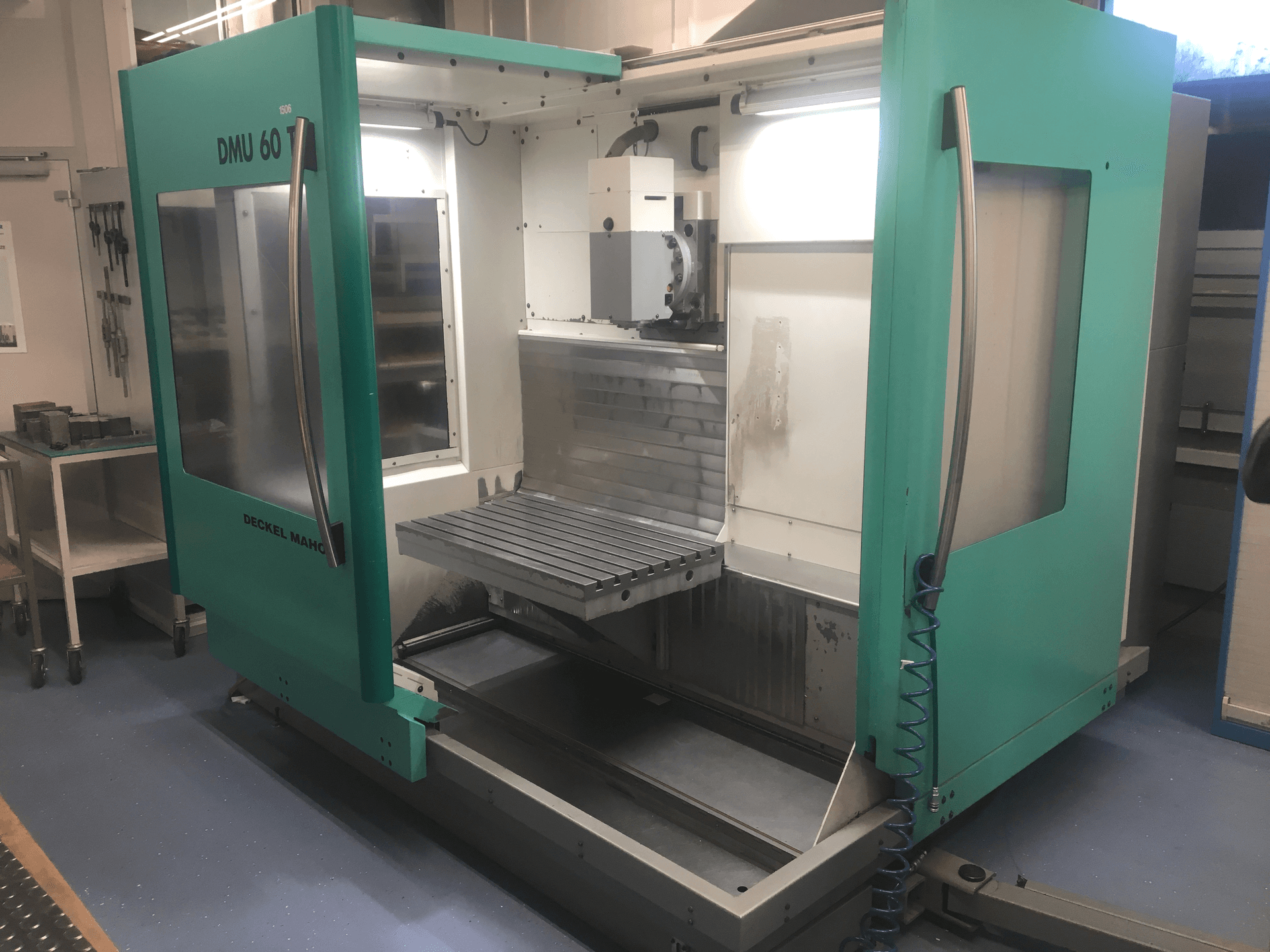

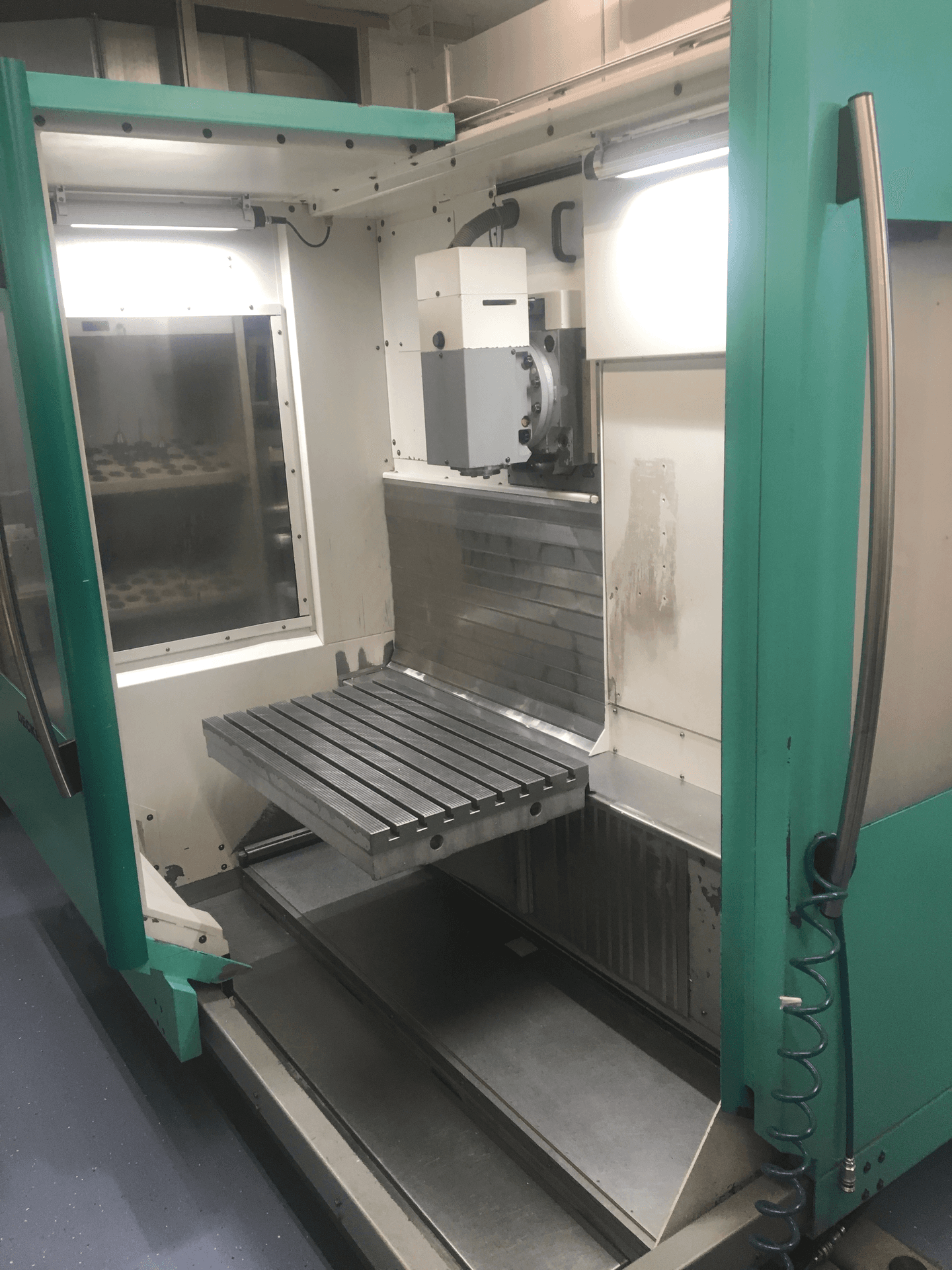

020593 - DMG DMU 60 T

Description

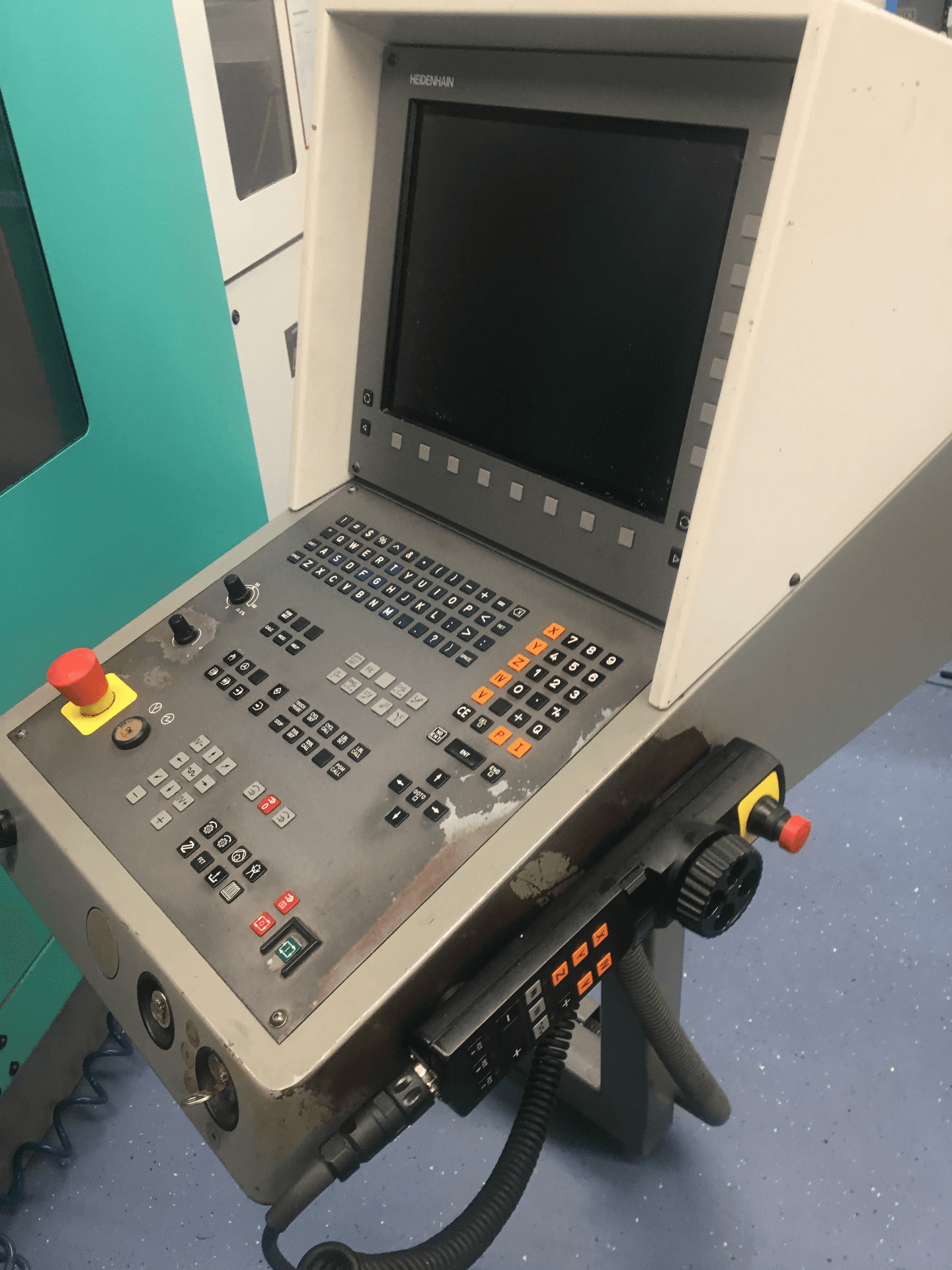

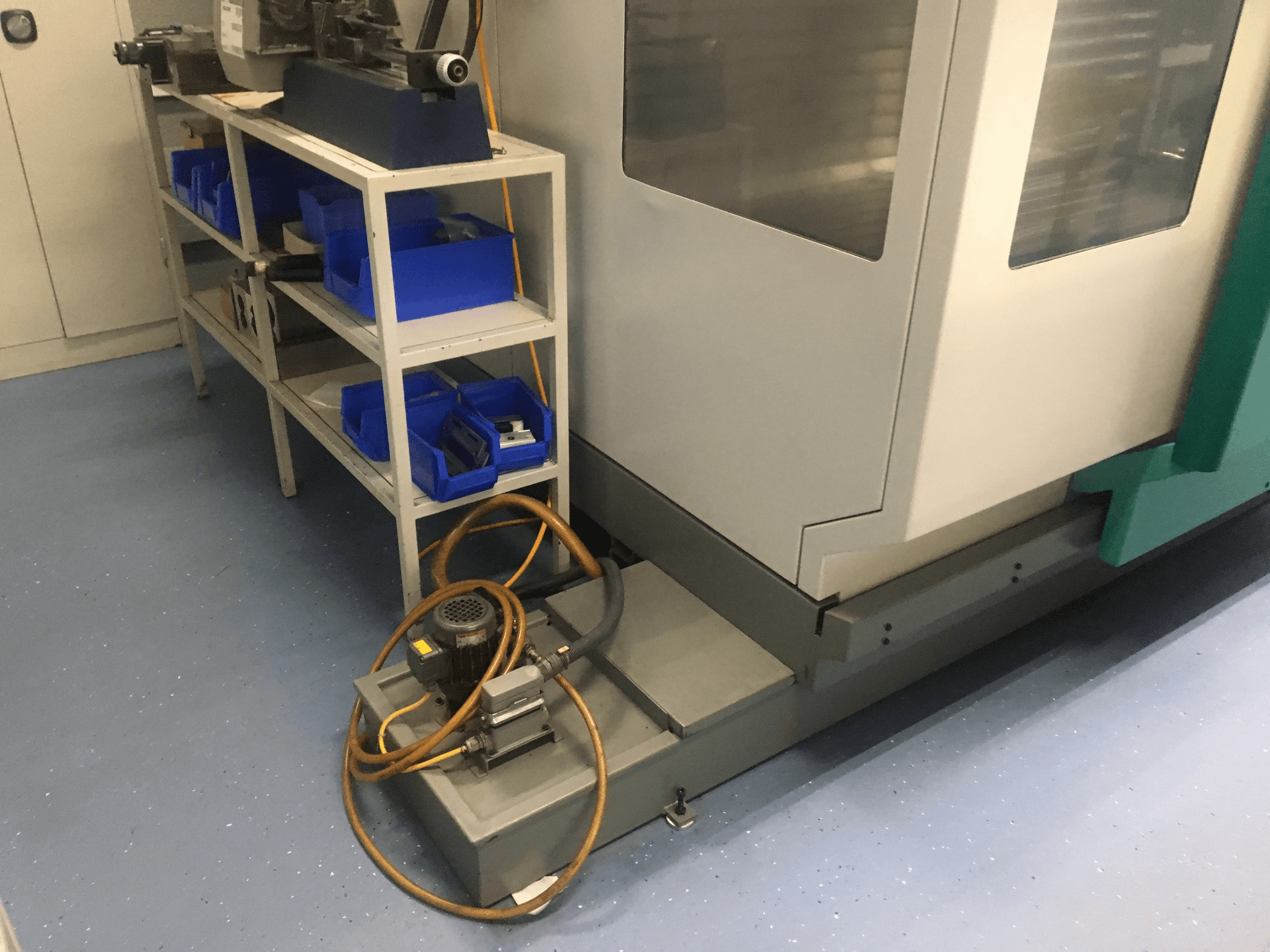

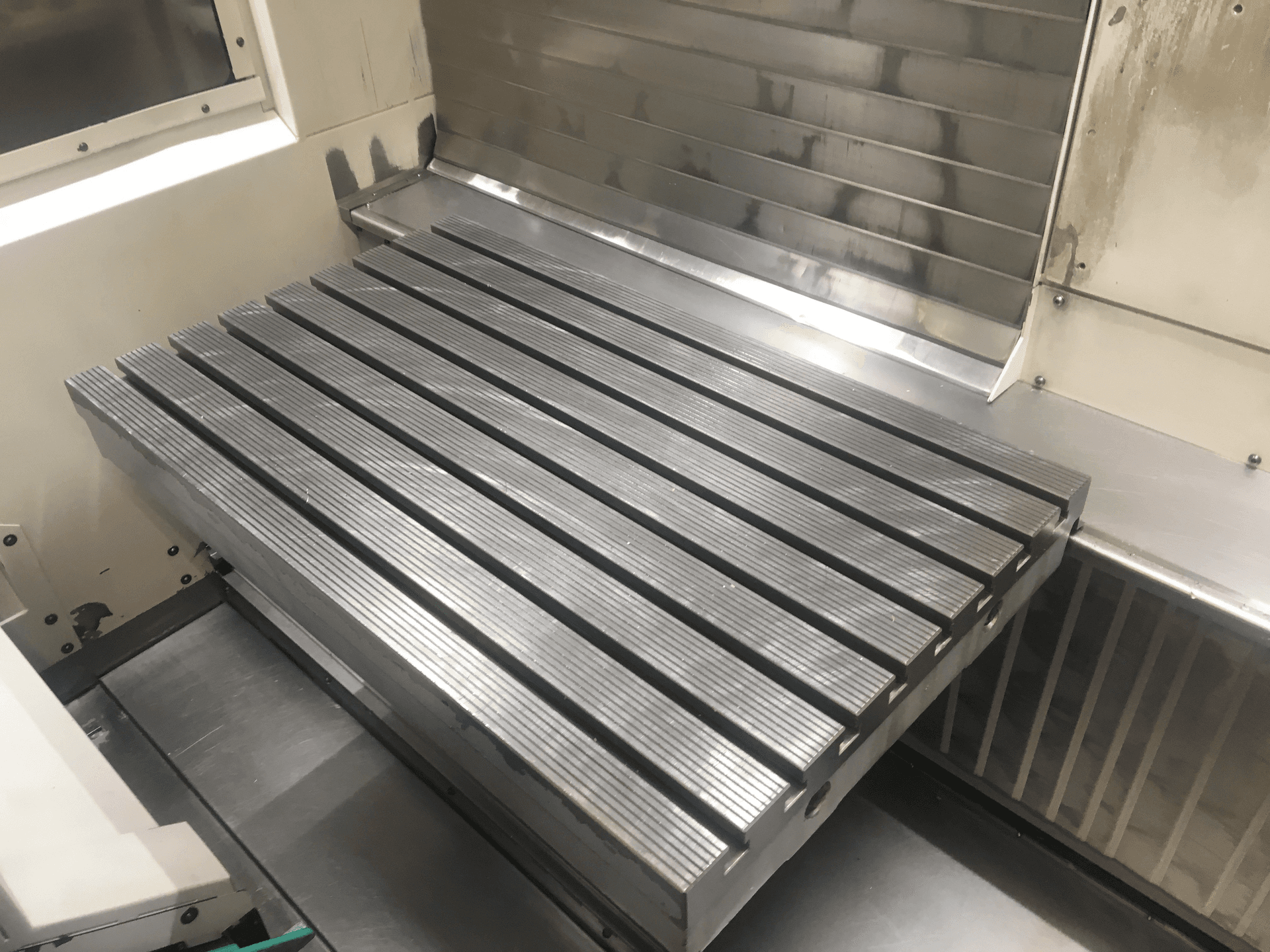

{"Number of axis simultaneous": "3", "Table length": "900 mm", "Table width": "543 mm", "Longitudinal travel (X-axis)": "600 mm", "Transversal travel (y-axis)": "525 mm", "Vertical travel (z axis)": "500 mm", "Position accuracy": "mm", "Table load max.": "350 kg", "Resolution": "0.001", "Tool changer:": "", "Number of tools": "25", "Tool diameter": "80 mm", "Diameter with free adjacent pockets": "160 mm", "Tool lenght": "315 mm", "Max. tool-weight": "8 kg", "Spindle nose SK": "40", "Vertical spindle speeds:": "", "stepless": "", "from": "20 t/min", "up to": "12000 t/min", "Feed range": "20 - 10000 mm/min", "Input resolution": "mm", "Rapid traverse: long.": "18 m/min", "Rapid traverse: transversal": "18 m/min", "Rapid traverse: vertical": "18 m/min", "Vertical quill travel": "90 mm", "Air connect": "5.5 - 8.0 bar", "Voltage 50 Hz 3x": "400 Volt", "Spindle motor": "7.5 kW", "Machine's weight about": "4100 kg", "Overall dimensions machine:": "", "Length": "2900 mm", "Width": "2000 mm", "Height": "2300 mm", "Various accessories:": "", "Full splash cabin": "", "Coolant system": "", "Electronic hand held control": "", "Lamp": "", "RS-232 Interface": "", "Central lubrification": ""}
