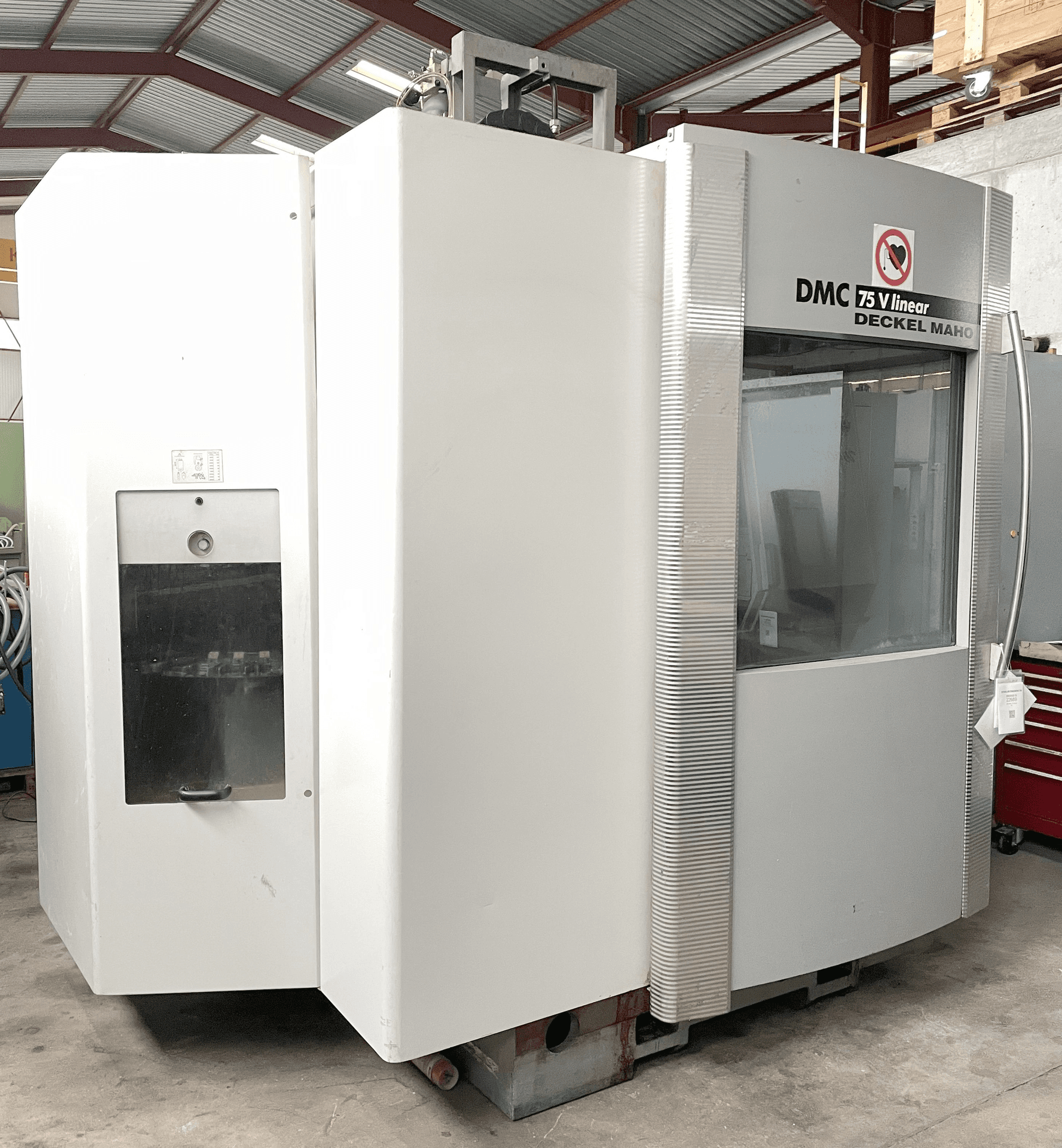

022689 - DMG DMC 75 V linear

Description

{"Number of axis total": "5", "Longitudinal travel (X-axis)": "885 mm", "Transversal travel (y-axis)": "600 mm", "Vertical travel (z axis)": "600 mm", "Table load max.": "600 kg", "B axis swivelling range": "+10/-110 \u00b0", "C axis": "360 \u00b0", "Table speed": "100 t/min", "Tool changer:": "", "Tool magazine number of tool places": "60", "Tool diameter": "40 mm", "Tool lenght": "300 mm", "Spindle nose: HSK-A": "63", "Spindle speeds:": "", "stepless": "", "from": "0 t/min", "up to": "28000 t/min", "Rapid traverse:": "90 m/min", "Air connect": "6 bar", "Voltage 50 Hz 3x": "400 Volt", "Spindle power": "55/43.5 kW", "Machine's weight about": "11000 kg", "Overall dimensions machine:": "", "Length": "3255 mm", "Width": "2450 mm", "Height": "3150 mm", "Various accessories:": "", "High pression colant device": "60 bar", "Chip conveyor": "", "Handwheel electroinic": ""}
