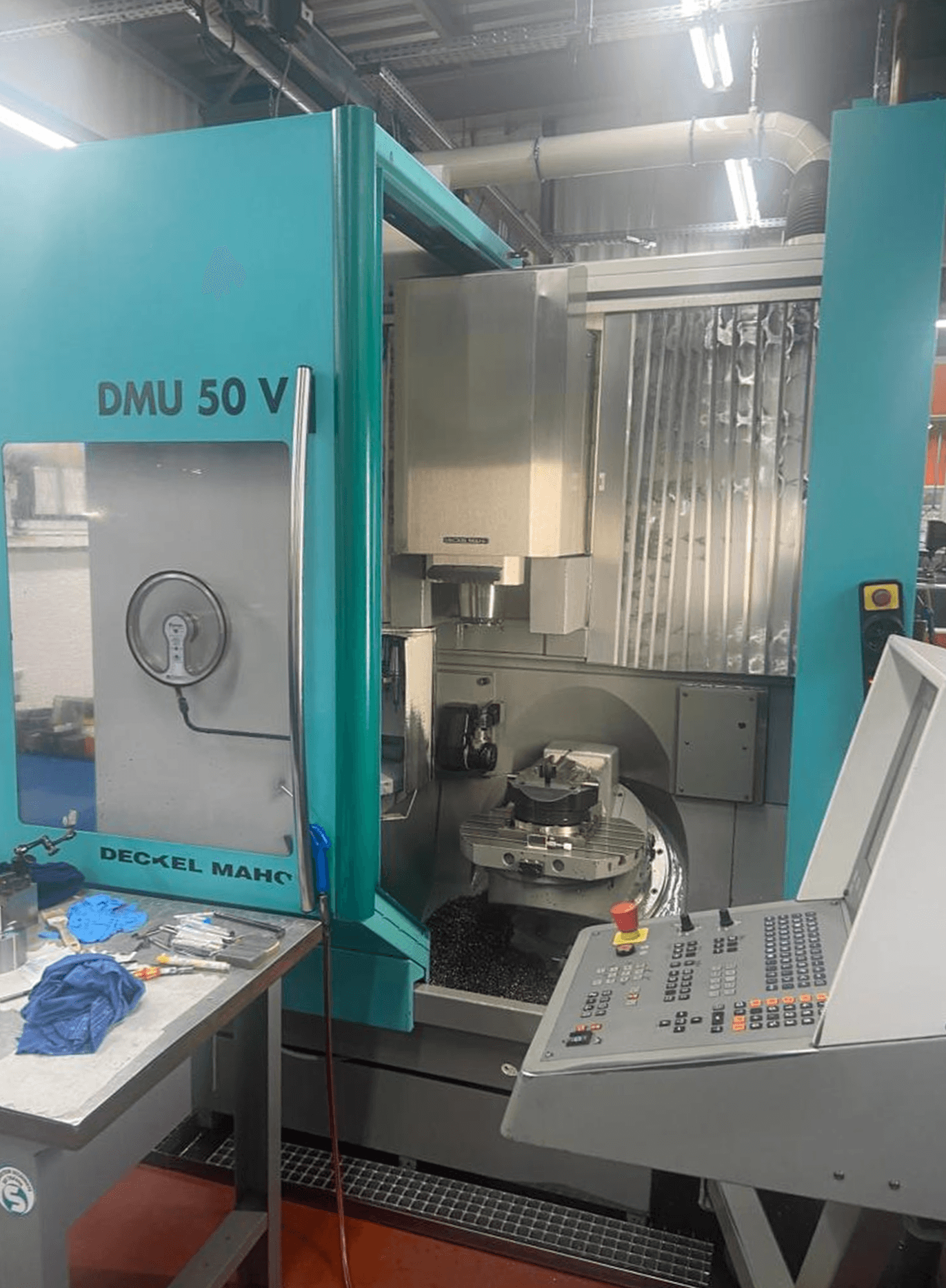

021995 - DMG DMU 50 V

Description

{"Time under power": "82274 Heures", "Operating time": "81288 Heures", "Number of axis total": "5", "Table length": "500 mm", "Table width": "380 mm", "Number of T-channels": "5", "Distance of the T-slots": "63 mm", "T-channel width": "14H7 mm", "Centering bore diameter": "30H7 mm", "Table load max.": "200 kg", "Longitudinal travel (X-axis)": "500 mm", "Transversal travel (y-axis)": "380 mm", "Vertical travel (z axis)": "380 mm", "Swivel angle (a-axis)": "180 \u00b0", "B axis": "\u00b0", "Table speeds:": "", "up to": "8000 t/min", "Tool changer:": "", "Number of tools": "24 (2x12)", "Tool diameter": "80 mm", "Diameter with free adjacent pockets": "130 mm", "Tool lenght": "280 mm", "Max. tool-weight": "6 kg", "Spindle nose SK": "40 DIN 69871 A", "Spindle speeds:": "", "from": "20 t/min", "Vertical spindle speeds:": "", "stepless": "", "Feed range": "10000 mm/min", "Rapid traverse:": "30 m/min", "Vertical quill travel": "90 mm", "Air connect": "6 bar", "Voltage 50 Hz 3x": "400 Volt", "Spindle motor": "15 / 10 kW", "Torque max.": "130 / 87 Nm", "Total power required": "26 kVA", "Machine's weight about": "3500 kg", "Overall dimensions machine:": "", "Length": "2450 mm", "Width": "1800 mm", "Height": "2380 mm", "Various accessories:": "", "Touch Probe": "HEIDENHAIN", "Handwheel electroinic": "", "Lamp": "", "Rotating viewing window": "", "Interface serial port RS 232": "", "Switch cabinet Air conditioner": ""}
