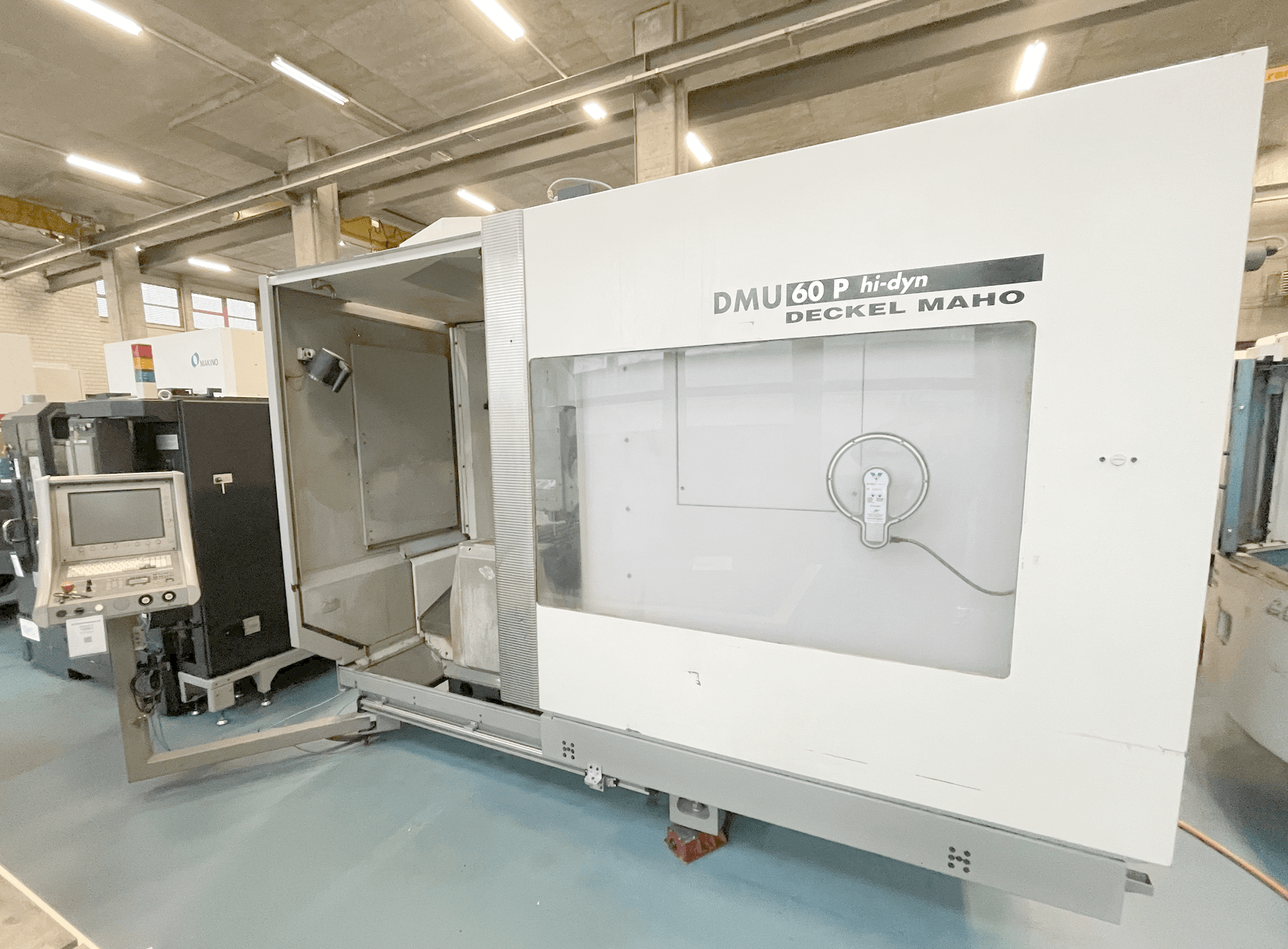

019561 - DMG DMU 60 P hy-din

Description

{"Number of axis simultaneous": "5", "Number of spindles": "1", "Number of tables": "1", "Circulary table diameter": "630 mm", "Number of T-channels": "9", "Distance of the T-slots": "63 mm", "T-channel width": "14H7 mm", "Centering bore diameter": "50H6 mm", "Longitudinal travel (X-axis)": "600 mm", "Transversal travel (y-axis)": "700 mm", "Vertical travel (z axis)": "600 mm", "Dimension of the workpice:": "", "Height": "2628 mm", "Diameter": "920 mm", "Table load max.": "500 kg", "Table divisions (B)": "360 \u00b0", "A axis": "", "Swivel angle (a-axis)": "+45/-30 \u00b0", "Holding torque A-axis": "3866 Nm", "Clamping torque C-axis": "6008 Nm", "Torque max.": "2650 Nm", "Tool changer:": "", "Number of tools": "180", "Tool diameter": "80 mm", "Diameter with free adjacent pockets": "160 mm", "Tool lenght": "350 mm", "Max. tool-weight": "10 kg", "Spindle nose SK": "40 DIN 69871", "Spindle speeds:": "", "stepless": "", "up to": "15000 mm/min", "Feeds:": "", "longitudinal from": "20 mm/min", "transversal from": "20 mm/min", "vertical from": "20 mm/min", "Rapid traverse:": "40 m/min", "Measurement system:": "", "Resolution": "\u00b5m", "Air connect": "5 - 8 bar", "Voltage 50 Hz 3x": "400 Volt", "Total power required": "44 kVA", "Noise level": "80 dB (A)", "Machine's weight about": "7500 kg", "Overall dimensions machine:": "", "Length": "7500 mm", "Width": "4500 mm", "Various accessories:": "", "Set of toolholders": "SK 40 ca 150x", "High pression colant device": "40 bar", "Coolant through spindle (cts)": "", "Tool setter Renishaw": "", "Lamp": "", "Rotating viewing window": "", "Switch cabinet Air conditioner": ""}
