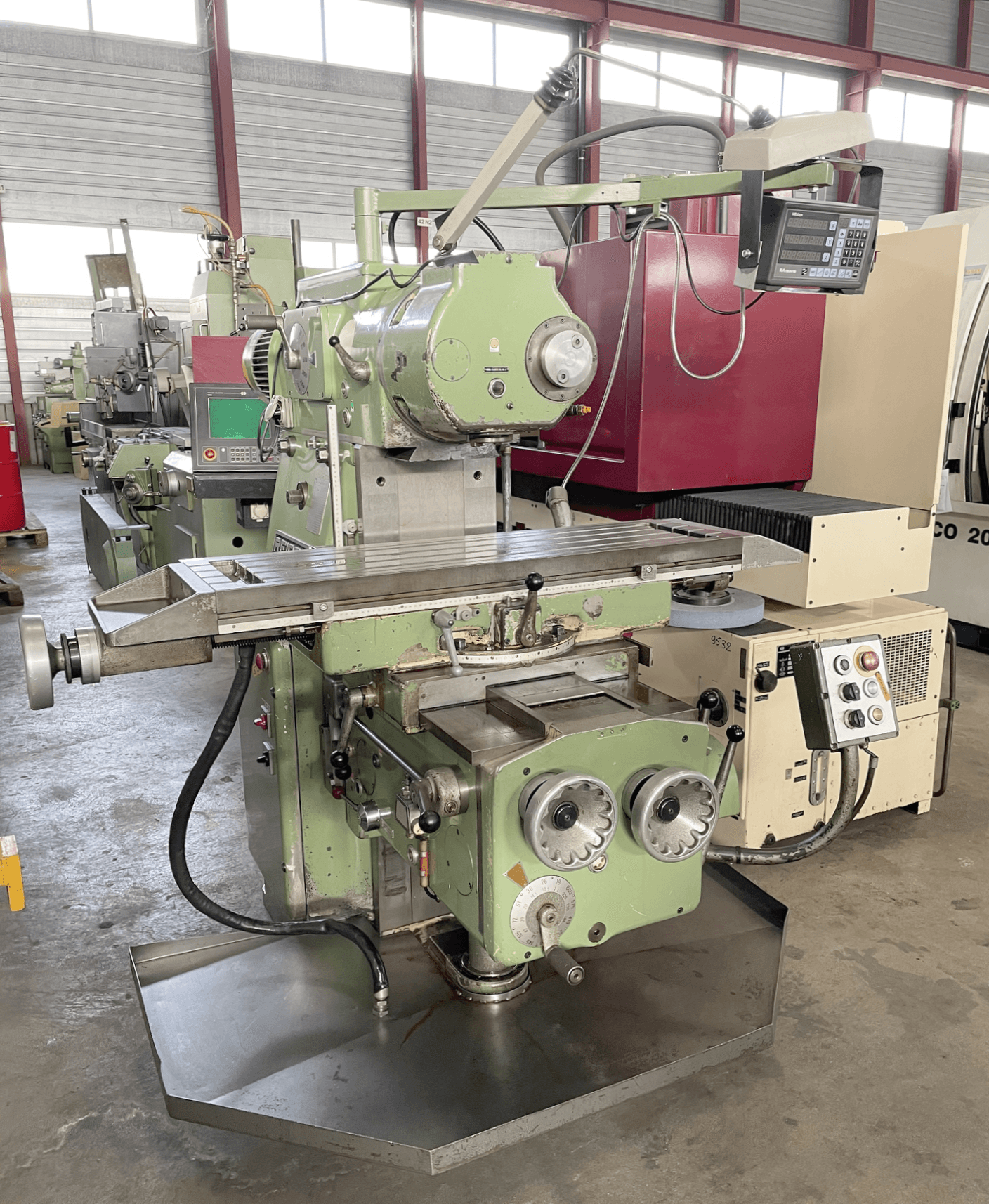

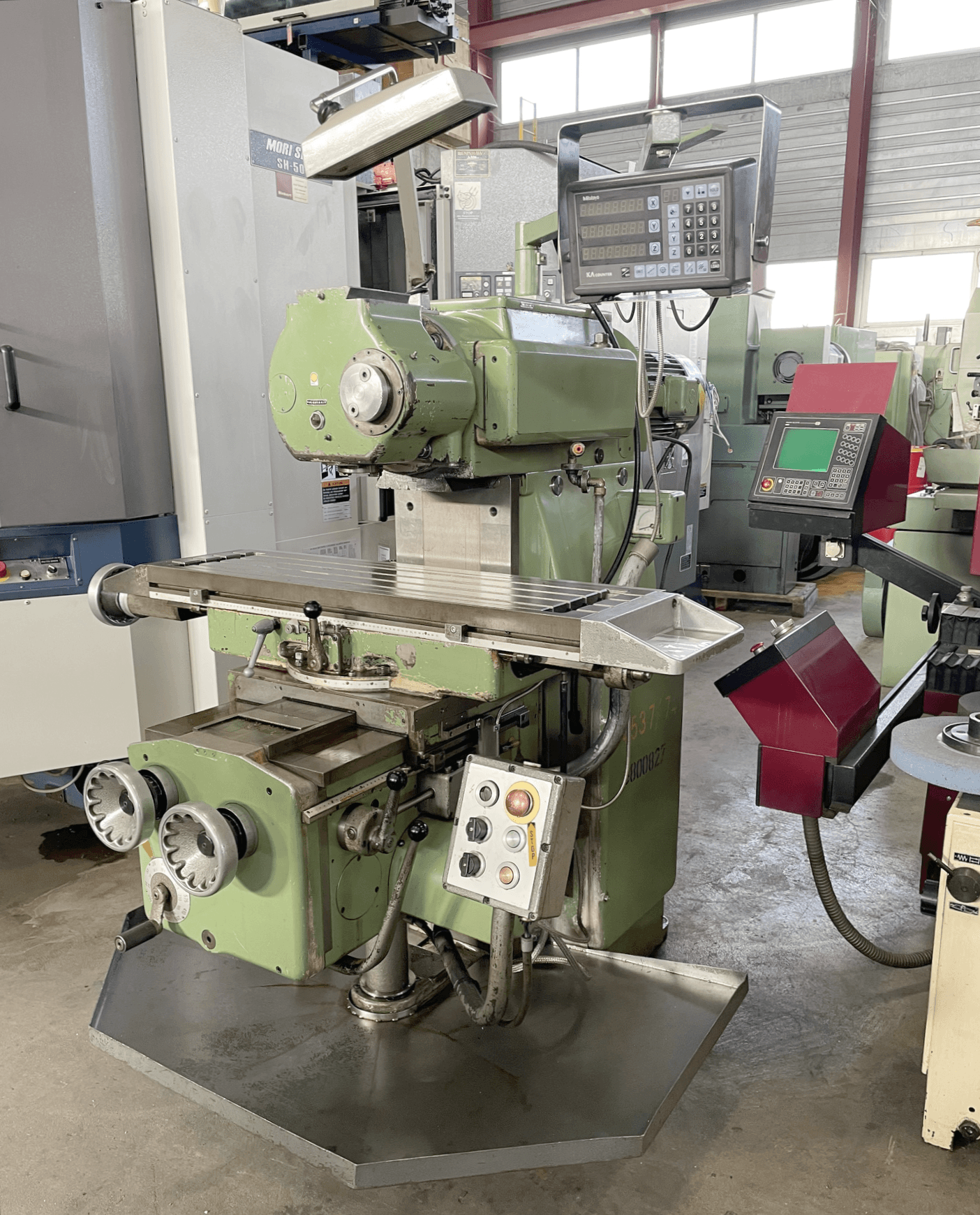

021348 - REIDEN FU 100 AS

Description

{"Table length": "1100 mm", "Table width": "300 mm", "Longitudinal travel (X-axis)": "700 mm", "Transversal travel (y axis)": "250 mm", "Vertical travel (z axis)": "470 mm", "Travel of the upper slide": "400 mm", "Spindle speeds:": "", "number (steps)": "12", "from": "45 t/min", "up to": "320 mm/min", "Taper in spindle": "40 ISO", "Feeds steps:": "12", "longitudinal from": "18.0 mm/min", "transversal from": "18.0 mm/min", "vertical from": "7.2 mm/min", "Rapid traverse:": "", "longitudinal": "2.5 m/min", "transversal": "2.5 m/min", "vertical": "1.0 m/min", "Voltage 50 Hz 3x": "380 Volt", "Motor output": "6.0 CV", "Machine's weight about": "1900 kg", "Overall dimensions machine:": "", "Length": "2000 mm", "Width": "1600 mm", "Height": "1700 mm", "Various accessories:": "", "Digital readout number of axis:": "3", "Manufacturer": "Mitutoyo", "Coolant system": "", "Lamp": "", "Chip tray": ""}
