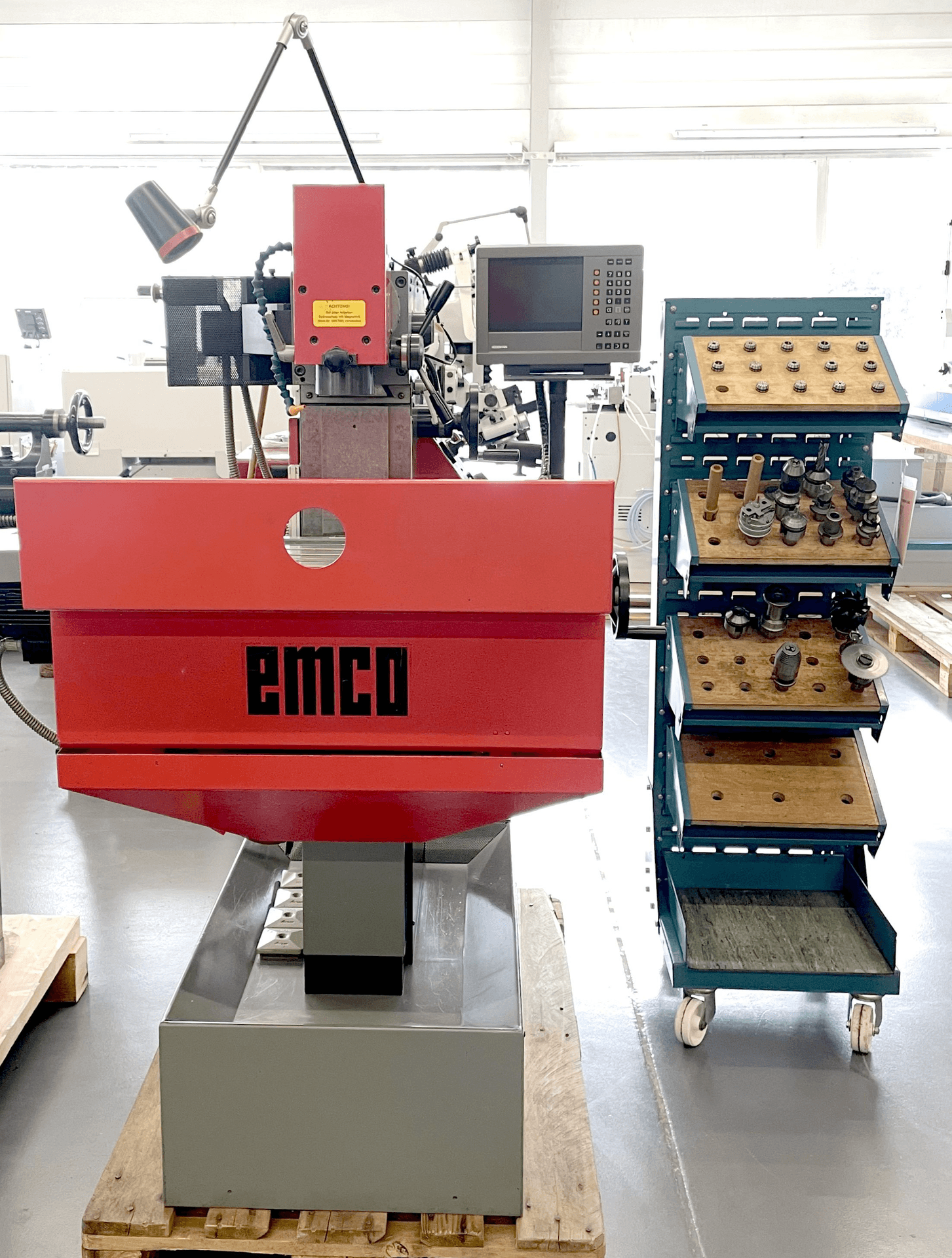

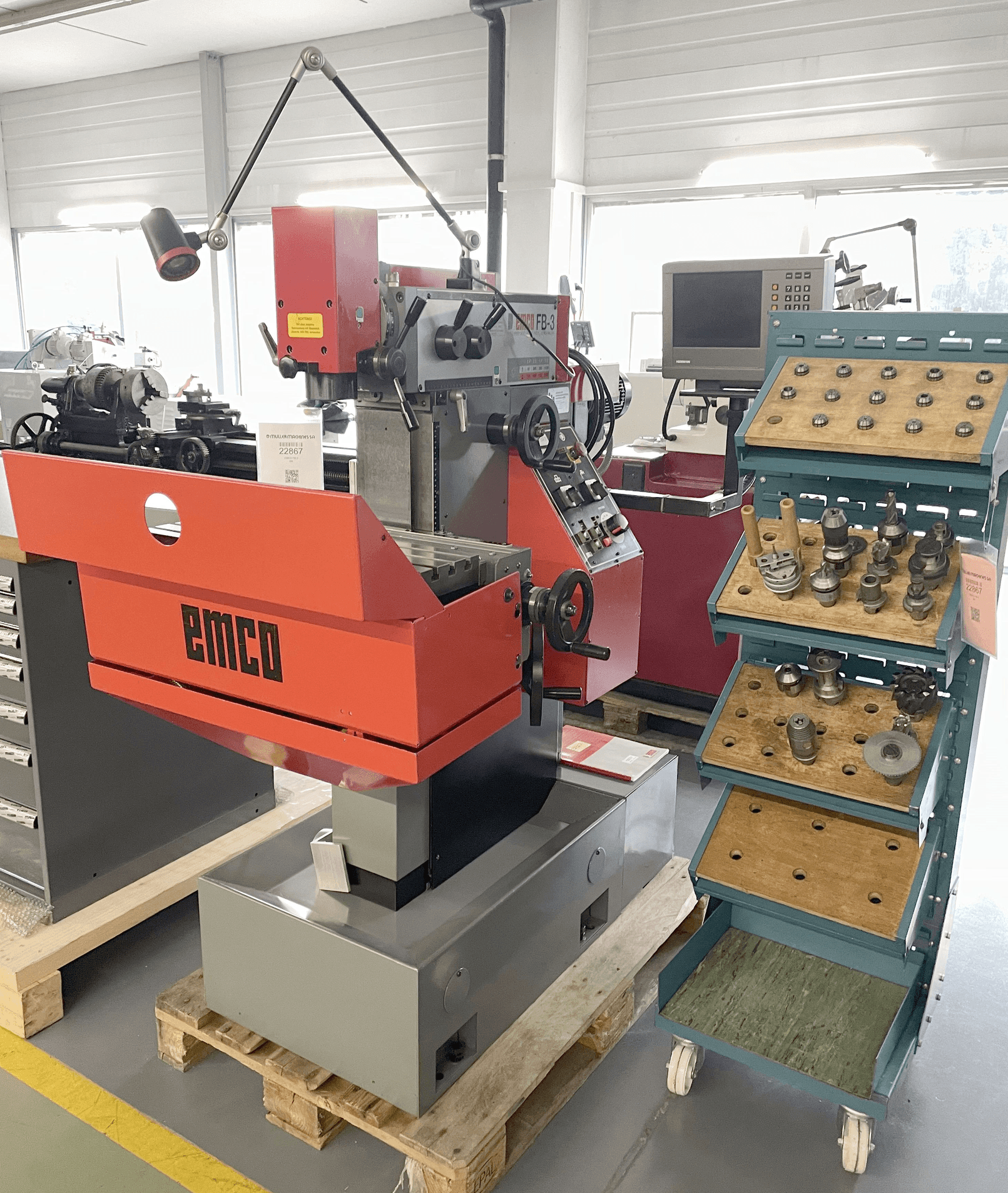

022867 - EMCO FB-3

Description

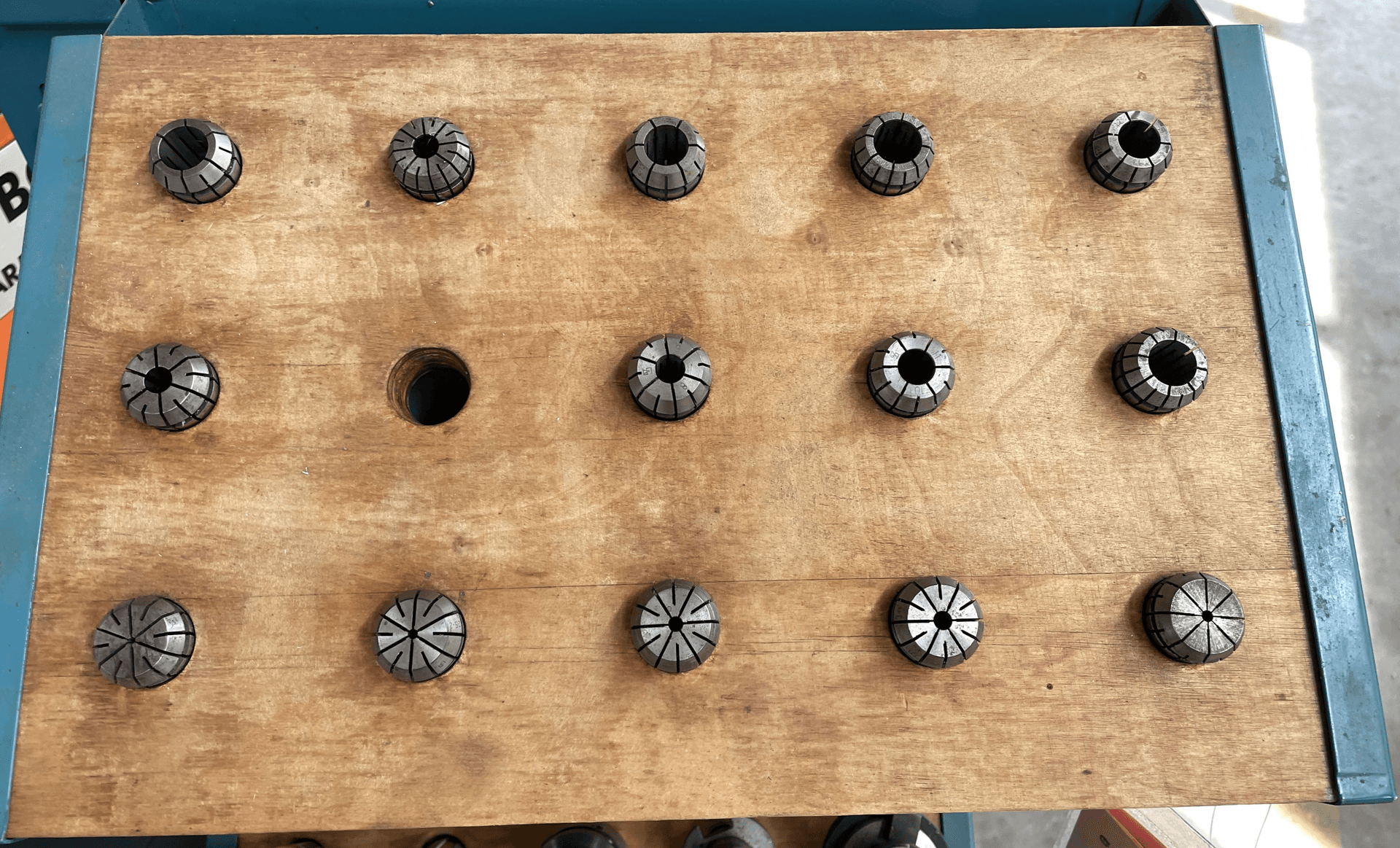

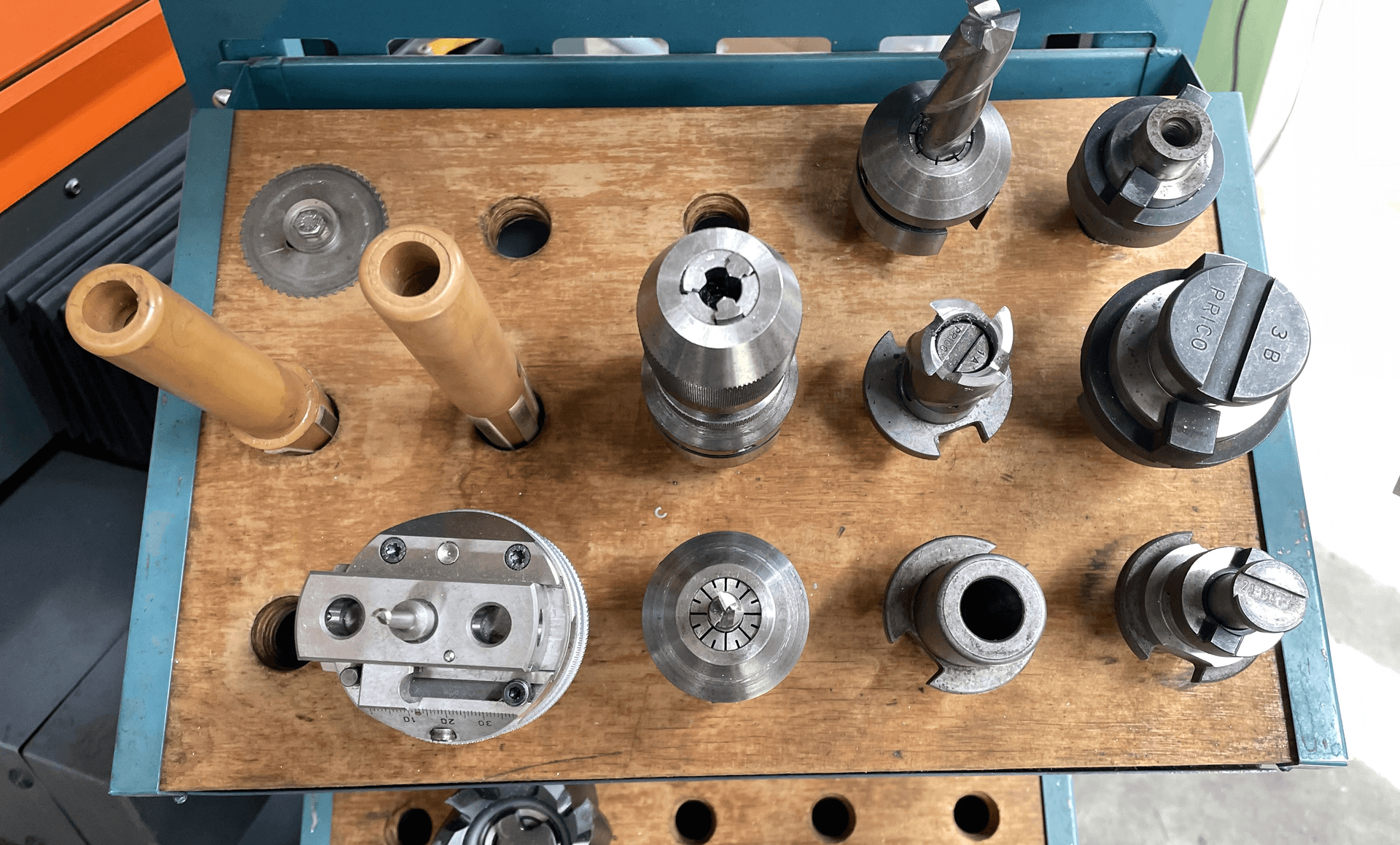

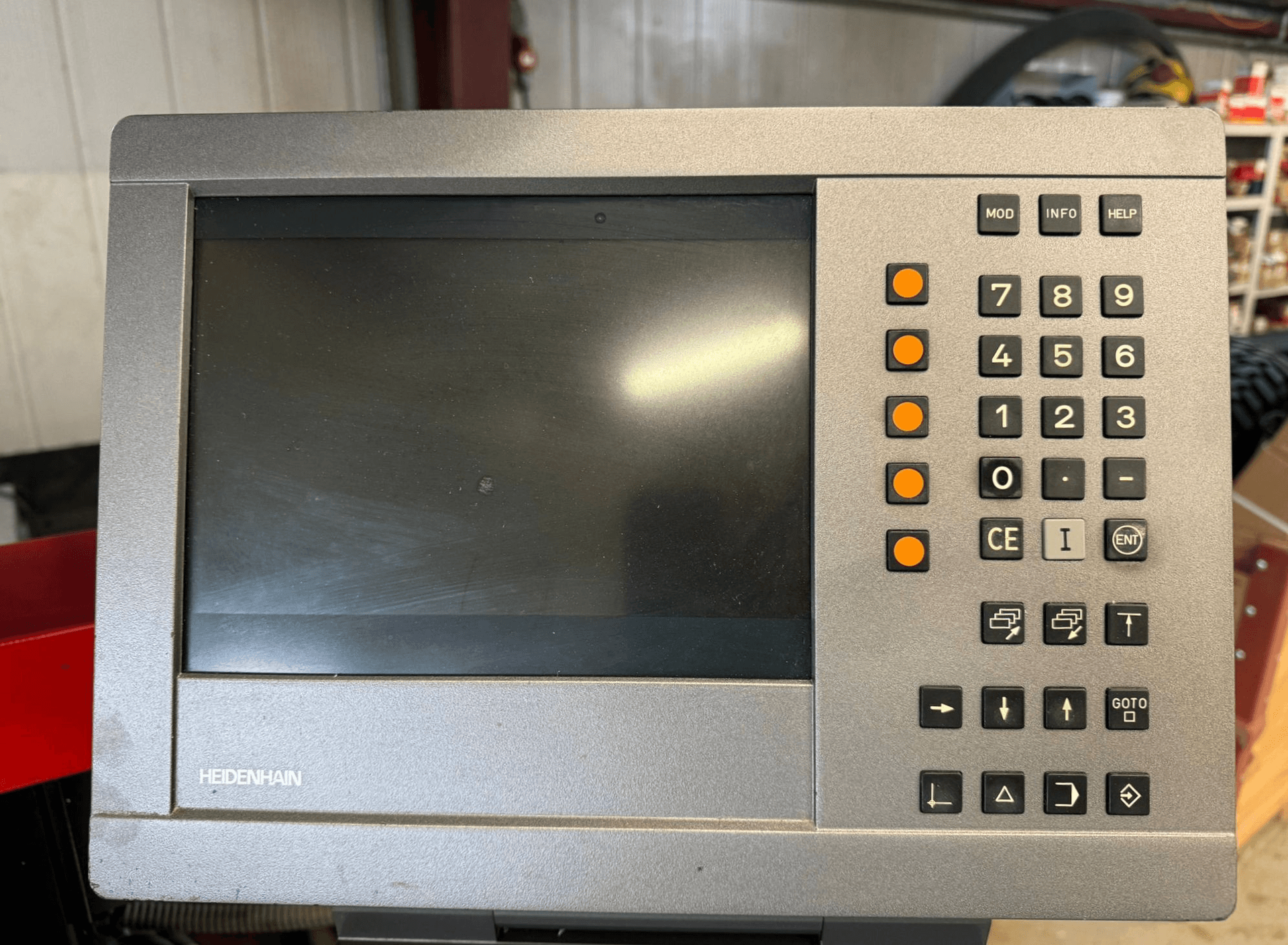

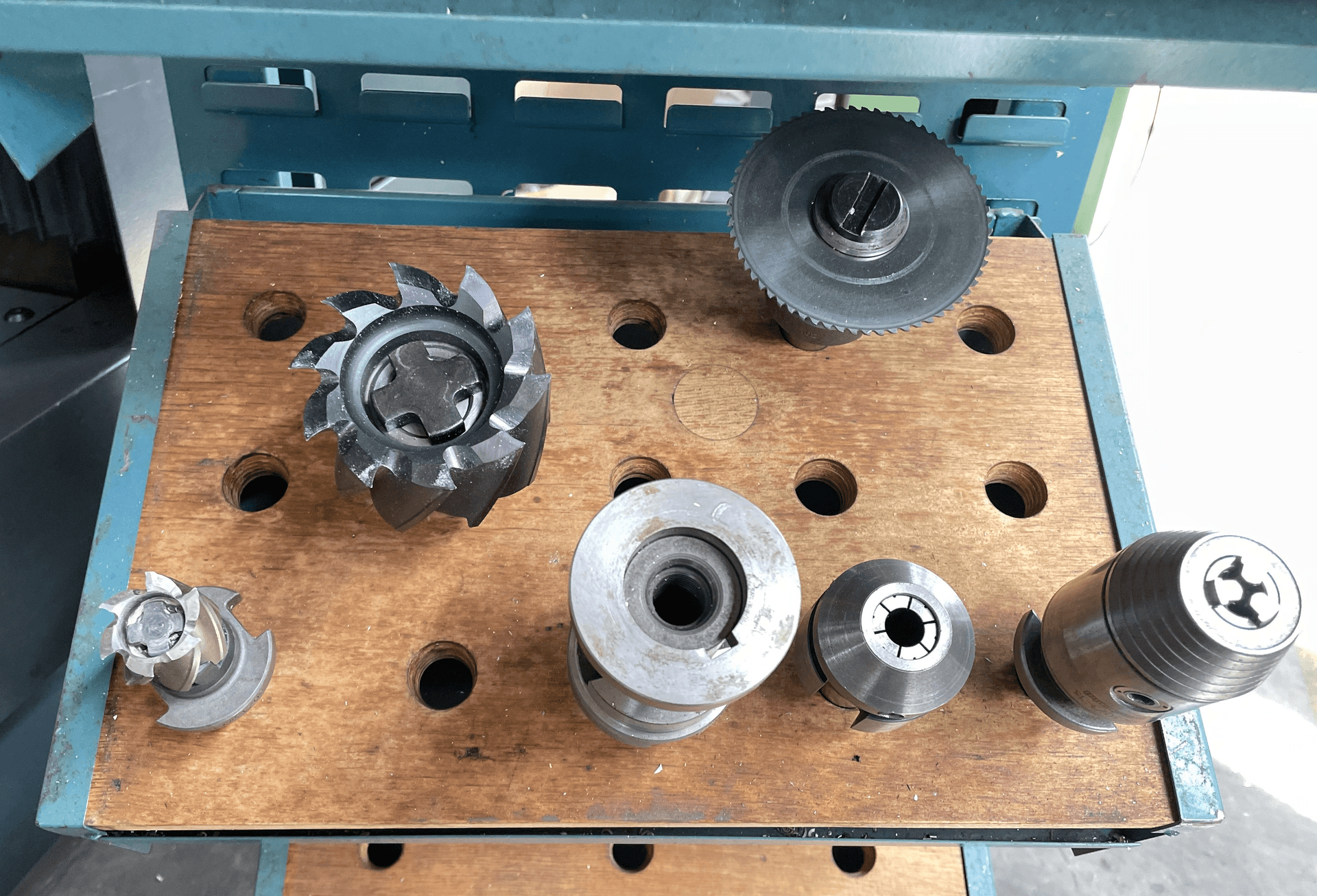

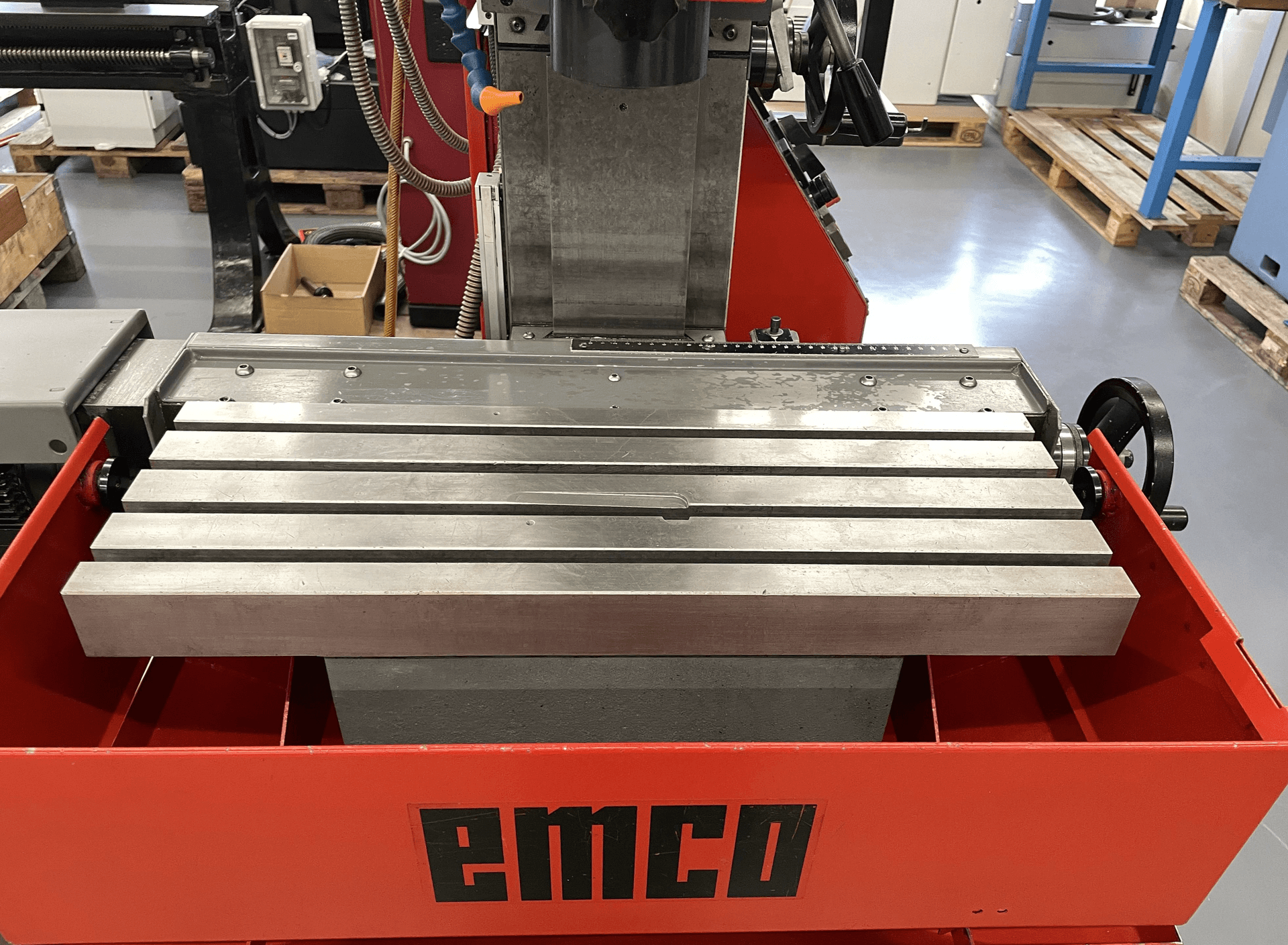

{"Table length": "600 mm", "Table width": "180 mm", "Number of T-channels": "4", "Longitudinal travel (X-axis)": "300 mm", "Transversal travel (y axis)": "200 mm", "Vertical travel (z axis)": "350 mm", "Spindle stroke": "45 mm", "Table load max.": "50 kg", "Spindle speeds:": "", "number (steps)": "6", "from": "80 t/min", "up to": "2200 t/min", "Taper in spindle:": "SK 30", "Swivel range Vertical milling head": "+/-90 \u00b0", "Rapid traverse:": "12 m/min", "Voltage 50 Hz 3x": "380 Volt", "Spindle motor": "1.1 / 1.4 kW", "Machine's weight about": "500 kg", "Overall dimensions machine:": "", "Length": "1500 mm", "Width": "1150 mm", "Height": "1550 mm", "Various accessories:": "", "Digital readout number of axis:": "3", "Manufacturer": "HEIDENHAIN", "Coolant system": "", "Boring head": "", "Collet holder": "", "Set of collets": "", "Set of toolholders": "", "Drill chuck": "", "Tool storage": "", "Lamp": ""}
