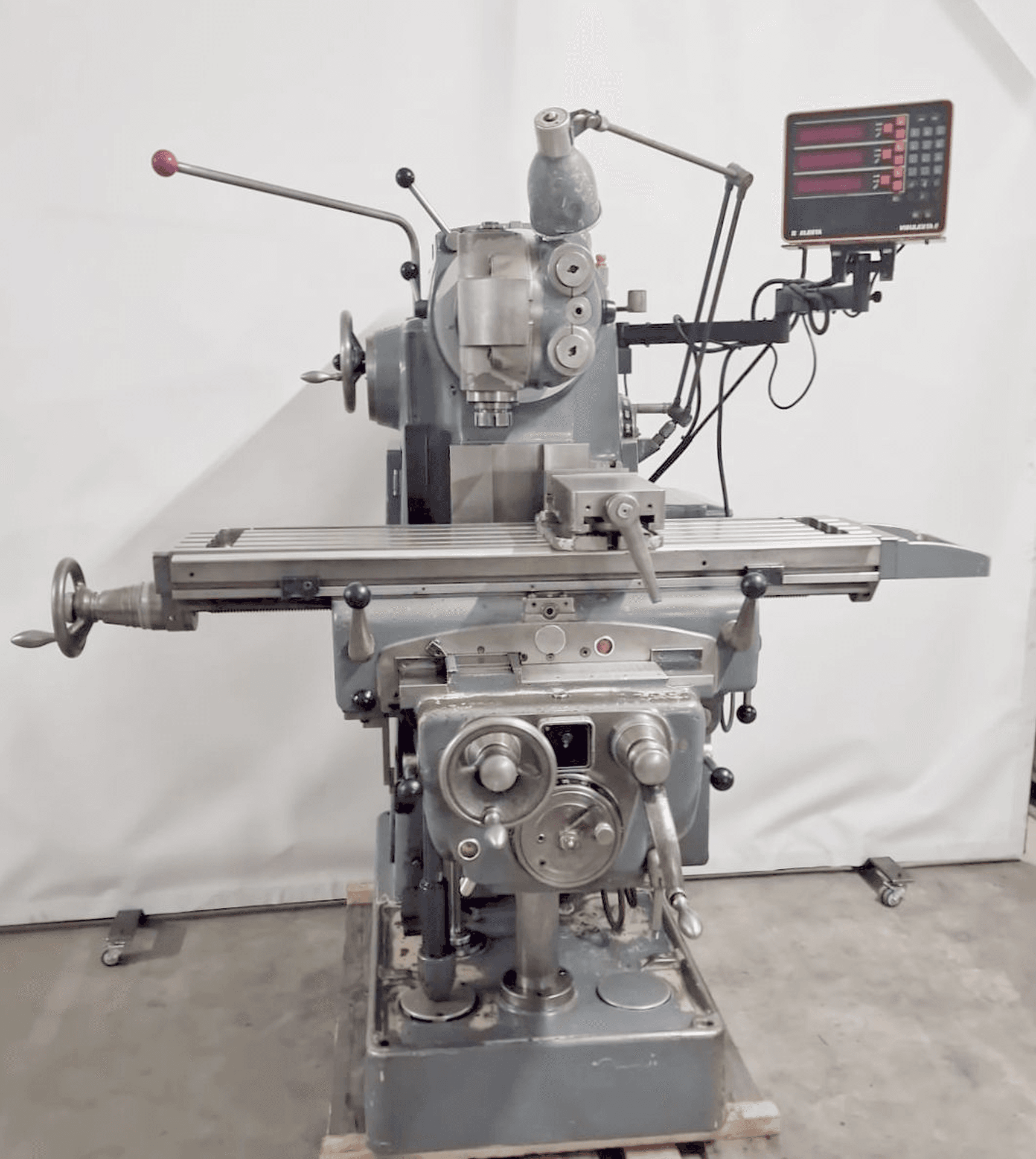

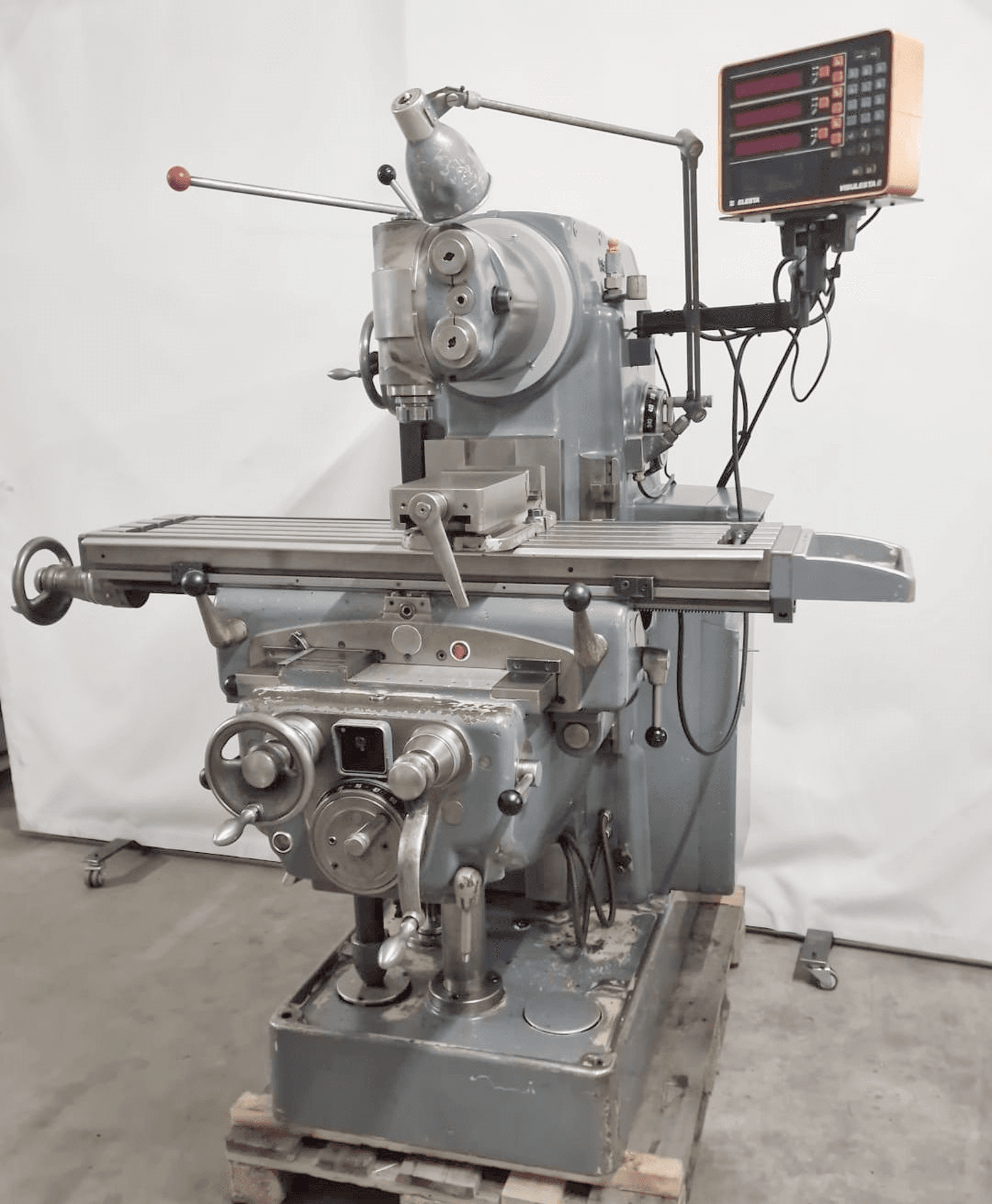

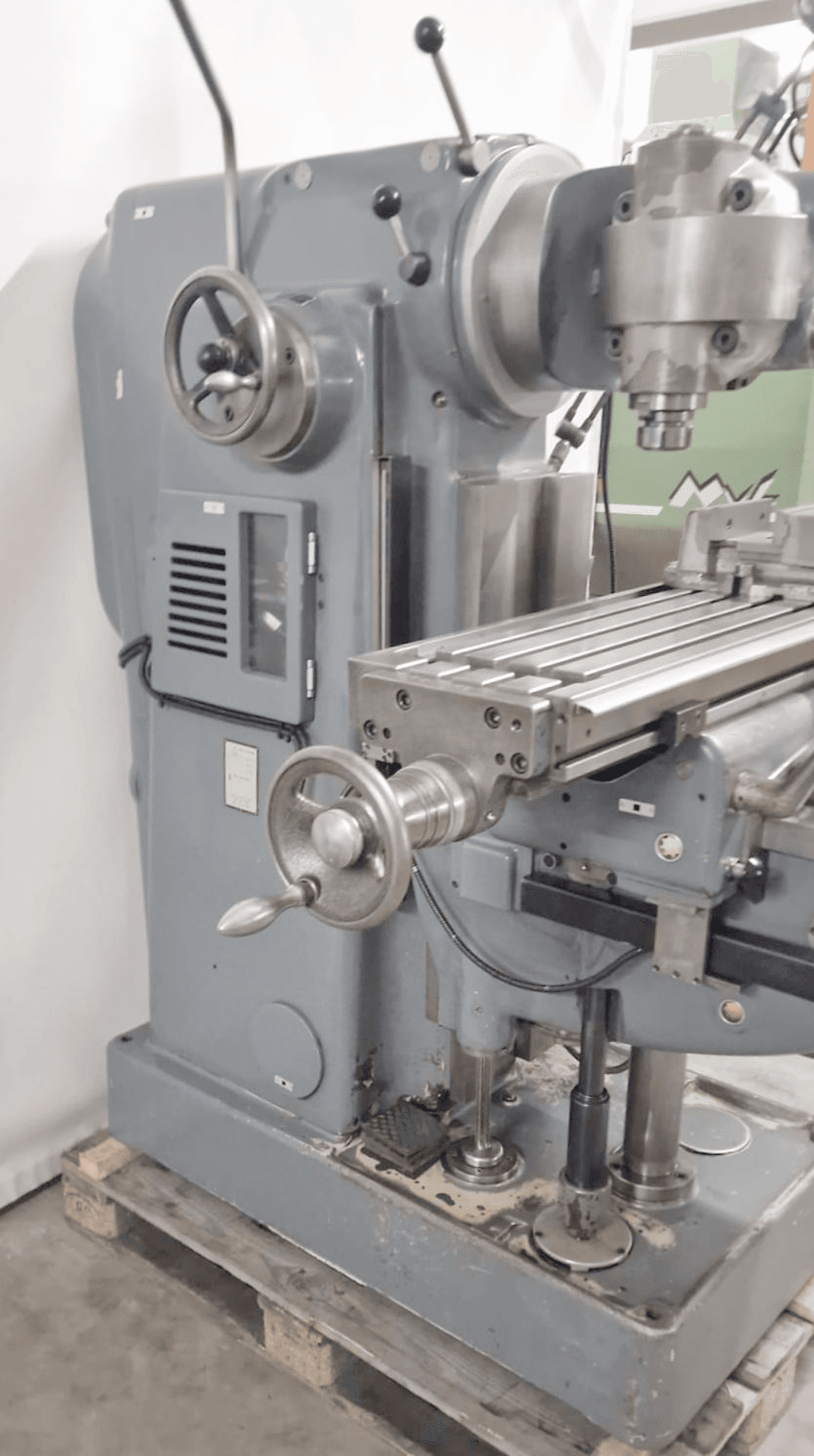

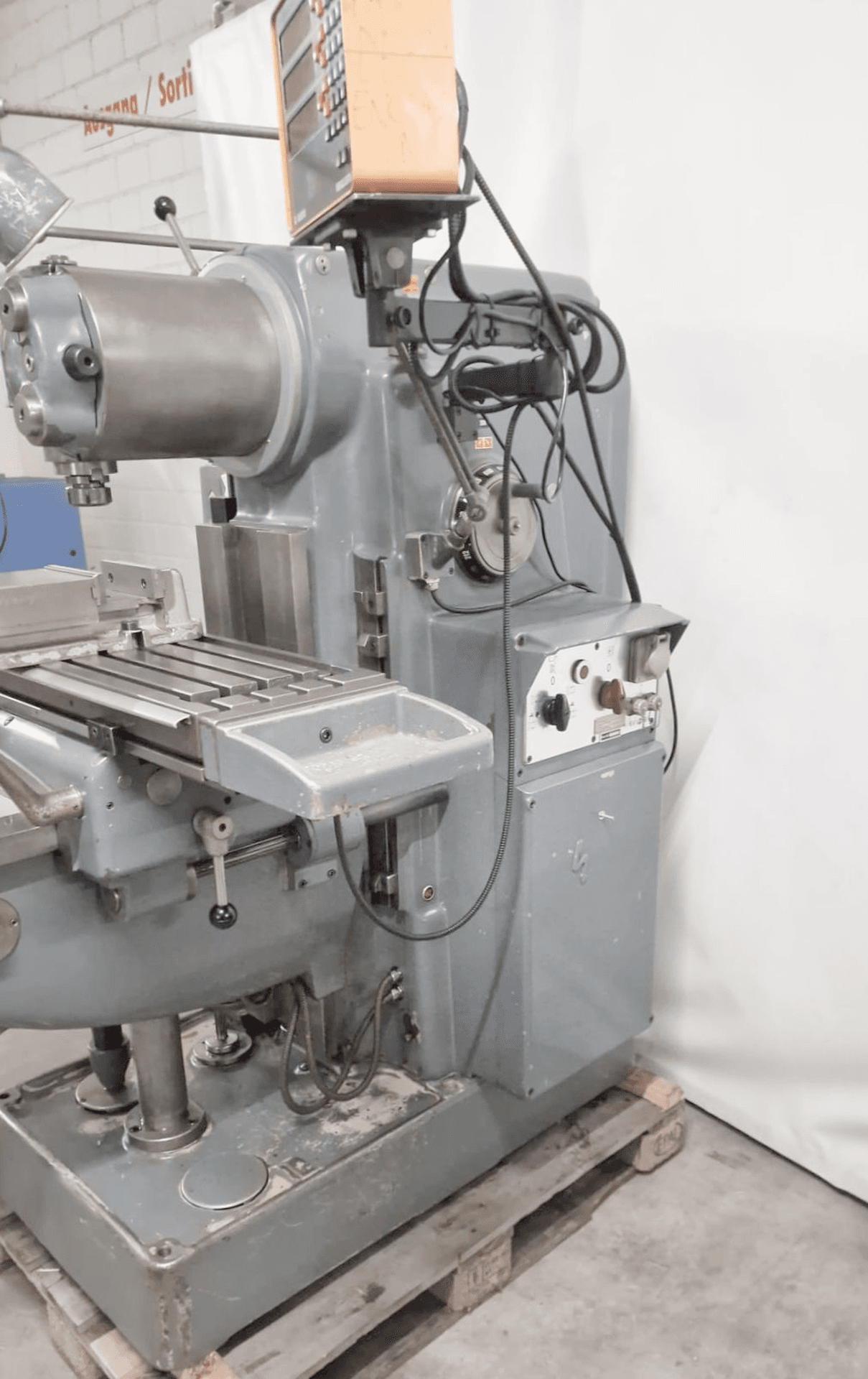

022695 - SCHAUBLIN 53

Price on request

Condition: NEW· Manufacturer: SCHAUBLIN· Country: Switzerland

Description

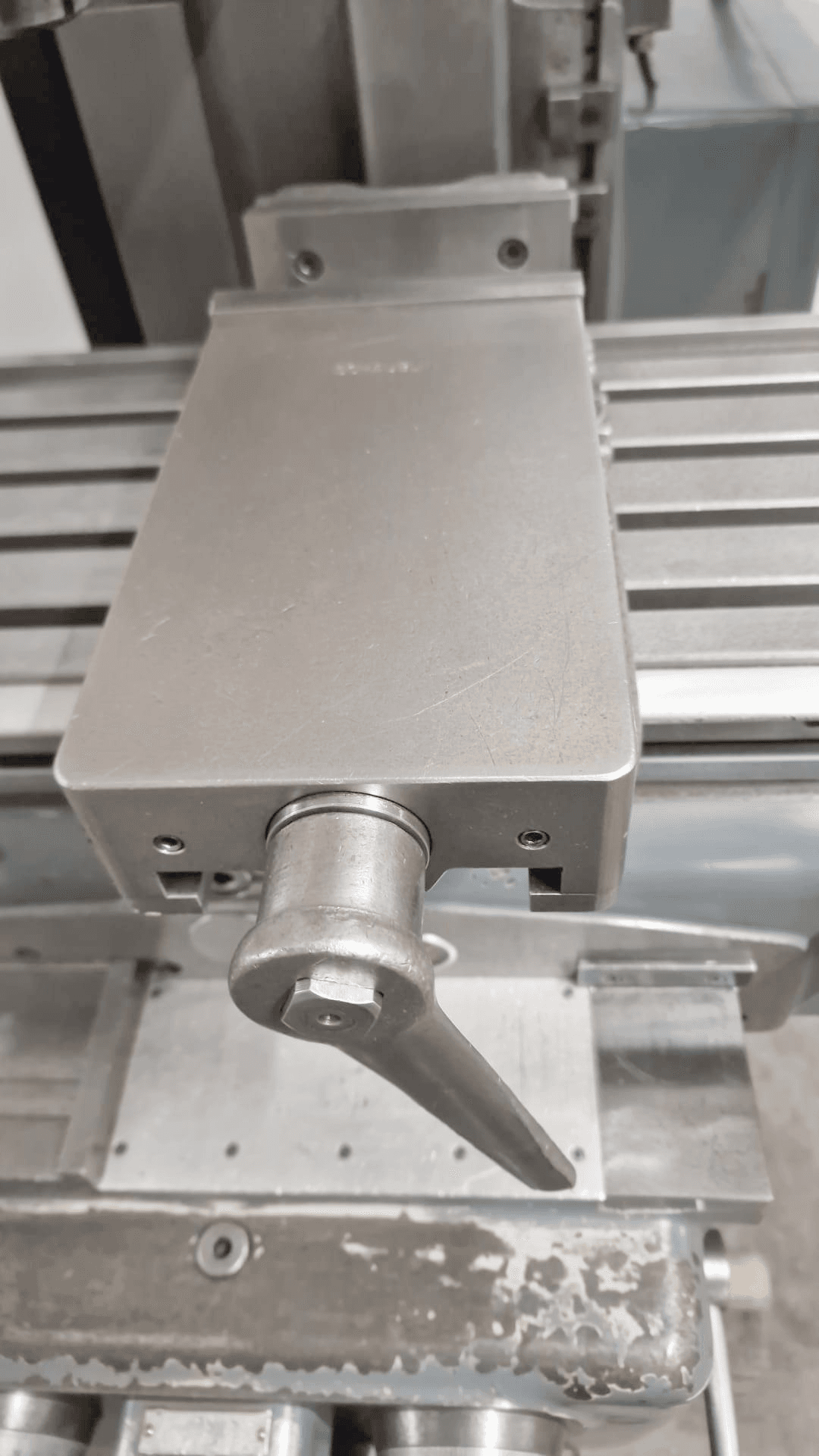

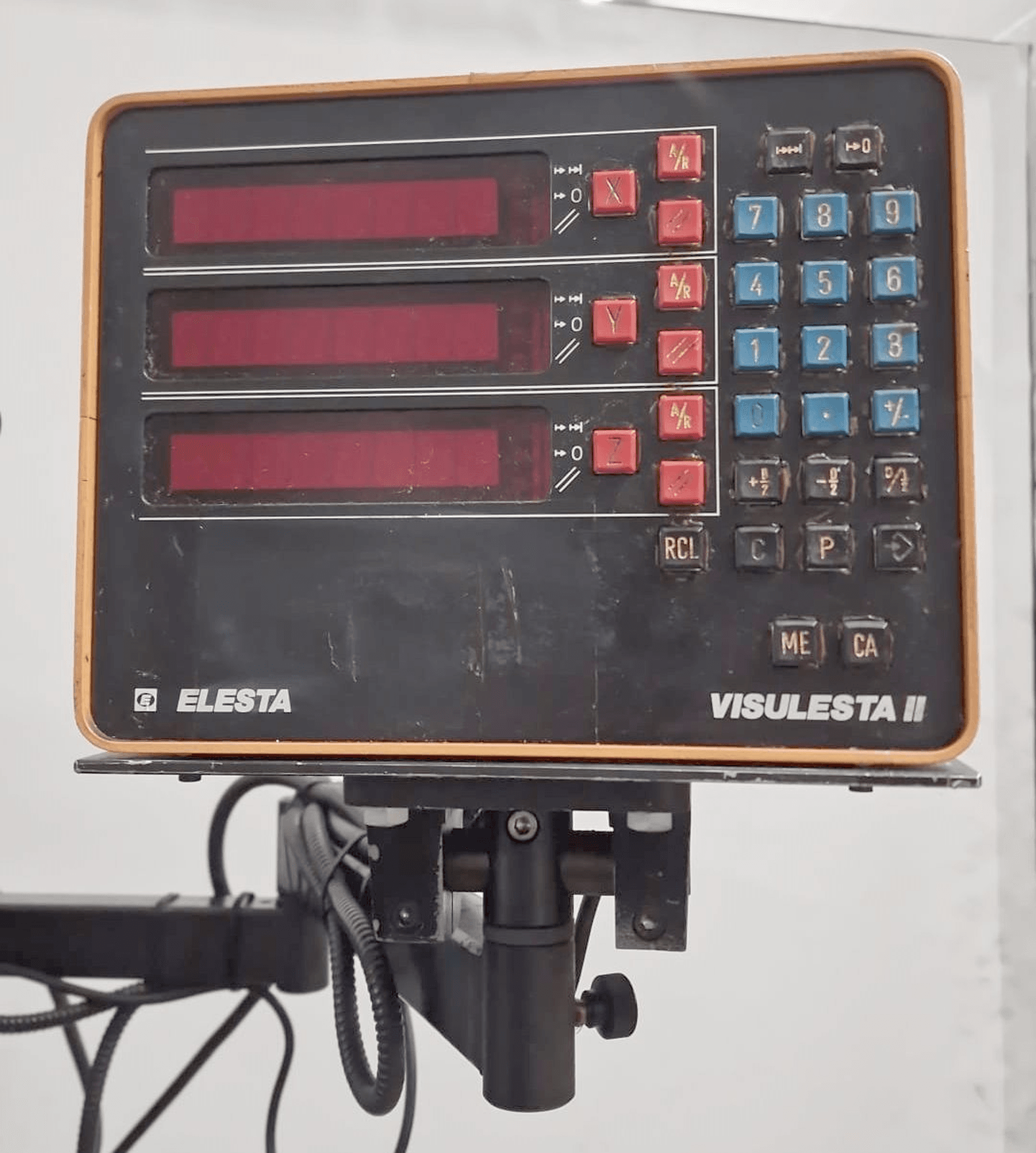

{"Table length": "1100 mm", "Table width": "305 mm", "Longitudinal travel (X-axis)": "700 mm", "Transversal travel (y axis)": "250 mm", "Vertical travel (z axis)": "490 mm", "Spindle speeds:": "", "number (steps)": "18", "from": "38 t/min", "up to": "525 mm/min", "Taper in spindle": "40 ISO", "Feeds steps:": "18", "longitudinal from": "12.0 mm/min", "transversal from": "12.0 mm/min", "vertical from": "6.0 mm/min", "Rapid traverse:": "", "longitudinal": "3.5 m/min", "transversal": "3.5 m/min", "vertical": "1.7 m/min", "Voltage 50 Hz 3x": "380 Volt", "Motor output": "5.5 CV", "Total power required": "8 CV", "Machine's weight about": "2100 kg", "Overall dimensions machine:": "", "Length": "1800 mm", "Width": "1600 mm", "Height": "1800 mm", "Various accessories:": "", "Vice": "", "Digital readout number of axis:": "3", "Lamp": ""}

Send Enquiry

Seller

Muller Machines SA
