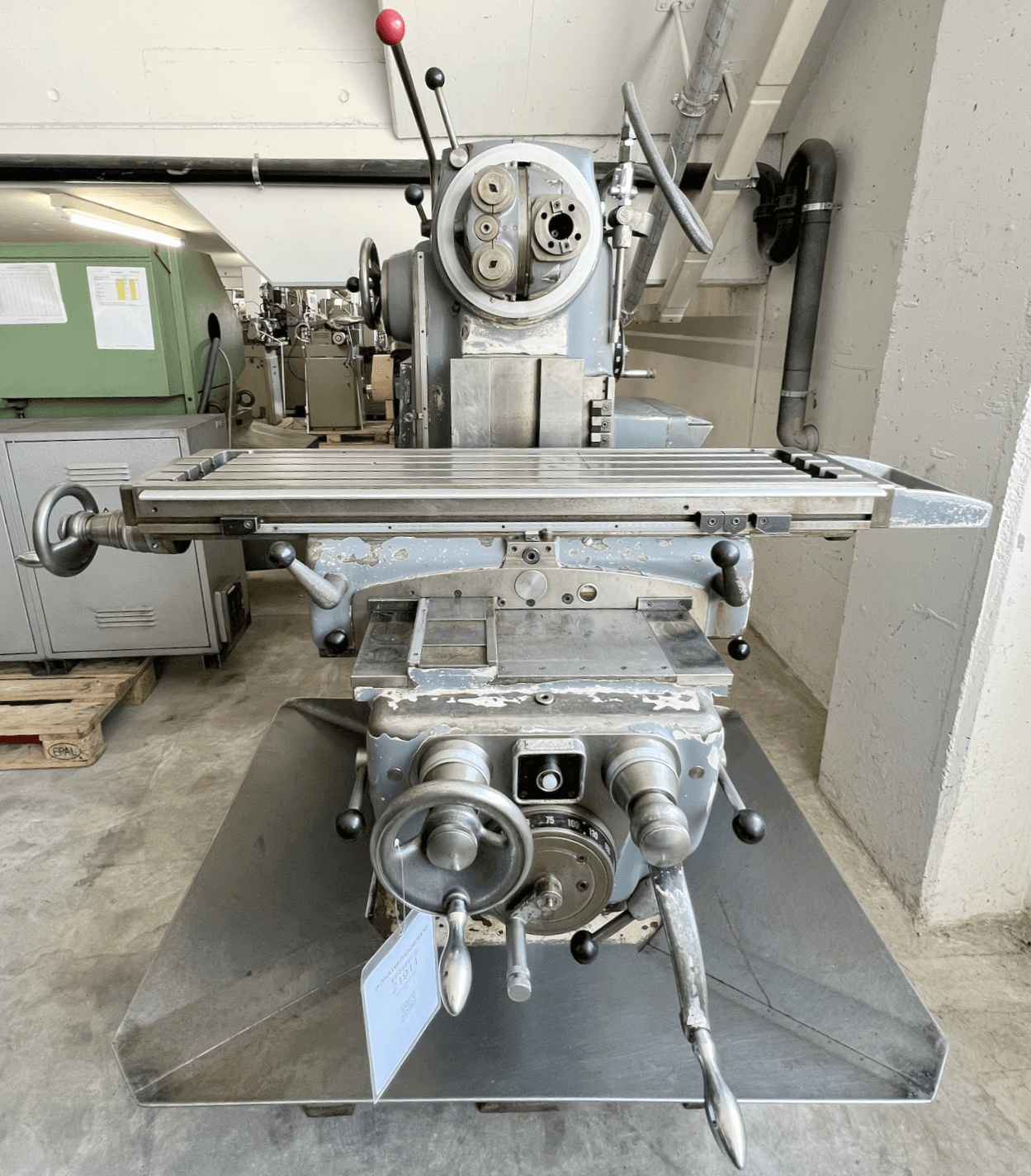

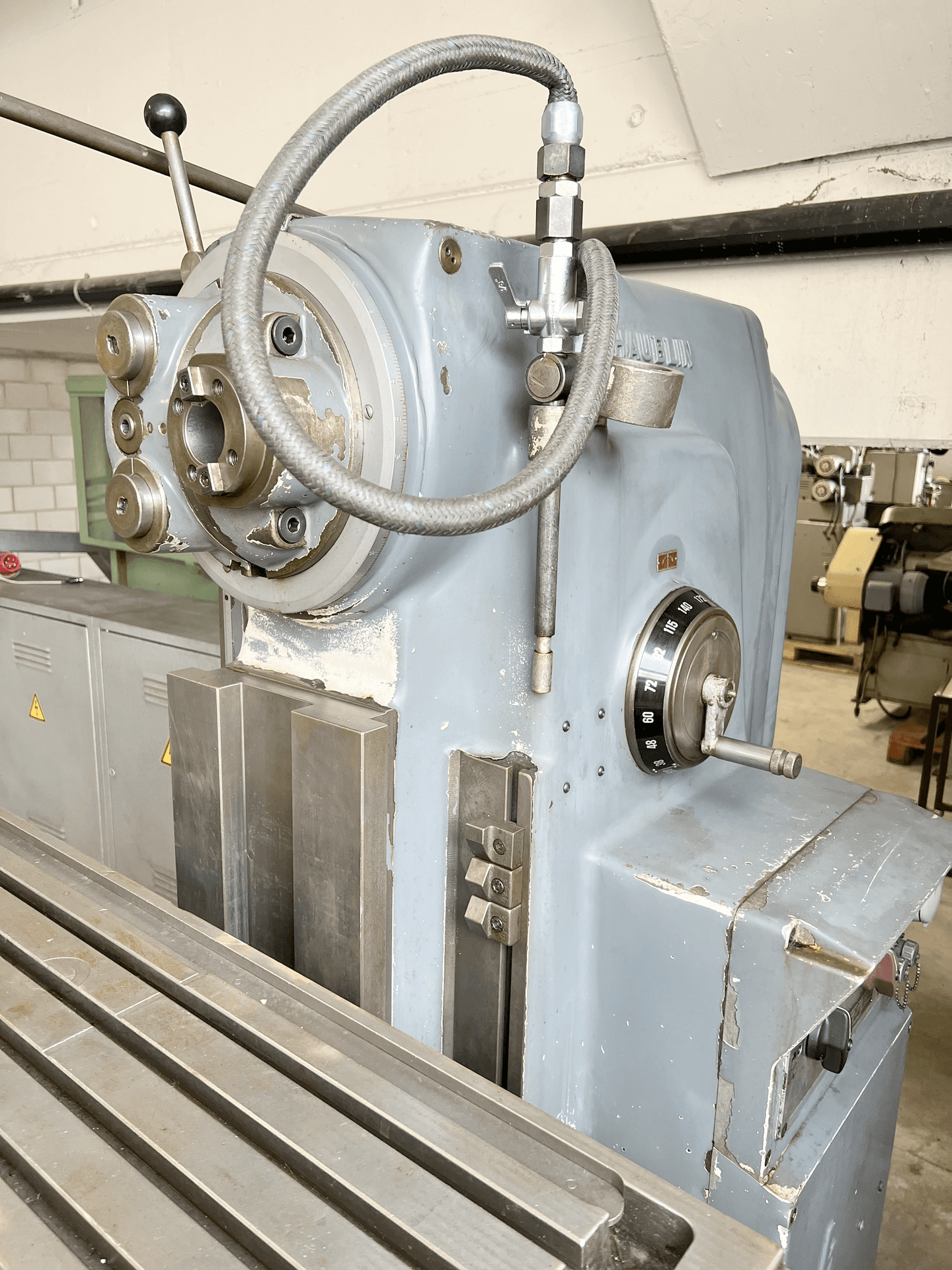

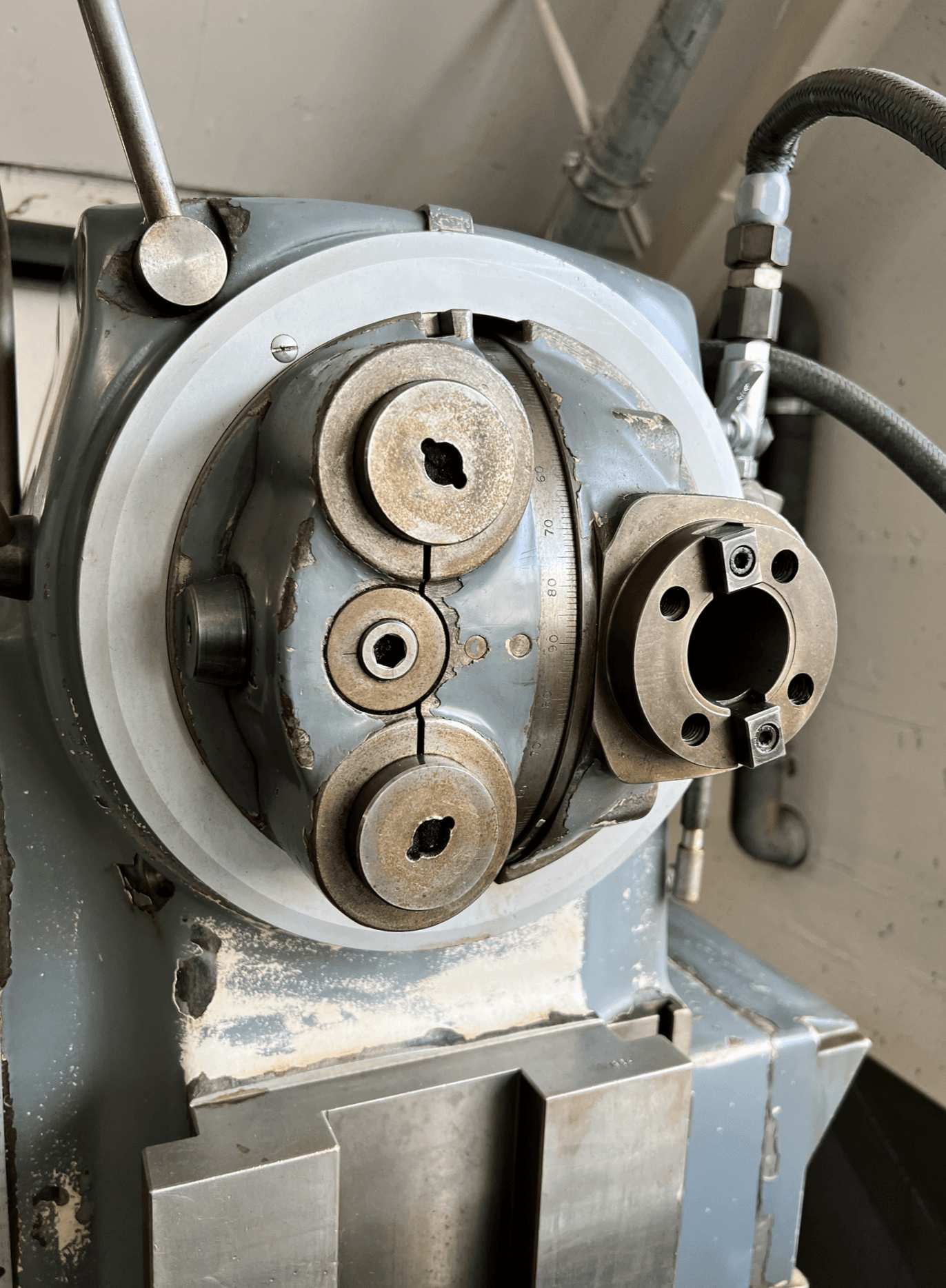

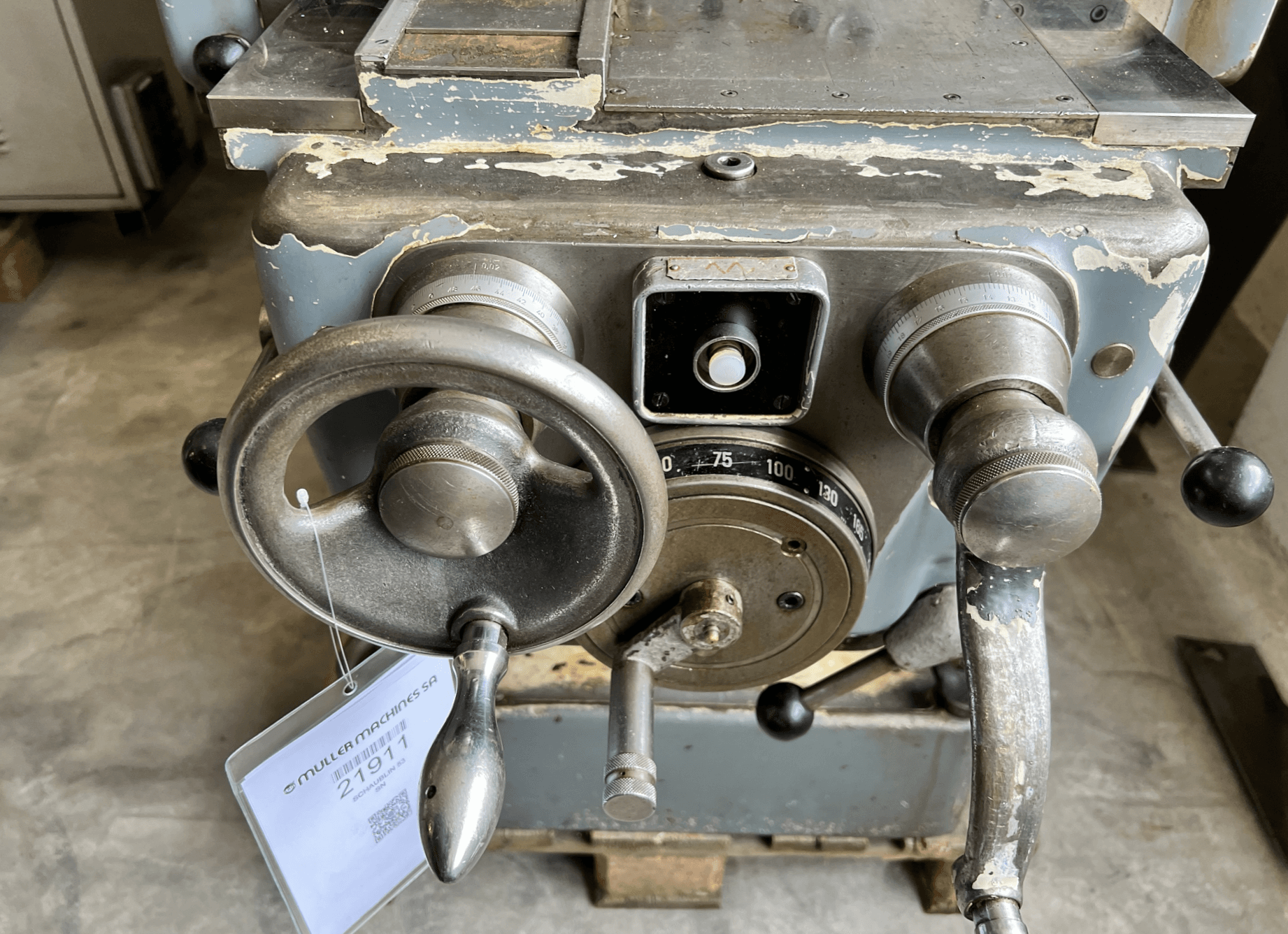

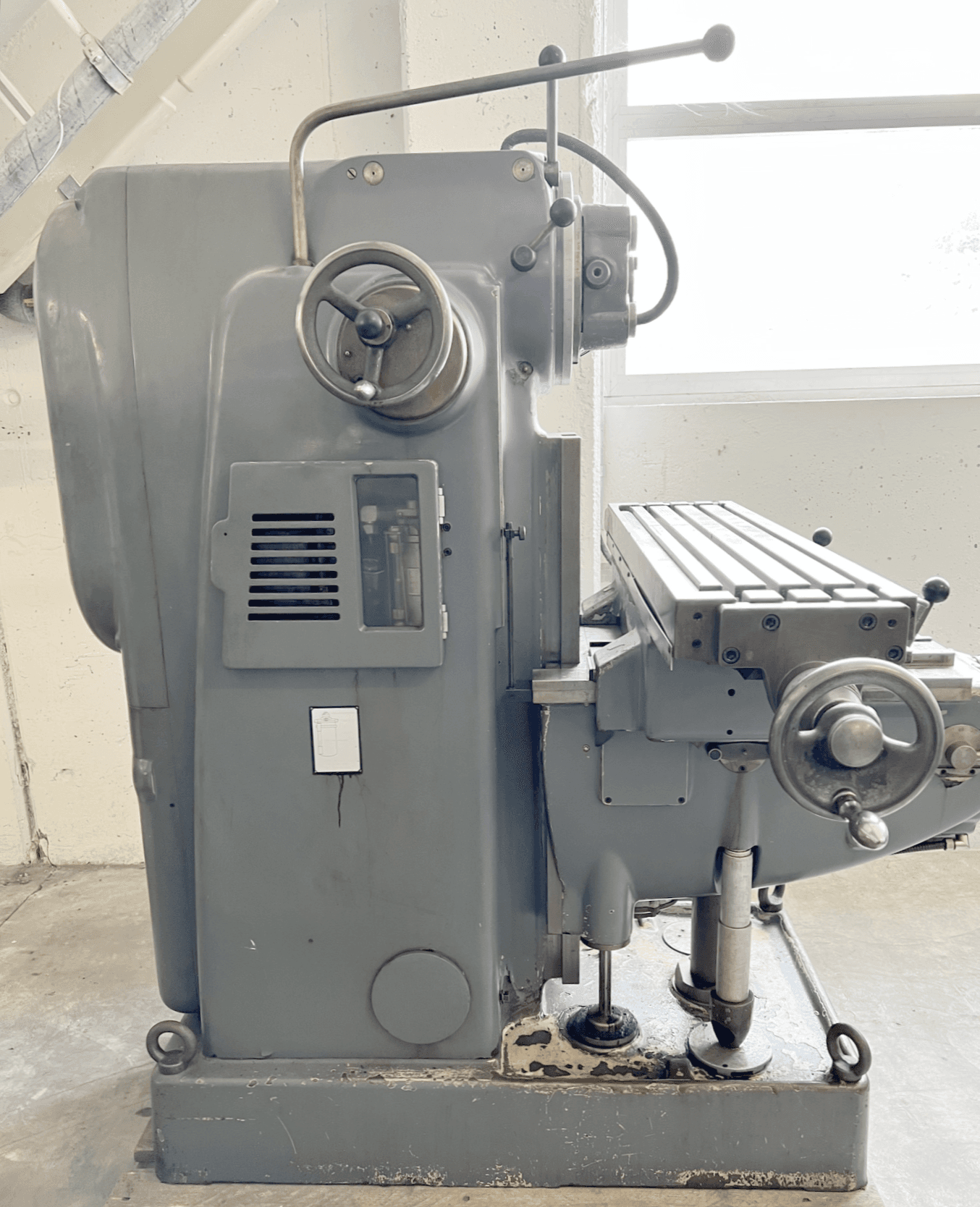

021911 - SCHAUBLIN 53

Description

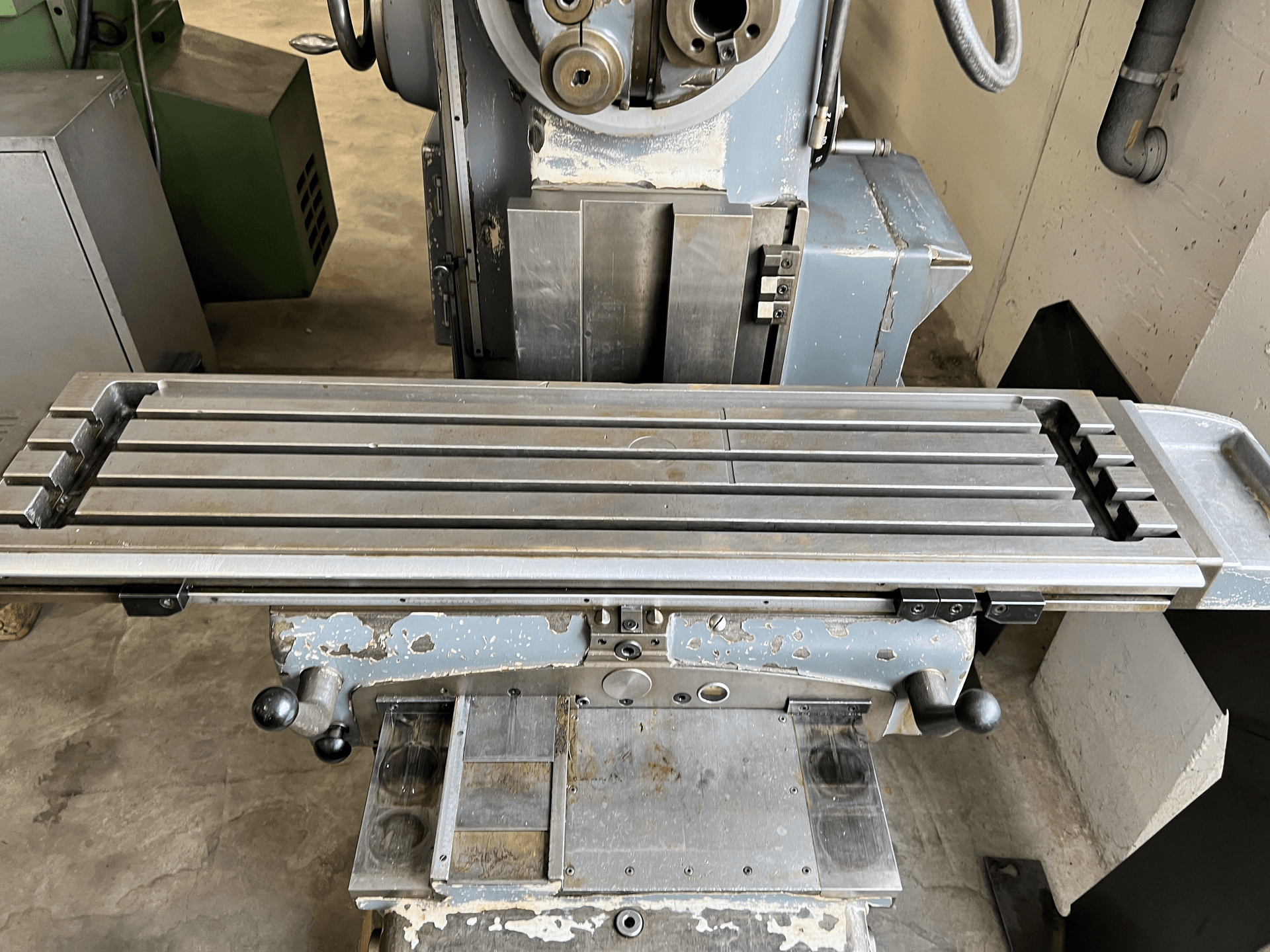

{"Table length": "1100 mm", "Table width": "255 mm", "Number of T-channels": "5", "T-channel width": "14h7 mm", "Distance of the T-slots": "50 mm", "Longitudinal travel (X-axis)": "700 mm", "Transversal travel (y axis)": "250 mm", "Vertical travel (z axis)": "490 mm", "Spindle speeds:": "", "number (steps)": "18", "from": "12 t/min", "up to": "525 mm/min", "Taper in spindle": "40 ISO", "Feeds steps:": "18", "longitudinal from": "12 mm/min", "transversal from": "12 mm/min", "vertical from": "6 mm/min", "Rapid traverse:": "", "longitudinal": "3.5 m/min", "transversal": "3.5 m/min", "vertical": "1.7 m/min", "Voltage 50 Hz 3x": "380 Volt", "Motor output": "5.5 CV", "Total power required": "8 CV", "Machine's weight about": "2100 kg", "Overall dimensions machine:": "", "Length": "1600 mm", "Width": "1600 mm", "Height": "1600 mm", "Various accessories:": "", "Chip tray": ""}
