019831 - SCHAUBLIN 213-P | Machinespotter

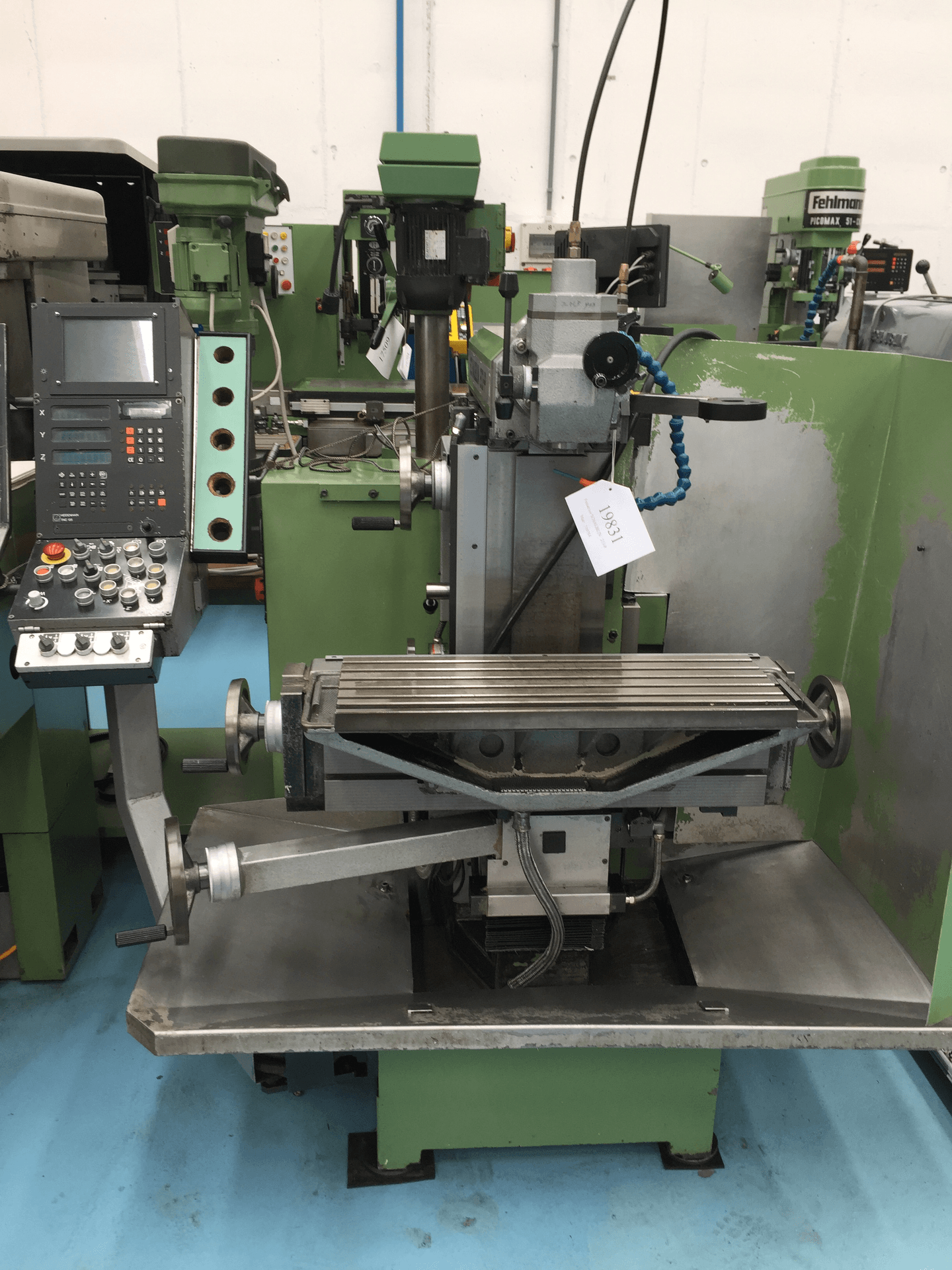

Machine image 1

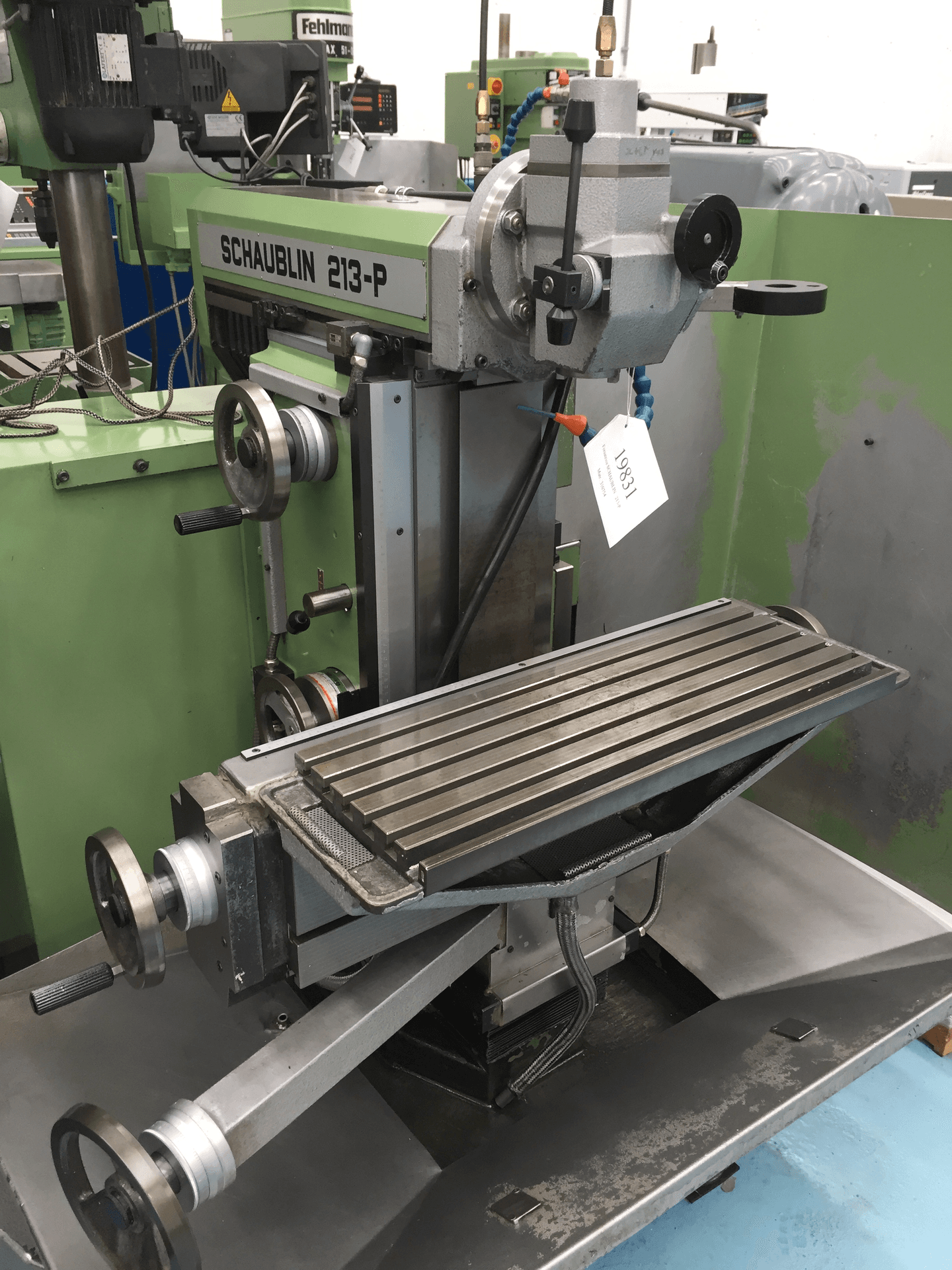

Machine image 2

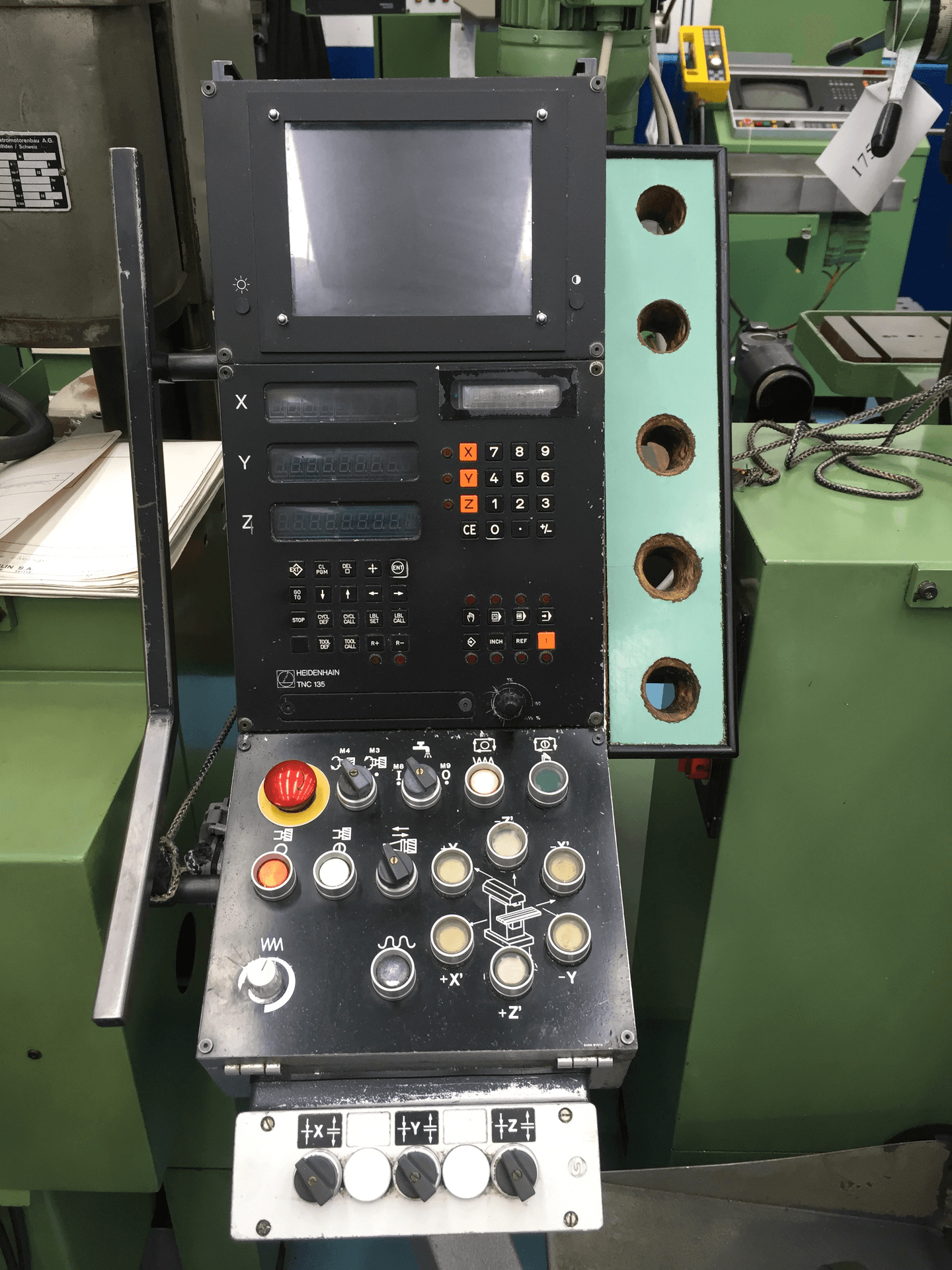

Machine image 3

019831 - SCHAUBLIN 213-P

Price on request

Condition: NEW· Manufacturer: SCHAUBLIN· Country: Switzerland

Description

{"Table length": "700 mm", "Table width": "250 mm", "Longitudinal travel (X-axis)": "320 mm", "Transversal travel (y axis)": "220 mm", "Vertical travel (z axis)": "410 mm", "Spindle speeds:": "", "stepless": "", "from": "56 t/min", "up to": "1000 mm/min", "Taper in spindle": "10 ISO", "Feeds stepless:": "", "longitudinal from": "8 mm/min", "transversal from": "8 mm/min", "vertical from": "8 mm/min", "Vertical quill travel": "60 mm", "Rapid traverse:": "2 m/min", "Voltage 50 Hz 3x": "380 Volt", "Motor power": "1.8 kW", "Total power required": "3 kW", "Machine's weight about": "1000 kg", "Overall dimensions machine:": "", "Length": "1800 mm", "Width": "1200 mm", "Height": "1500 mm", "Various accessories:": "", "Digital readout number of axis:": "3", "Coolant system": "", "Hydraulical tool tension": "", "Tool storage": ""}

Send Enquiry

Seller

Muller Machines SA
