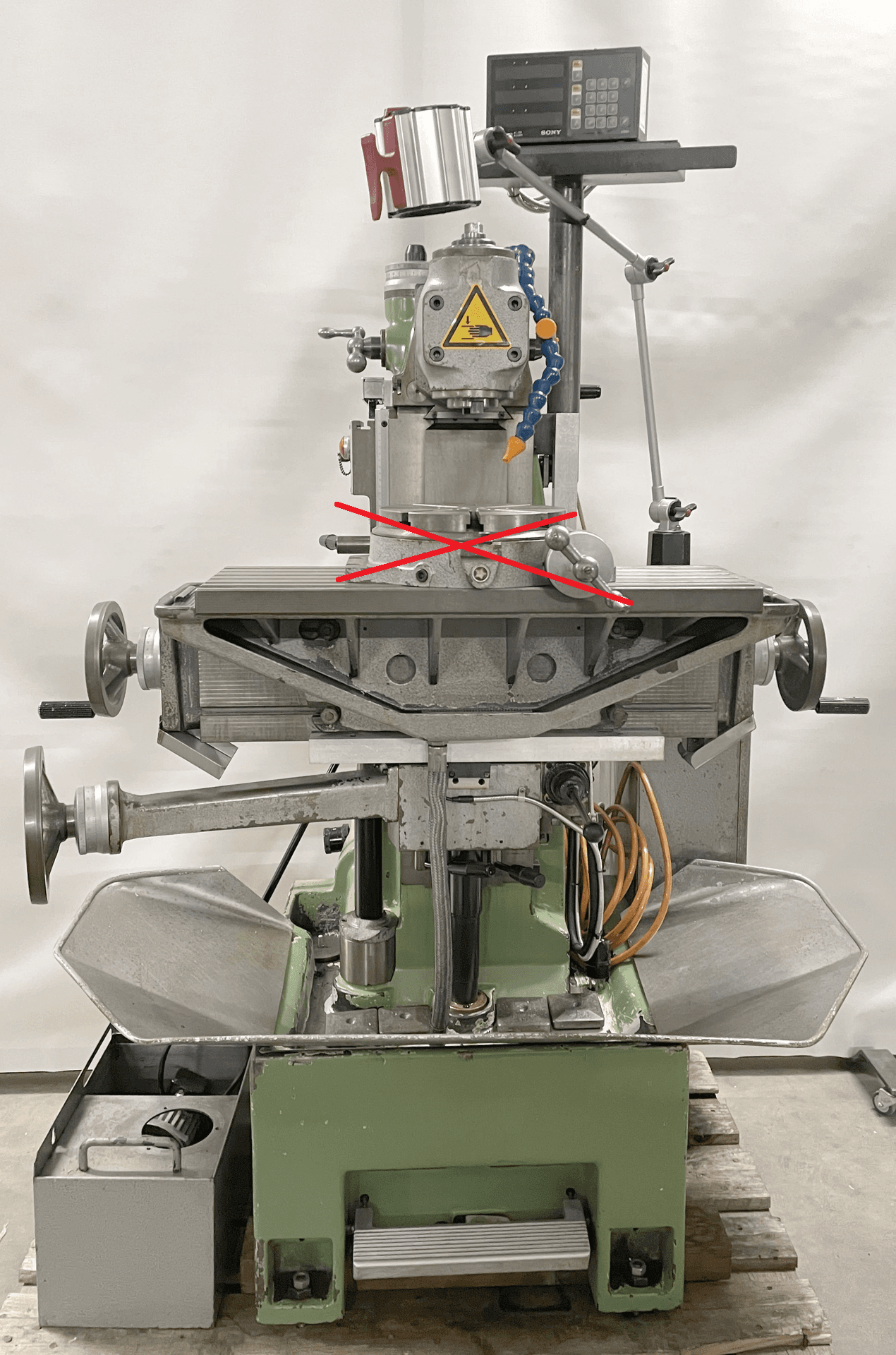

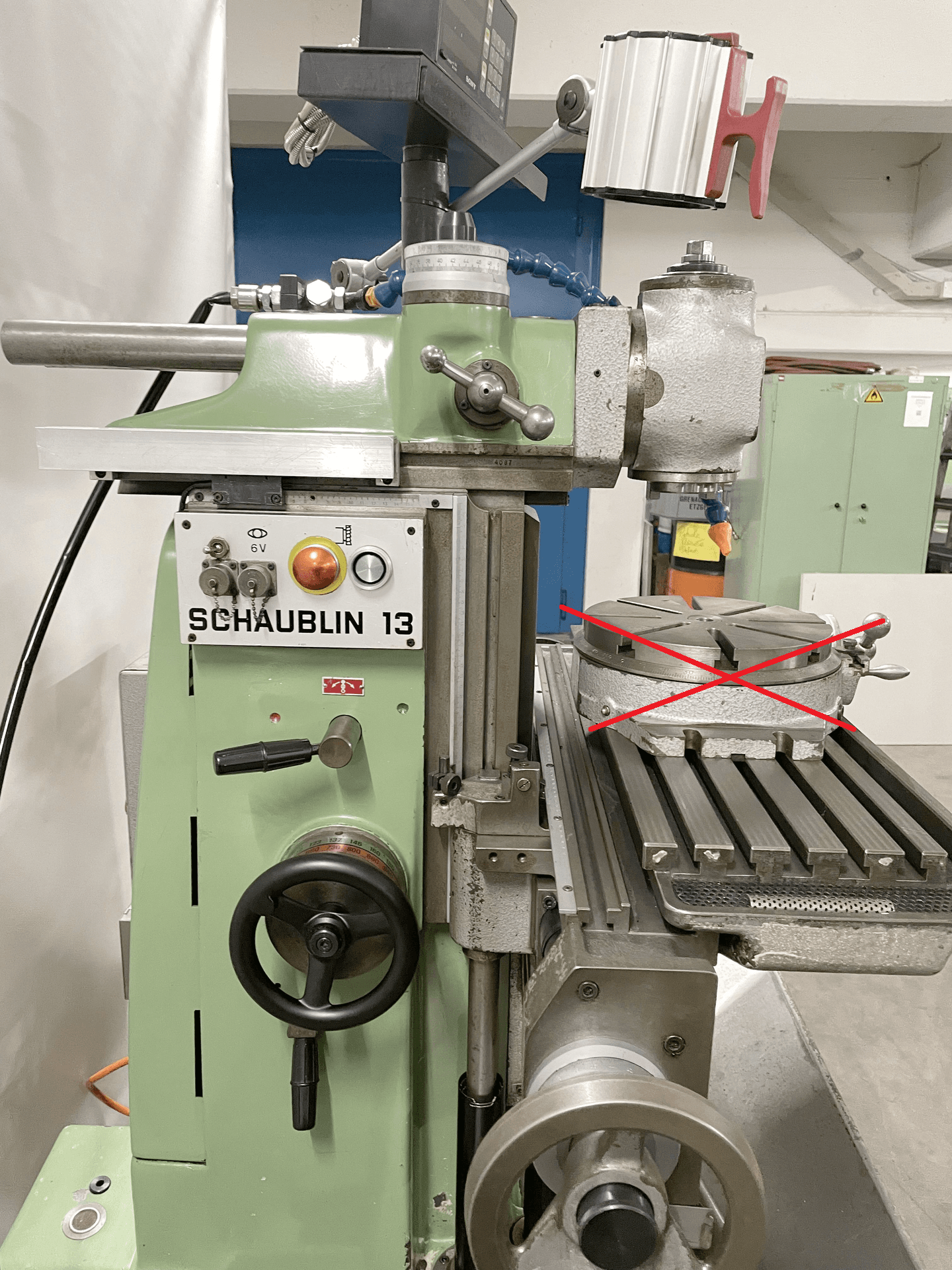

022568 - SCHAUBLIN 13

Description

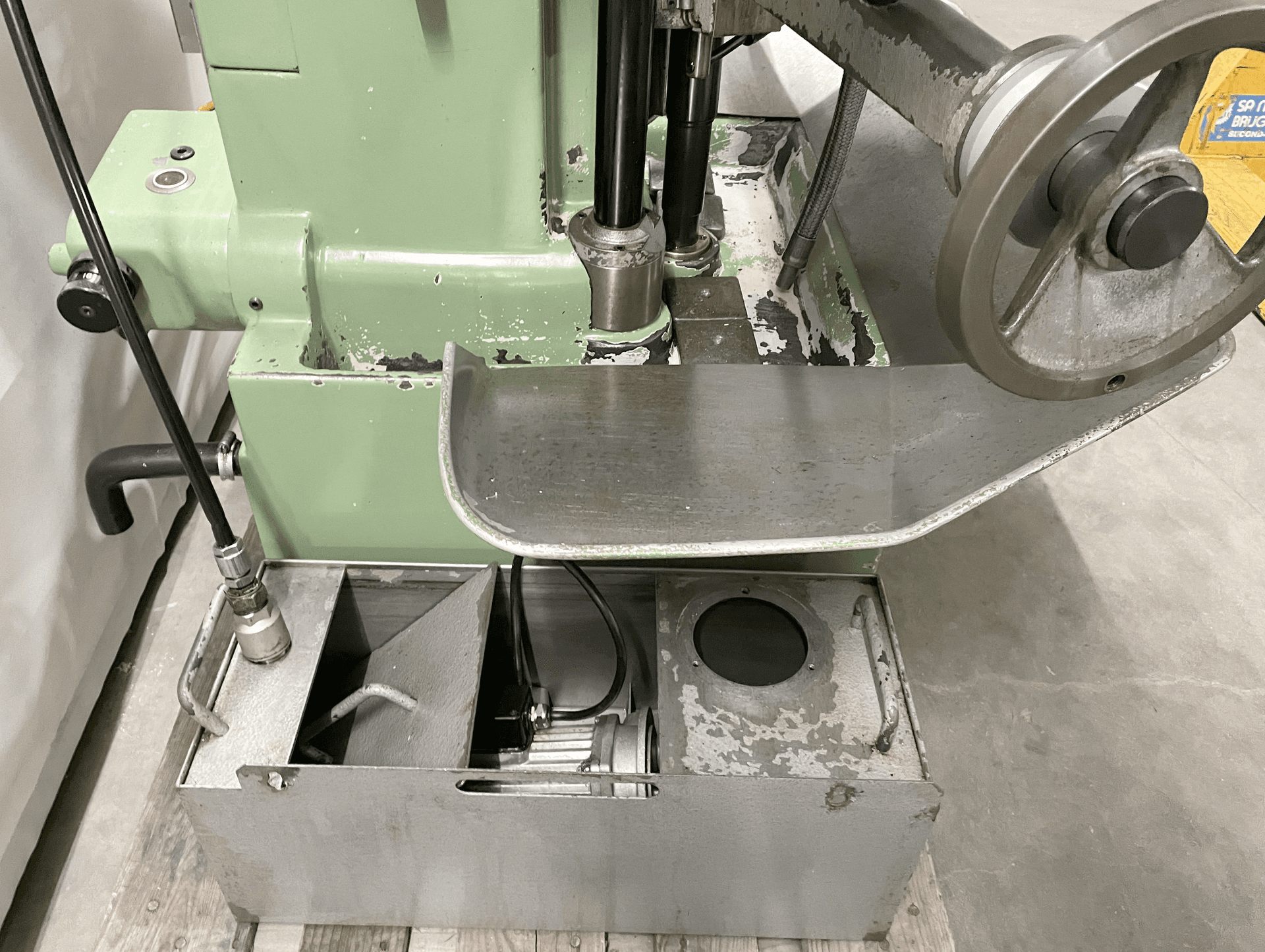

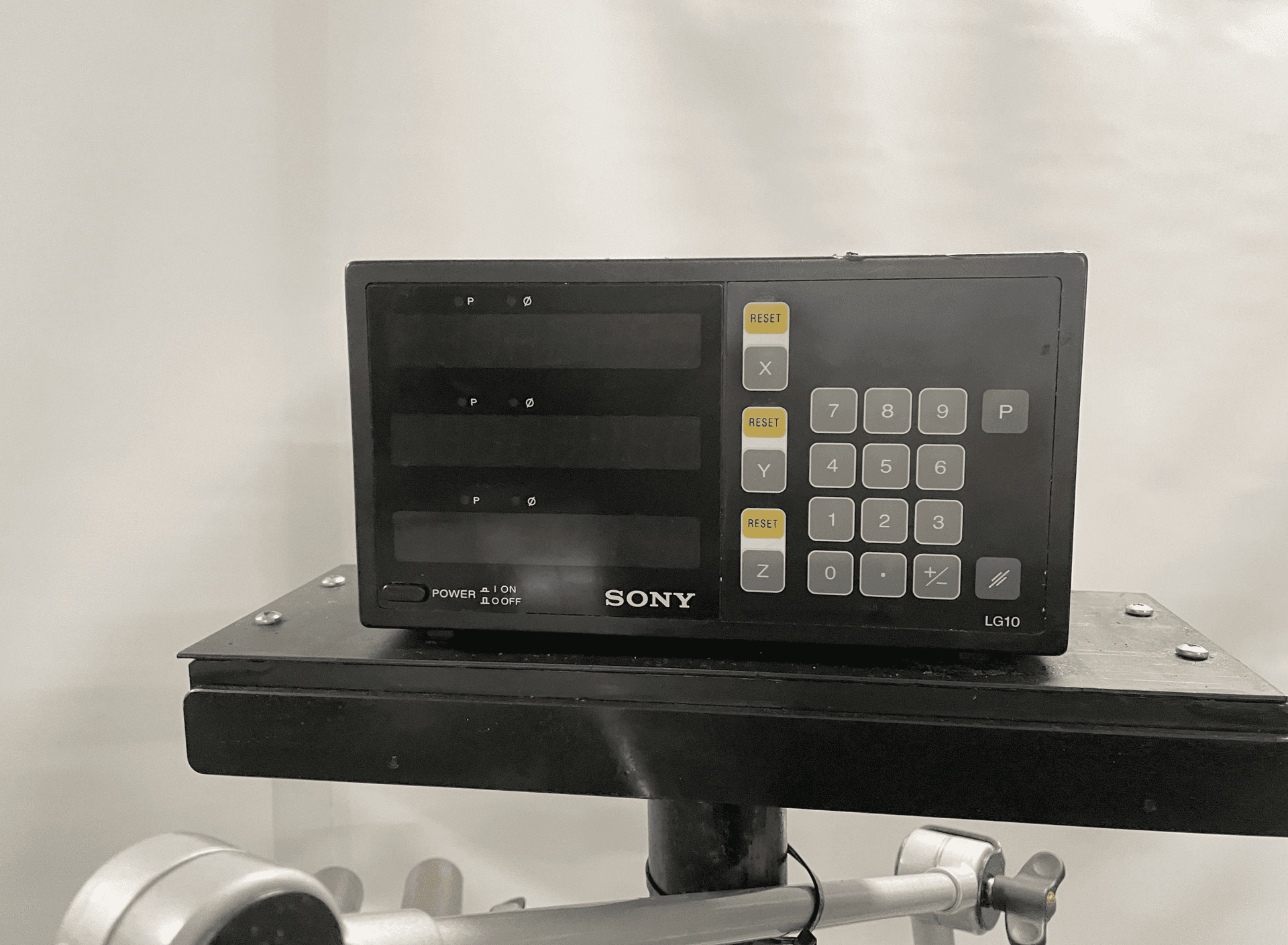

{"Table length": "630 mm", "Table width": "200 mm", "Number of T-channels": "5", "T-channel width": "12H7 mm", "Distance of the T-slots": "120 mm", "Longitudinal travel (X-axis)": "320 mm", "Transversal travel (y axis)": "150 mm", "Vertical travel (z axis)": "375 mm", "Distance from vertical spindle to table": "310 mm", "Distance from horizontal spindle to table": "410 mm", "Spindle speeds:": "", "stepless": "", "from": "58 t/min", "up to": "400 mm/min", "Taper in spindle": "40 ISO", "Feeds steps:": "10", "longitudinal from": "12 mm/min", "vertical from": "12 mm/min", "Rapid traverse:": "1 m/min", "Voltage 50 Hz 3x": "380 Volt", "Motor output": "2 CV", "Total power required": "2 CV", "Machine's weight about": "700 kg", "Overall dimensions machine:": "", "Length": "1500 mm", "Width": "1100 mm", "Height": "1600 mm", "Various accessories:": "", "Digital readout number of axis:": "3", "Coolant system": "", "Steady": "", "Lamp": "", "Chip tray": ""}
