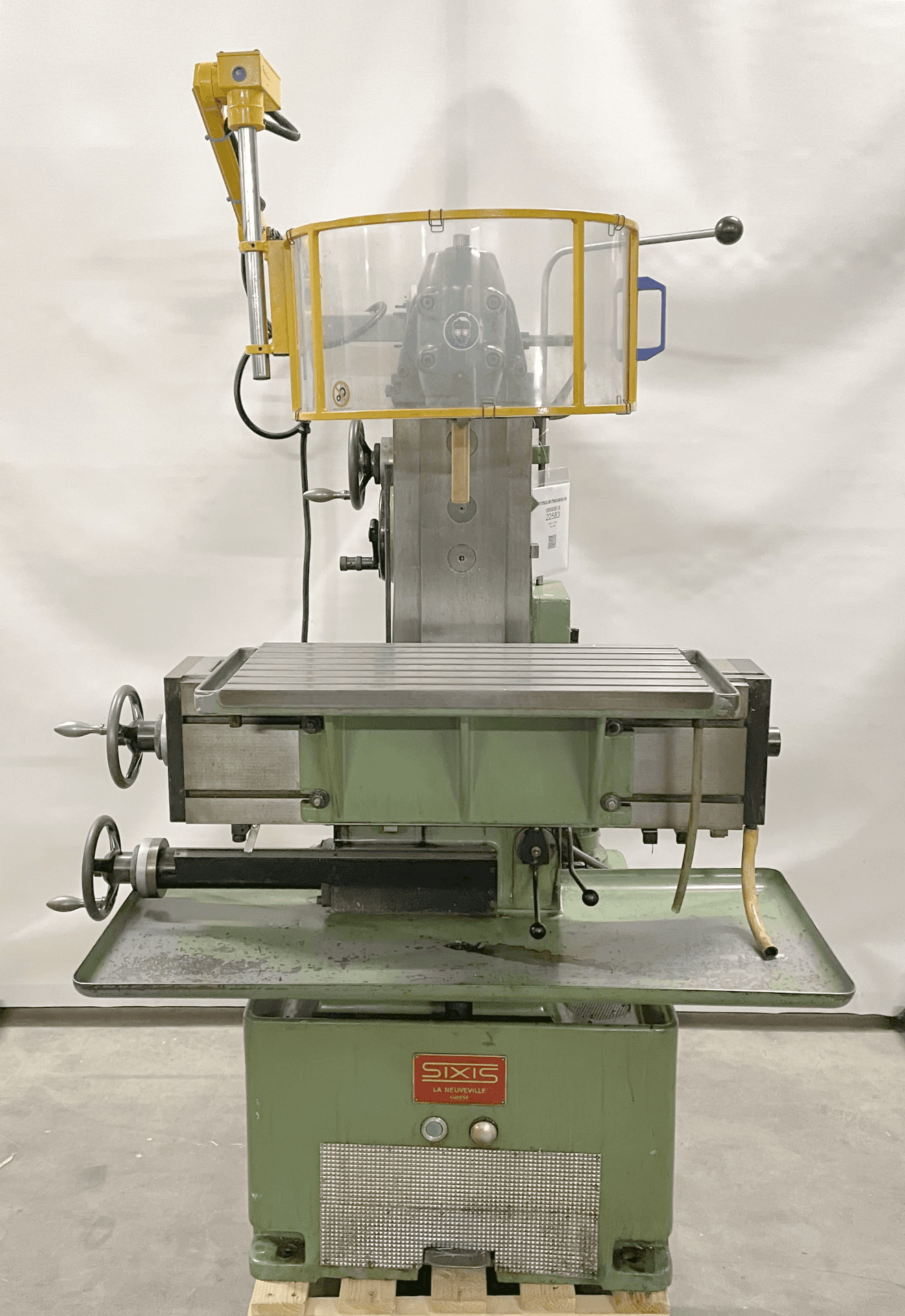

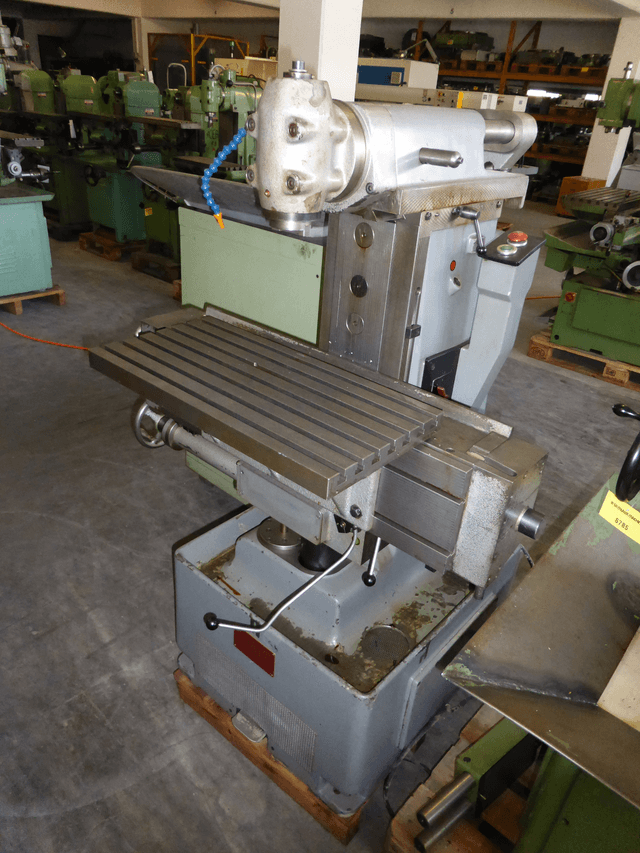

022583 - SIXIS S 103 R

Description

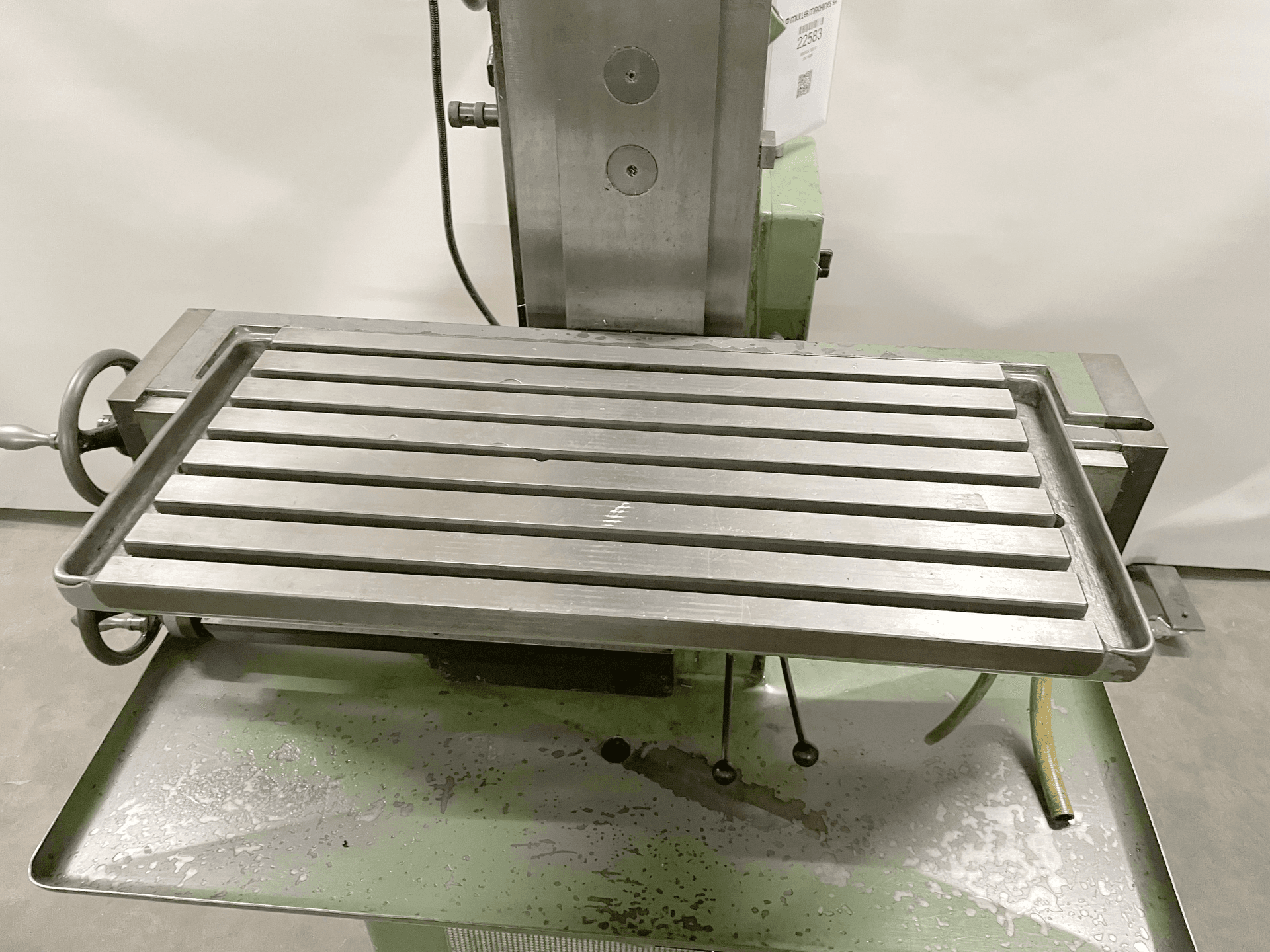

{"Table length": "600 mm", "Table width": "210 mm", "Number of T-channels": "5", "T-channel width": "12H7 mm", "Distance of the T-slots": "40 mm", "Longitudinal travel (X-axis)": "300 mm", "Transversal travel (y axis)": "175 mm", "Vertical travel (z axis)": "400 mm", "Distance from vertical spindle to table": "320 mm", "Spindle speeds:": "", "number (steps)": "9", "from": "60 t/min", "up to": "108 mm/min", "Taper in spindle": "30 ISO", "Feeds steps:": "8", "longitudinal from": "12 mm/min", "vertical from": "6 mm/min", "Rapid traverse:": "", "longitudinal": "1 m/min", "vertical": "0.5 m/min", "Voltage 50 Hz 3x": "380 Volt", "Motor output": "1.5 CV", "Total power required": "2 CV", "Machine's weight about": "880 kg", "Overall dimensions machine:": "", "Length": "1100 mm", "Width": "1100 mm", "Height": "1600 mm", "Various accessories:": "", "Set of toolholders": "", "Swivelling protection device": ""}
