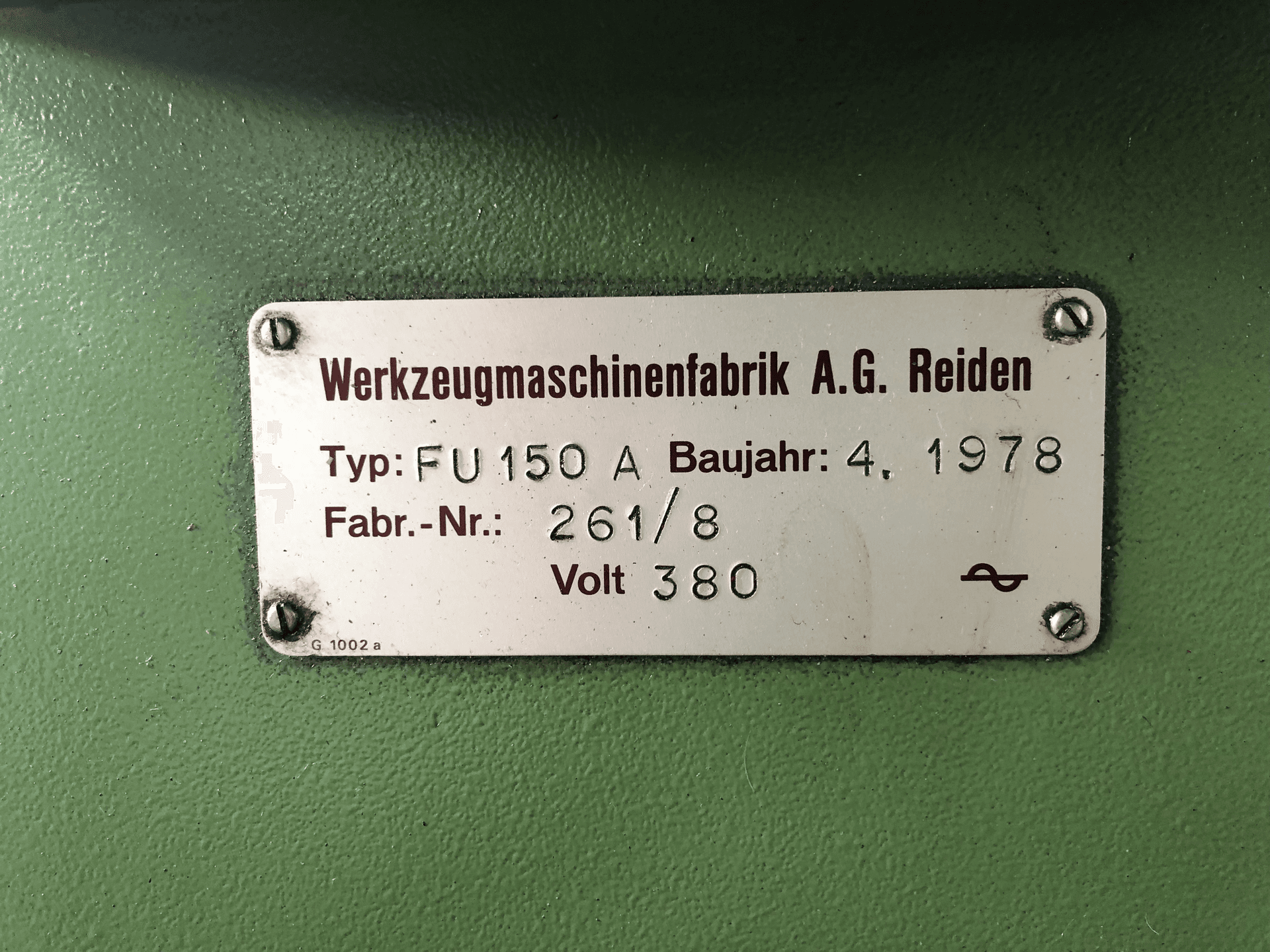

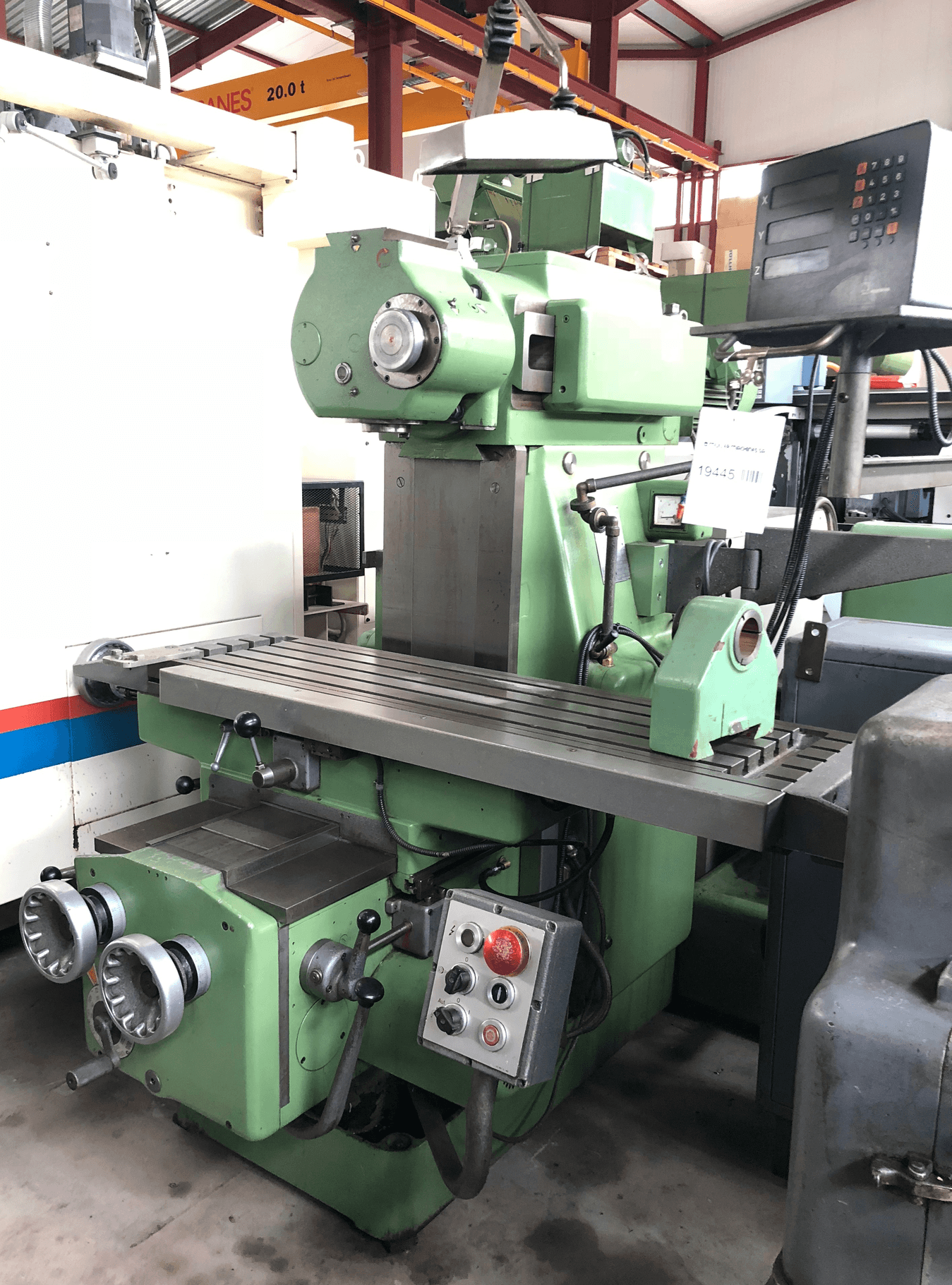

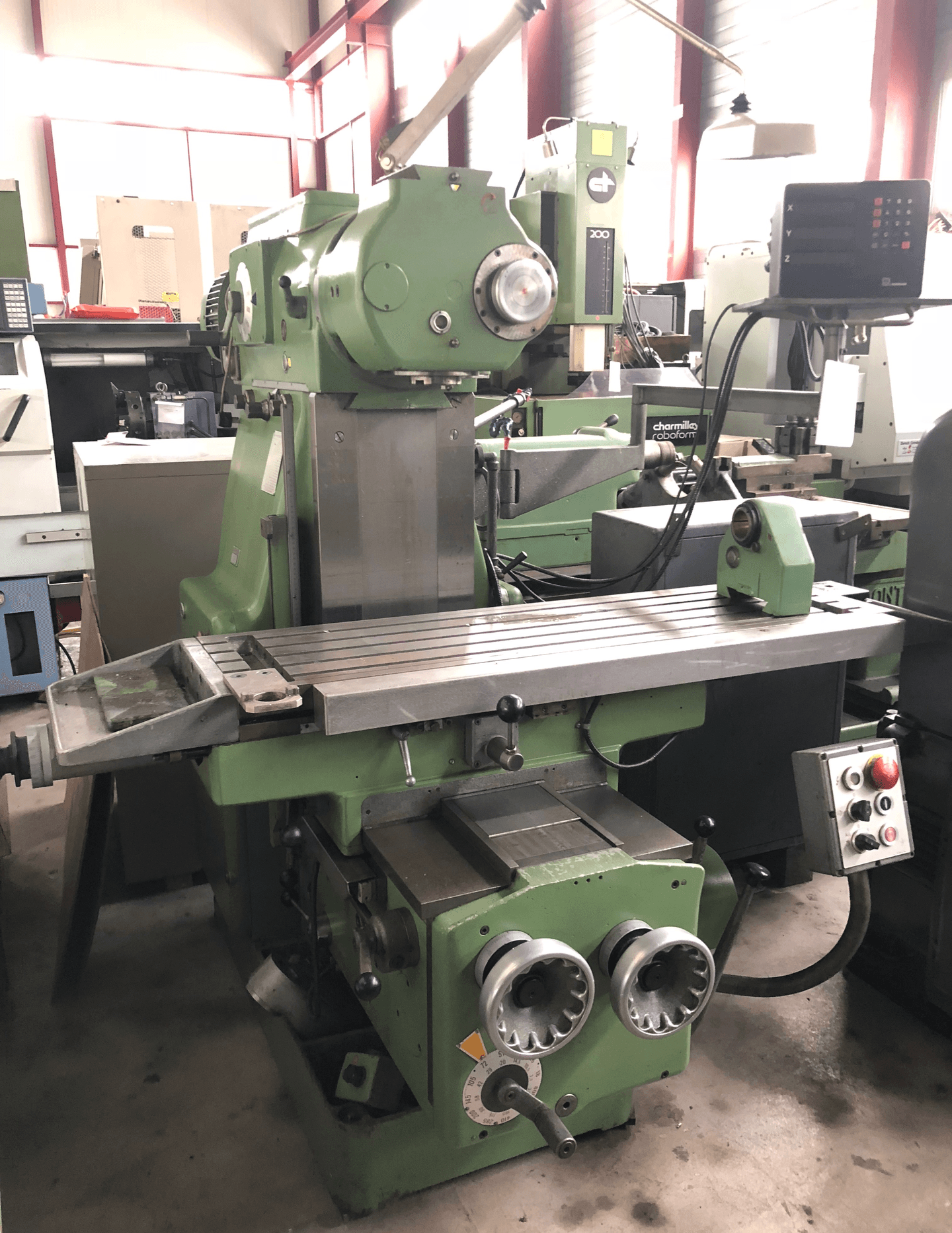

019445 - REIDEN FU 150 A

Description

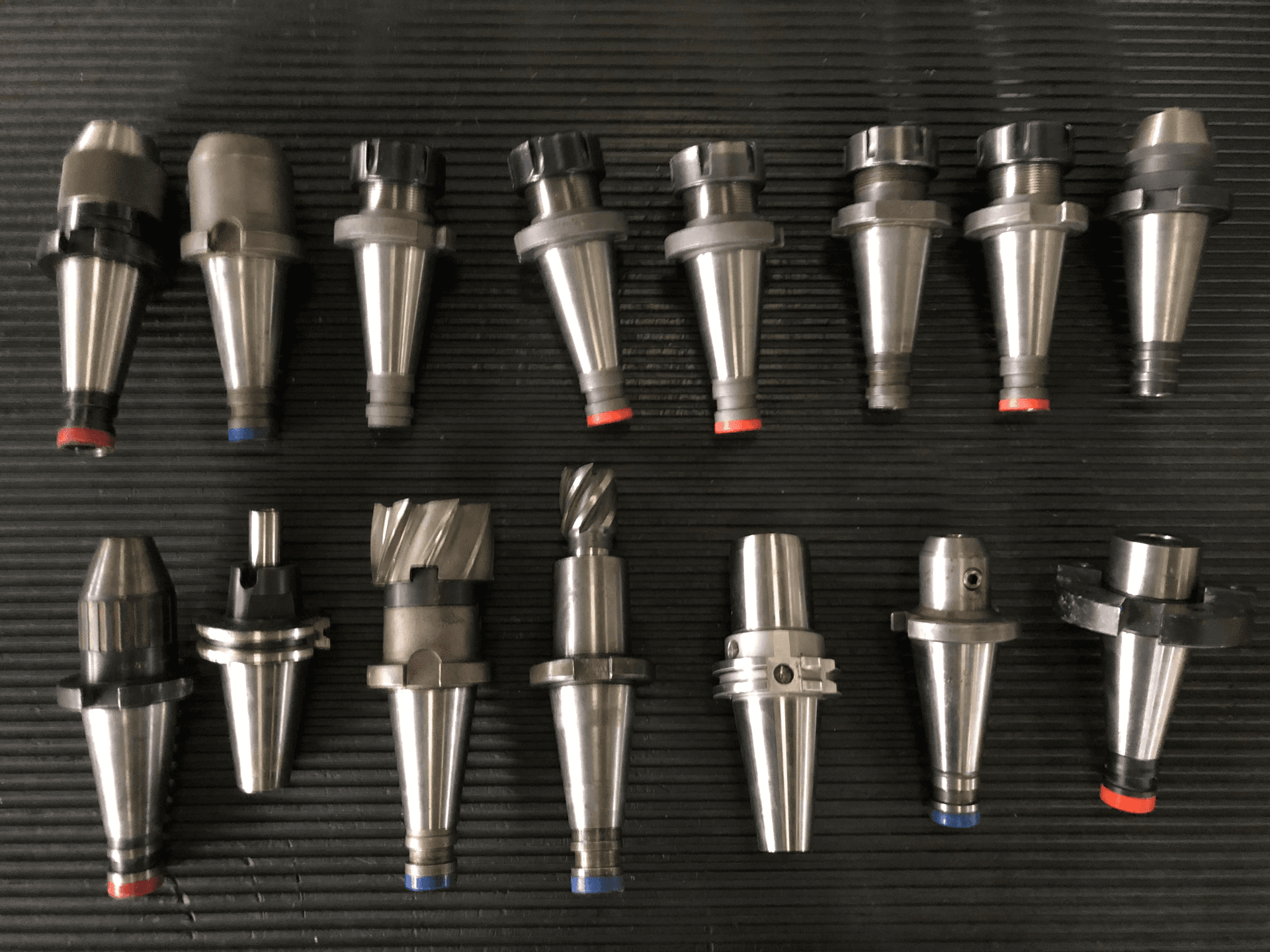

{"Table length": "1250 mm", "Table width": "350 mm", "Longitudinal travel (X-axis)": "850 mm", "Transversal travel (y axis)": "250 mm", "Vertical travel (z axis)": "470 mm", "Table load max.": "400 kg", "Spindle speeds:": "", "number (steps)": "12", "from": "45 t/min", "up to": "320 mm/min", "Taper in spindle": "40 ISO", "Feeds steps:": "12", "longitudinal from": "18 mm/min", "transversal from": "18 mm/min", "vertical from": "7.2 mm/min", "Rapid traverse:": "", "longitudinal": "2.70 m/min", "transversal": "2.75 m/min", "vertical": "1.10 m/min", "Voltage 50 Hz 3x": "380 Volt", "Motor output": "10 CV", "Total power required": "7 CV", "Machine's weight about": "1950 kg", "Overall dimensions machine:": "", "Length": "2000 mm", "Width": "1700 mm", "Height": "2000 mm", "Various accessories:": "", "Set of toolholders": "", "Lamp": ""}
