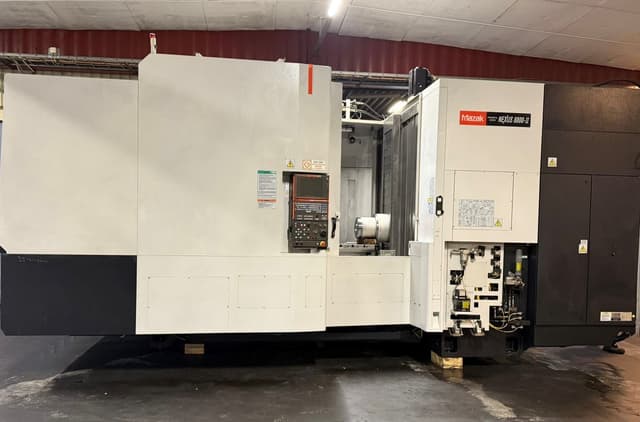

023101 - MAZAK HCN 6800

Description

{"Number of tables": "2", "Longitudinal travel (X-axis)": "1050 mm", "Transversal travel (y-axis)": "900 mm", "Vertical travel (z axis)": "980 mm", "Dimension of the workpice:": "", "Height": "3400 mm", "Diameter": "1050 mm", "Table load max.": "1500 kg", "Table divisions (B)": "0.001 \u00b0", "Pallets chanching device:": "", "numbers": "2", "Length": "6900 mm", "Width": "4210 mm", "Tool magazine number of tool places": "120", "Tool diameter max.": "125 mm", "Diameter with free adjacent pockets": "250 mm", "Tool lenght": "630 mm", "Max. tool-weight": "30 kg", "Spindle nose: ISO": "50", "Distance spindle nose to table": "100 - 1000 mm", "Spindle speeds:": "", "stepless": "", "from": "0 t/min", "up to": "10000 t/min", "Torque max.": "350 Nm", "Rapid traverse:": "60 m/min", "Voltage 50 Hz 3x": "400 Volt", "Spindle power": "30 / 37 kW", "Machine's weight about": "21500 kg", "Various accessories:": "", "High pression colant device": "50 bar", "Tool setter Renishaw": "", "Touch Probe Renishaw": "", "Chip conveyor": "", "Handwheel electroinic": ""}
