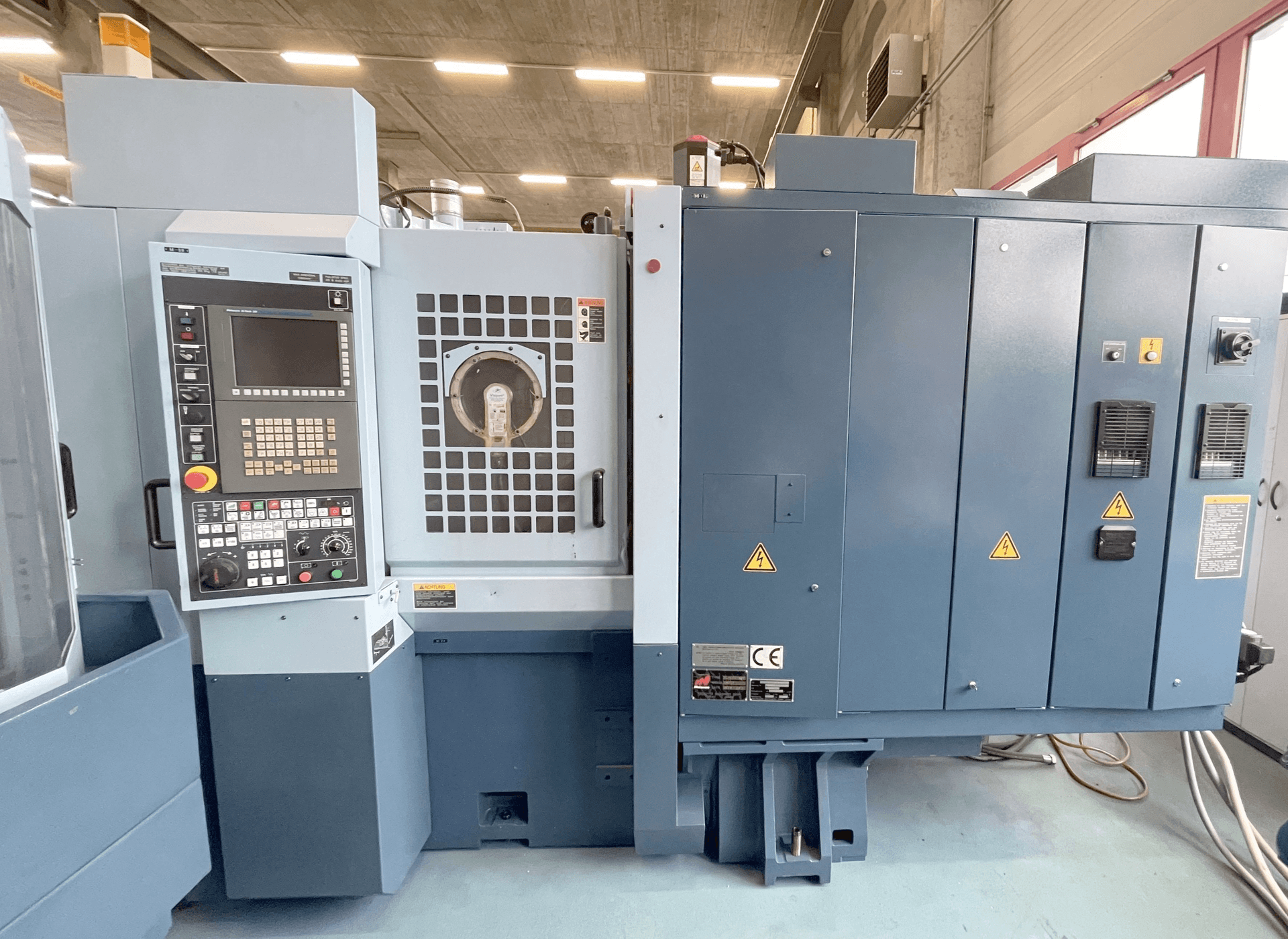

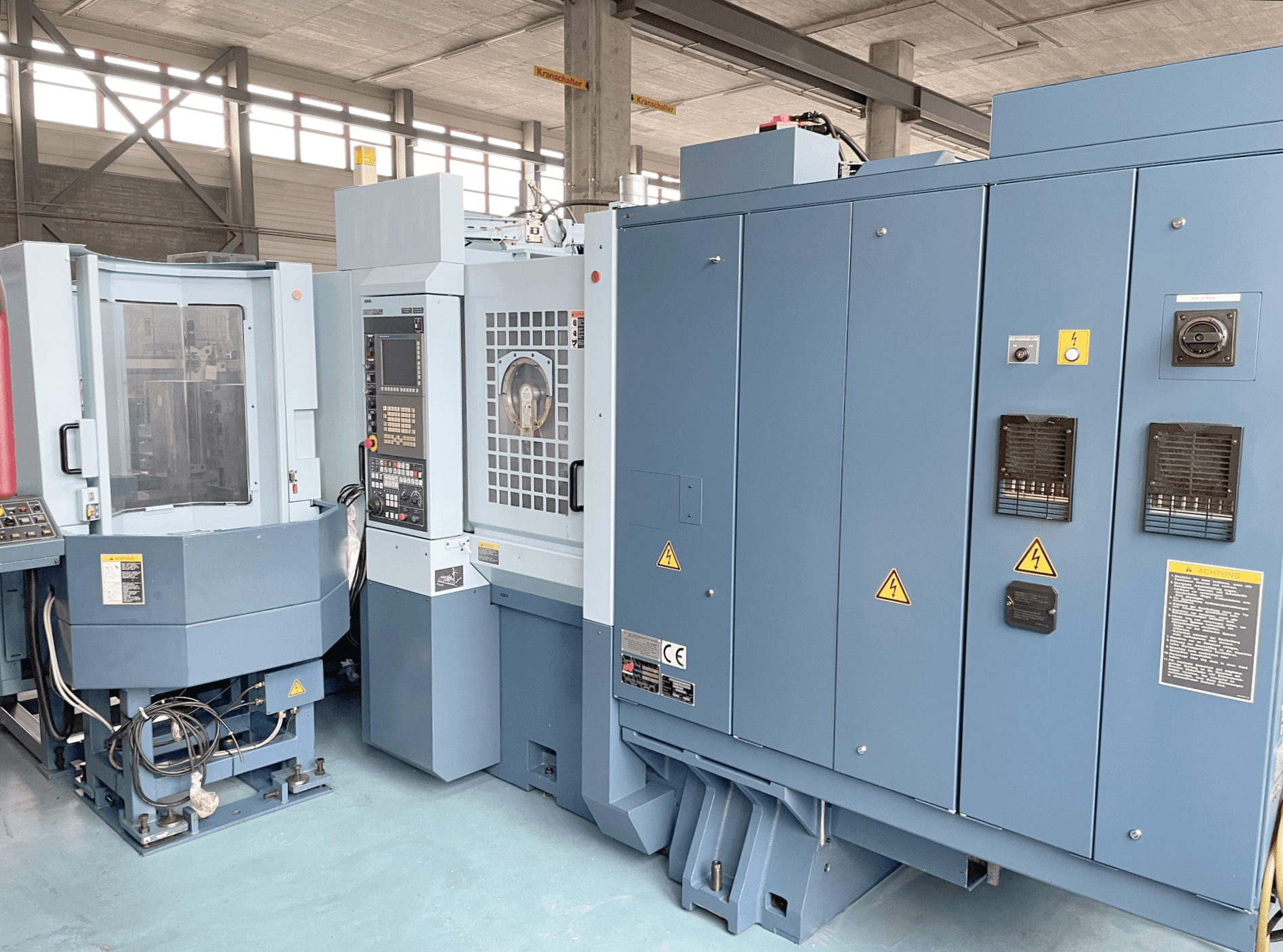

021765 - MATSUURA H. PLUS 300

Description

{"Number of axis total": "4", "Number of spindles": "1", "Longitudinal travel (X-axis)": "500 mm", "Transversal travel (y-axis)": "500 mm", "Vertical travel (z axis)": "500 mm", "Dimension of the workpice:": "", "Height": "2445 mm", "Diameter": "530 mm", "B axis": "1 \u00b0", "C axis": "1 \u00b0", "Pallets chanching device:": "", "numbers": "2", "Length": "3660 mm", "Width": "2463 mm", "Maximum workpiece weight": "250 kg", "Pallet weight": "40 kg", "Time of changing palets": "7 s", "Tool changer:": "", "Number of tools": "90", "Tool diameter max.": "80 mm", "Diameter with free adjacent pockets": "150 mm", "Tool lenght": "300 mm", "Max. tool-weight": "8 kg", "Time of tool changing": "2 s", "Average chip-to-chip time": "2.9 s", "Spindle nose: BT": "40", "Distance spindle nose to table": "80 - 580 mm", "Spindle speeds:": "", "stepless": "", "from": "50 t/min", "up to": "15000 t/min", "Torque max.": "95.4 Nm", "Feed range": "1 - 50000 mm/min", "Rapid traverse:": "50 m/min", "Voltage 50 Hz 3x": "380 Volt", "Spindle power": "15 / 22 kW", "Total power required": "44 kVA", "Machine's weight about": "7000 kg", "Overall dimensions machine:": "", "Various accessories:": "", "Set of toolholders": "", "Coolant system": "500 l", "High pression colant device": "", "Chip conveyor": "", "Pallets: number": "10", "Spindle oil cooler": "", "Rotating viewing window": ""}
