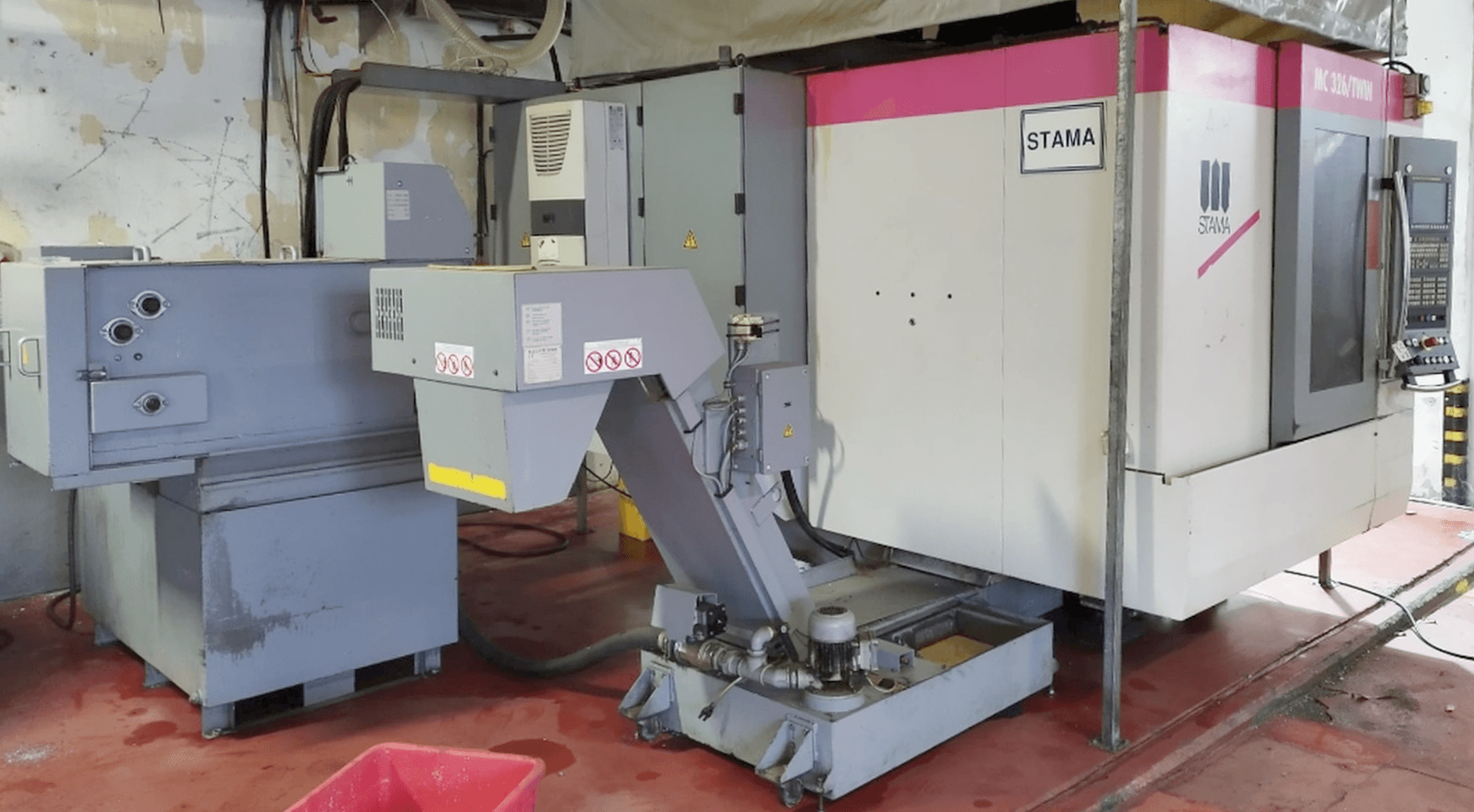

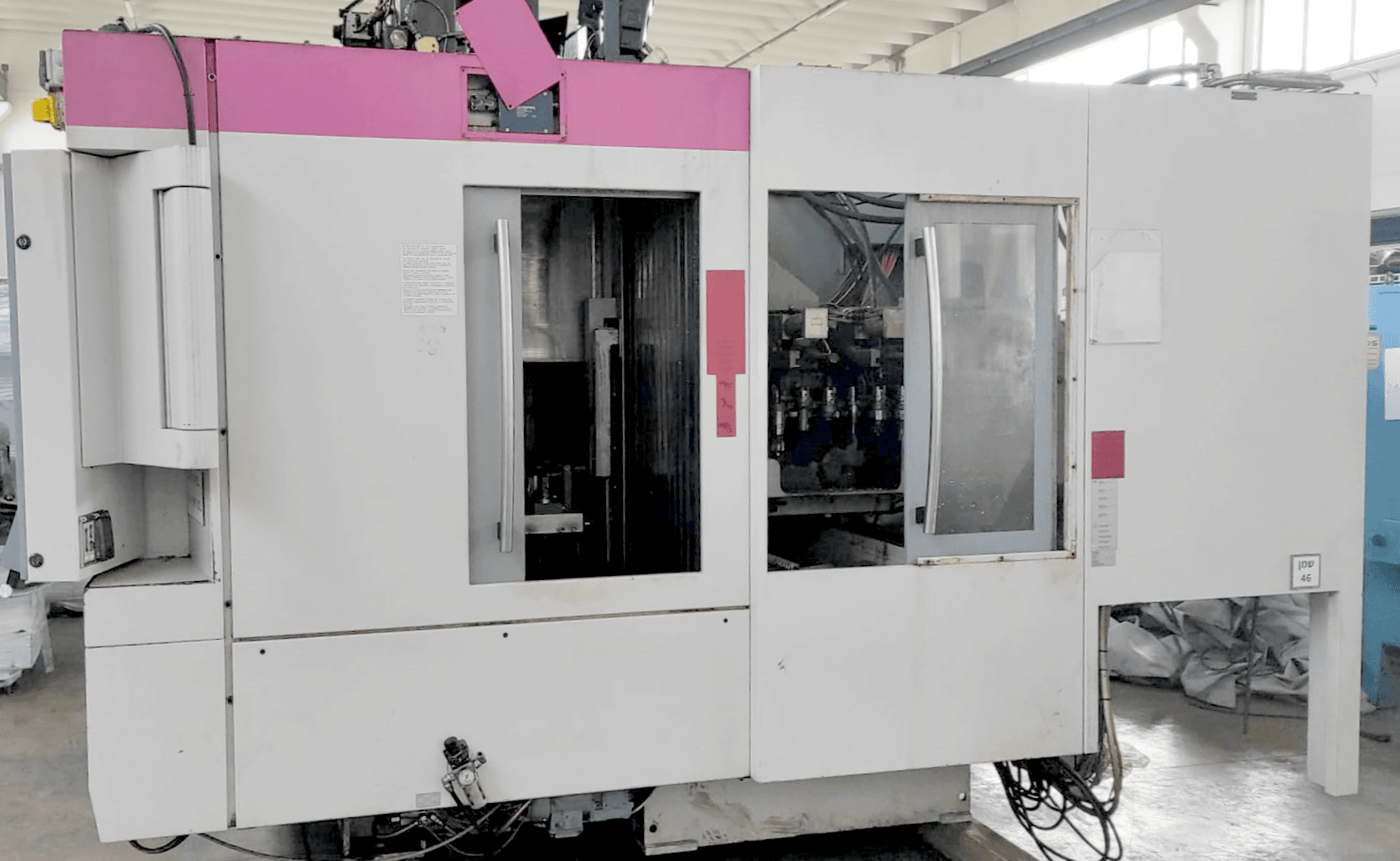

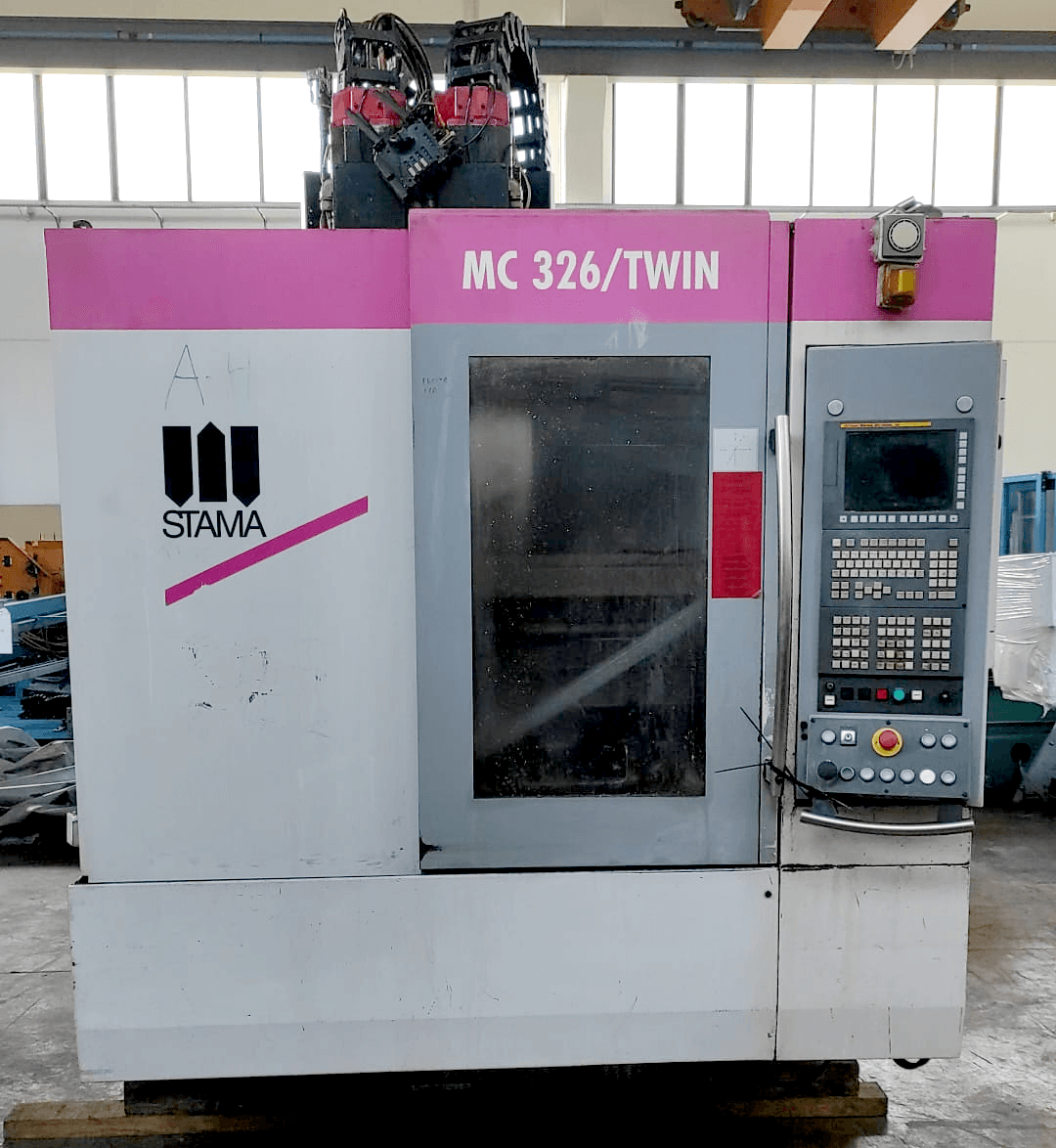

022166 - STAMA MC 326 / TWIN

Description

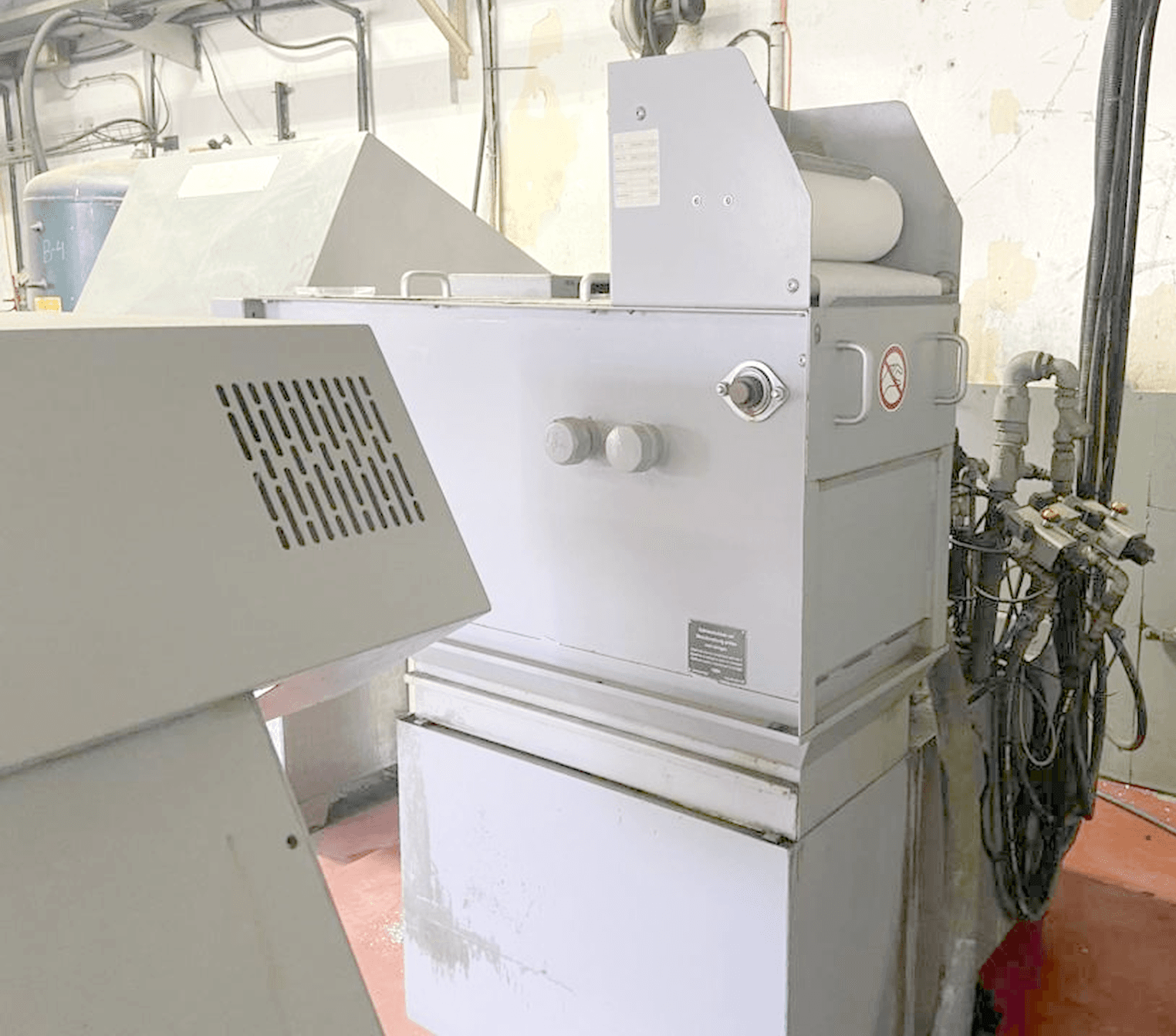

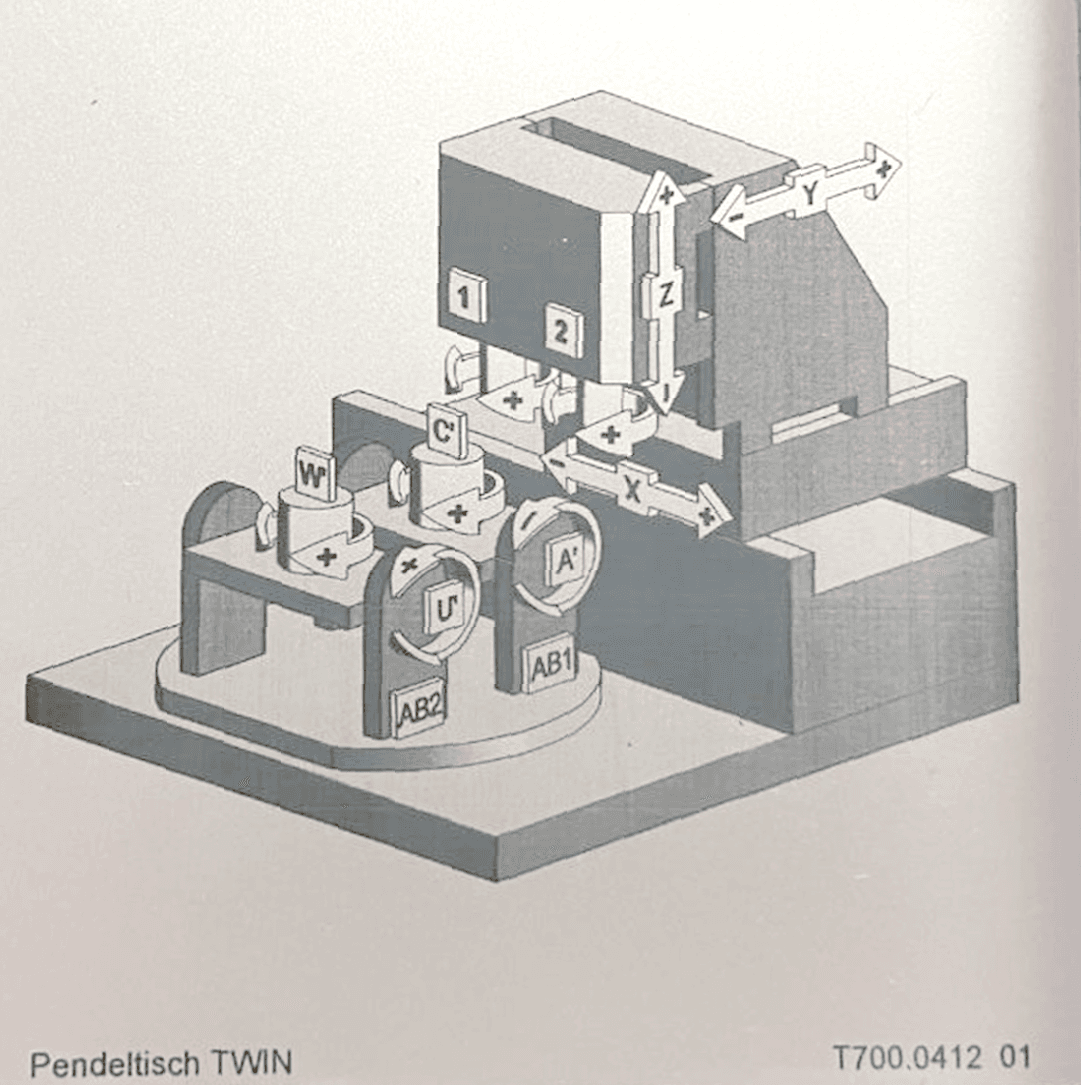

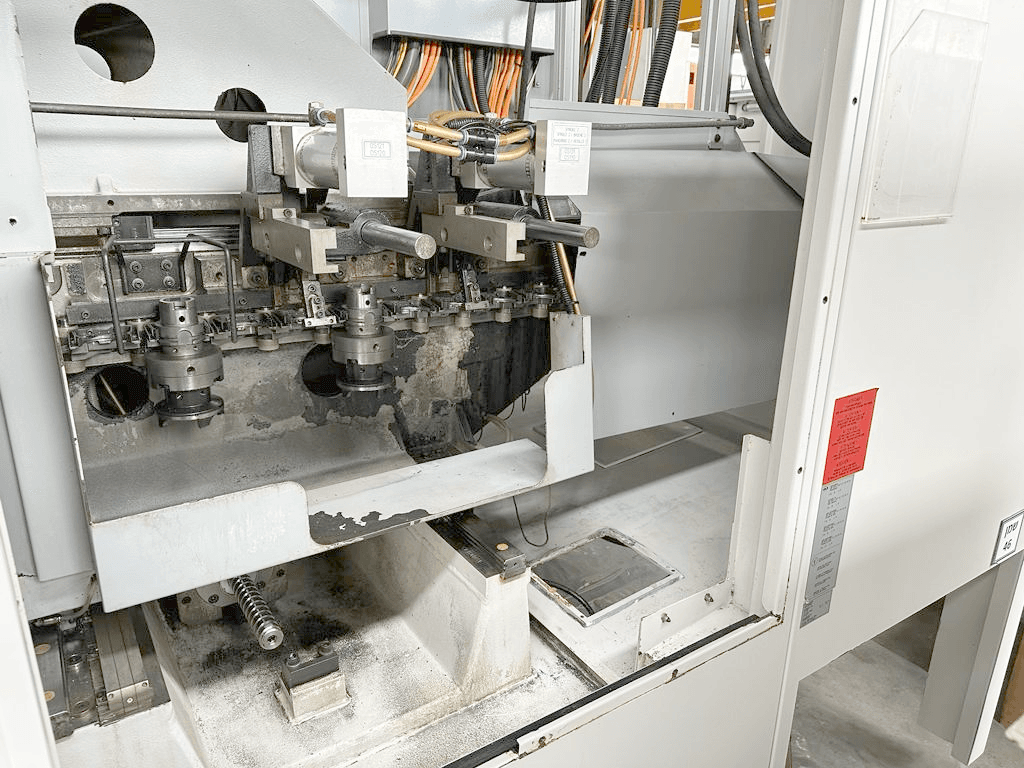

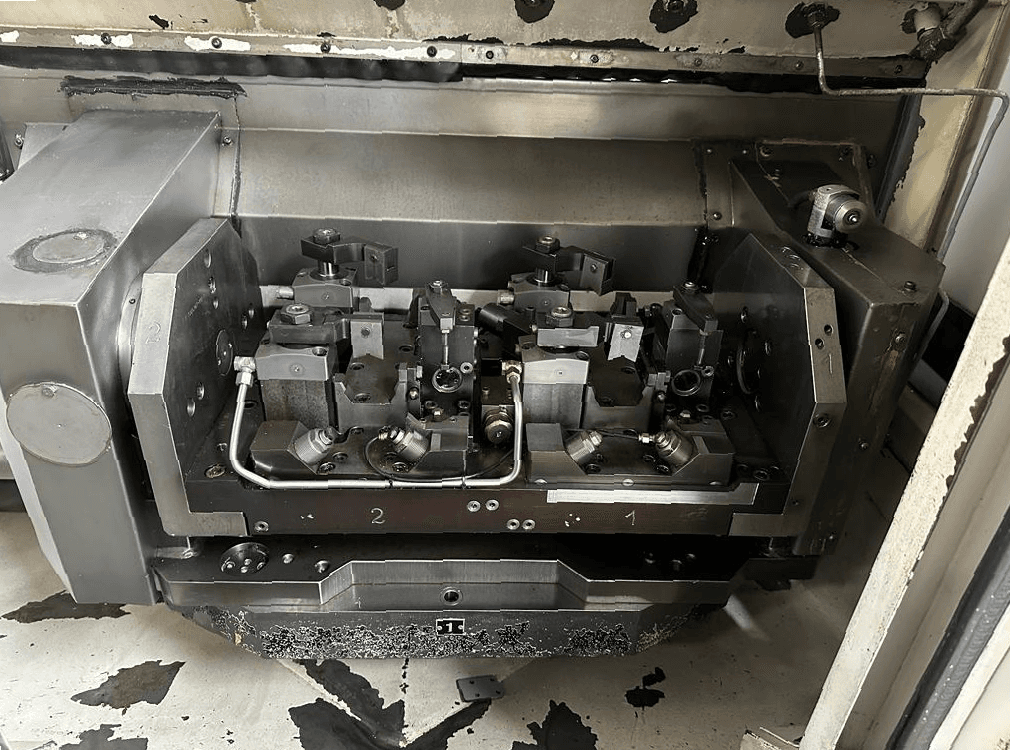

{"Number of axis total": "4", "Number of spindles": "2", "Number of tables": "2", "Table length": "700 mm", "Table width": "350 mm", "Number of T-channels": "2", "T-channel width": "14H12 mm", "Table load max.": "450 kg", "Longitudinal travel (X-axis)": "520 mm", "Transversal travel (y-axis)": "360 mm", "Vertical travel (z axis)": "360 mm", "Tool changer:": "", "Number of tools": "2 x 21", "Tool diameter": "88 mm", "Diameter with free adjacent pockets": "125 mm", "Tool lenght": "300 mm", "Max. tool-weight": "5 kg", "Average chip-to-chip time": "2.4 s", "Spindle nose: HSK-A": "63", "Distance spindle nose to table": "200 - 560 mm", "distance between spindles": "266 mm", "Spindle speeds:": "", "from": "36 t/min", "up to": "12000 t/min", "Rapid traverse:": "60 m/min", "Air connect": "6 bar", "Voltage 50 Hz 3x": "400 Volt", "Spindle motor": "18.5 kW", "Total power required": "40 kVA", "Machine's weight about": "5600 kg", "Overall dimensions machine:": "", "Length": "3300 mm", "Width": "3300 mm", "Height": "3200 mm", "Various accessories:": "", "Coolant system": "", "High pression colant device": "", "Coolant through spindle (cts)": "", "Paper filtration system": "", "Chip conveyor": ""}
