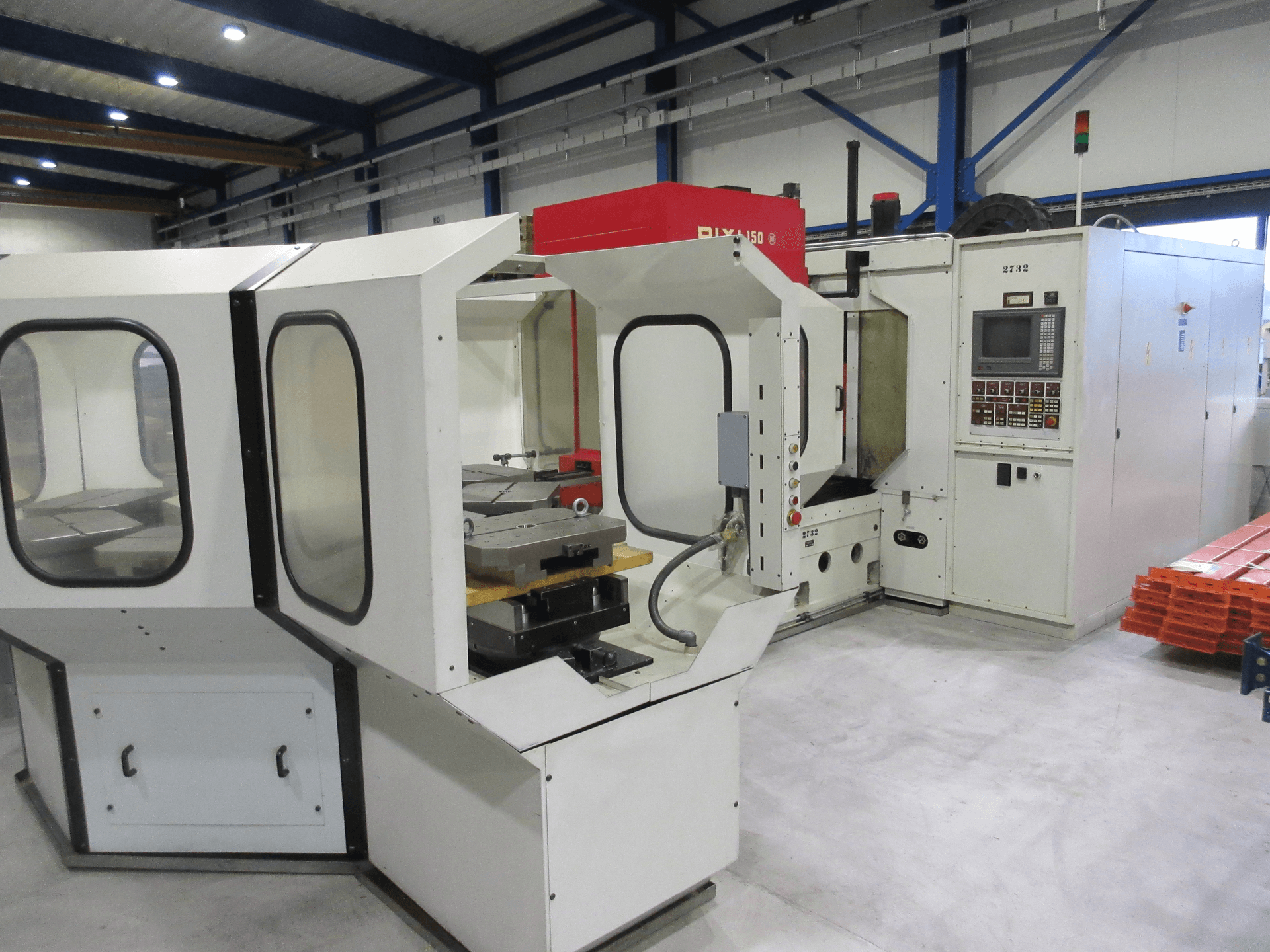

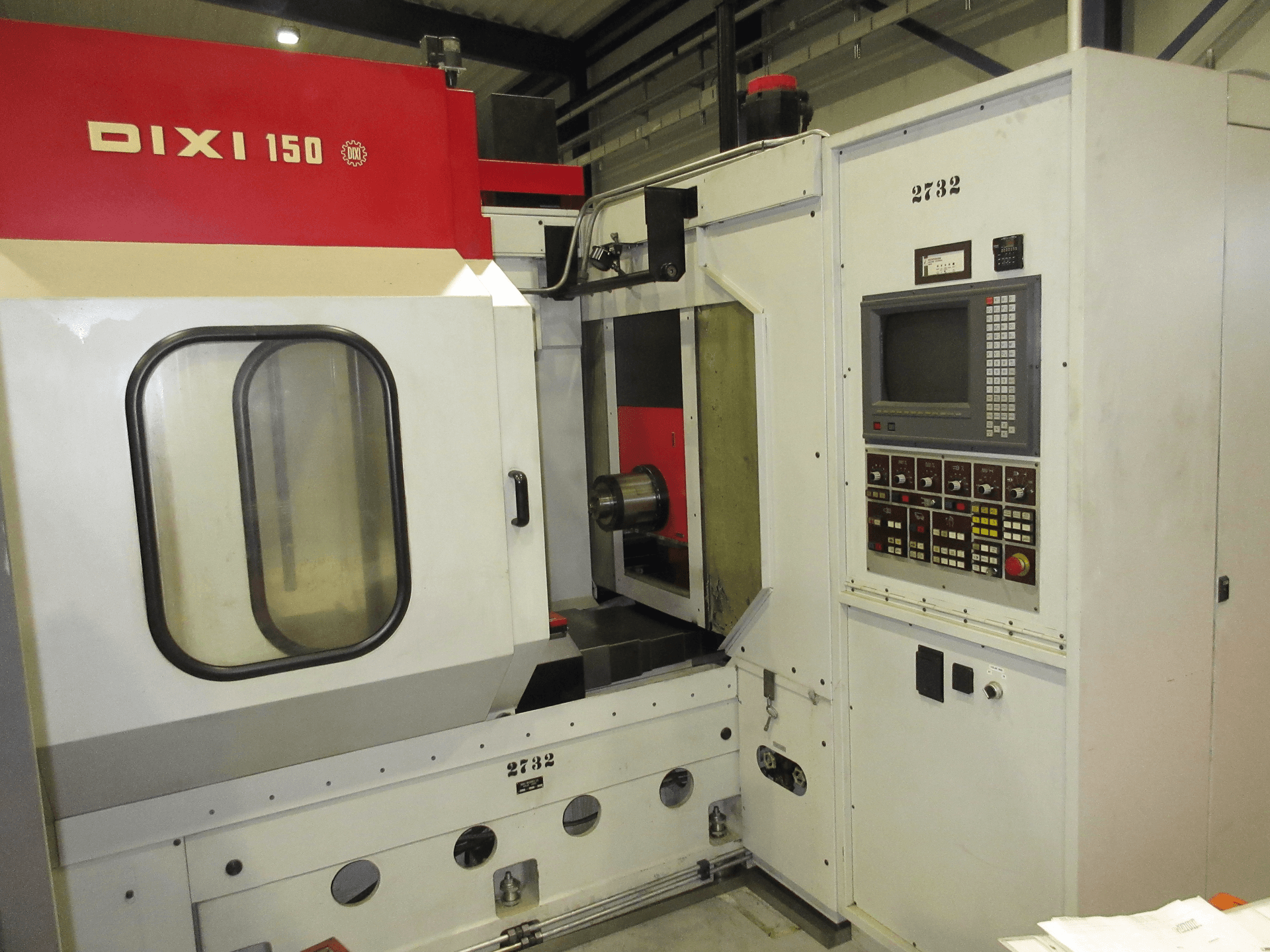

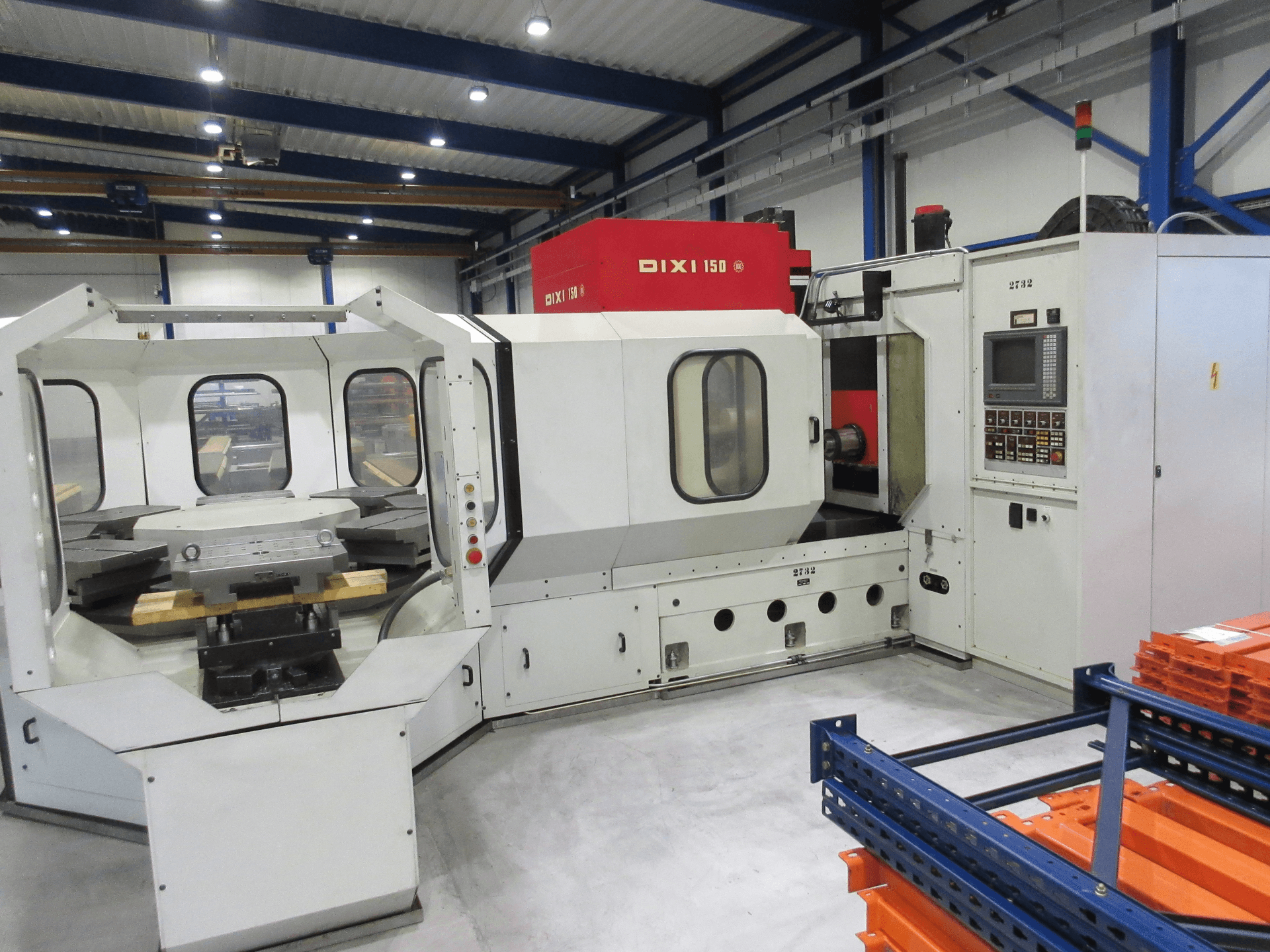

022535 - DIXI DPC 150

Description

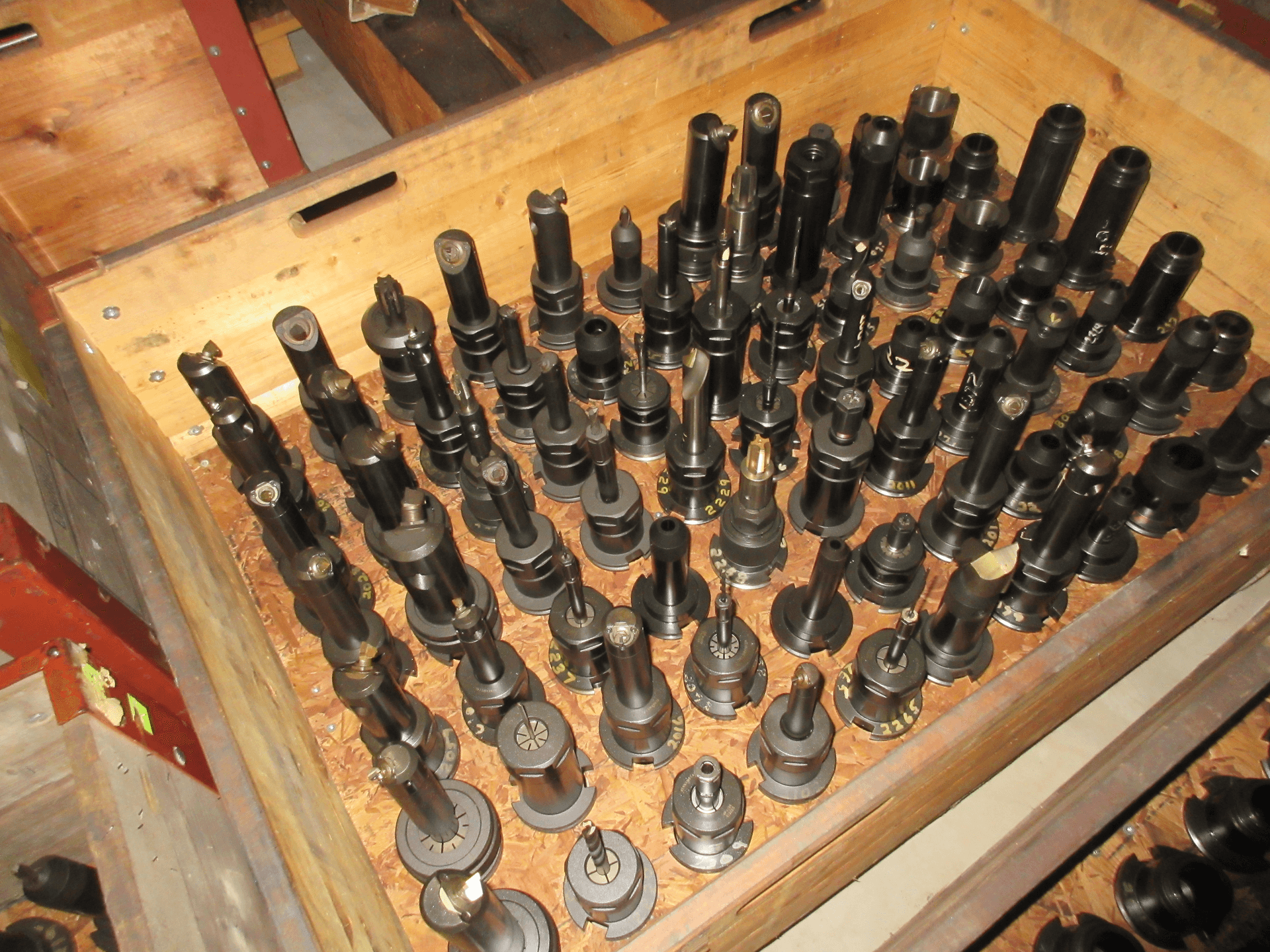

{"Longitudinal travel (X-axis)": "700 mm", "Transversal travel (y-axis)": "500 mm", "Vertical travel (z axis)": "700 mm", "Table divisions (B)": "360'000x0.001 \u00b0", "Table speeds:": "", "up to": "10000 mm/min", "Pallets:": "", "numbers": "9", "Length": "6840 mm", "Width": "3400 mm", "Time of changing palets": "14 s", "Transport weight": "500 kg", "Tool changer:": "", "Number of tools": "144 (2x72)", "Max. tool-weight": "12 kg", "Time of tool changing": "6 - 8 s", "Spindle nose: ISO": "40", "Horizontal spindle speeds:": "", "stepless": "", "from": "40 t/min", "Feeds:": "", "longitudinal from": "1 mm/min", "transversal from": "1 mm/min", "vertical from": "1 mm/min", "Rapid traverse:": "15 m/min", "Voltage 50 Hz 3x": "380 Volt", "Spindle motor": "15 kW", "Total power required": "65 kVA", "Machine's weight about": "11000 kg", "Overall dimensions machine:": "", "Height": "3000 mm", "Various accessories:": "", "Full splash cabin": "", "Coolant system": "", "Coolant through spindle (cts)": "", "Pallets chanching device:": "", "Pallets: number": "8", "Set of toolholders": "", "Set of cutter arbors": ""}
