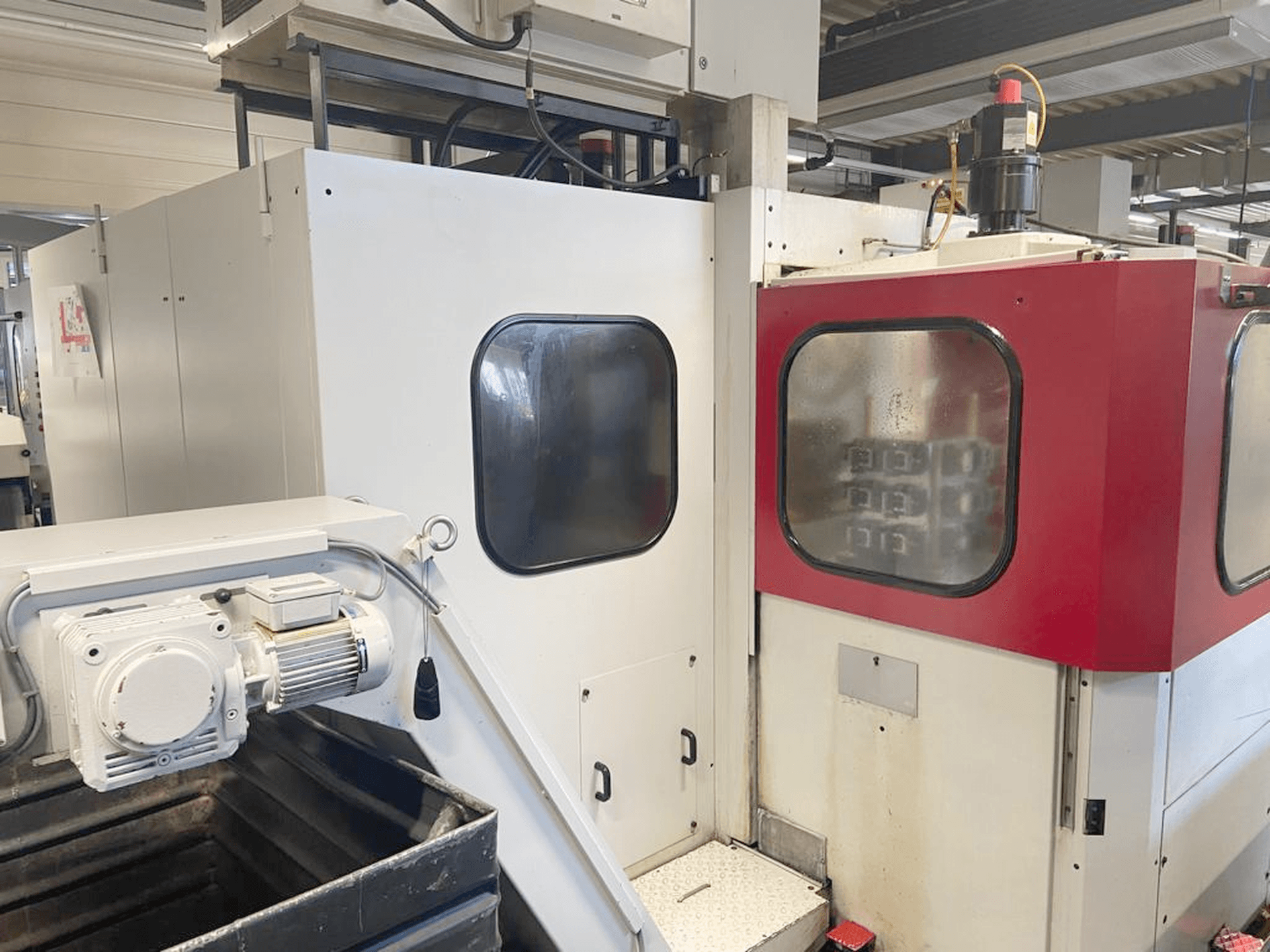

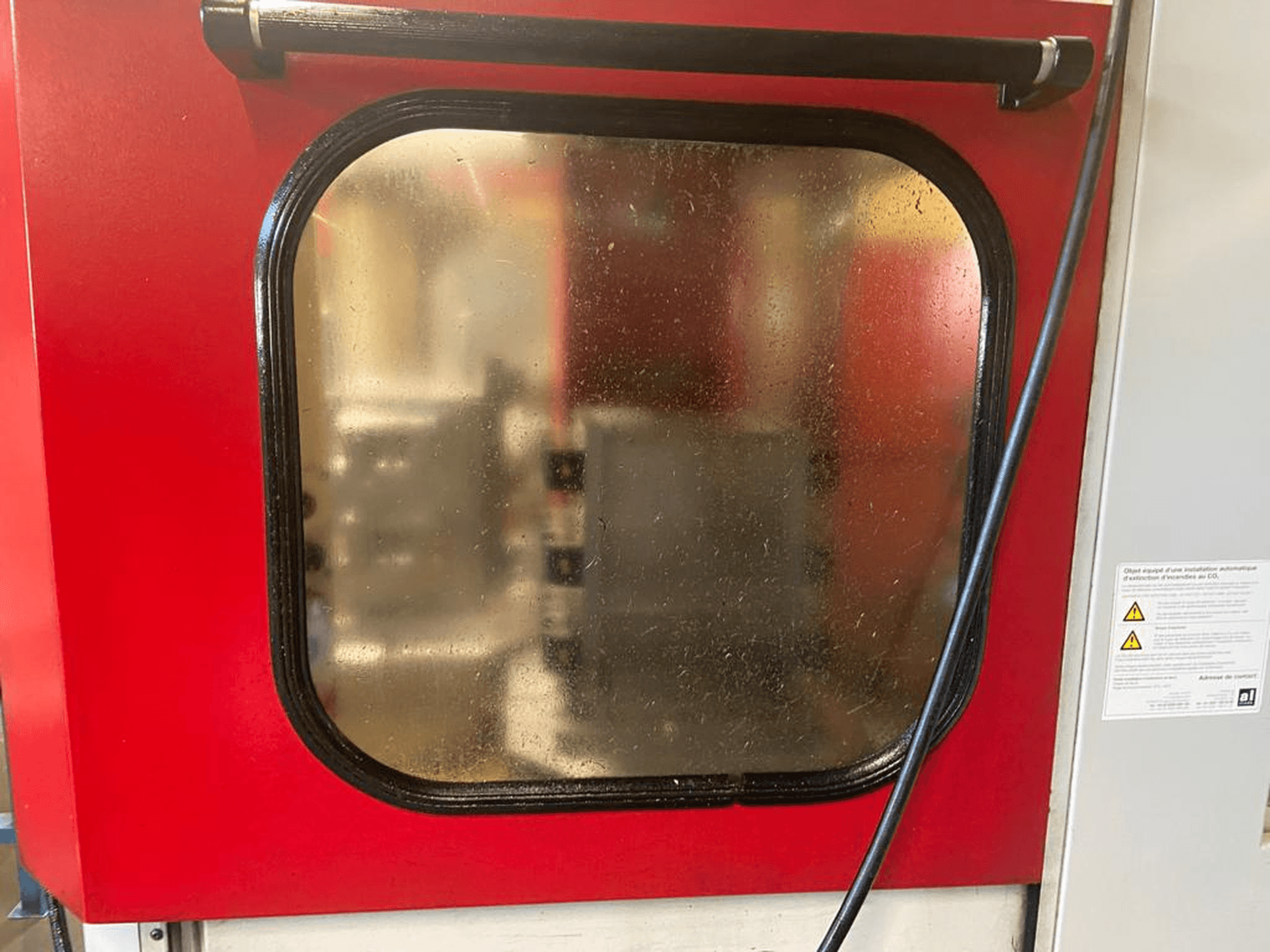

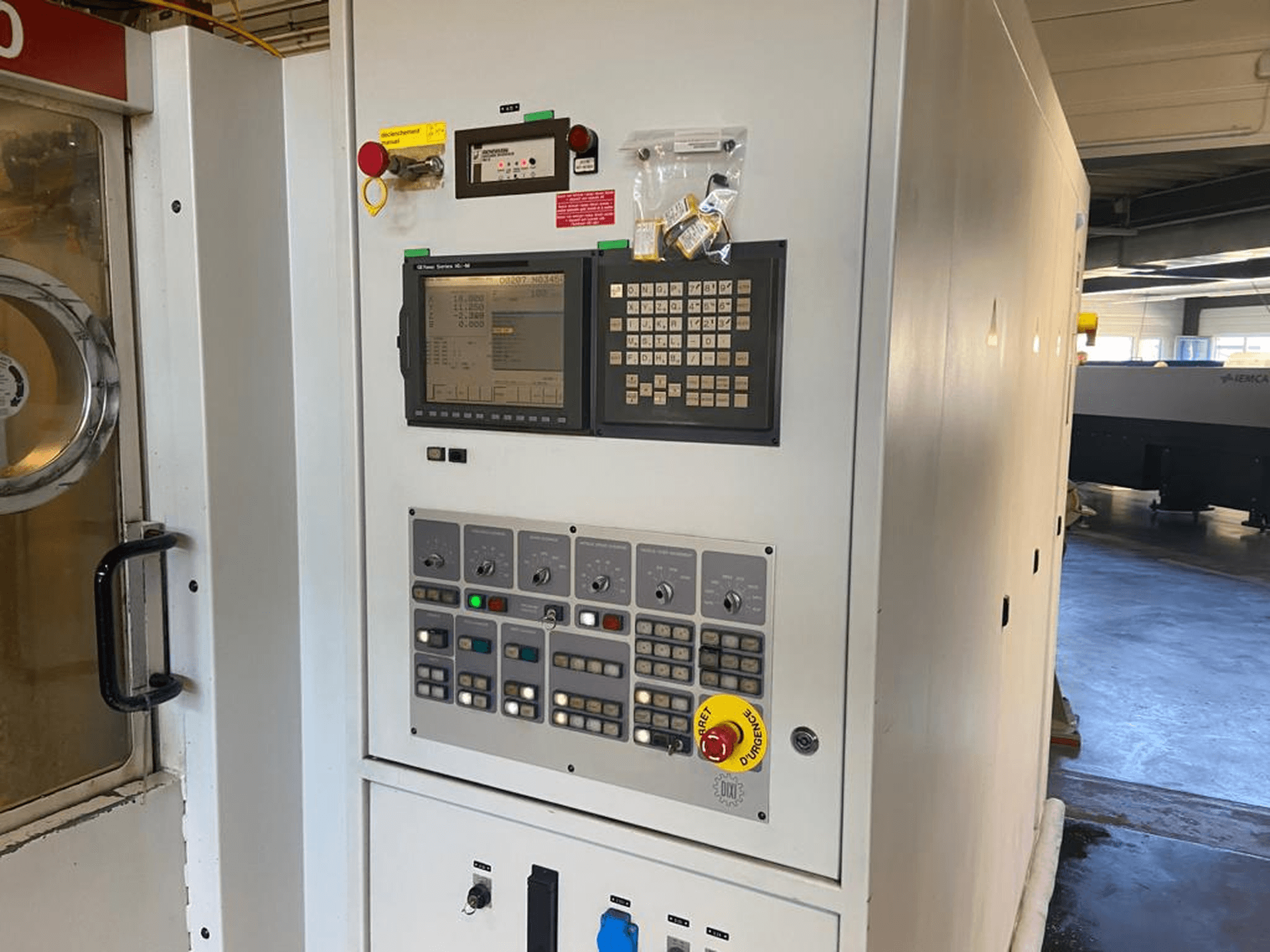

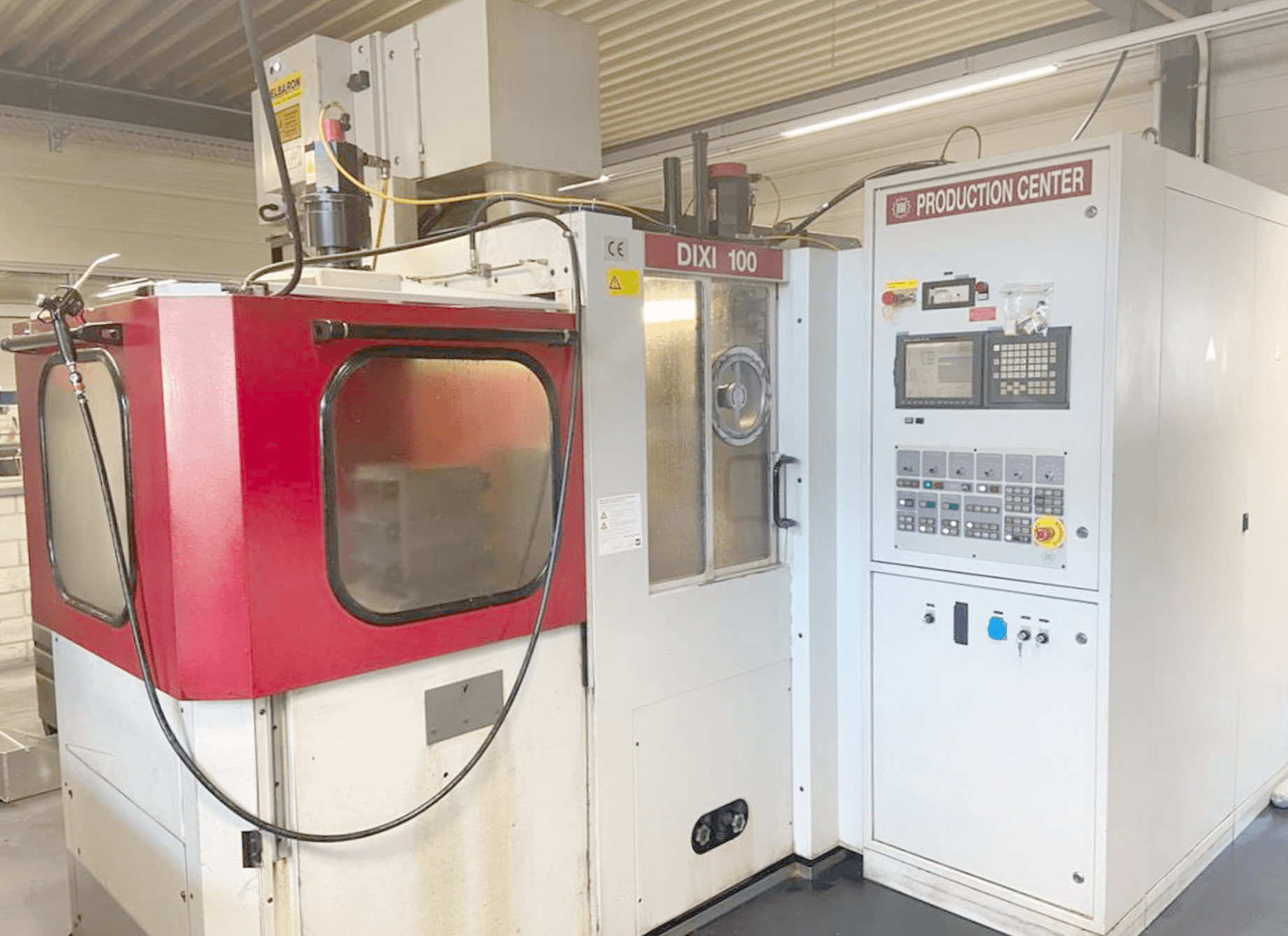

021760 - DIXI DPC 100

Description

{"Number of axis total": "4", "Longitudinal travel (X-axis)": "500 mm", "Transversal travel (y-axis)": "400 mm", "Vertical travel (z axis)": "500 mm", "B axis": "", "Pallets:": "", "numbers": "4", "Length": "4330 mm", "Width": "3200 mm", "Maximum workpiece weight": "300 kg", "Tool changer:": "", "Number of tools": "96", "Tool diameter max.": "80 mm", "Diameter with free adjacent pockets": "160 mm", "Tool lenght": "300 mm", "Max. tool-weight": "12 kg", "Time of tool changing": "2.5 s", "Average chip-to-chip time": "6 s", "Spindle nose: ISO": "40 DIN69871", "Distance spindle nose to table": "100 - 600 mm", "Distance from vertical": "", "spindle to table": "20 - 420 mm", "Spindle speeds:": "", "stepless": "", "from": "0 t/min", "up to": "12000 t/min", "Feed range": "1 - 12000 mm/min", "Rapid traverse:": "20 m/min", "Air connect": "6 bar", "Voltage 50 Hz 3x": "400 Volt", "Spindle power": "5.5 / 7.5 kW", "Total power required": "60 kVA", "Noise level": "75 dB (A)", "Machine's weight about": "6000 kg", "Overall dimensions machine:": "", "Height": "2520 mm", "Various accessories:": "", "Coolant system": "500 l", "High pression colant device": "65 bar", "Paper filtration system": "", "3D measuring feeler gauge": "RENISHAW", "Chip conveyor": "", "Oil mist extractor": "", "Spindlecooling": ""}
