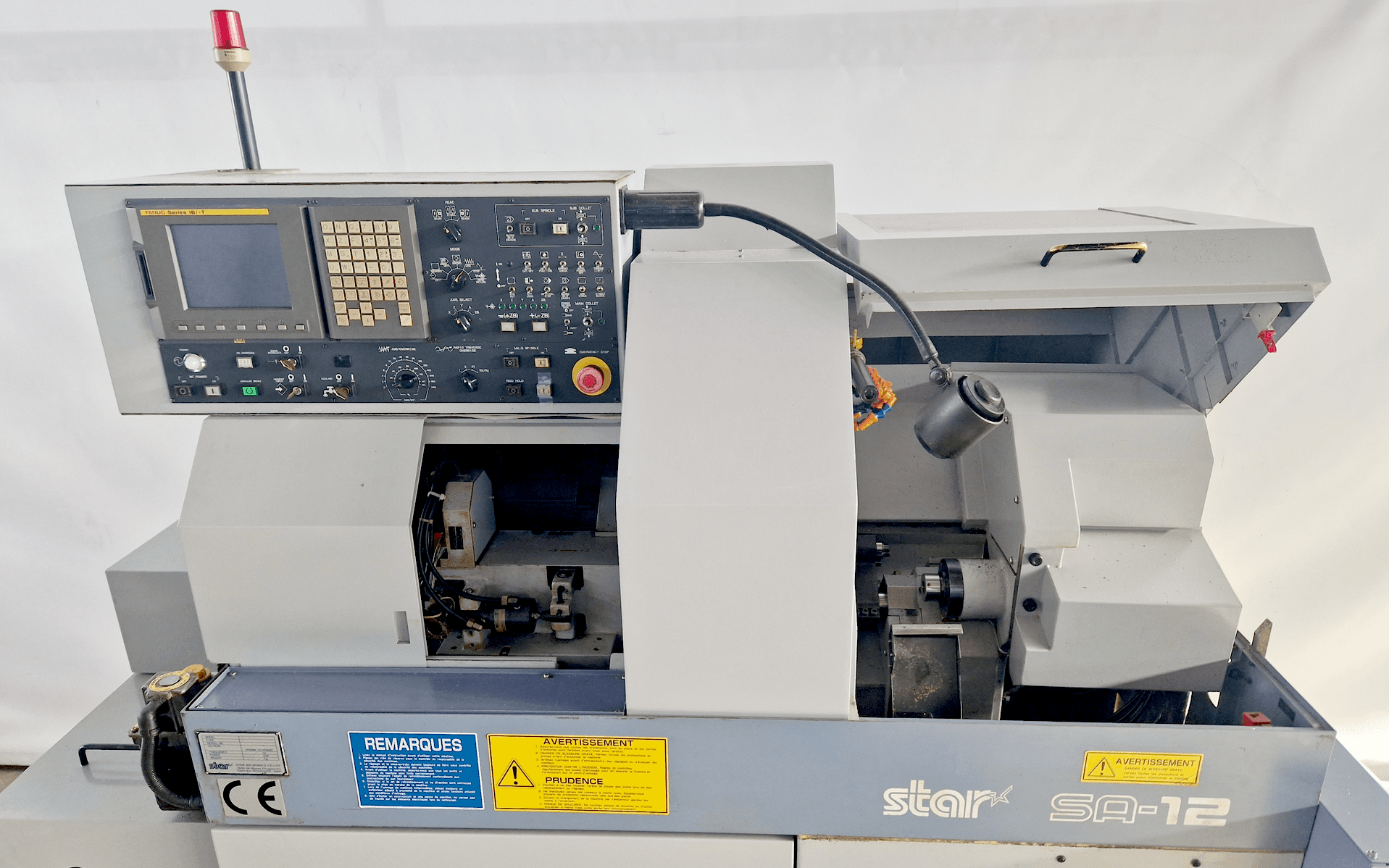

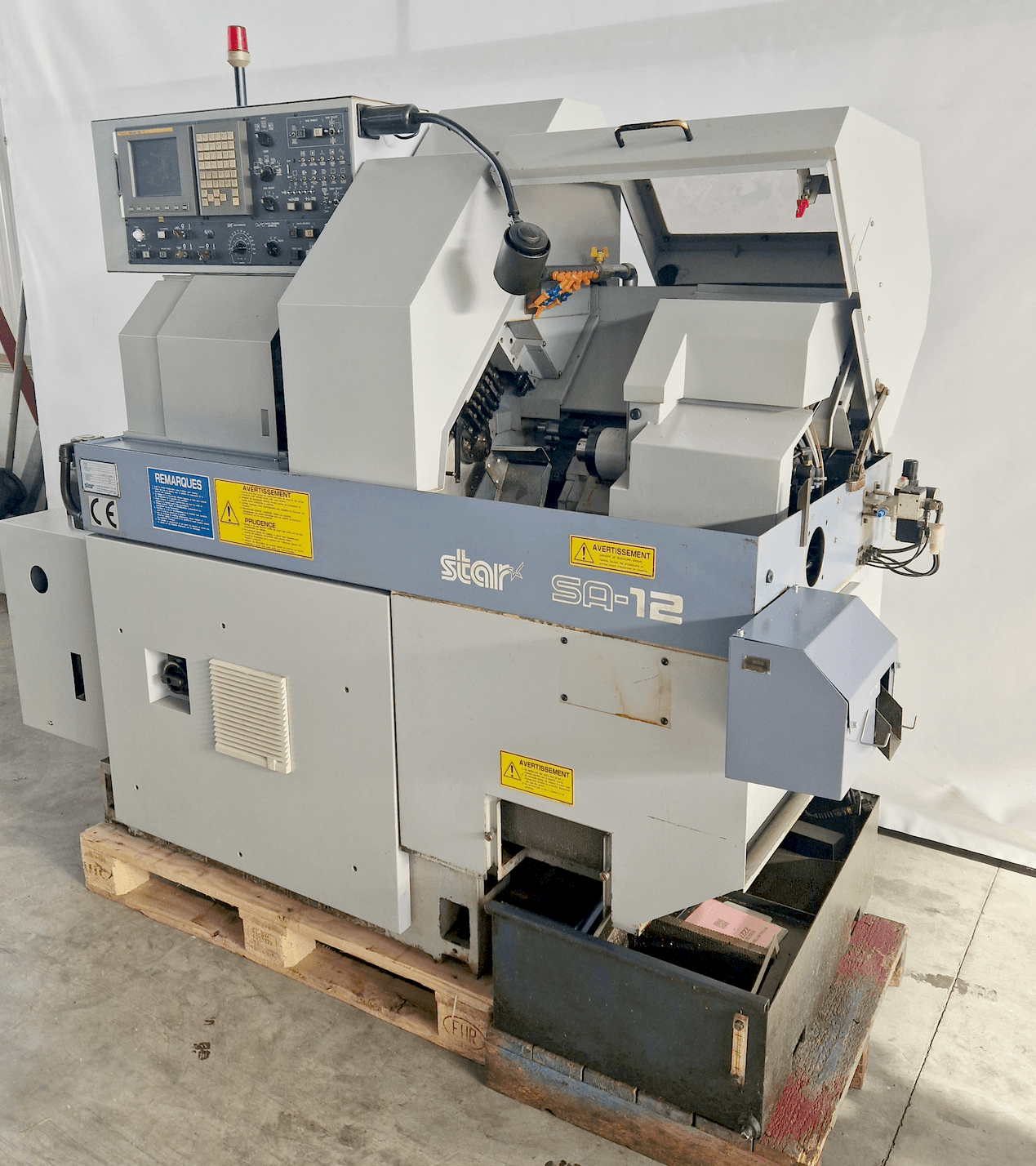

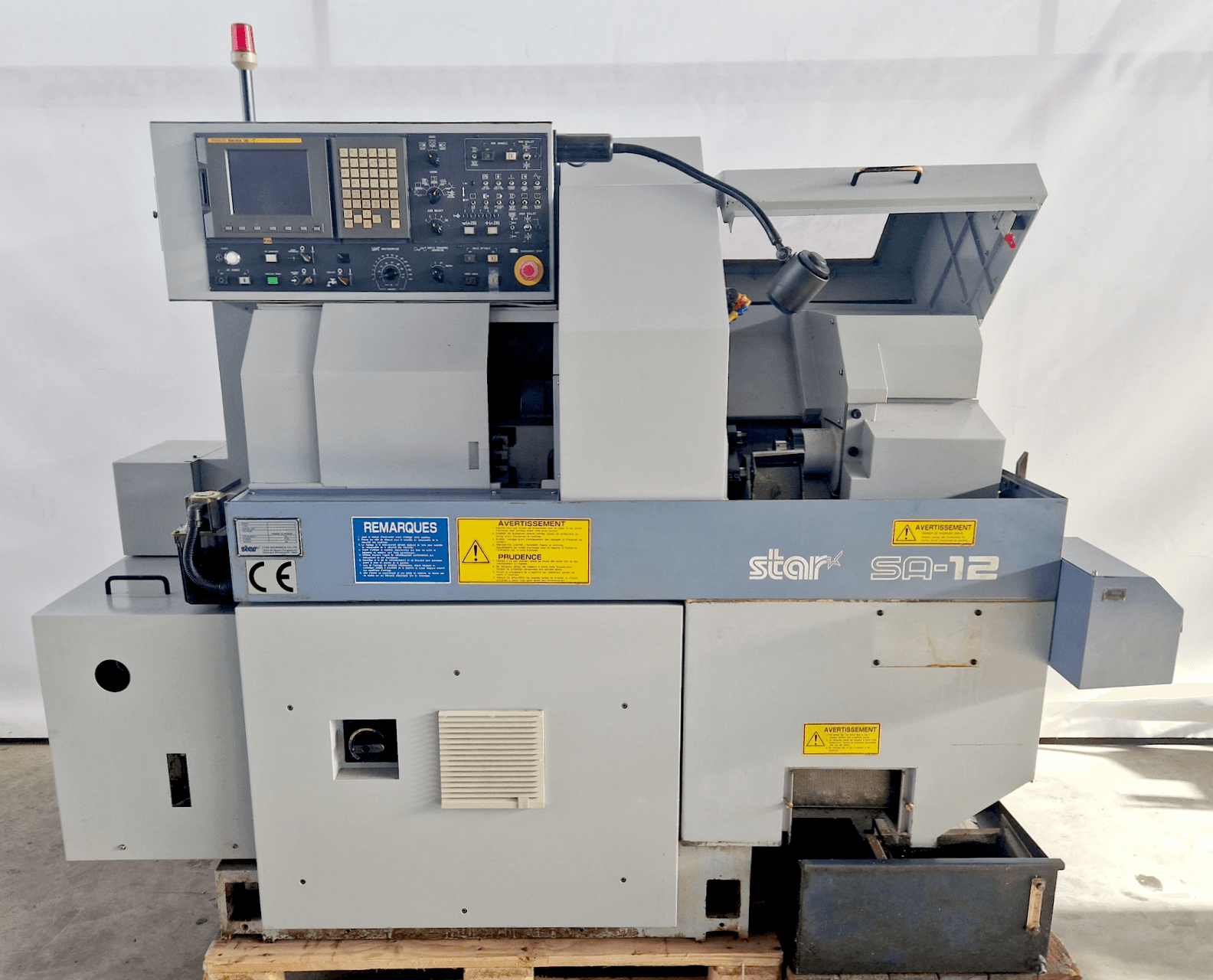

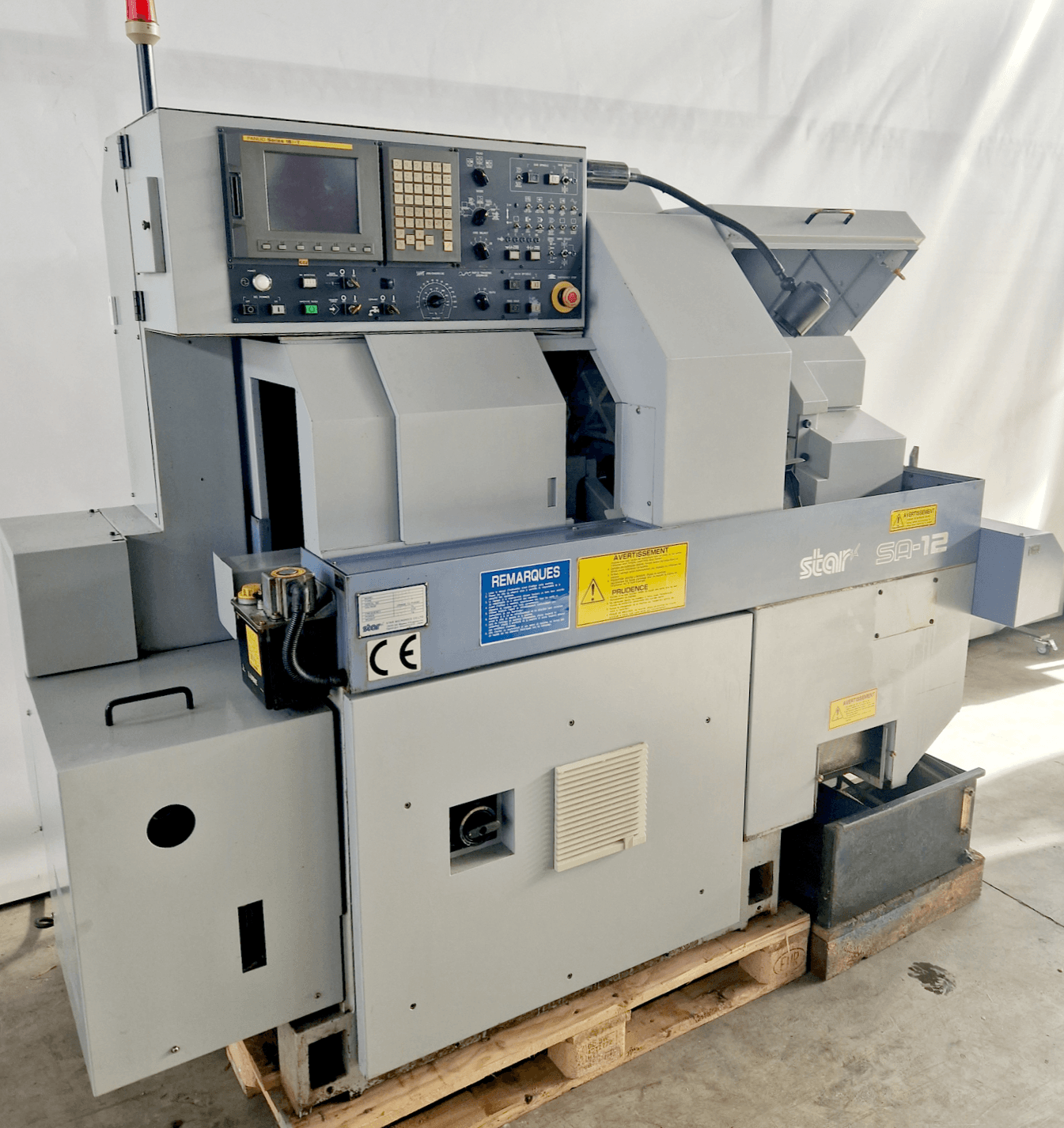

022271 - STAR SA-12

Description

{"Number of axis total": "4", "Number of axis simultaneous": "", "Number of spindles": "2", "Max. turning diameter": "16 mm", "Max. drilling diameter": "7 mm", "Max. threading diameter": "6 M", "Spindle speeds:": "", "stepless": "", "from": "500 t/min", "up to": "8000 t/min", "Spindle power": "2.2 kW", "C axis (spindle,resolution)": "15 \u00b0", "Back spindle:": "", "speeds:": "", "Max. tapping length": "85 mm", "Thread drill diameter": "3 M", "Back machining workpiece length max.": "85 mm", "Tool-holder:": "", "Turning tools": "6 pce", "Drilling tools": "2 pce", "Spindle speeds (turning tools)": "4000 t/min", "Counter-operation:": "", "number of tools": "4", "Rapid traverse:": "18 m/min", "Cutting speed": "10000 mm/min", "Voltage 50 Hz 3x": "400 Volt", "Spindle motor": "2.2 / 3.7 kW", "Power of back spindle": "0.5 kW", "Air connect": "5 bar", "Total power required": "6 kVA", "Machine's weight about": "1700 kg", "Overall dimensions machine:": "", "Length": "2090 mm", "Width": "770 mm", "Height": "1660 mm", "Various accessories:": "", "Lamp": "", "Coolant system": "80 l"}
