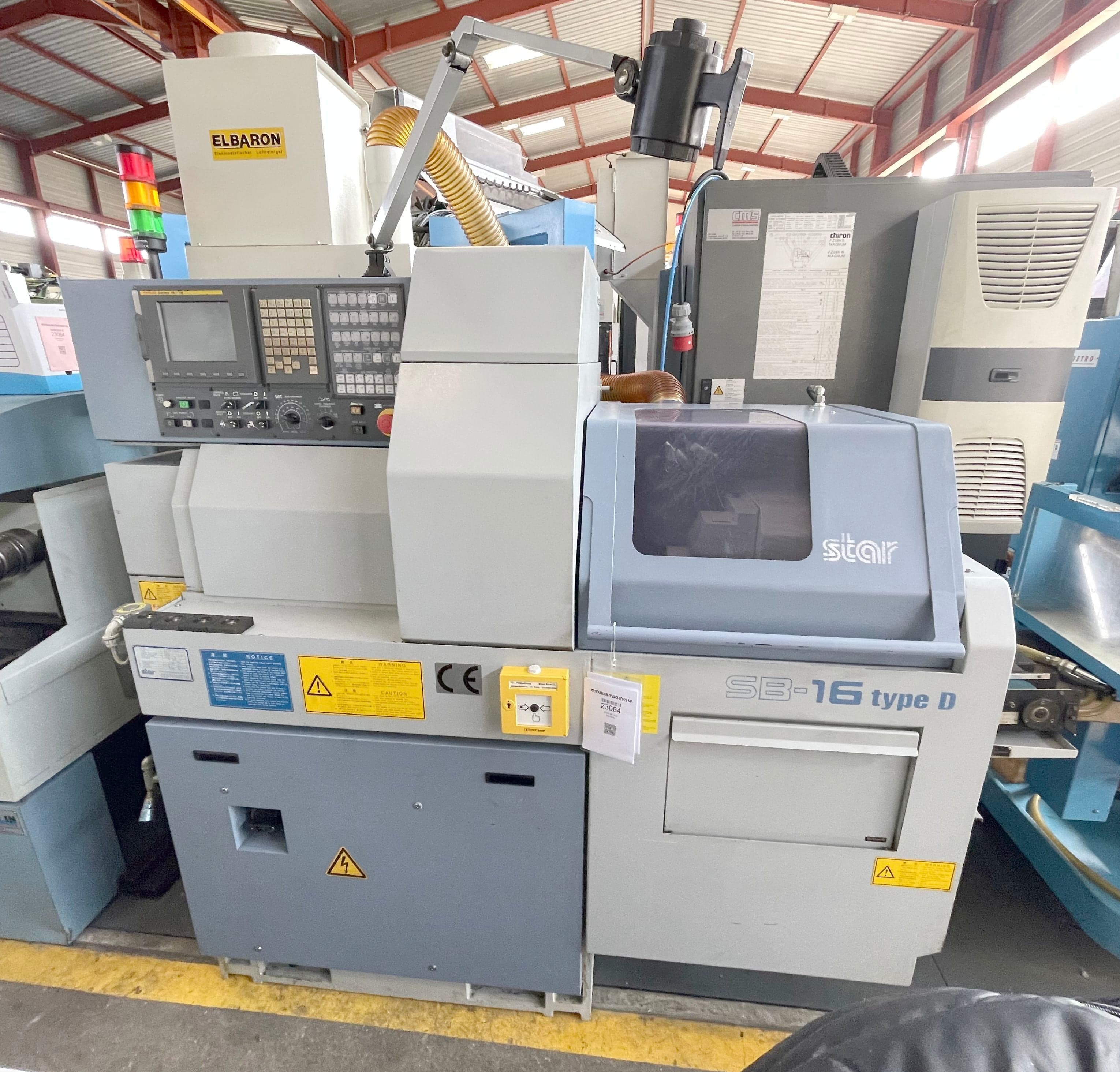

023064 - STAR SB 16 D

Description

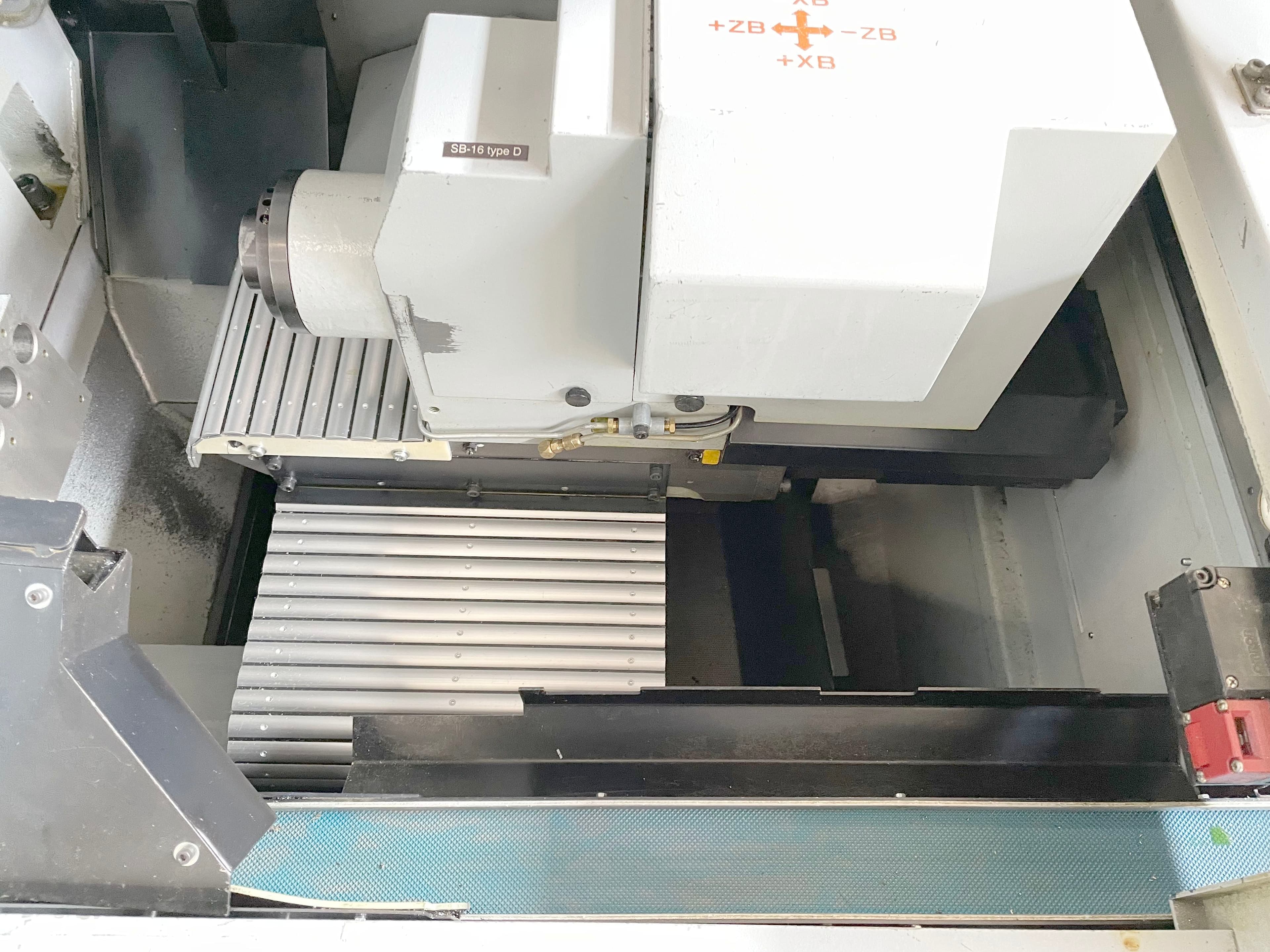

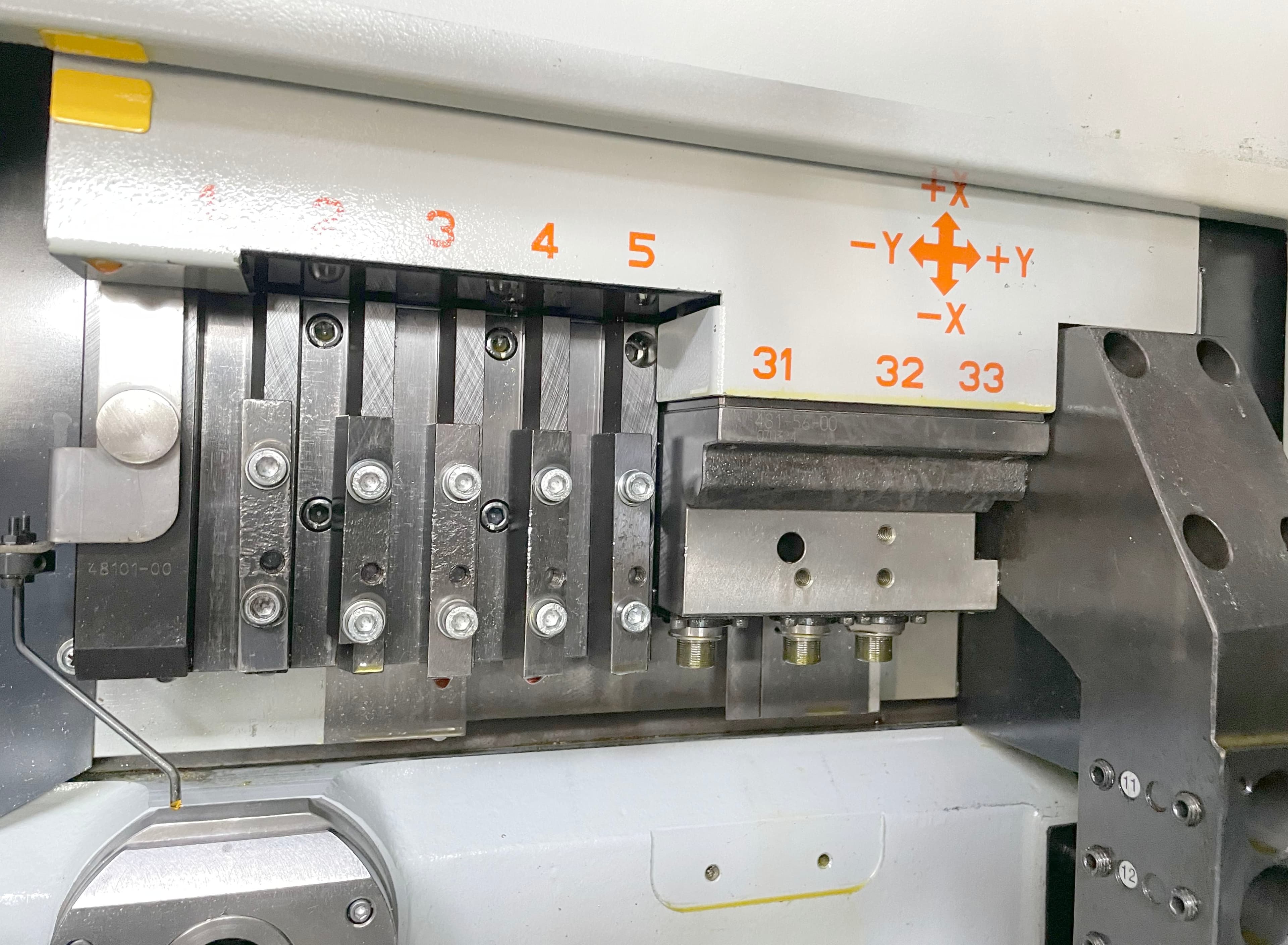

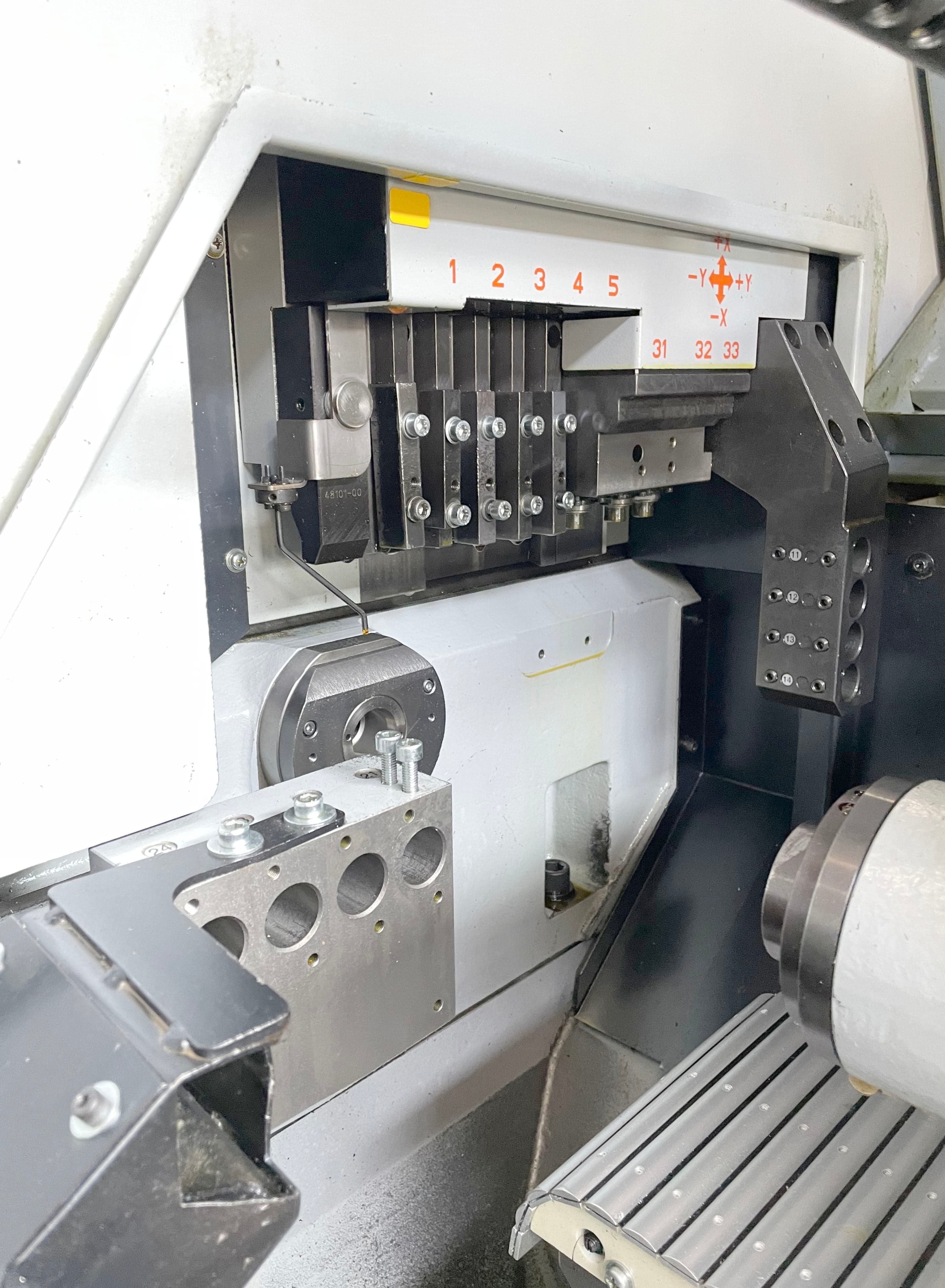

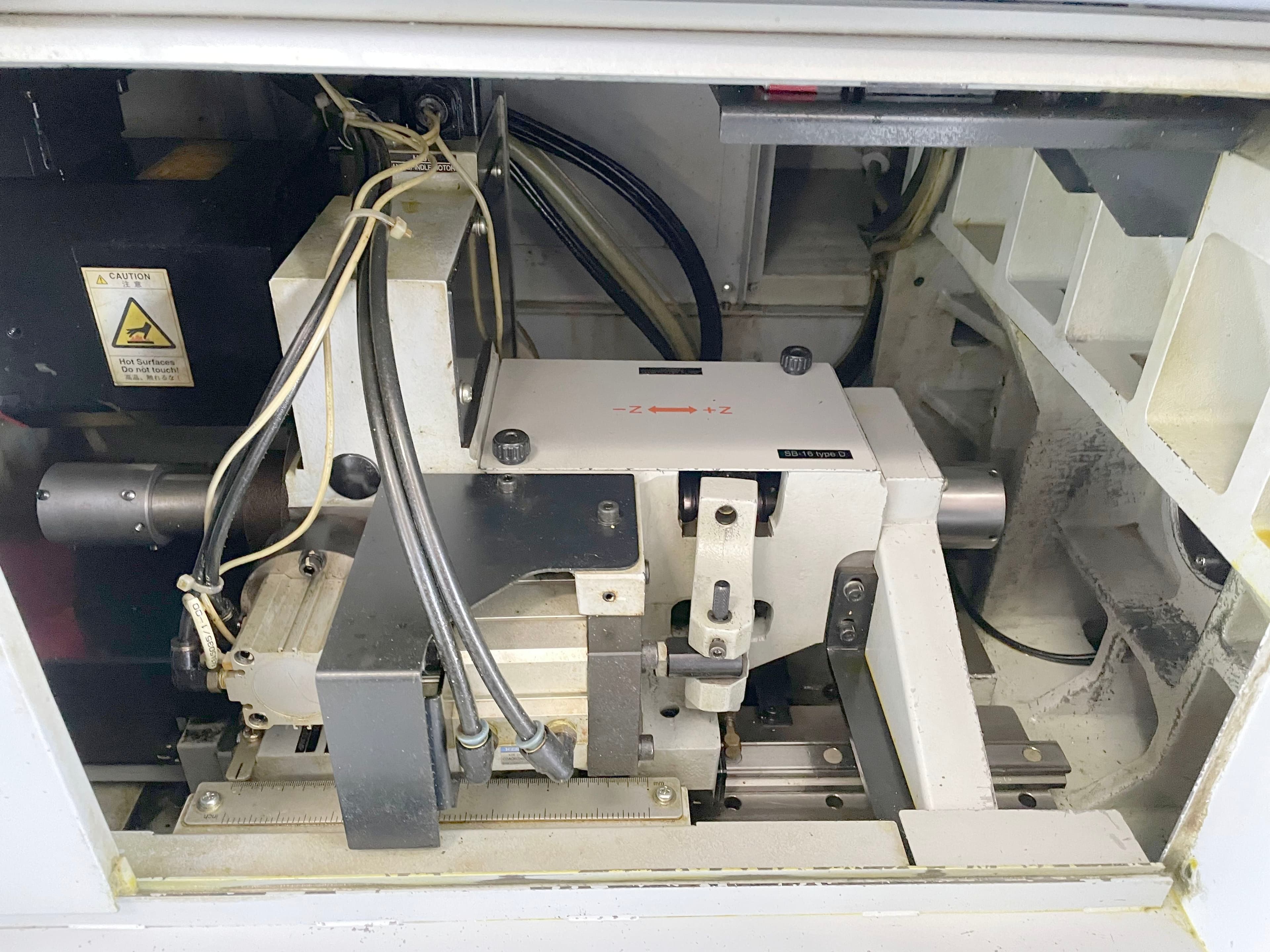

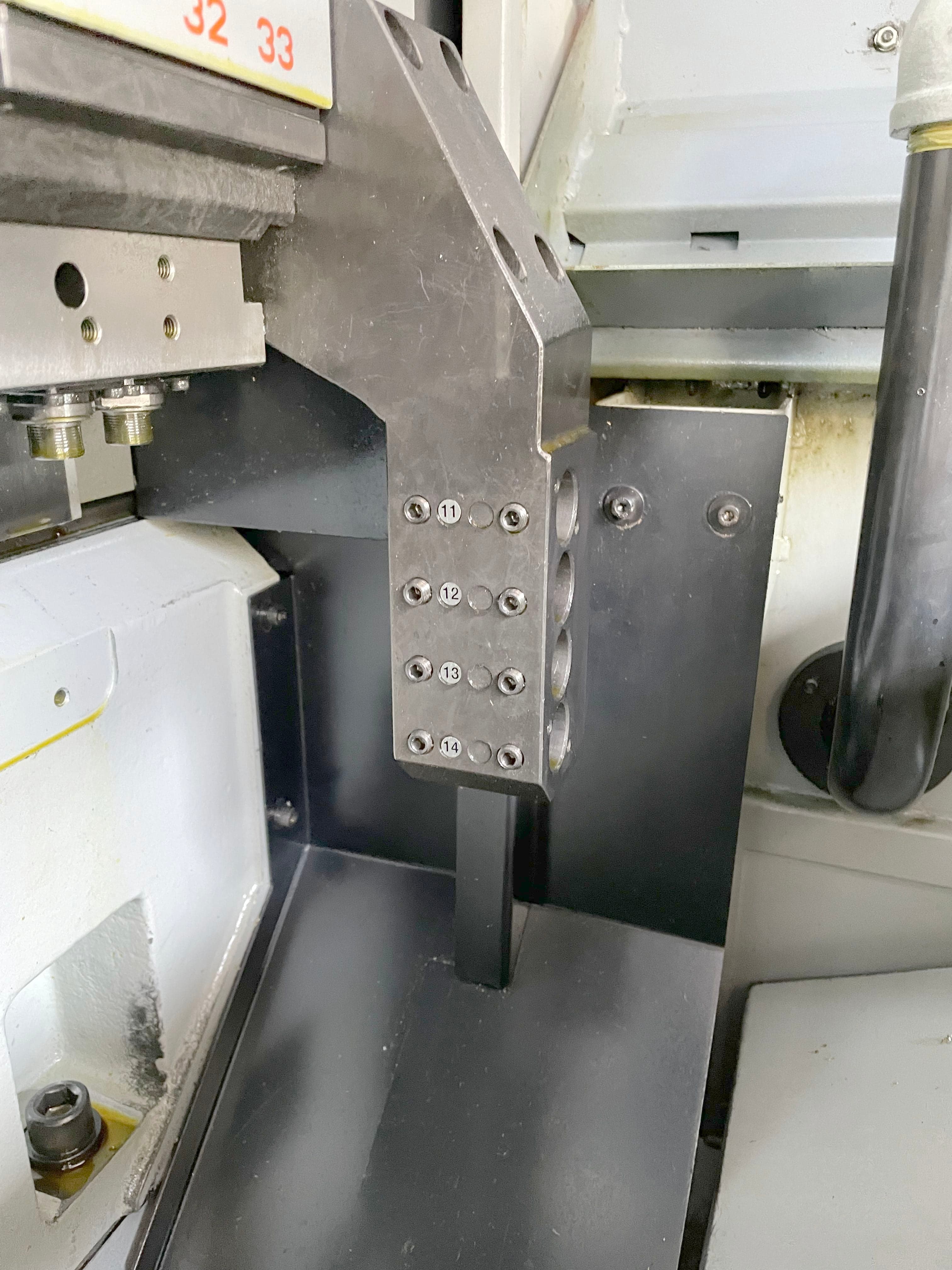

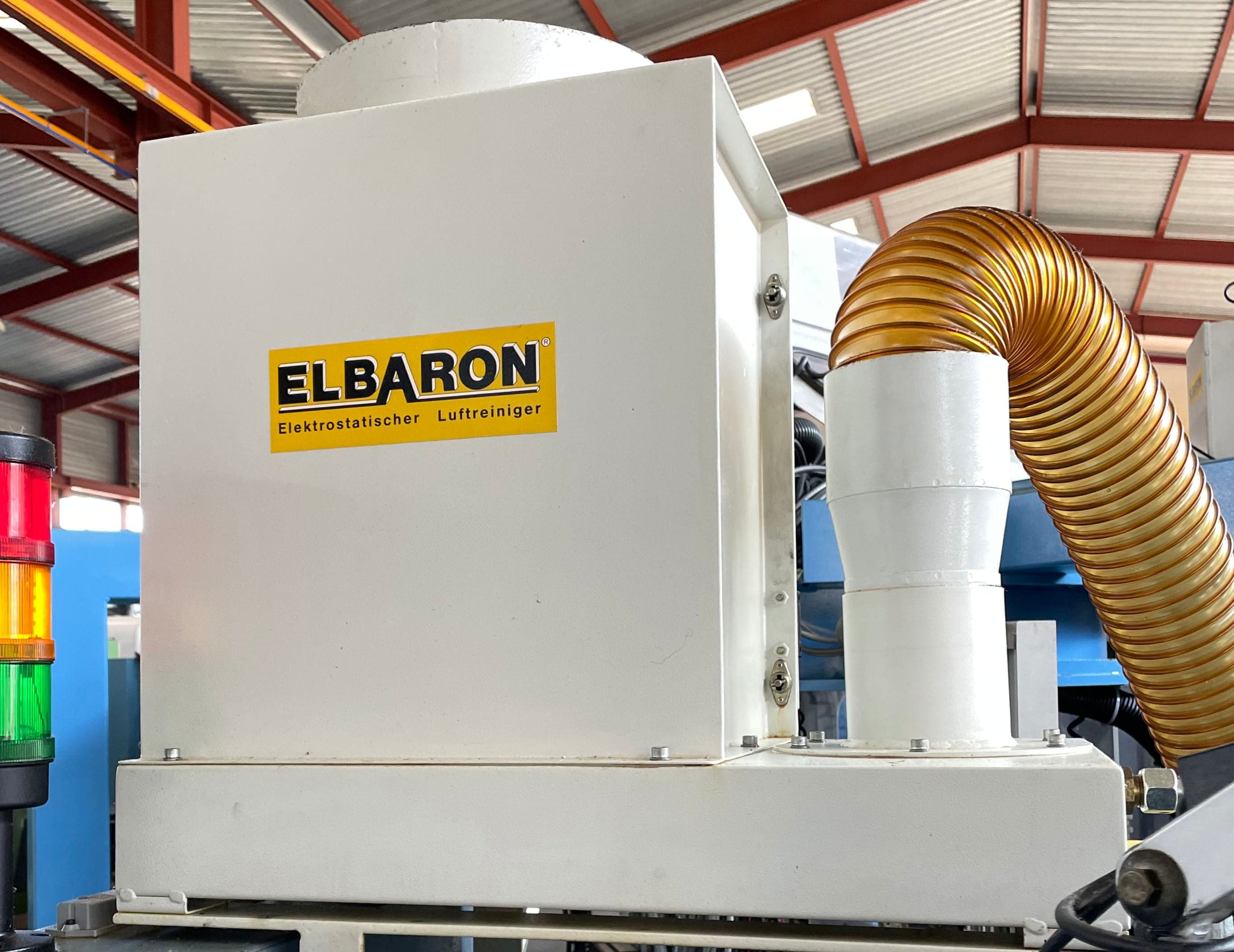

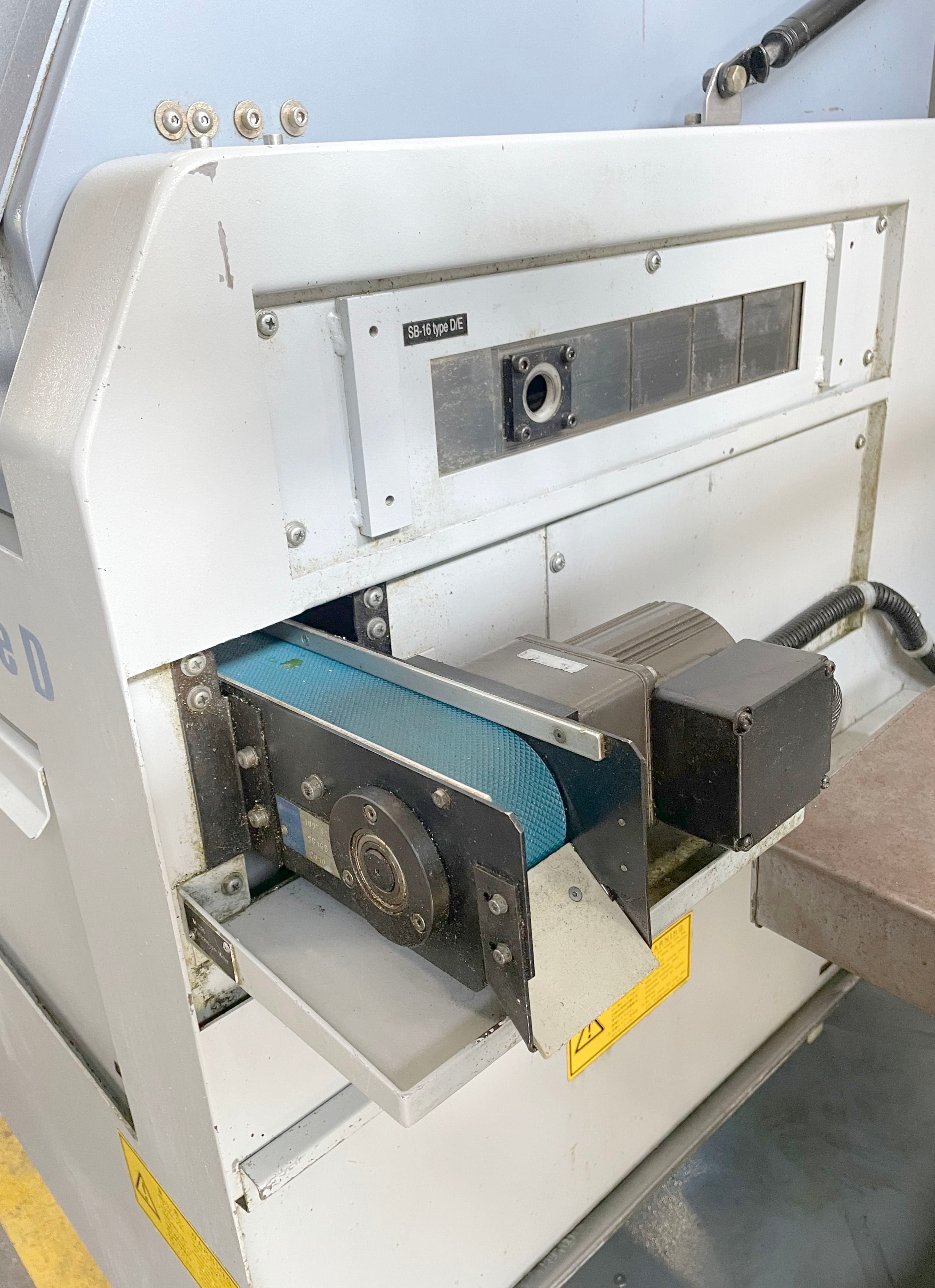

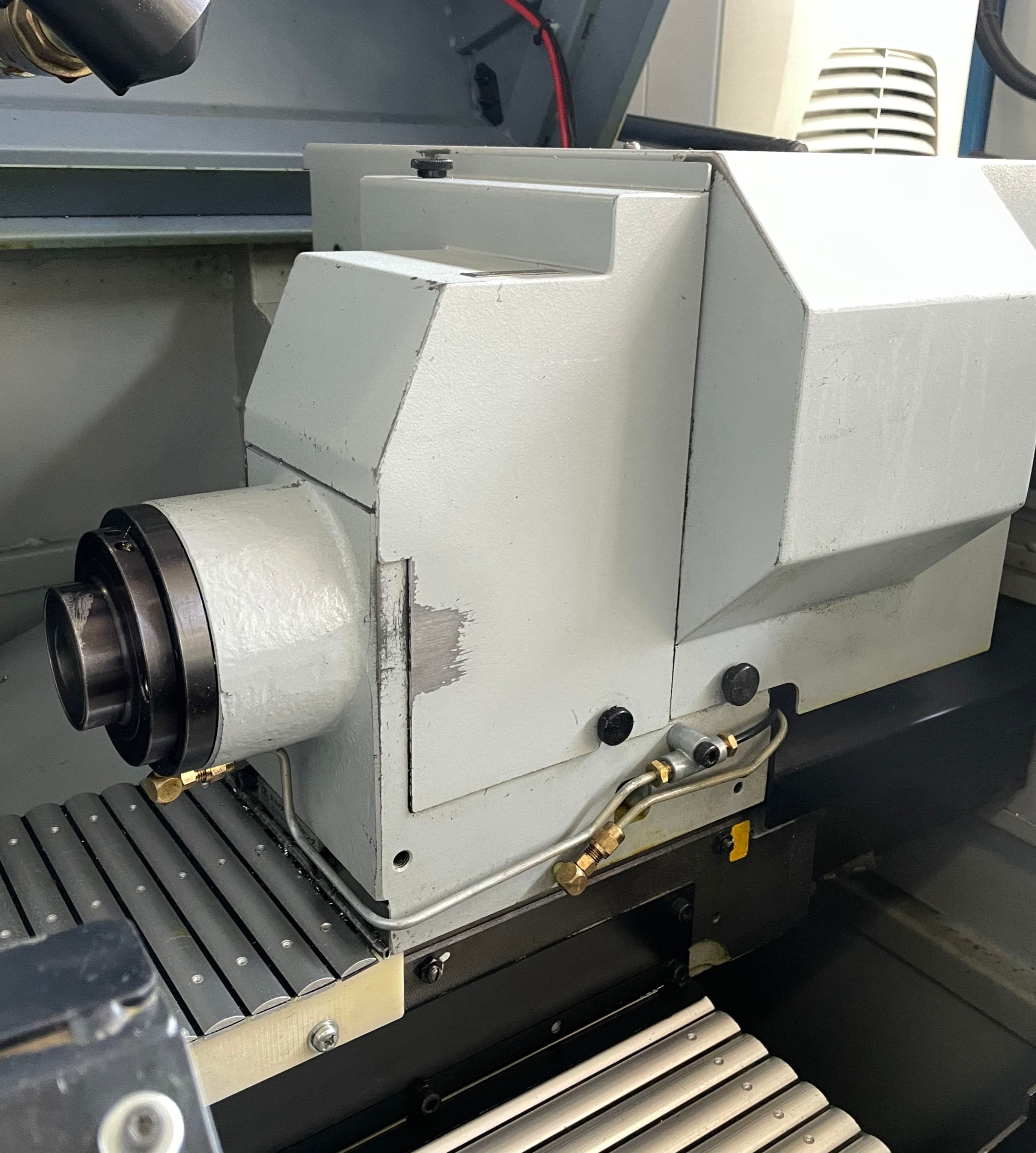

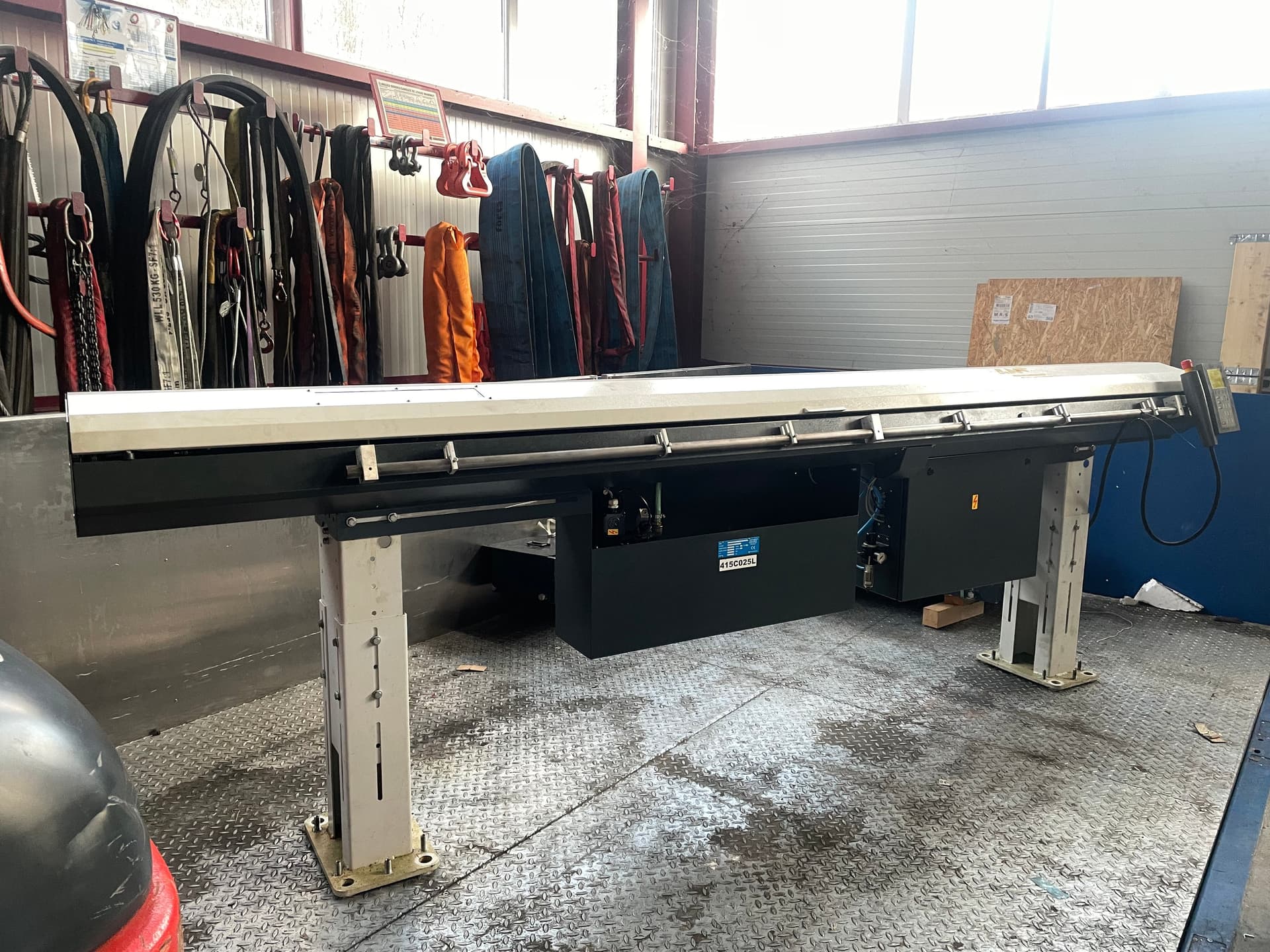

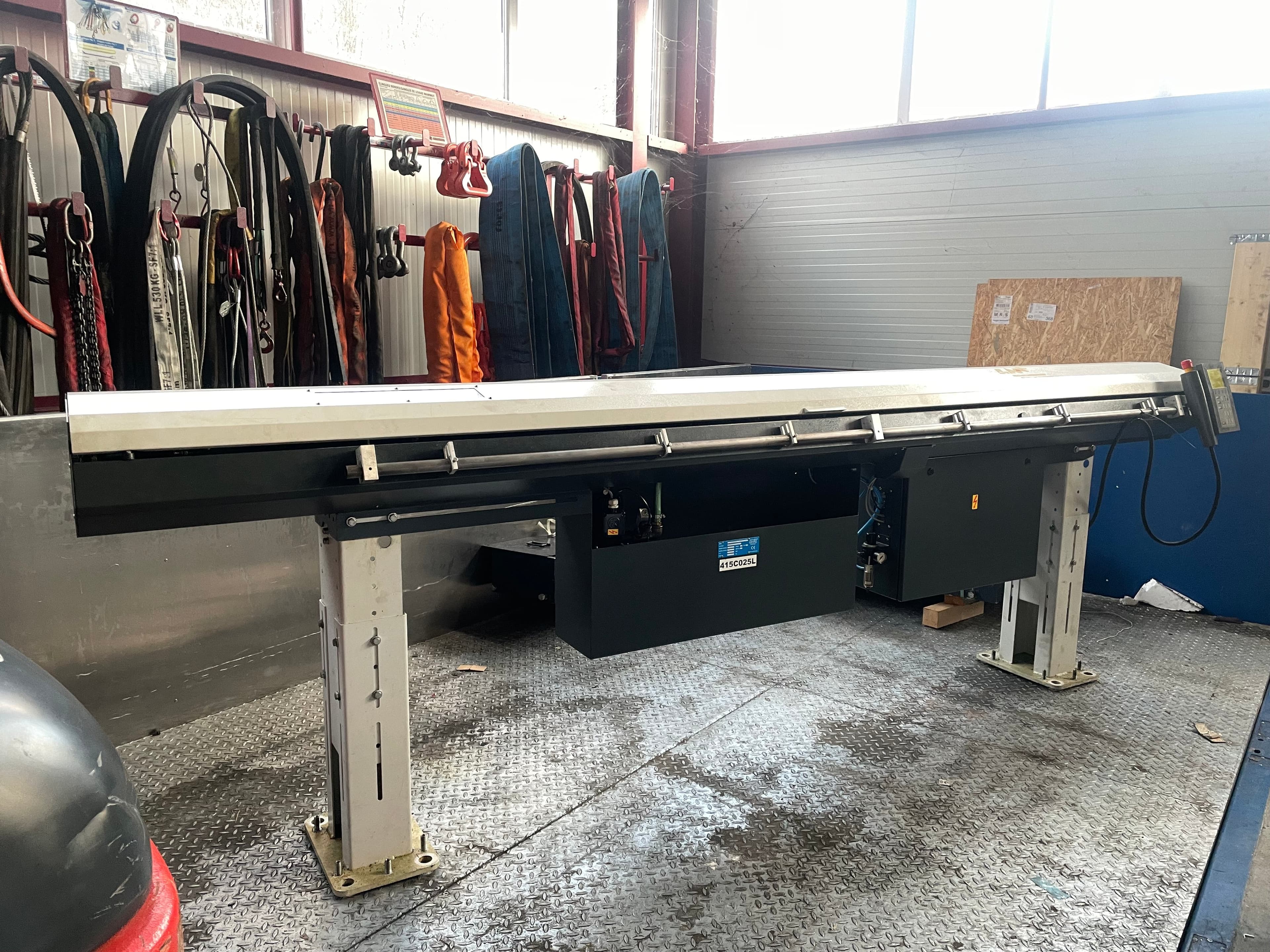

{"Max. turning diameter": "16 mm", "Turning length": "155 / 205 mm", "Max. drilling diameter": "10 mm", "Max. threading diameter": "8 M", "number of tools": "6", "Spindle speeds:": "", "stepless": "", "from": "500 t/min", "up to": "8000 t/min", "number of driven tools": "3", "Spindle speeds (turning tools)": "5000 t/min", "Power of driven tools": "kW", "Back spindle:": "", "speeds:": "", "Thread drill diameter": "6 M", "Back machining workpiece length max.": "80 mm", "Rapid traverse:": "35 m/min", "C axis (spindle,resolution)": "15 \u00b0", "Voltage 50 Hz 3x": "400 Volt", "Spindle motor": "2.2 / 3.7 kW", "Machine's weight about": "1600 kg", "Overall dimensions machine:": "", "Length": "1900 mm", "Width": "1100 mm", "Height": "1800 mm", "Various accessories:": "", "Bar feeder": "", "Manufacturer": "LNS", "Type": "HYDROBAR EXPRESS 220", "year of manufacture": "2007", "Length of bars max.": "3200 mm", "Bar diameter": "2 - 20 mm", "Parts catcher": "", "Workpiece conveyor": "", "Lamp": "", "Oil mist extractor": "ELBARON", "Fire extinguishing system": "", "Status light": ""}
