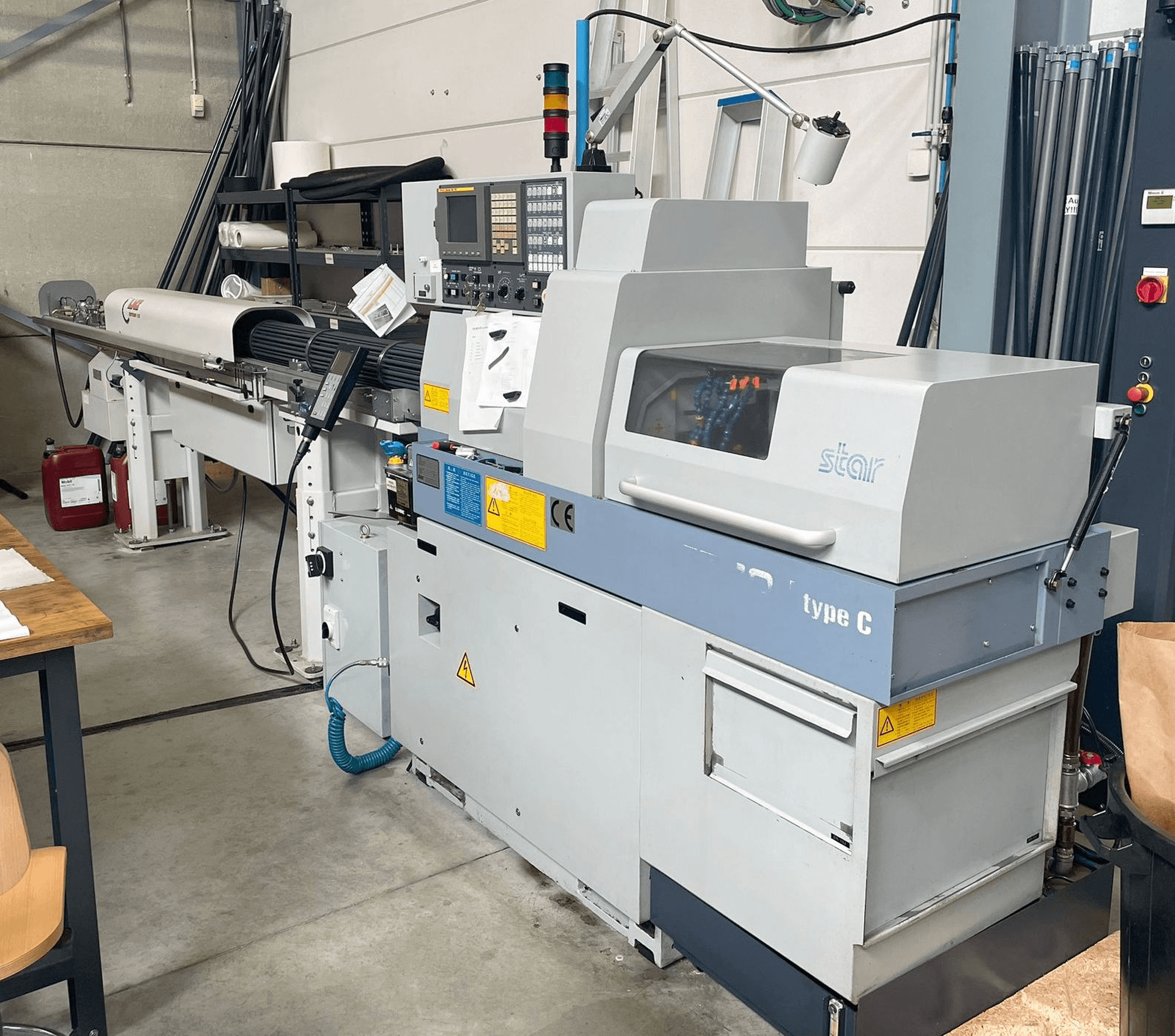

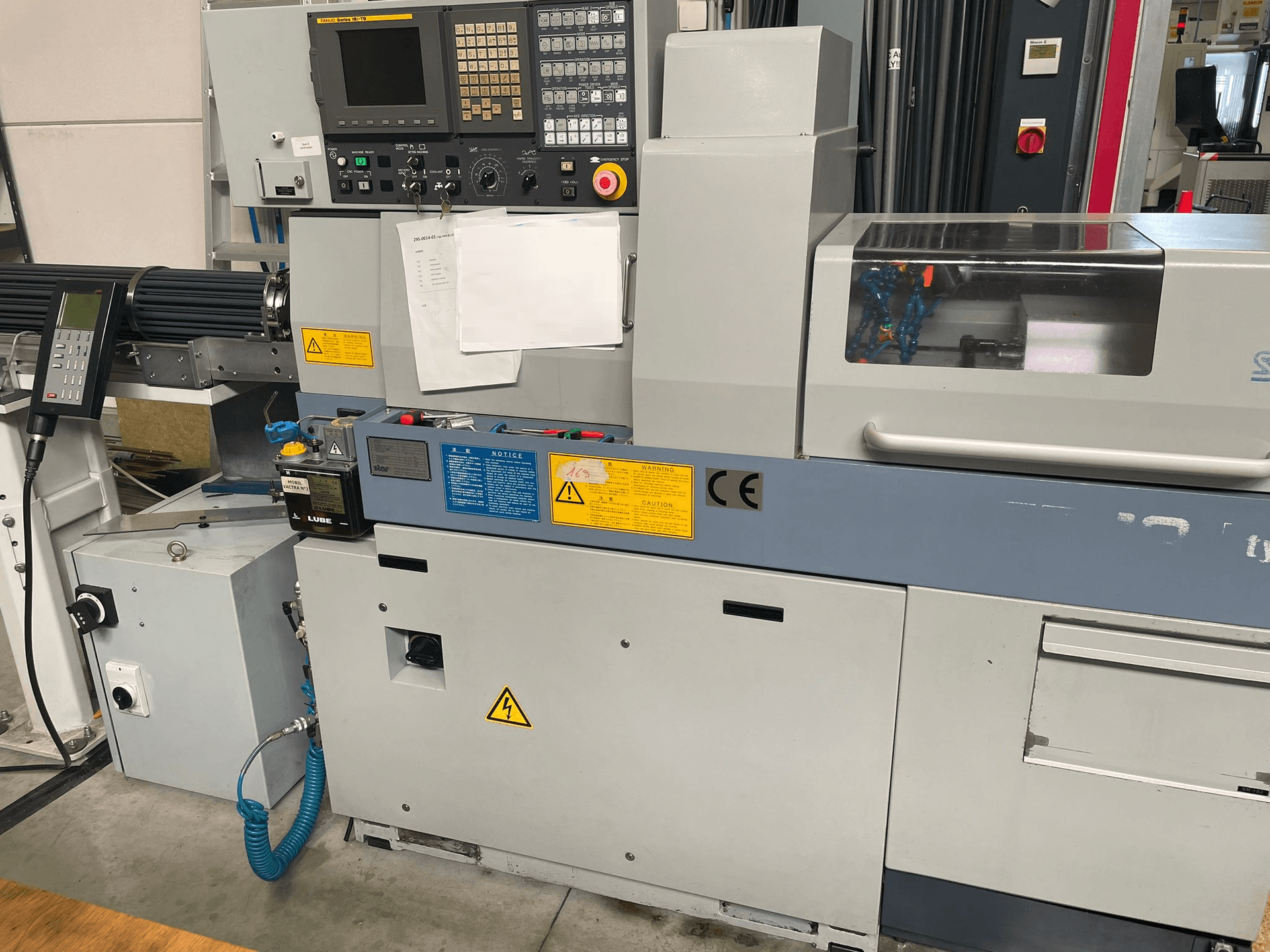

023024 - STAR SR-10 J type C

Description

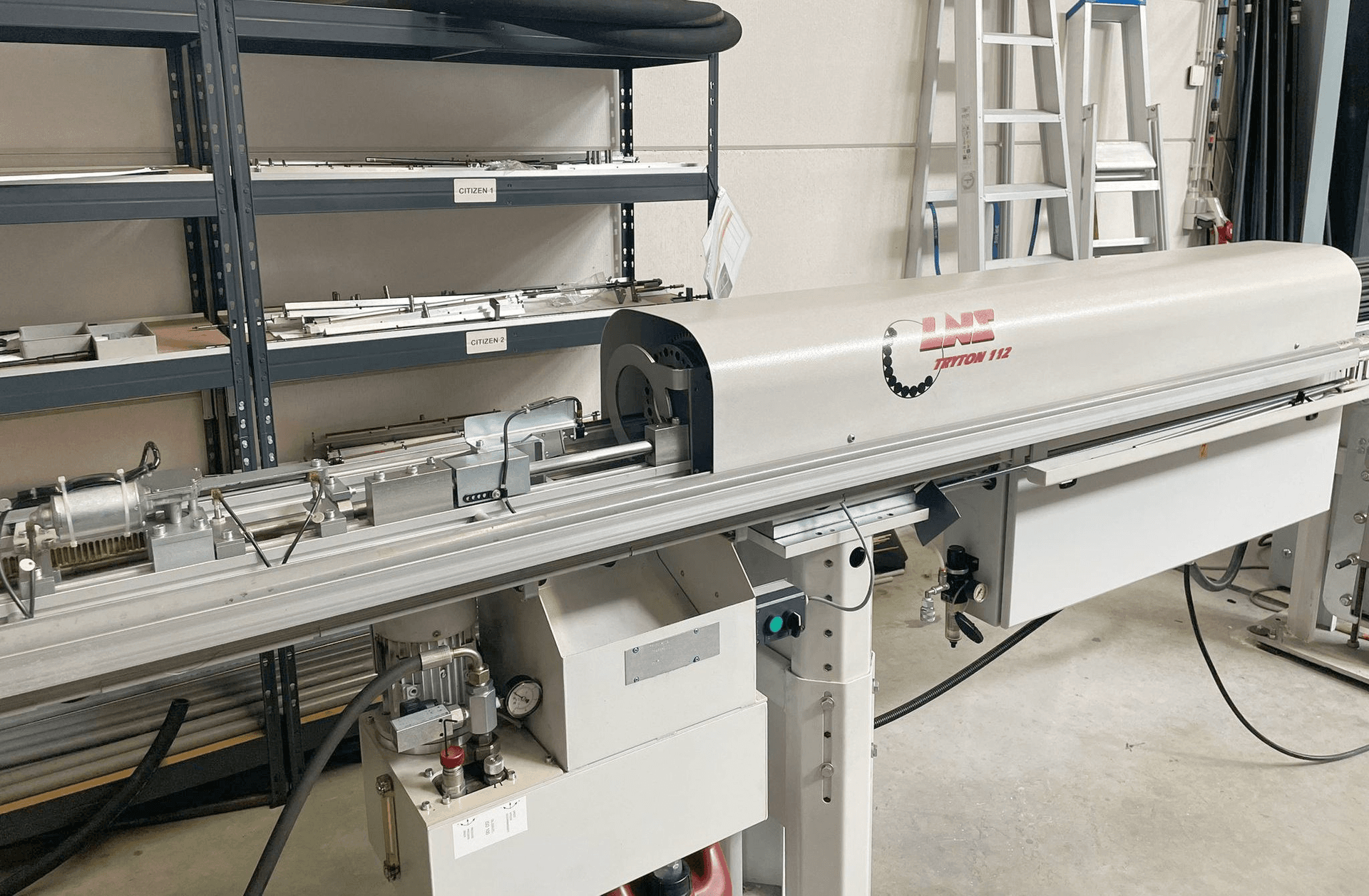

{"Number of axis total": "7", "Number of spindles": "2", "Machining diameter max.": "10 mm", "Maximum turning length": "135 mm", "Spindle speeds:": "", "stepless": "", "from": "1 t/min", "up to": "10000 t/min", "Spindle power": "3.7 kW", "C axis (spindle,resolution)": "\u00b0", "Back spindle:": "", "speeds:": "", "Tool-holder:": "", "number of tools": "13", "Turning tools": "6 pce", "Drilling tools": "8 pce", "Transverse processing tools": "3 pce", "Spindle speeds (turning tools)": "250 - 8000 t/min", "Counter-operation:": "", "Rapid traverse:": "35 m/min", "Voltage 50 Hz 3x": "400 Volt", "Power of back spindle": "1.1 kW", "Total power required": "3 kVA", "Machine's weight about": "1400 kg", "Overall dimensions machine:": "", "Length": "2000 mm", "Width": "820 mm", "Height": "1800 mm", "Various accessories:": "", "Bar feeder": "", "Manufacturer": "LNS", "Type": "TRYTON 112", "Lamp": "", "Status light": ""}
