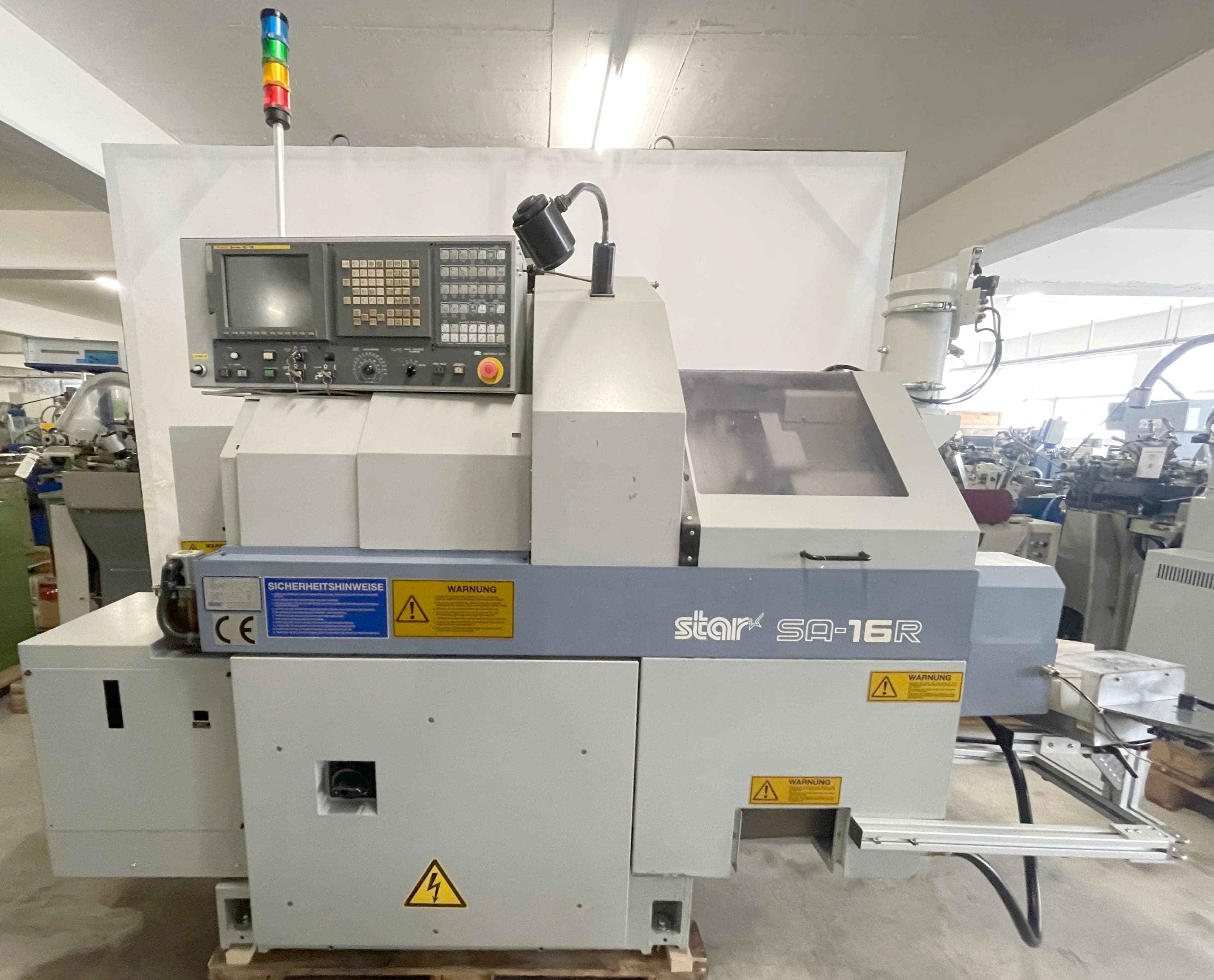

022703 - STAR SA-16 RC

Description

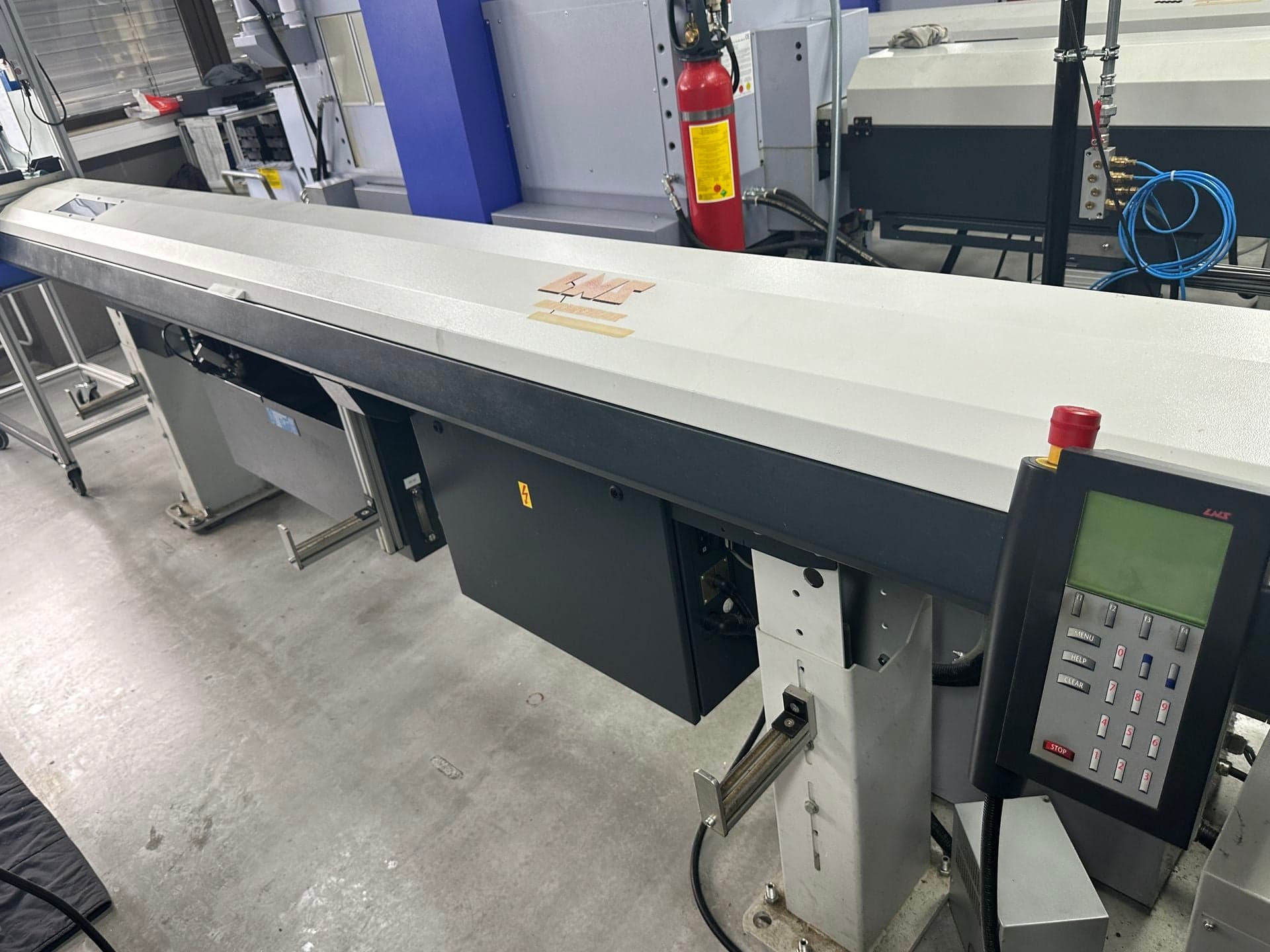

{"Number of spindles": "2", "Max. turning diameter": "16 mm", "Max. drilling diameter": "4 mm", "Max. threading diameter": "6 M", "Spindle speeds:": "", "stepless": "", "from": "500 t/min", "up to": "9000 t/min", "Spindle power": "2.2 kW", "Back spindle:": "", "speeds:": "", "Thread drill diameter": "3 M", "Back machining workpiece length max.": "85 mm", "Tool-holder:": "", "Turning tools": "6 pce", "Drilling tools": "4 pce", "Transverse processing tools": "3 pce", "Spindle speeds (turning tools)": "7500 t/min", "Power of driven tools": "0.4 kW", "Tool shank cross section": "10 mm", "Inner taper type": "ER 11", "Counter-operation:": "", "number of tools": "4", "Rapid traverse:": "20 m/min", "Cutting speed": "10000 mm/min", "Voltage 50 Hz 3x": "400 Volt", "Spindle motor": "2.2 / 3.7 kW", "Power of back spindle": "1.1 / 0.5 kW", "Air connect": "5 bar", "Total power required": "6 kVA", "Machine's weight about": "1700 kg", "Overall dimensions machine:": "", "Length": "2090 mm", "Width": "770 mm", "Height": "1660 mm", "Various accessories:": "", "Bar feeder": "", "Manufacturer": "LNS", "Type": "EXPRESS 220", "year of manufacture": "2007", "Length of bars max.": "3200 mm", "Bar diameter": "2 - 20 mm", "Parts catcher": "", "Workpiece conveyor": "", "Lamp": "", "High pression colant device": "", "Coolant system": "80 l", "Set of collets": "", "Set of toolholders": "", "Fire extinguishing system (without bottle)": ""}
