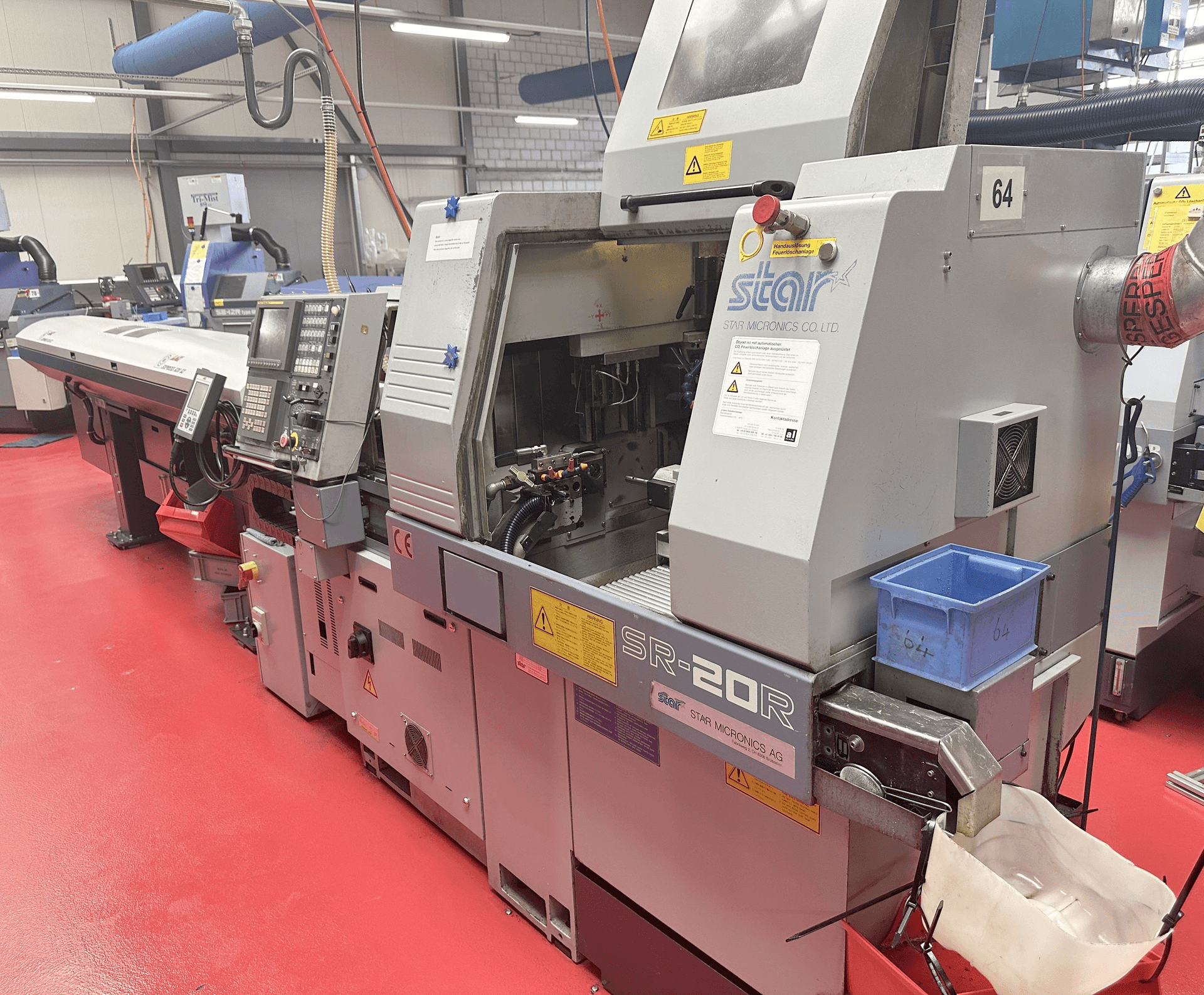

022519 - STAR SR-20 R

Description

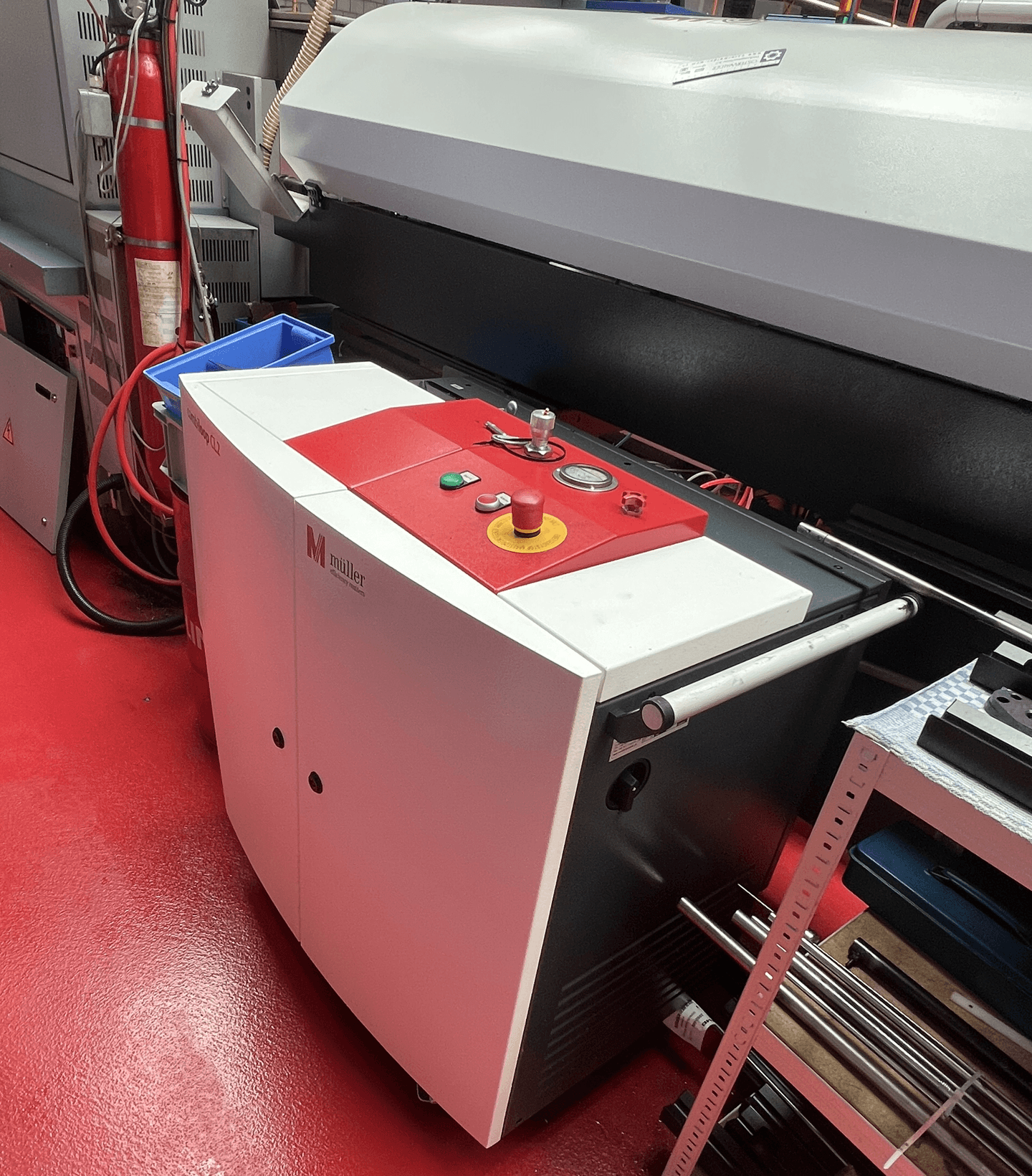

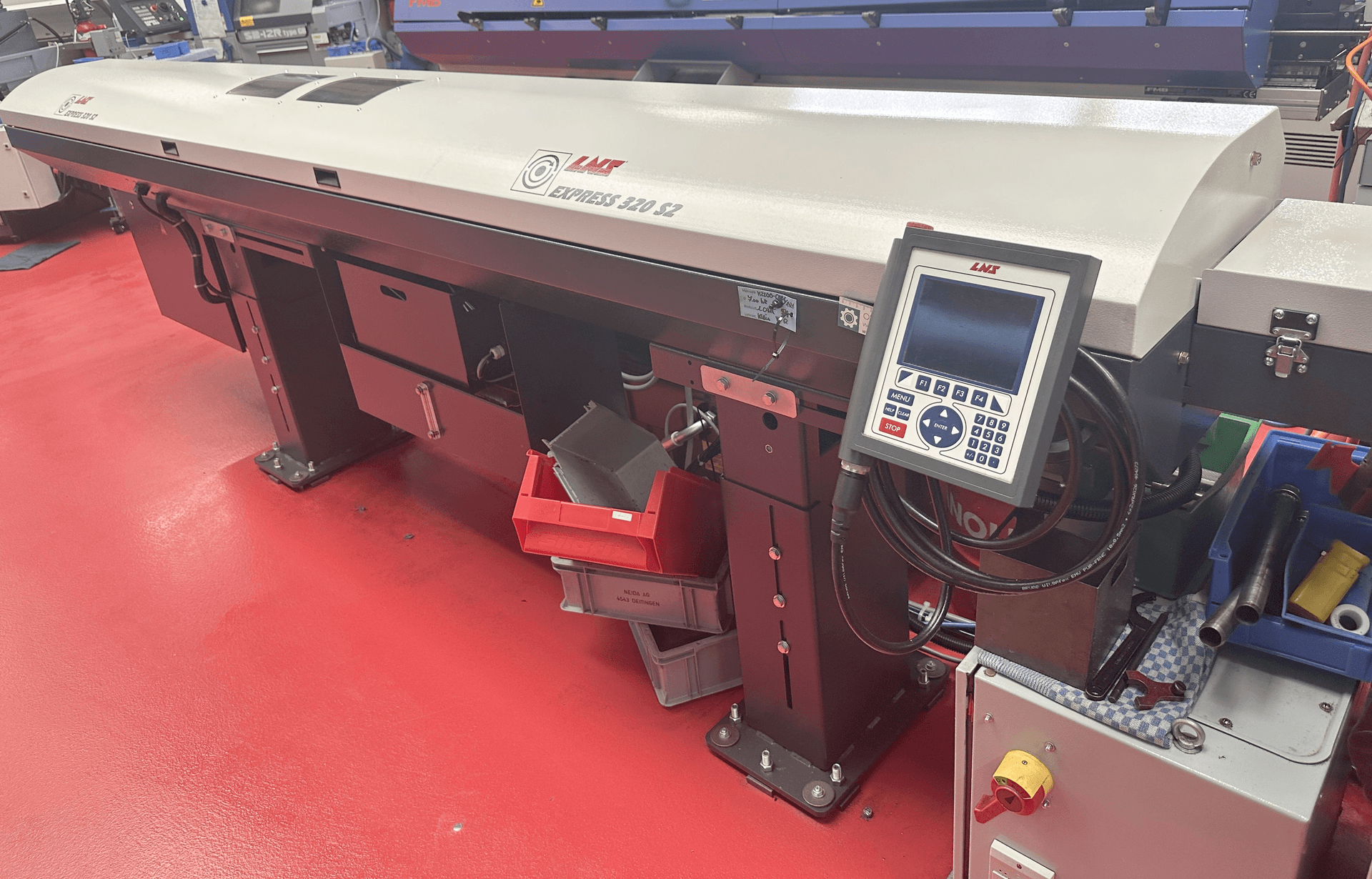

{"Number of axis total": "7", "Number of spindles": "2", "Max. turning diameter": "20 mm", "Maximum turning length": "195 mm", "Max. drilling diameter": "7 mm", "Max. threading diameter": "6 M", "Inner taper type": "ER16", "Spindle speeds:": "", "stepless": "", "from": "500 t/min", "up to": "8000 t/min", "Spindle power": "2.2 / 3.7 kW", "C axis (spindle,resolution)": "15 \u00b0", "Back spindle:": "", "speeds:": "", "Max. tapping length": "75 mm", "Thread drill diameter": "3 M", "Back machining workpiece length max.": "85 mm", "Tool-holder:": "", "Turning tools": "6 pce", "Drilling tools": "4 pce", "Spindle speeds (turning tools)": "8000 t/min", "Power of driven tools": "0.9 kW", "Counter-operation:": "", "number of tools": "4", "Rapid traverse:": "20 m/min", "Cutting speed": "10000 mm/min", "Voltage 50 Hz 3x": "400 Volt", "Spindle motor": "2.2 / 3.7 kW", "Power of back spindle": "0.5 kW", "Air connect": "5 bar", "Total power required": "6 kVA", "Machine's weight about": "2000 kg", "Overall dimensions machine:": "", "Length": "2207 mm", "Width": "1080 mm", "Height": "1700 mm", "Various accessories:": "", "Bar feeder": "", "Manufacturer": "M\u00fcller", "Type": "CL2", "year of manufacture": "2018", "Length of bars max.": "3200 mm", "Bar diameter": "3 - 20 mm", "Parts catcher": "", "Workpiece conveyor": "", "High pression colant device:": "", "Maximum pressure": "70 bar", "Coolant system": "145 l", "Fire extinguishing system": "SIEMENS"}
