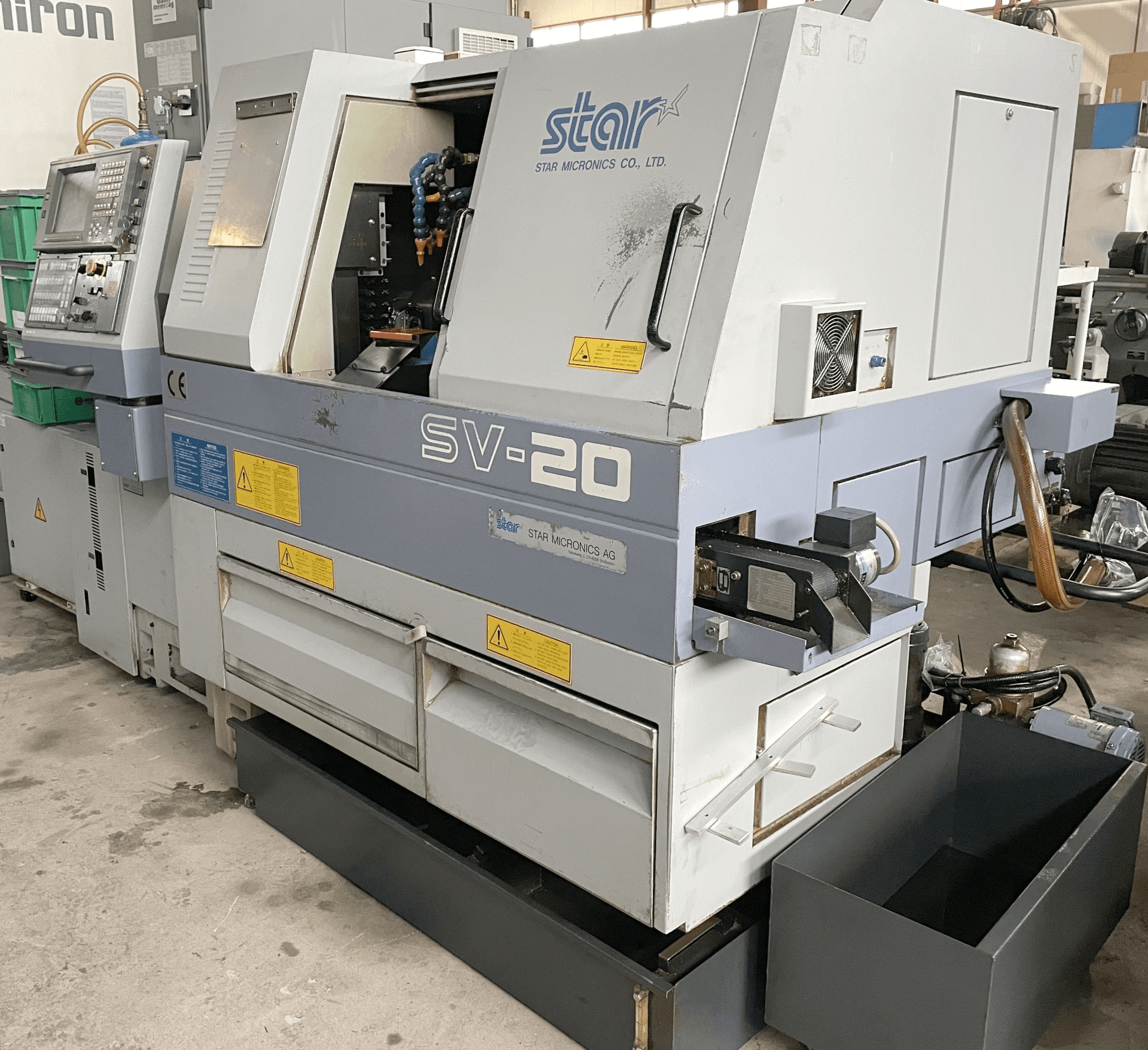

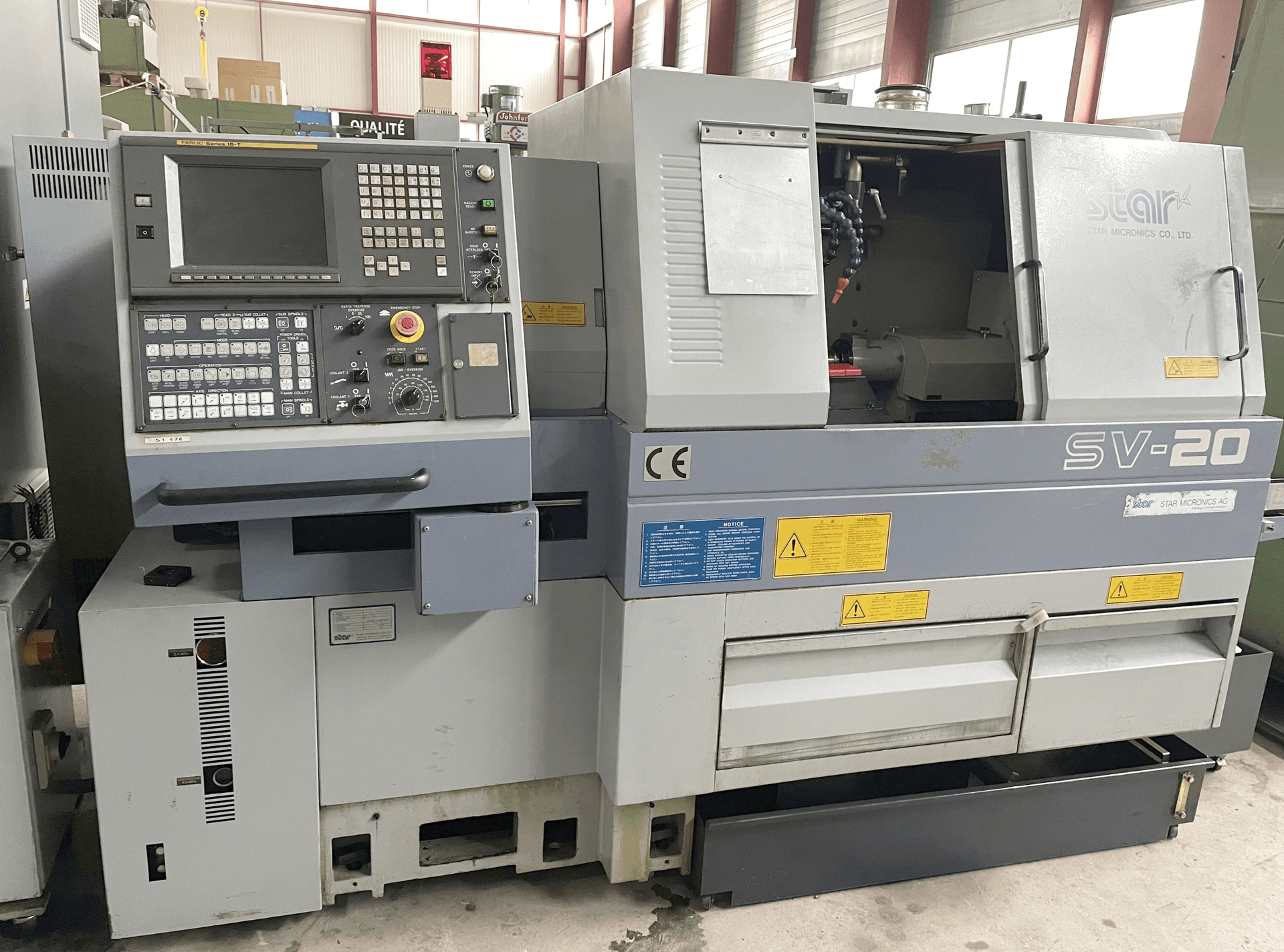

022257 - STAR SV-20

Description

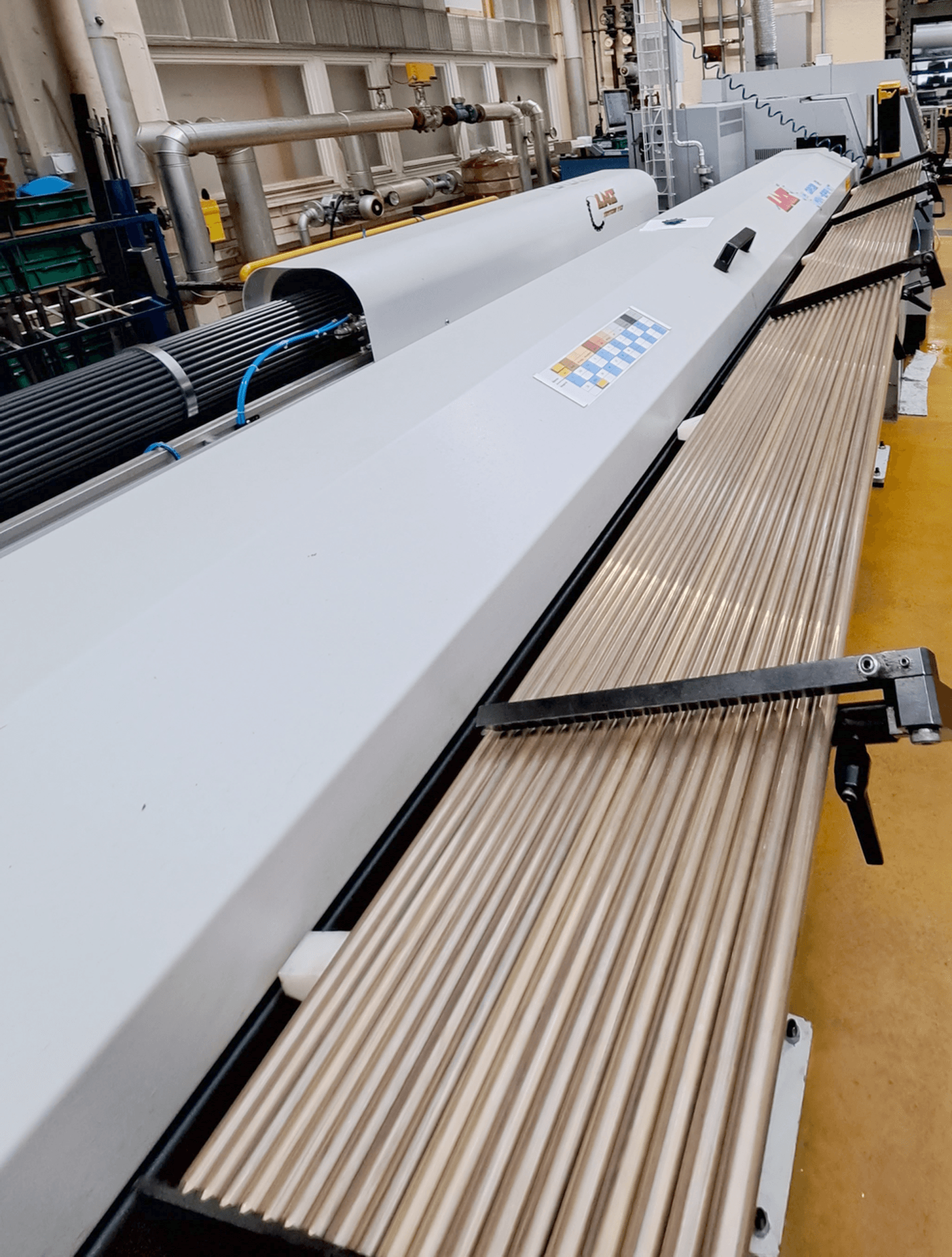

{"Number of axis total": "9", "Number of spindles": "2", "Max. turning diameter": "20 mm", "Maximum turning length": "205 mm", "Internal spindle diameter": "26 mm", "Spindle speeds:": "", "stepless": "", "from": "mm/min", "up to": "10000 mm/min", "Turret slide:": "", "Number of positions": "8", "number of driven tools": "3", "Spindle speeds (turning tools)": "6000 t/min", "Power of driven tools": "0.5 kW", "Back spindle:": "", "speeds:": "", "Max. tapping length": "75 mm", "Thread drill diameter": "10 M", "Back machining workpiece length max.": "150 mm", "Tool-holder:": "", "number of tools": "5", "Max. drilling diameter": "14 mm", "Feeds:": "", "Rapid traverse X": "15 m/min", "Rapid traverse Y": "15 m/min", "Rapid traverse Z": "18 m/min", "Voltage 50 Hz 3x": "380 Volt", "Spindle motor": "3.7 kW", "Power of back spindle": "2.2 / 3.7 kW", "Air connect": "5 bar", "Total power required": "9 kVA", "Machine's weight about": "3400 kg", "Overall dimensions machine:": "", "Length": "2670 mm", "Width": "1375 mm", "Height": "1650 mm", "Various accessories:": "", "Blow out device": "", "Bar feeder": "LNS", "Type": "MINI-SPRINT S2", "Parts catcher": "", "Workpiece conveyor": "", "Lamp": "", "Coolant system": "170 l", "Set of toolholders": ""}
