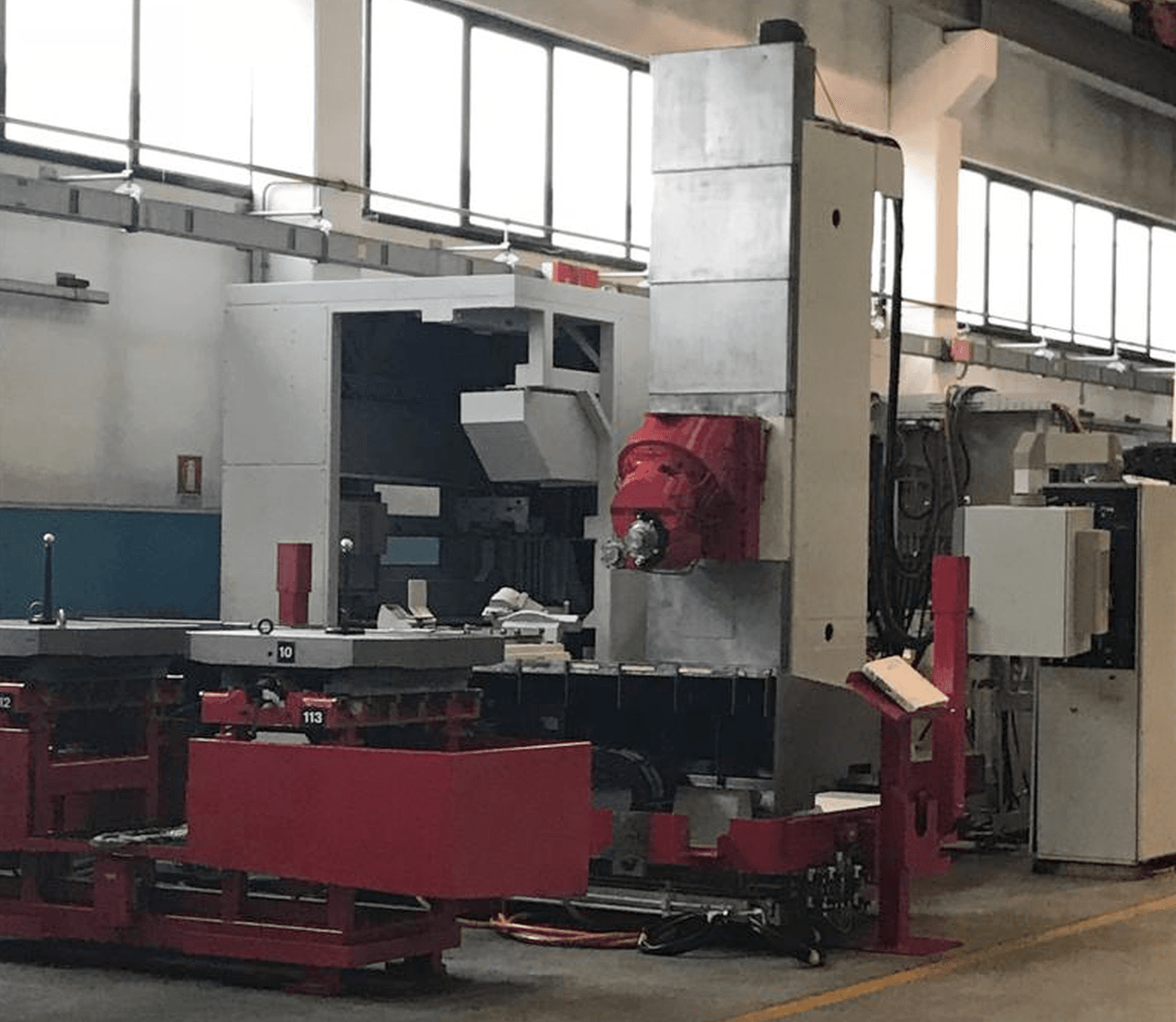

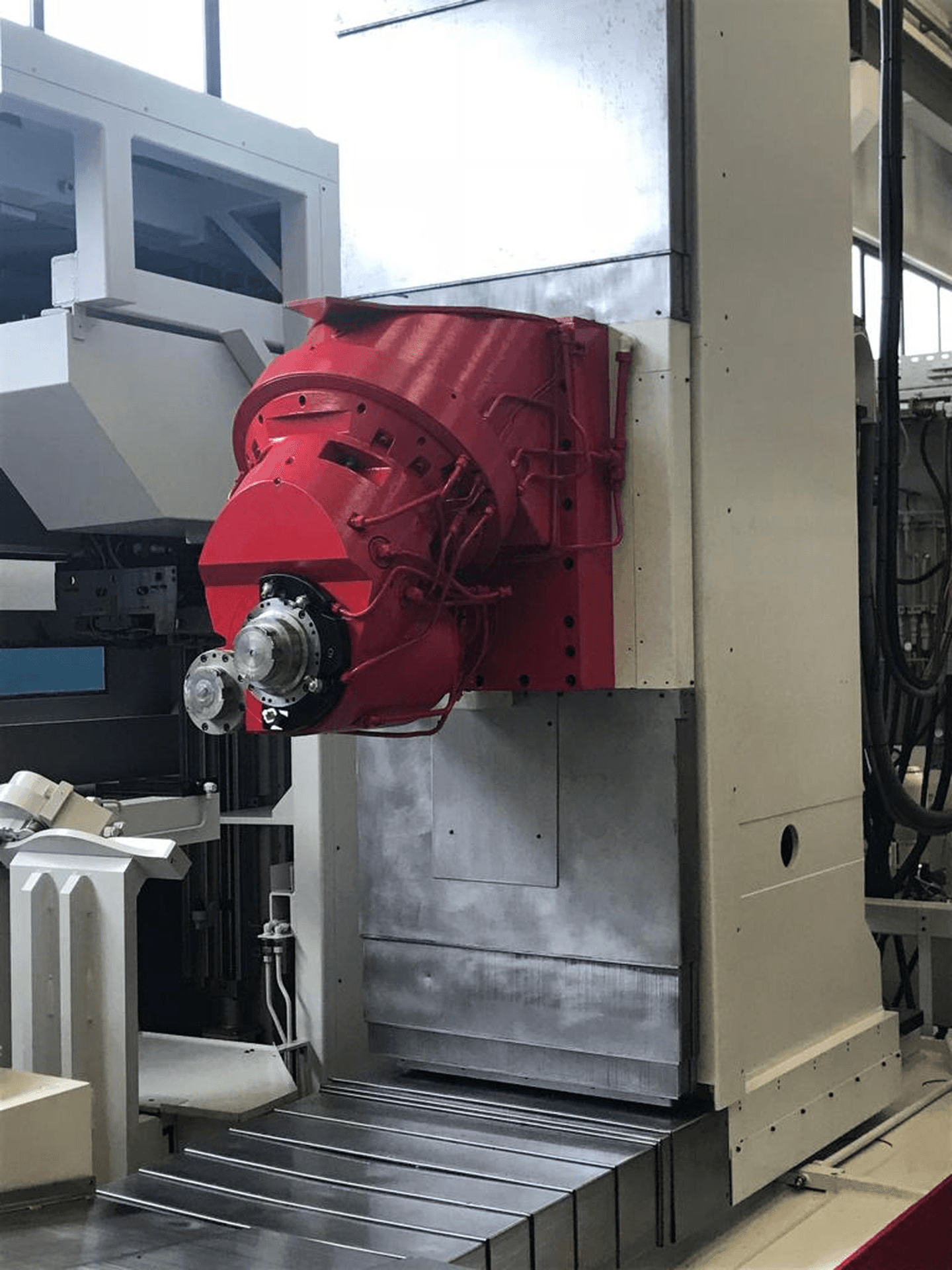

019144 - DÖRRIES SCHARMANN Solon 3 HV/DTV

Description

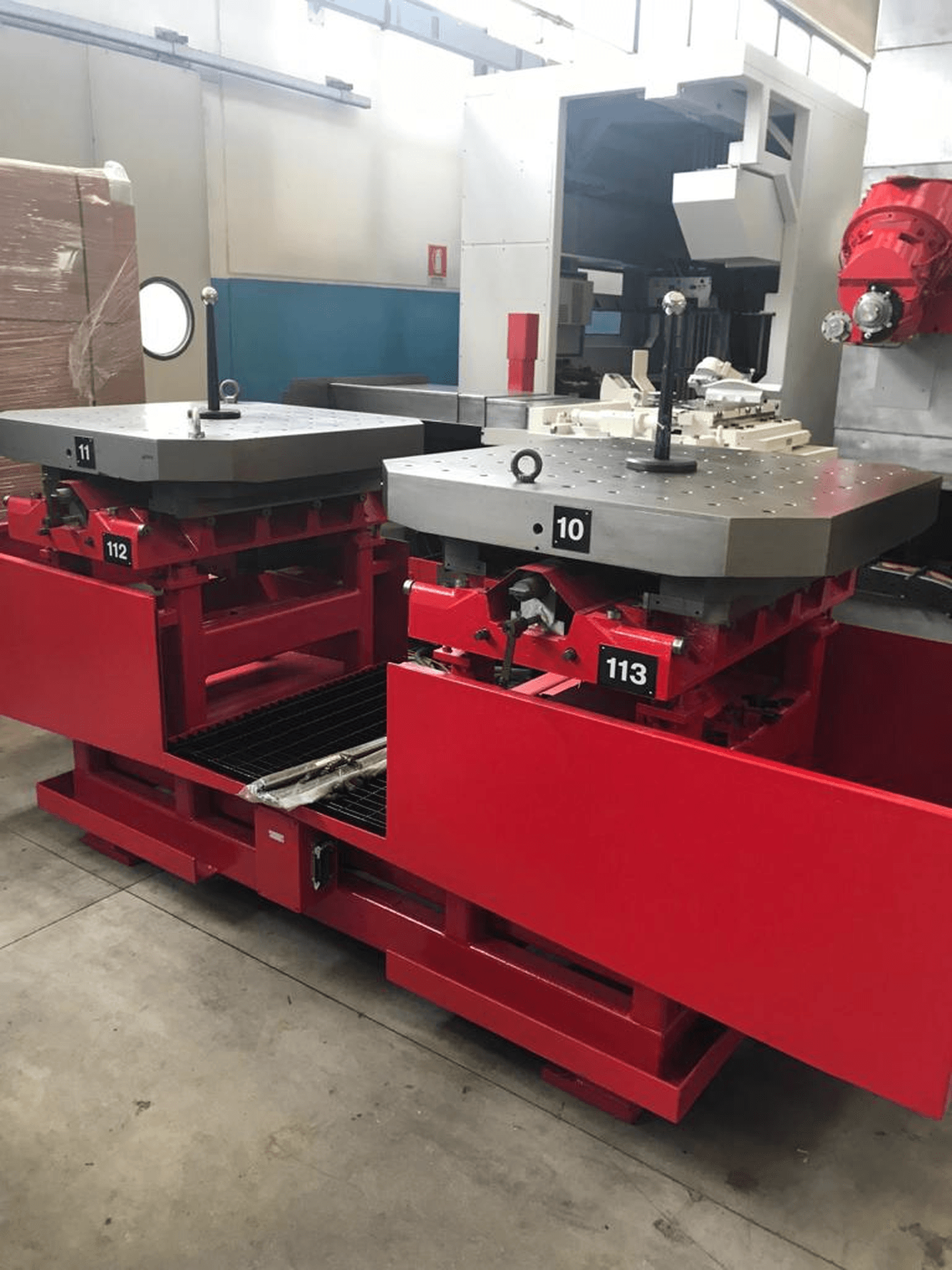

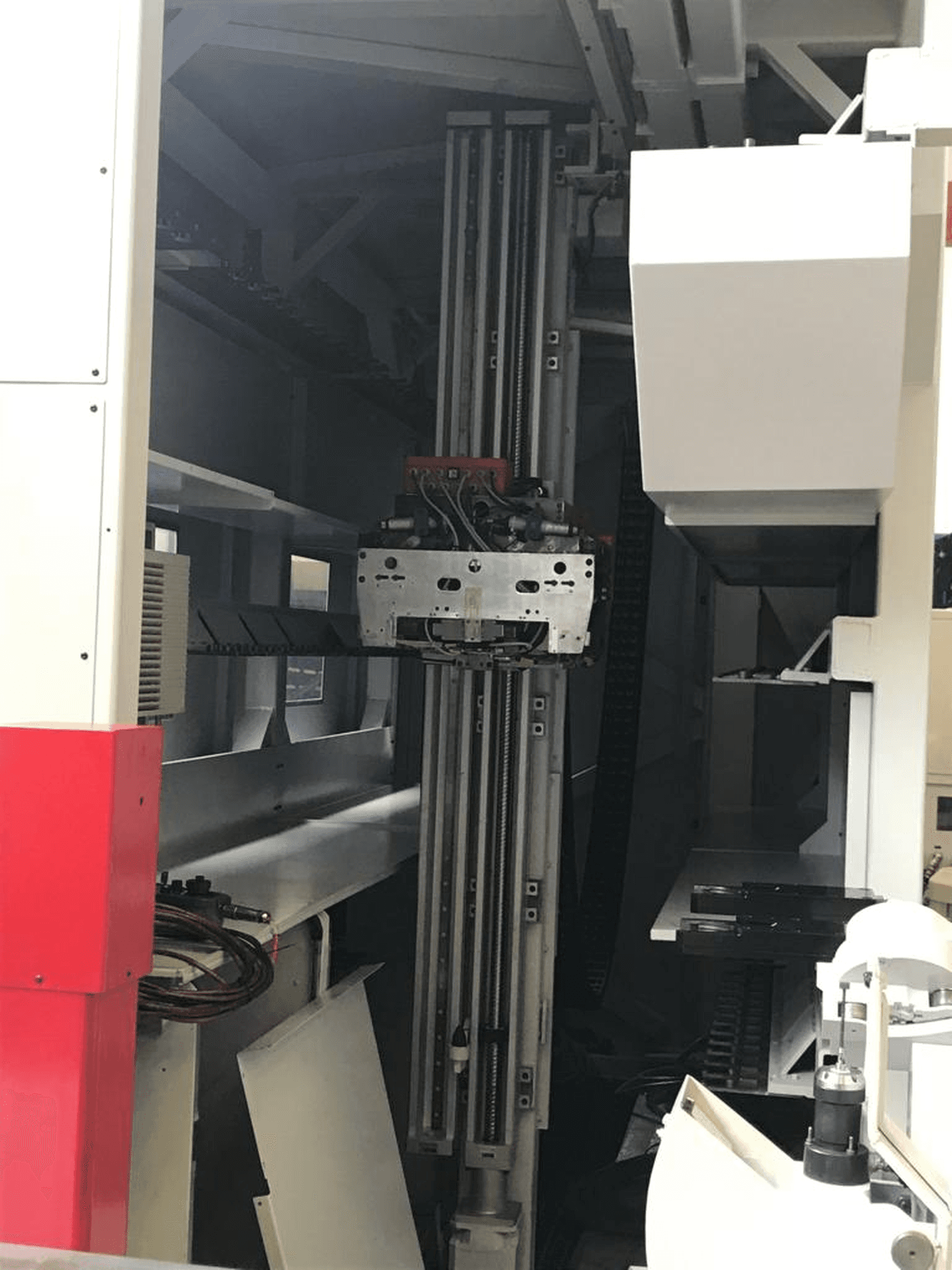

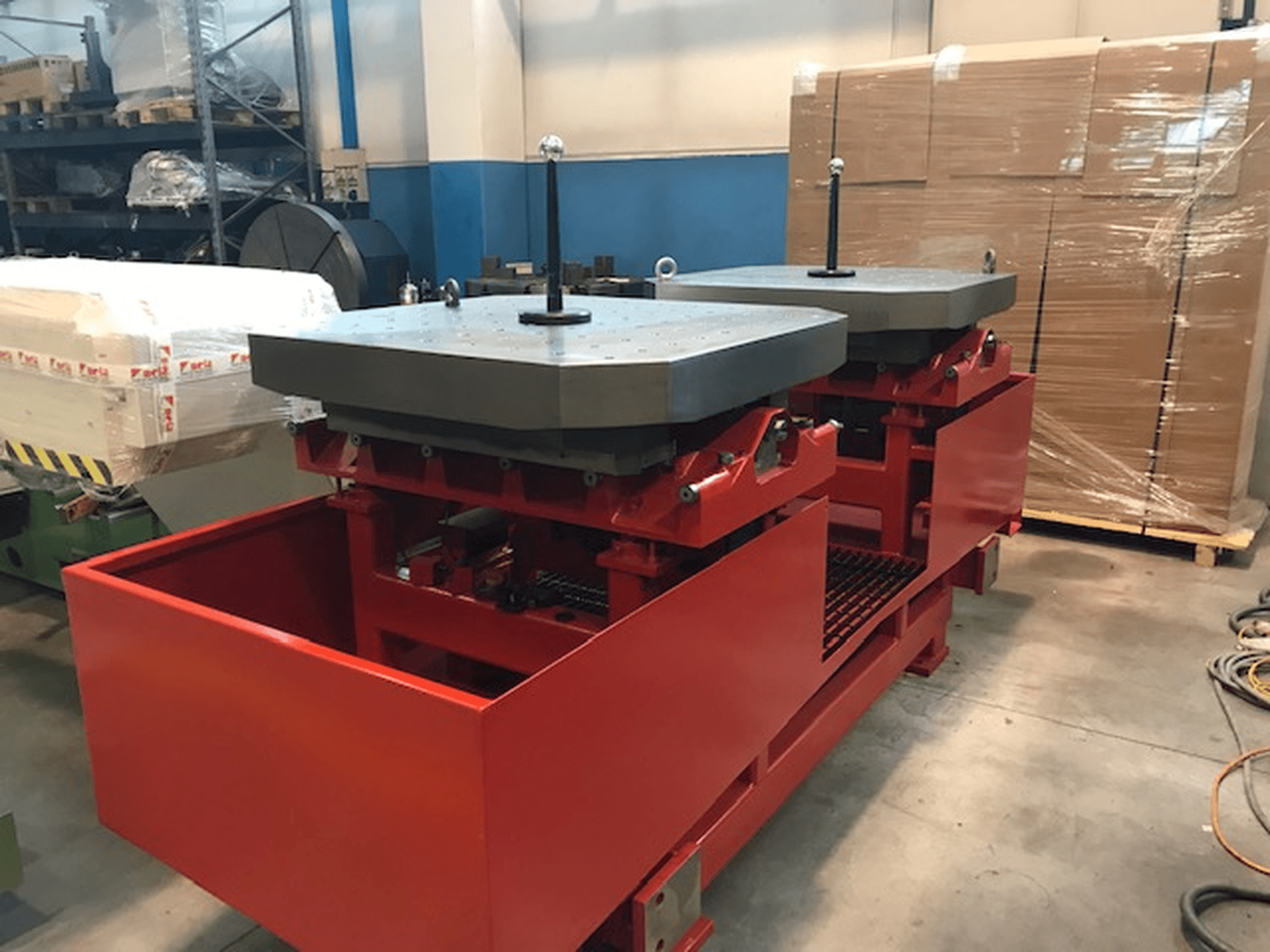

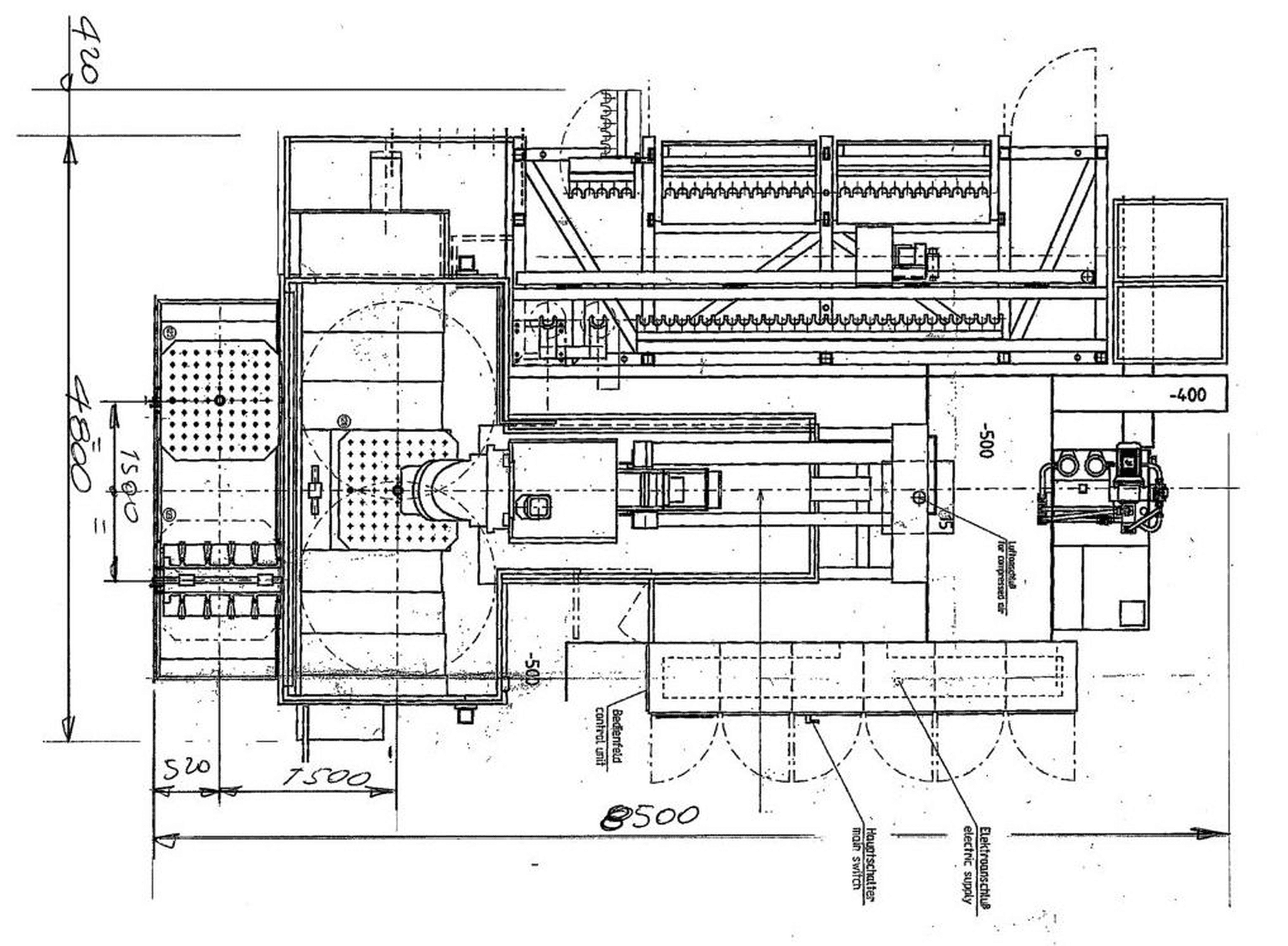

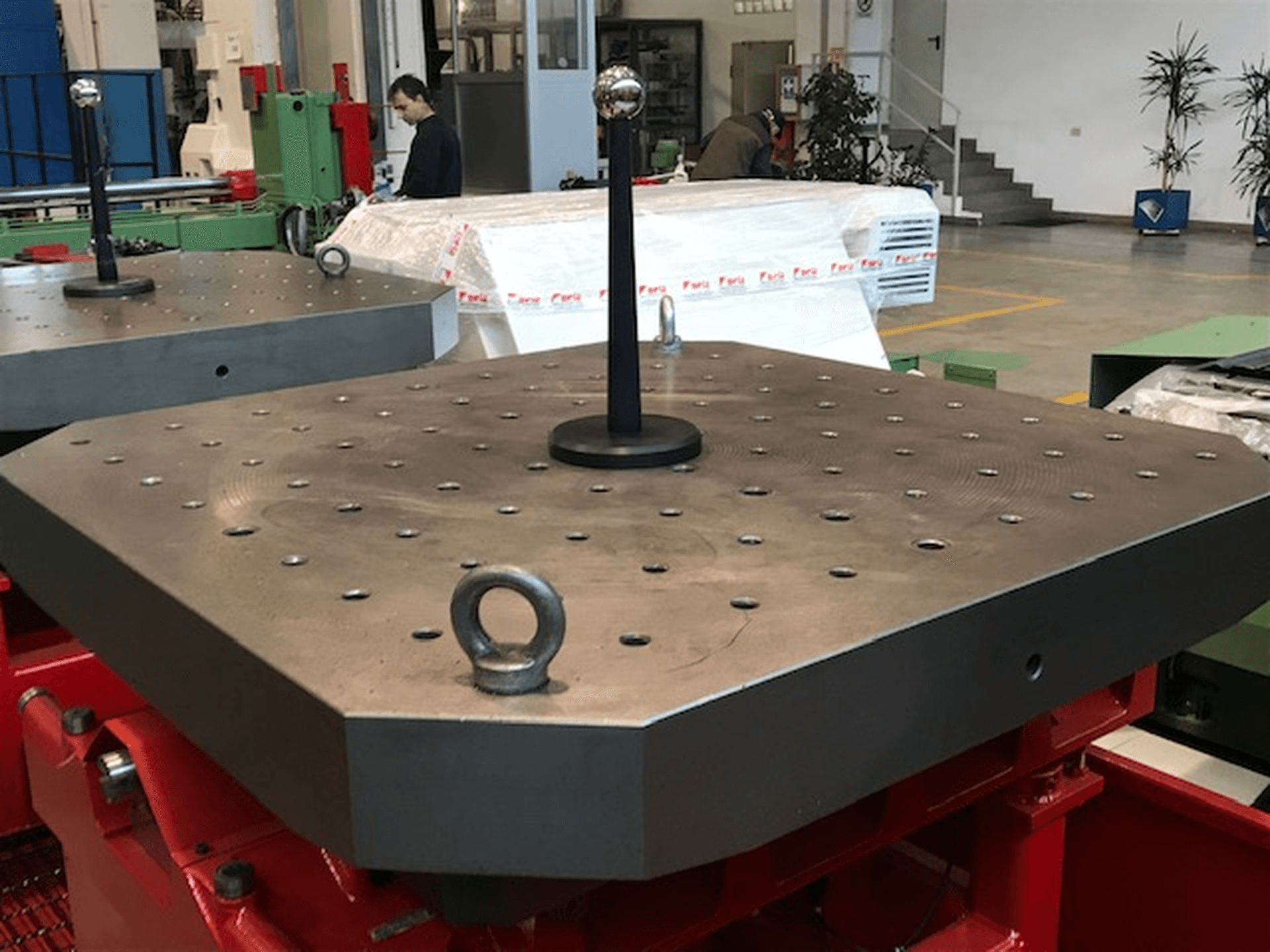

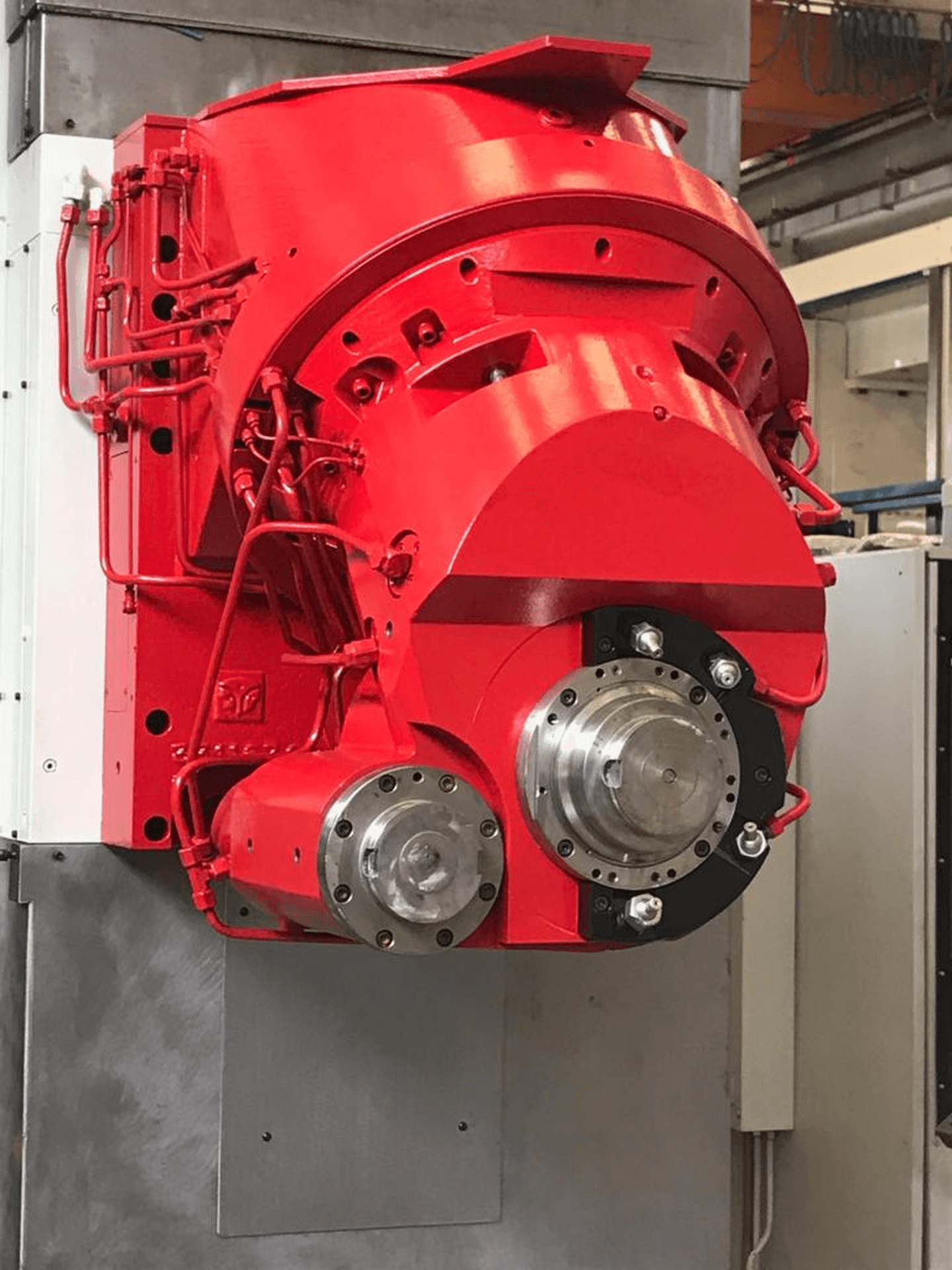

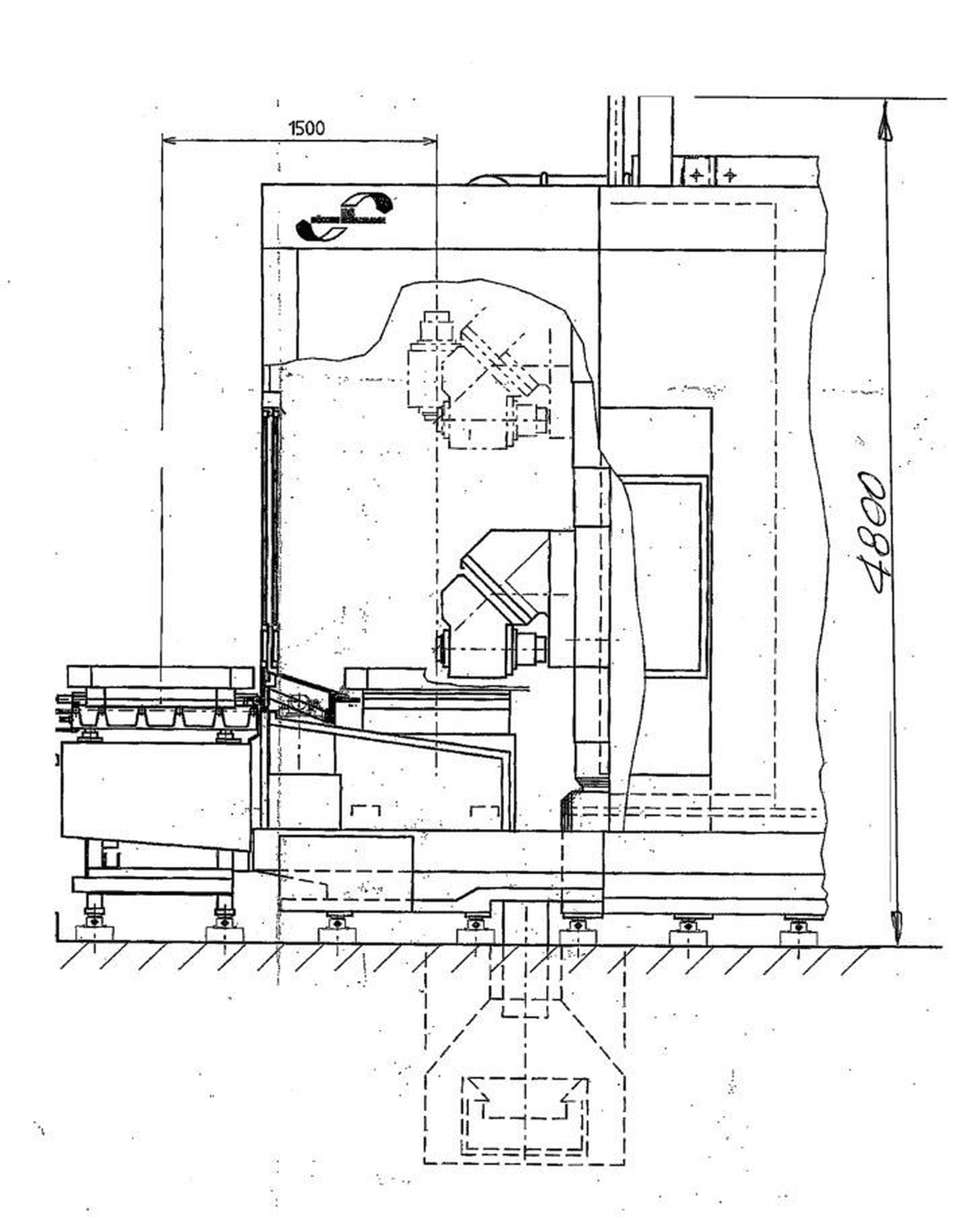

{"Number of axis total": "5", "Longitudinal travel (X-axis)": "1500 mm", "Transversal travel (y-axis)": "1200 mm", "Vertical travel (z axis)": "1250 mm", "Table divisions (B)": "360x0.0001 \u00b0", "A axis": "", "Table speeds:": "", "up to": "4000 t/min", "numbers": "2", "Length": "8500 mm", "Width": "4800 mm", "Transport weight": "2000 kg", "Tool changer:": "", "Number of tools": "161", "Tool diameter": "300 mm", "Max. tool-weight": "25 kg", "Spindle nose:": "HSK-A 100", "Spindle speeds:": "", "stepless": "", "from": "10 t/min", "Voltage 50 Hz 3x": "400 Volt", "Spindle motor": "40 kW", "Total power required": "180 kW", "Machine's weight about": "6000 kg", "Overall dimensions machine:": "", "Height": "4800 mm", "Various accessories:": "", "Full splash cabin": "", "Coolant system": "", "Process controling device": "", "Chip conveyor": "", "Pallets: number": "4", "Set of toolholders": ""}
