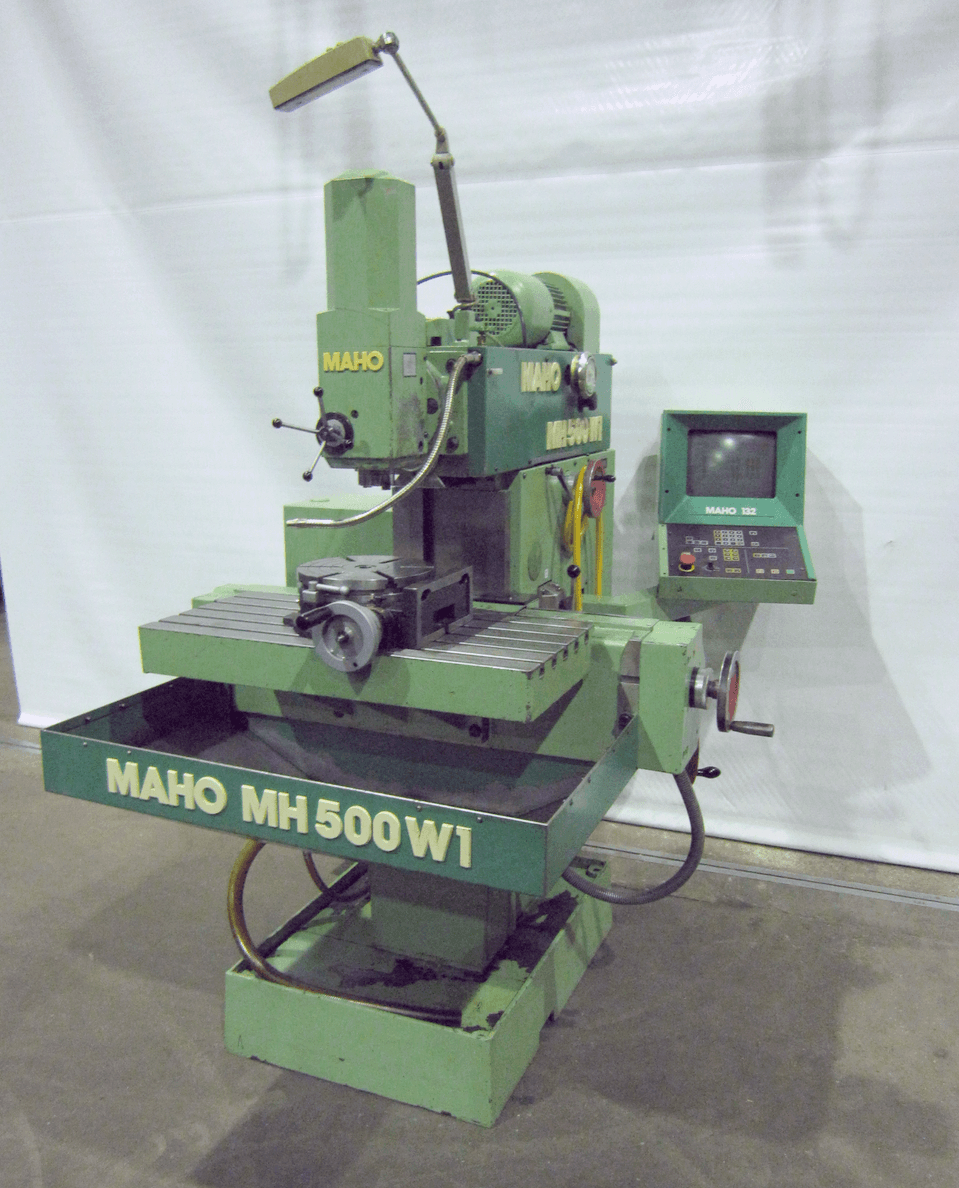

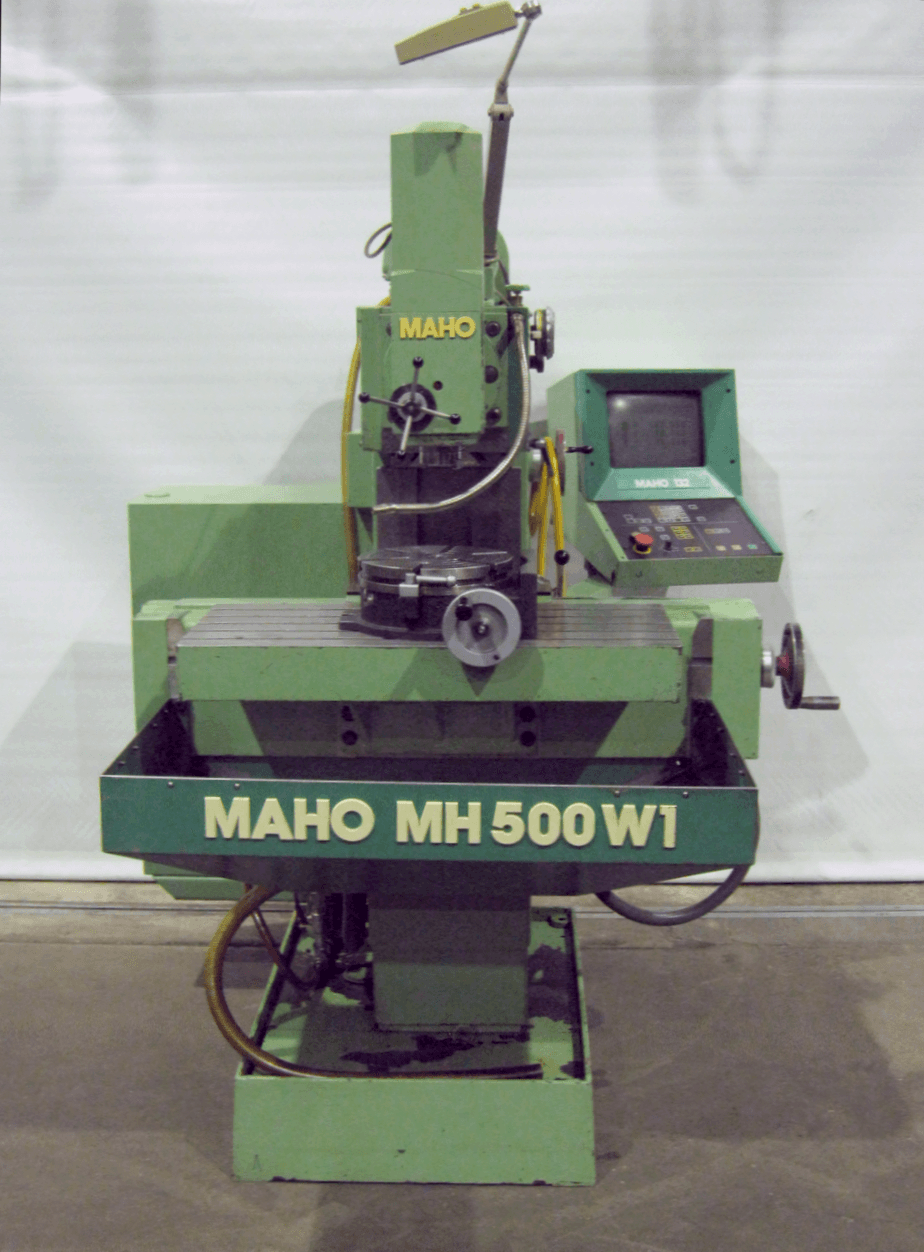

018121 - MAHO MH 500 W

Description

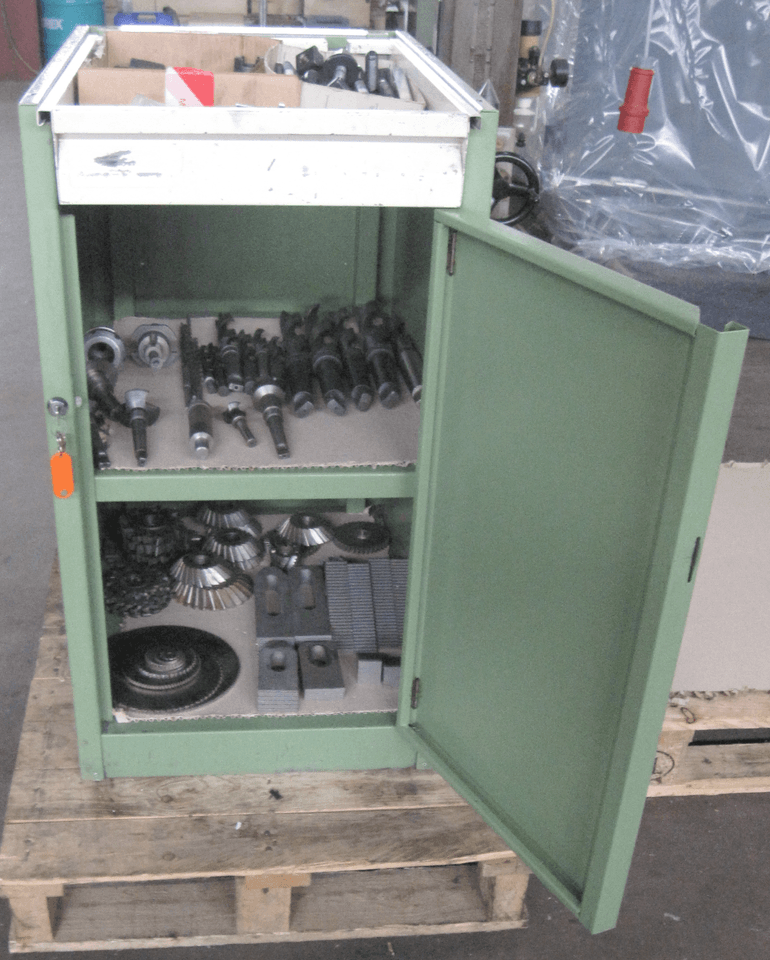

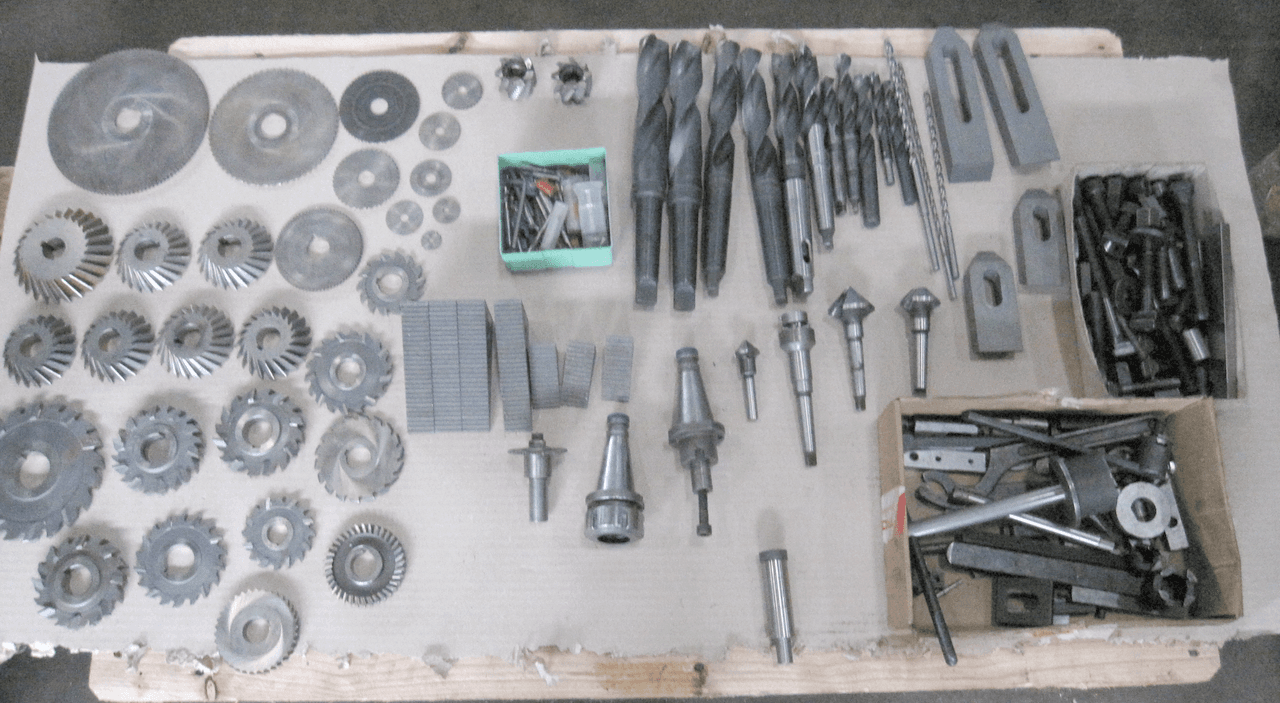

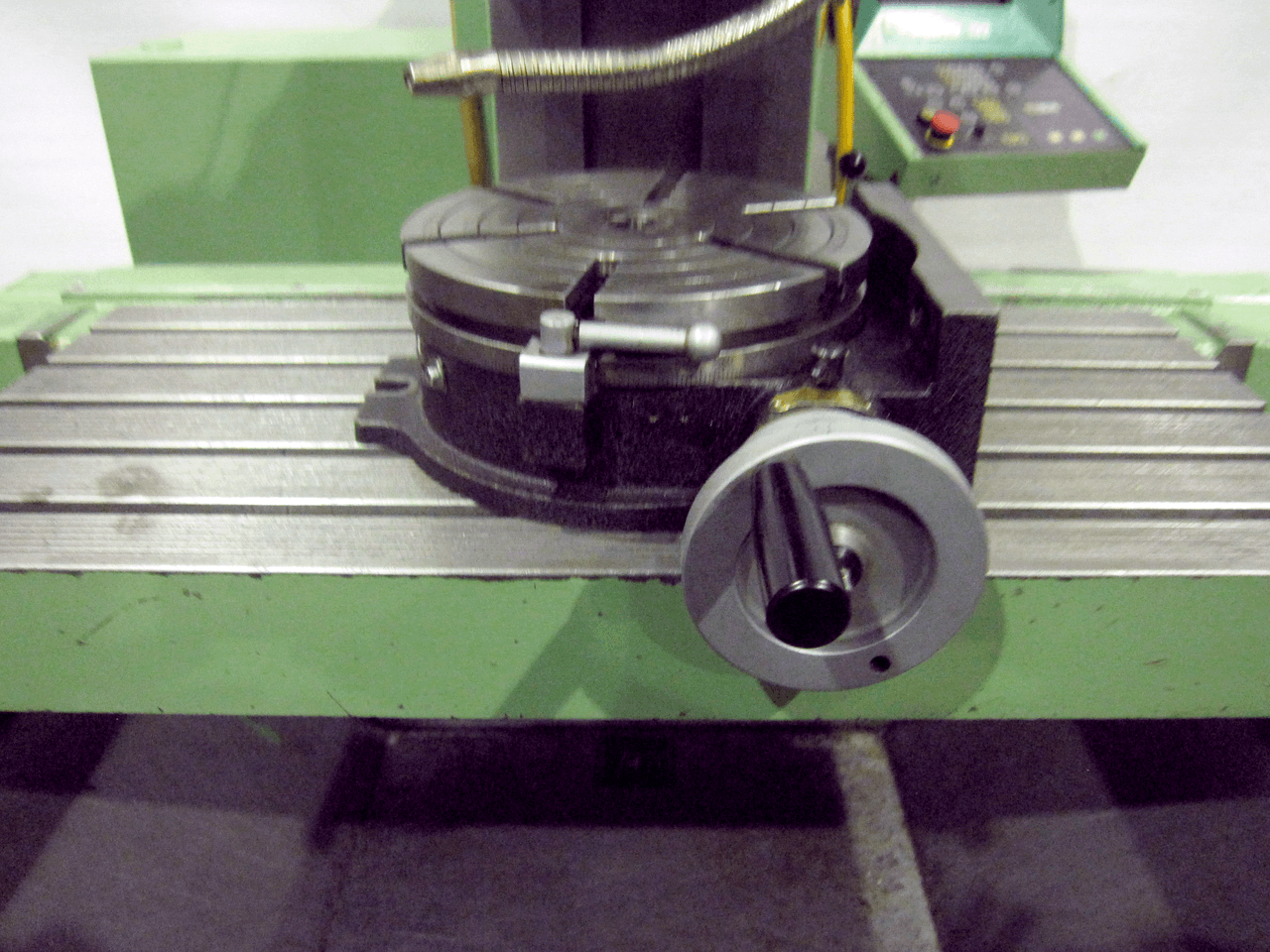

{"Number of axis total": "3", "Table length": "800 mm", "Table width": "360 mm", "Number of T-channels": "5", "T-channel width": "14 mm", "Distance of the T-slots": "65 mm", "Longitudinal travel (X-axis)": "500 mm", "Transversal travel (y axis)": "300 mm", "Vertical travel (z axis)": "400 mm", "Table load max.": "250 kg", "Spindle speeds:": "", "stepless": "", "from": "63 t/min", "up to": "3000 mm/min", "Taper in spindle": "40 ISO", "Feeds stepless:": "", "longitudinal from": "1 mm/min", "transversal from": "1 mm/min", "vertical from": "1 mm/min", "Rapid traverse:": "5 m/min", "Voltage 50 Hz 3x": "380 Volt", "Motor output": "5 CV", "Machine's weight about": "1700 kg", "Overall dimensions machine:": "", "Length": "1700 mm", "Width": "1300 mm", "Height": "1800 mm", "Various accessories:": "", "Rotary table:diameter": "250 mm", "Drilling/milling head": "", "Lamp": ""}
