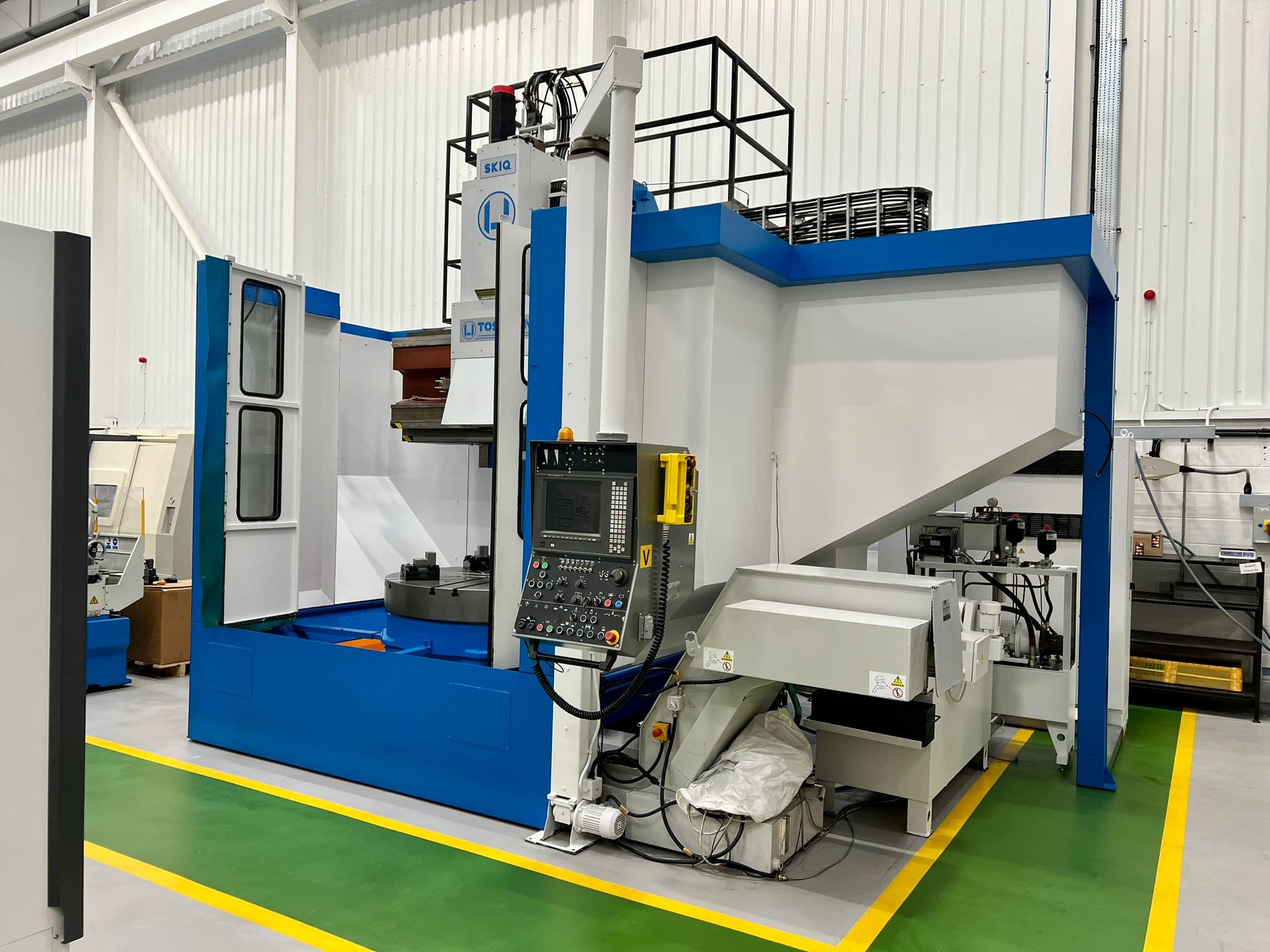

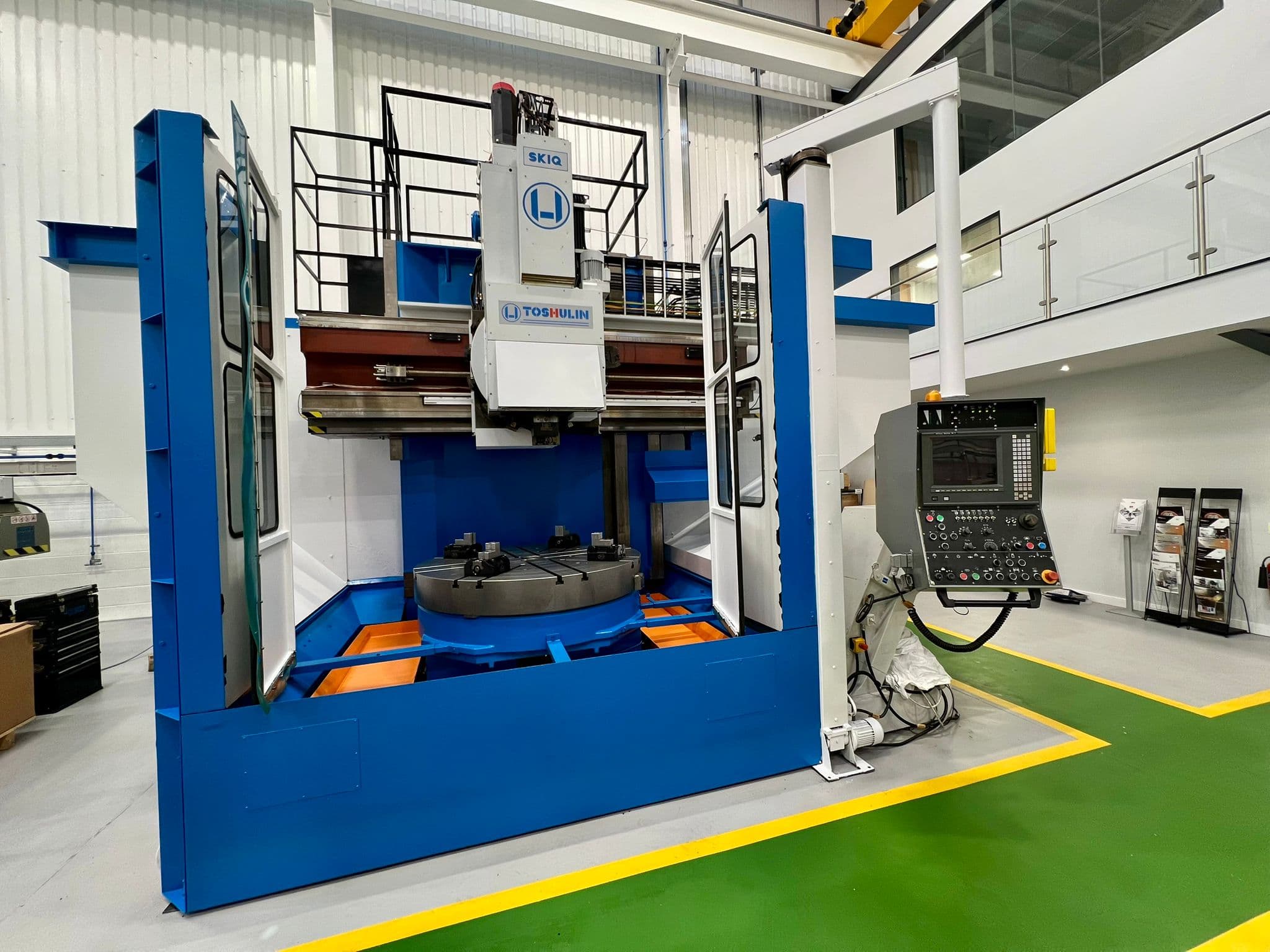

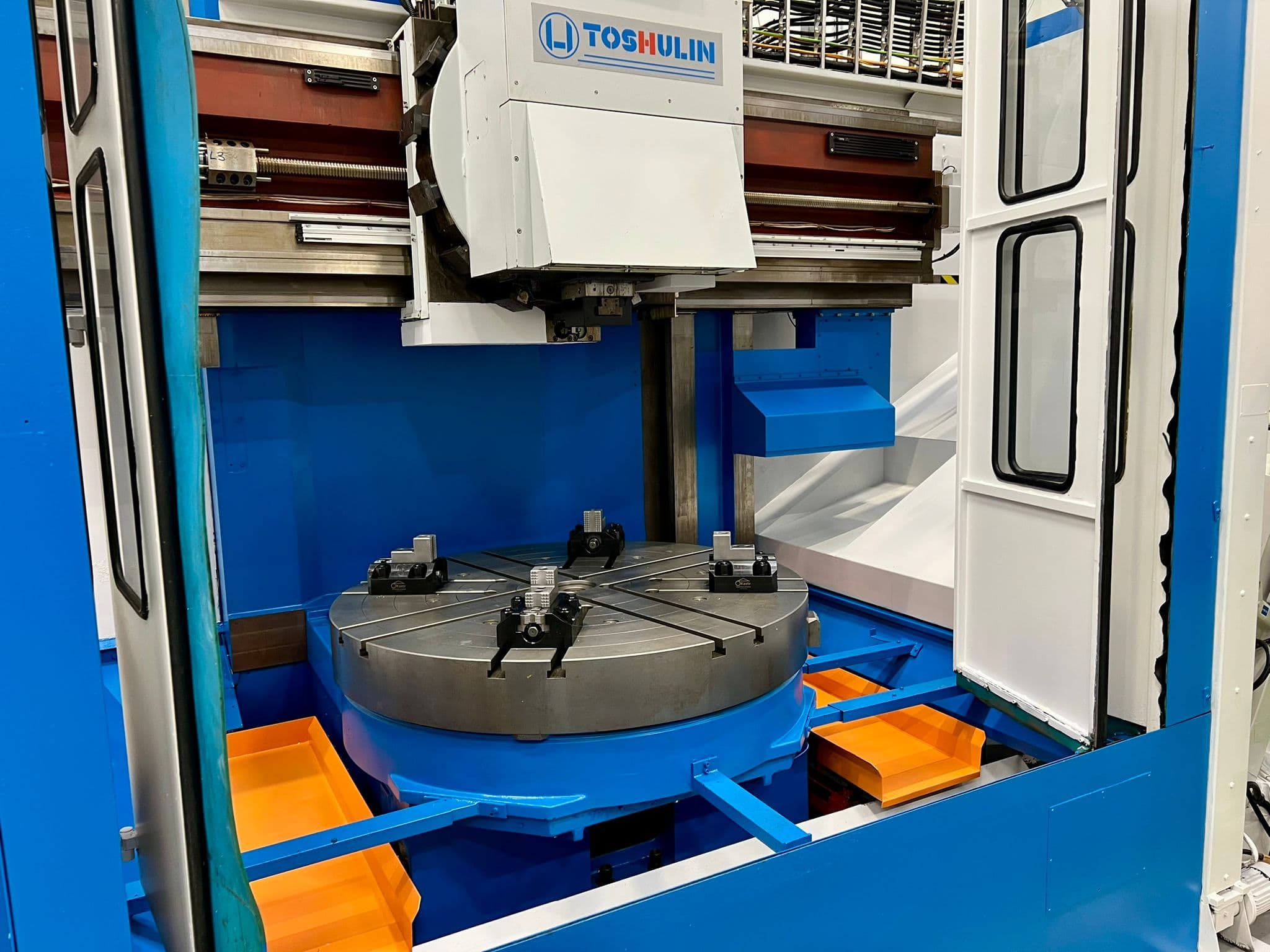

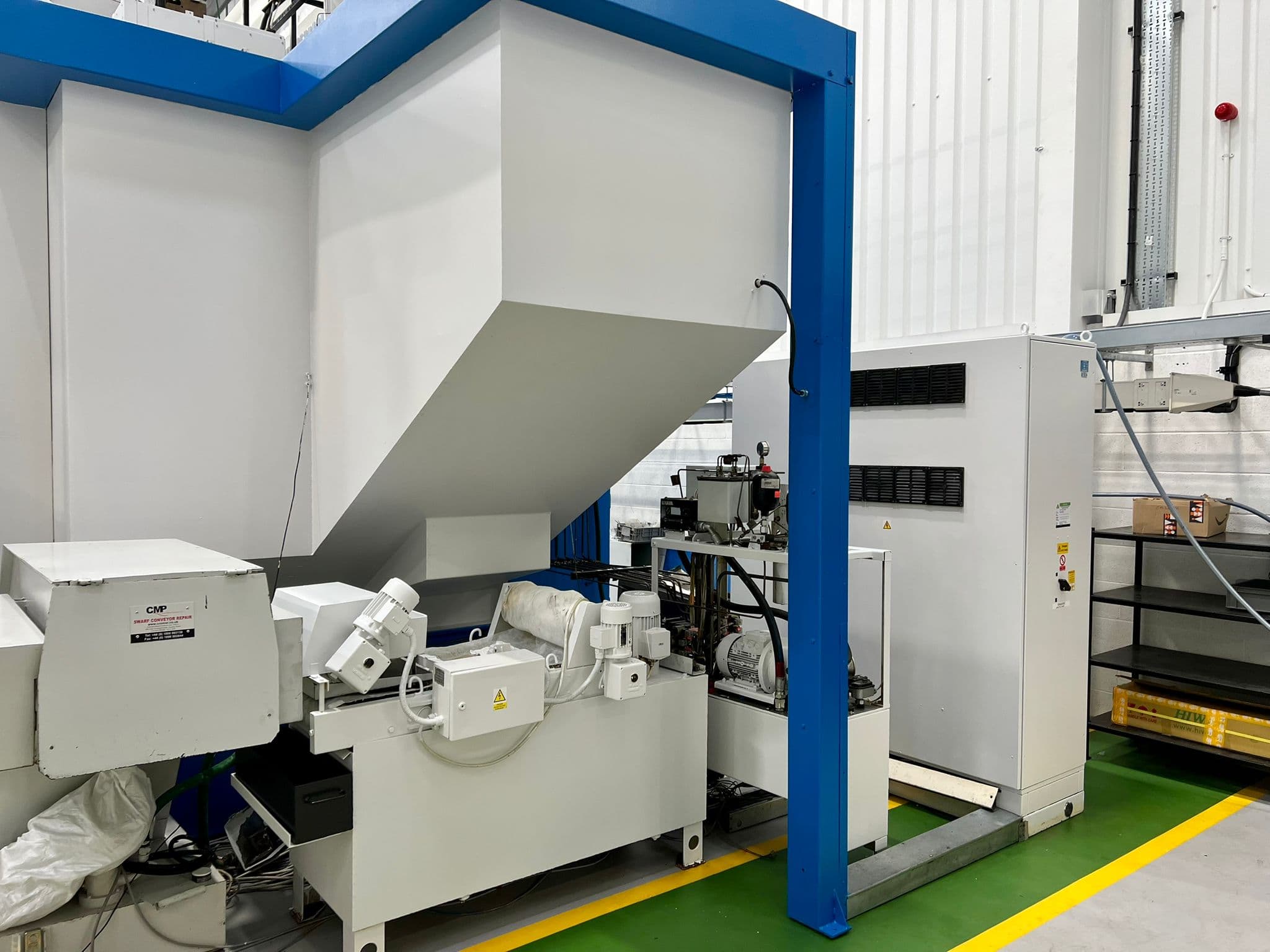

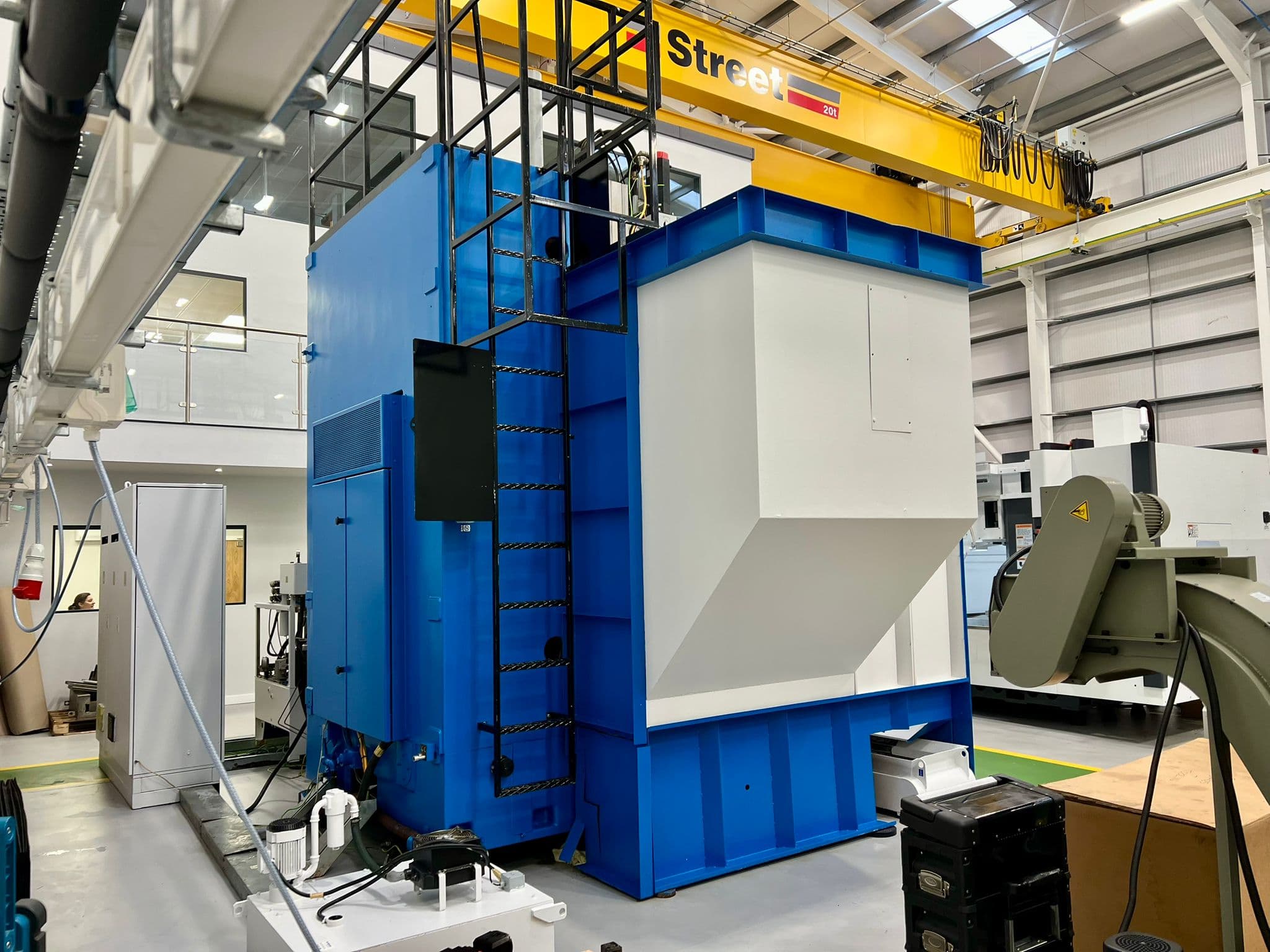

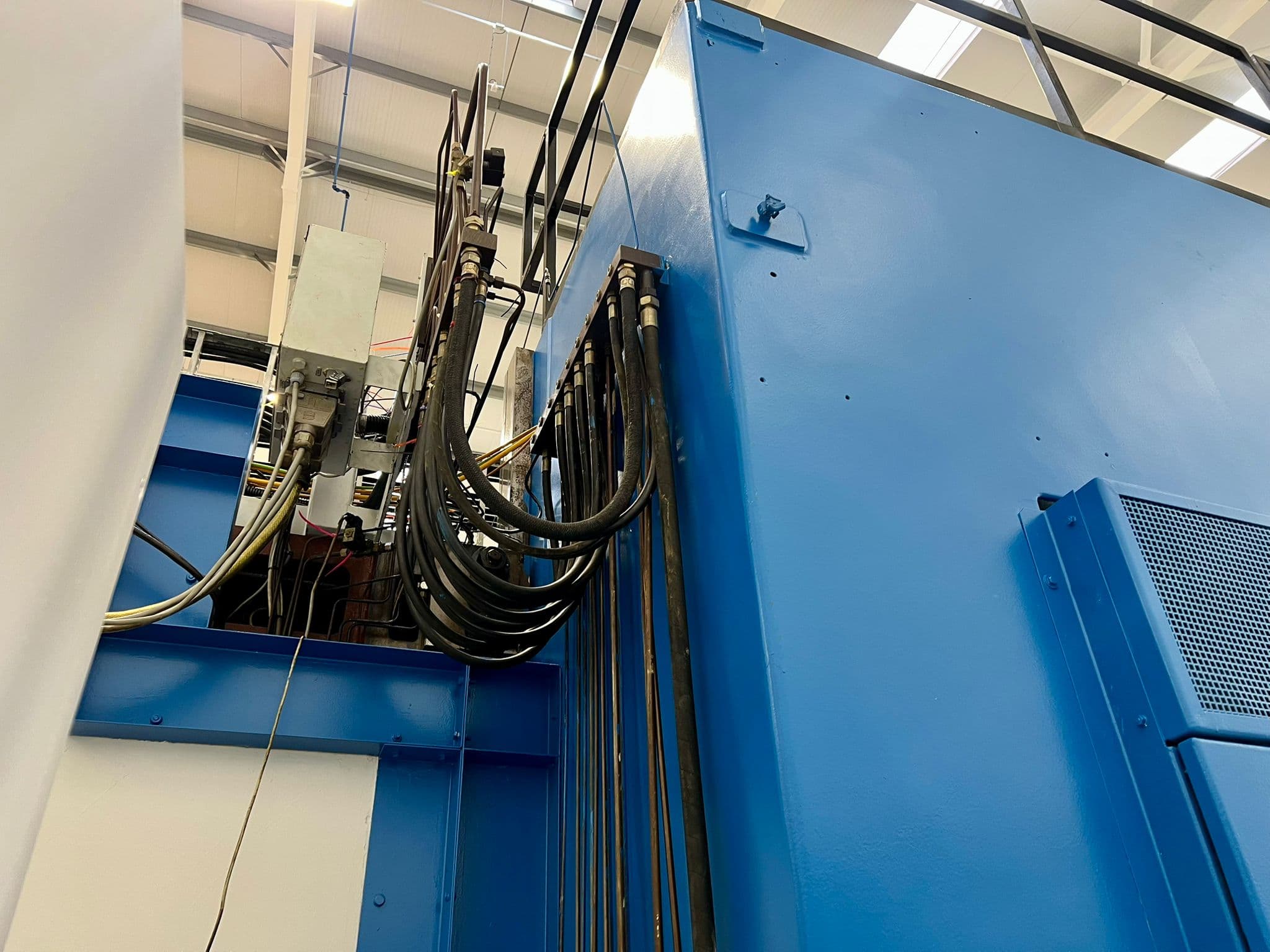

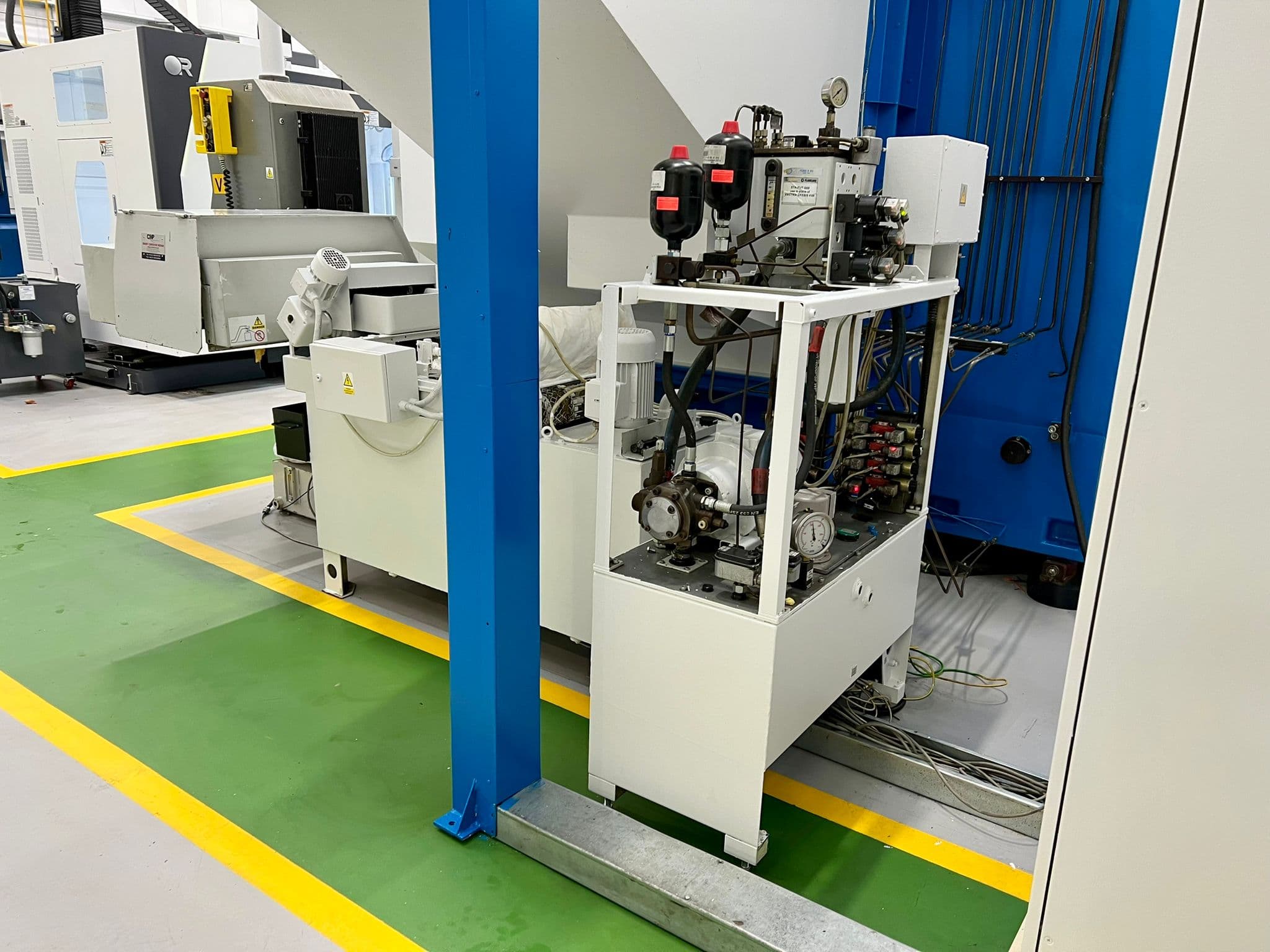

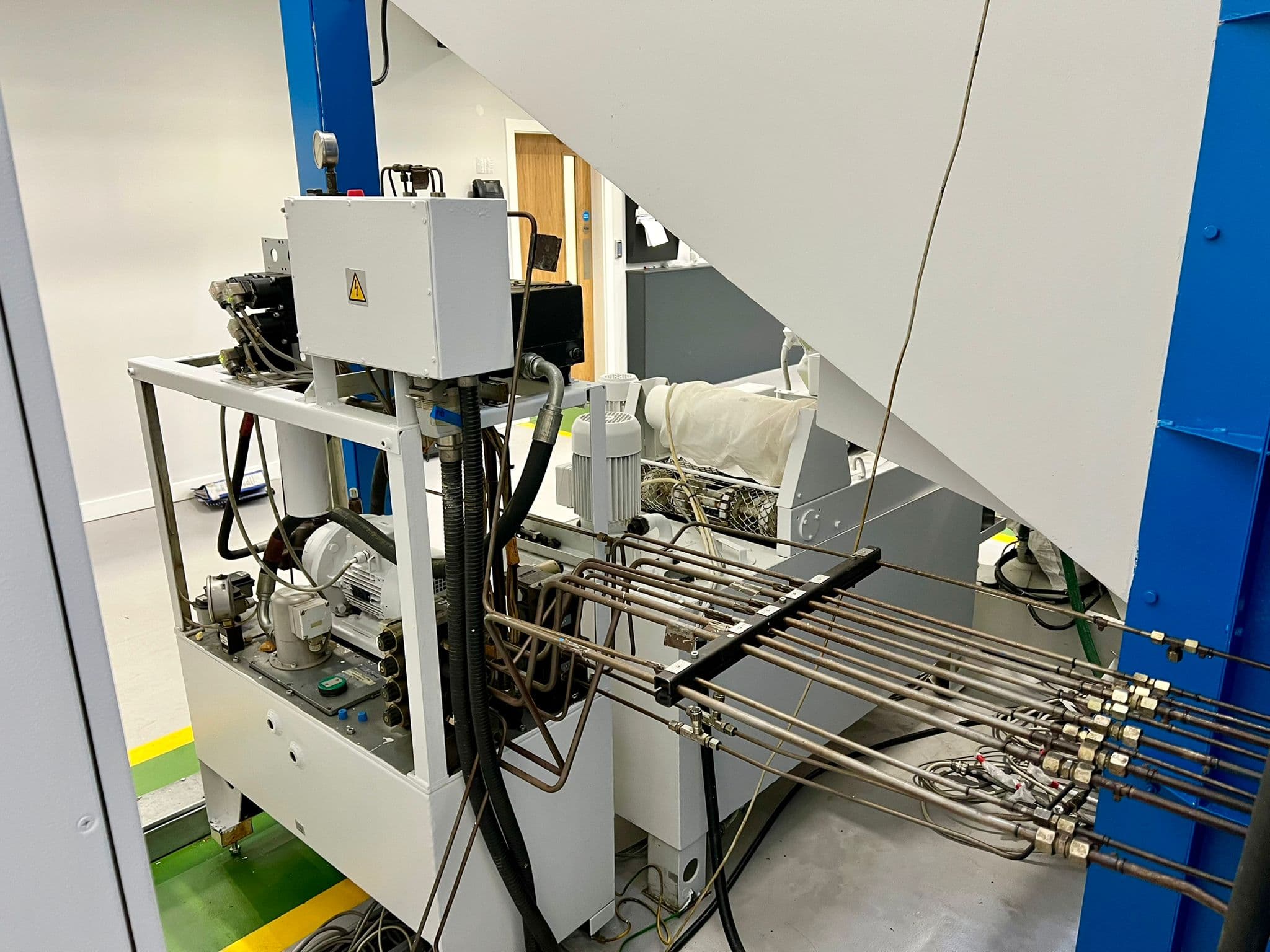

TOS Hulin SKIQ16 CNC Vertical Borer with Fanuc 16T Control. Year 1999

Description

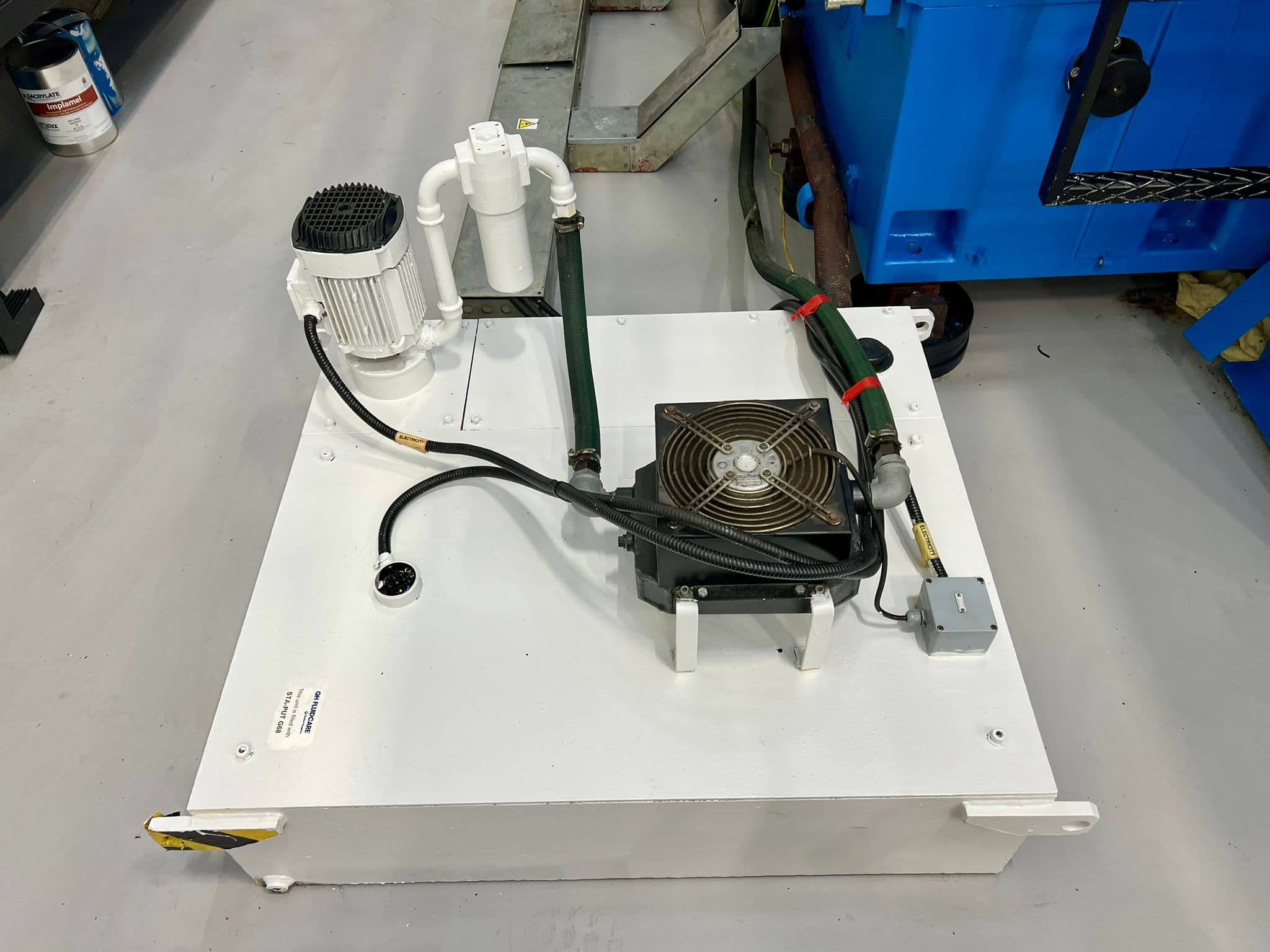

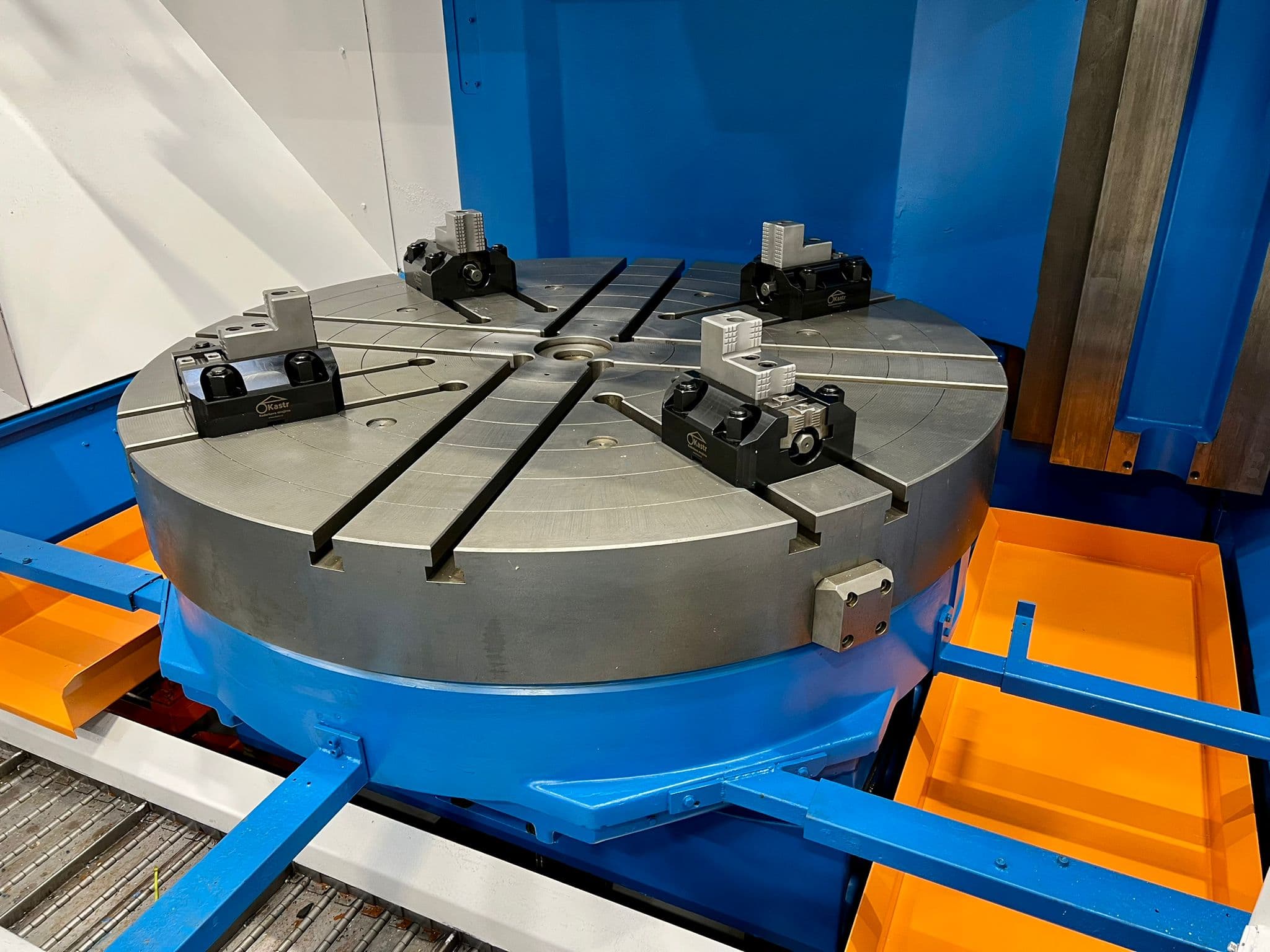

Chuck dia. 1600mm. Maximum turning dia. 2000mm. Maximum facing dia. 2000mm. Maximum distance from chuck face to toolholder 1680mm. Ram size 200mm x 180mm. Maximum ram travel 1000mm. Maximum work height 1500mm (using a standard 180mm long toolholder).Maximum table loading 12,000 kg. Auto Toolchanger (ATC) 15 positions. Maximum cutting force 44,000 N. Motor power 60 kW. Maximum size of tool shank 40mm x 40mm. Maximum cross rail stroke 800mm. Cross rail adjustment speed 287mm/min. Chuck dia. 1600mm. Speed range (2 Ranges) Low range 2.5 – 79 rpm. High range  10 – 315 rpm. Main motor power 60 kW. Main motor speed 100 – 4500 rpm. Feeds (up to a maximum 4m/min) 0.001 – 50mm/rev. Threading (up to a maximum 4m/min)  0.01mm – 400mm/rev. Horizontal carriage travels from the centre to the right 1100mm. Horizontal carriage travels from the centre to the left 1020mm. Distance of machine base to chuck face 920mm. Maximum distance from the chuck face to the lower edge of the carriage 1540mm. Lubricating oil consumption per 1000 hours 5 litres. Lubricant pressure 3 MPa. Coolant capacity 450 litres. Voltage 3 phase x 415V. Total machine power requirement 80 kVA. Machine complete with Toolholders. CMP swarf conveyor, ASTOS PF63 Paper Filtration Coolant System. Hydraulic Tank with cooling system. Handwheel. Machine dimensions L x W x H 6700mm x 5200mm x 5645mm. Approx weight 30,000 kg
