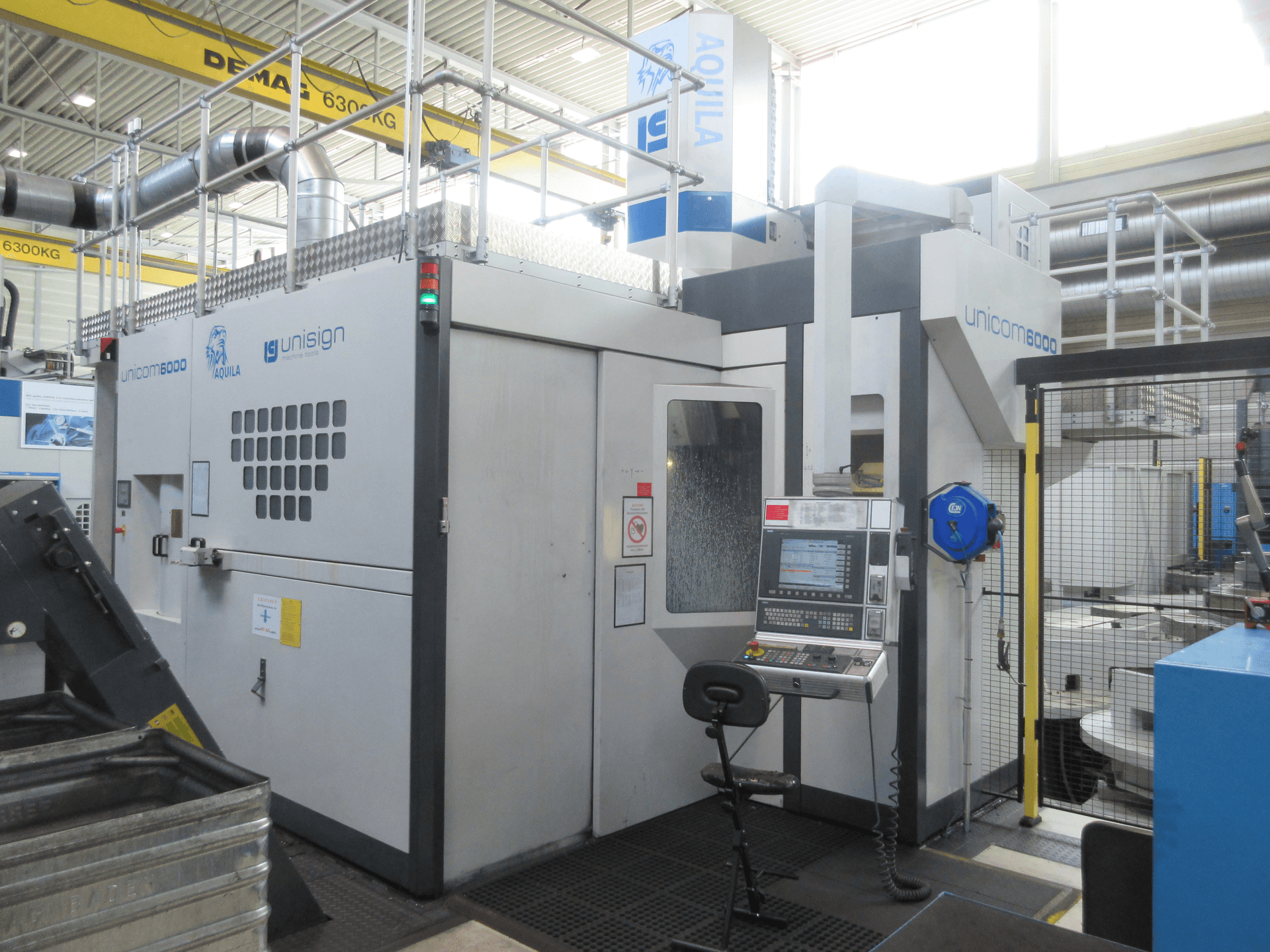

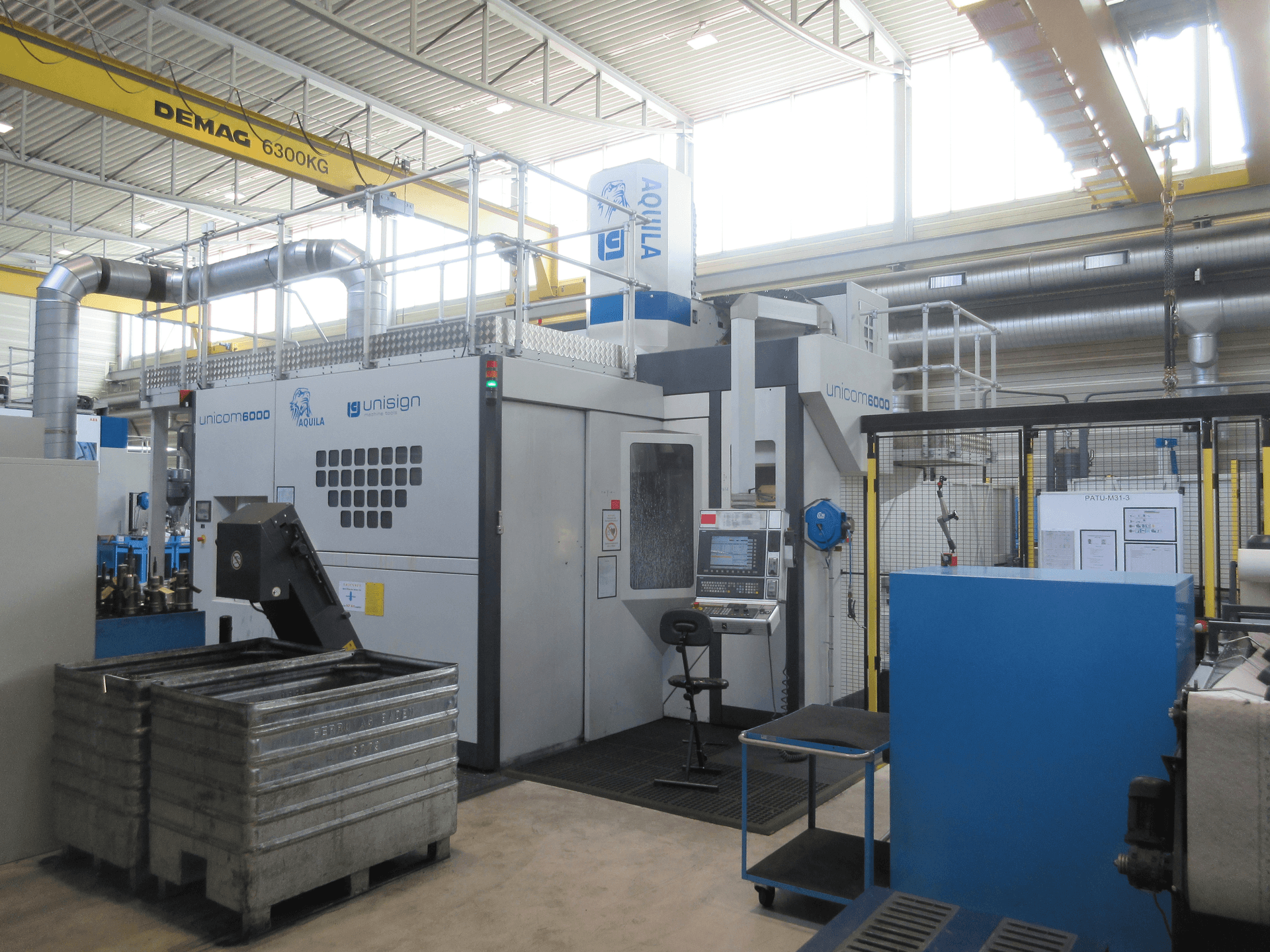

020008 - UNISIGN UNICOM 6000

Description

{"Maximum swing circle of up to": "2000 mm", "Longitudinal travel (X-axis)": "1950 mm", "Transversal travel (y-axis)": "1425 mm", "Vertical travel (z axis)": "1000 mm", "Pallets chanching device:": "", "Diameter": "1600 mm", "Transport weight": "3000 kg", "Tool changer:": "", "with double gripper": "", "Number of tools": "78", "Spindle nose: HSK": "100", "Vertical spindle speeds:": "", "up to": "6000 t/min", "Voltage 50 Hz 3x": "400 Volt", "Spindle motor": "36 / 26 kW", "Total power required": "120 kVA", "Machine's weight about": "7000 kg", "Overall dimensions machine:": "", "Length": "7500 mm", "Width": "7500 mm", "Height": "5000 mm", "Various accessories:": "", "Coolant through spindle (cts)": "", "Chip conveyor": "", "Angular milling head": "", "Automatic horizontal / vertical head": "", "Electronic hand held control": "", "Lamp": "", "Set-up place (number)": "", "Vertical turning station": "", "Machining heads changer": ""}
