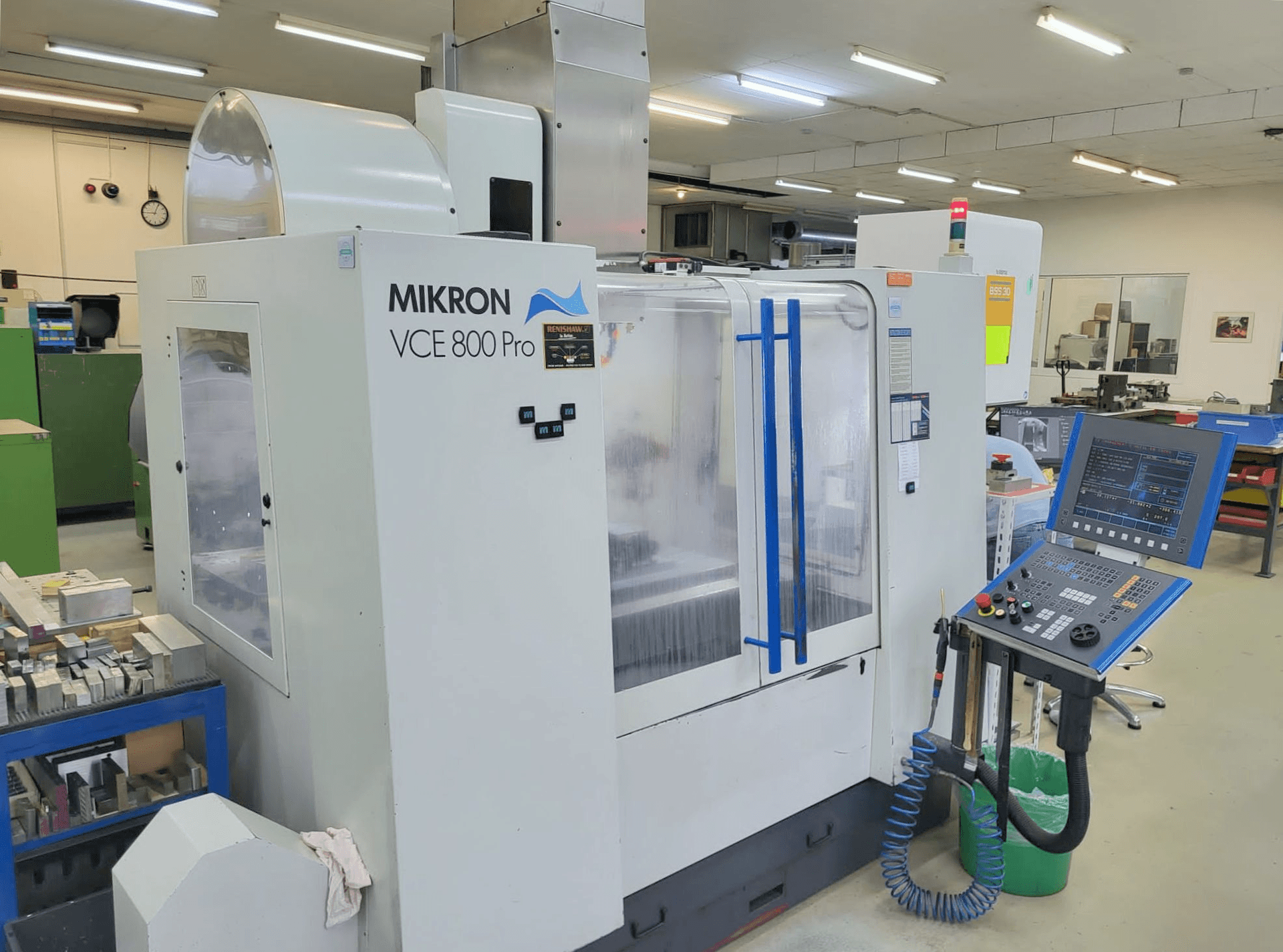

022991 - MIKRON VCE 800 Pro

Description

{"Number of axis total": "3", "Number of spindles": "1", "Table length": "1000 mm", "Table width": "560 mm", "Number of T-channels": "5", "Distance of the T-slots": "100 mm", "T-channel width": "18 mm", "Table load max.": "1350 kg", "Longitudinal travel (X-axis)": "860 mm", "Transversal travel (y-axis)": "560 mm", "Vertical travel (z axis)": "600 mm", "Tool changer:": "", "Number of tools": "24", "Tool diameter max.": "77 mm", "Tool lenght": "305 mm", "Max. tool-weight": "6 kg", "Time of tool changing": "6 s", "Average chip-to-chip time": "8 s", "Spindle nose SK": "40", "Pull-Studs": "DIN 69872 Form B", "Spindle speeds:": "", "stepless": "", "from": "30 t/min", "up to": "8000 t/min", "Rapid traverse: long.": "24 m/min", "Rapid traverse: transversal": "24 m/min", "Rapid traverse: vertical": "20 m/min", "Voltage 50 Hz 3x": "400 Volt", "Spindle motor": "12 kW", "Spindle power": "18.5 / 22 kW", "Total power required": "42 kW", "Noise level": "78 dB (A)", "Machine's weight about": "5000 kg", "Overall dimensions machine:": "", "Length": "3200 mm", "Width": "2300 mm", "Height": "2800 mm", "Various accessories:": "", "Set of toolholders": "", "Coolant system": "270 l", "Handwheel electroinic": "", "Lamp": "", "Boring head": "", "Status light": ""}
