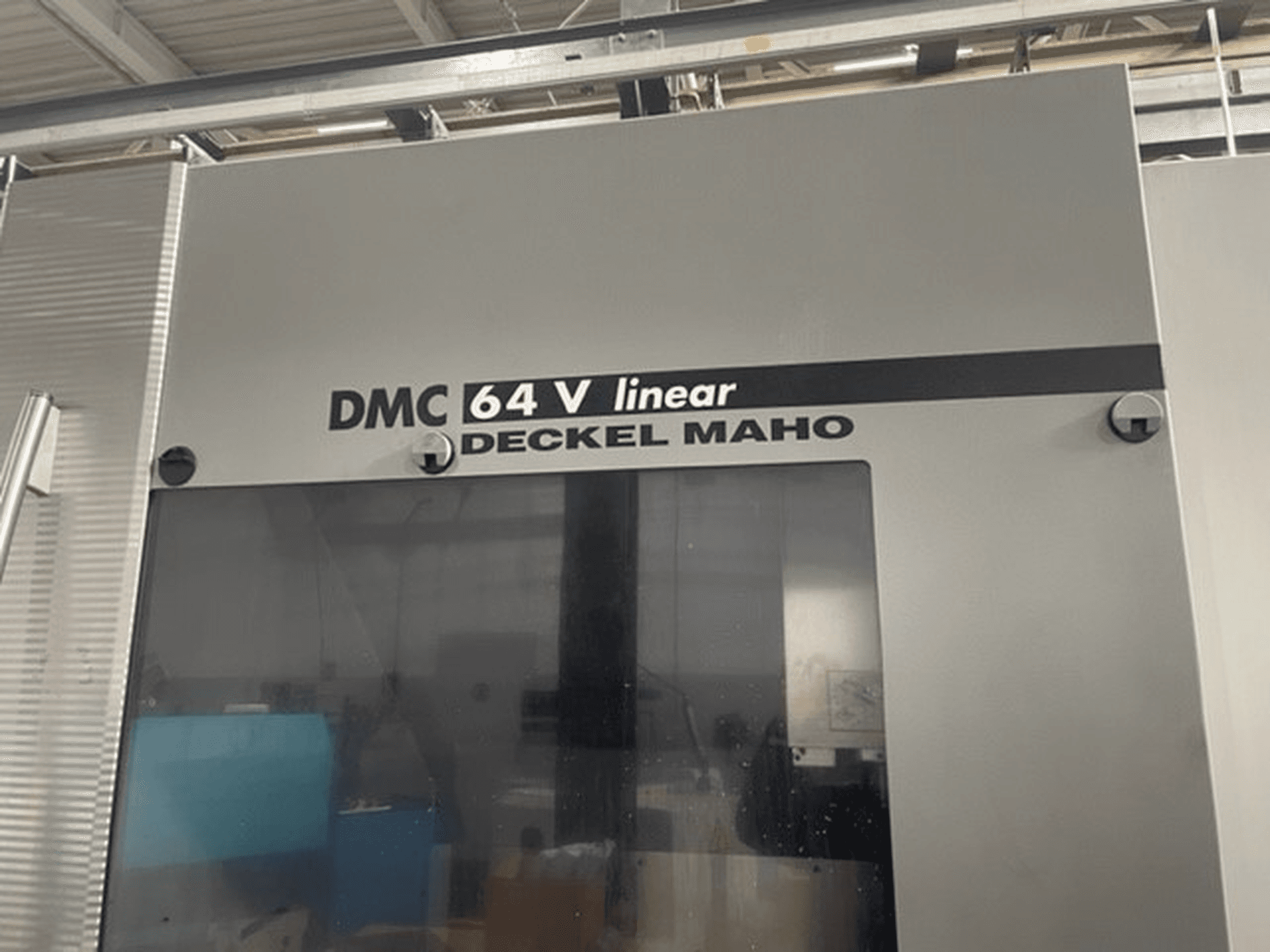

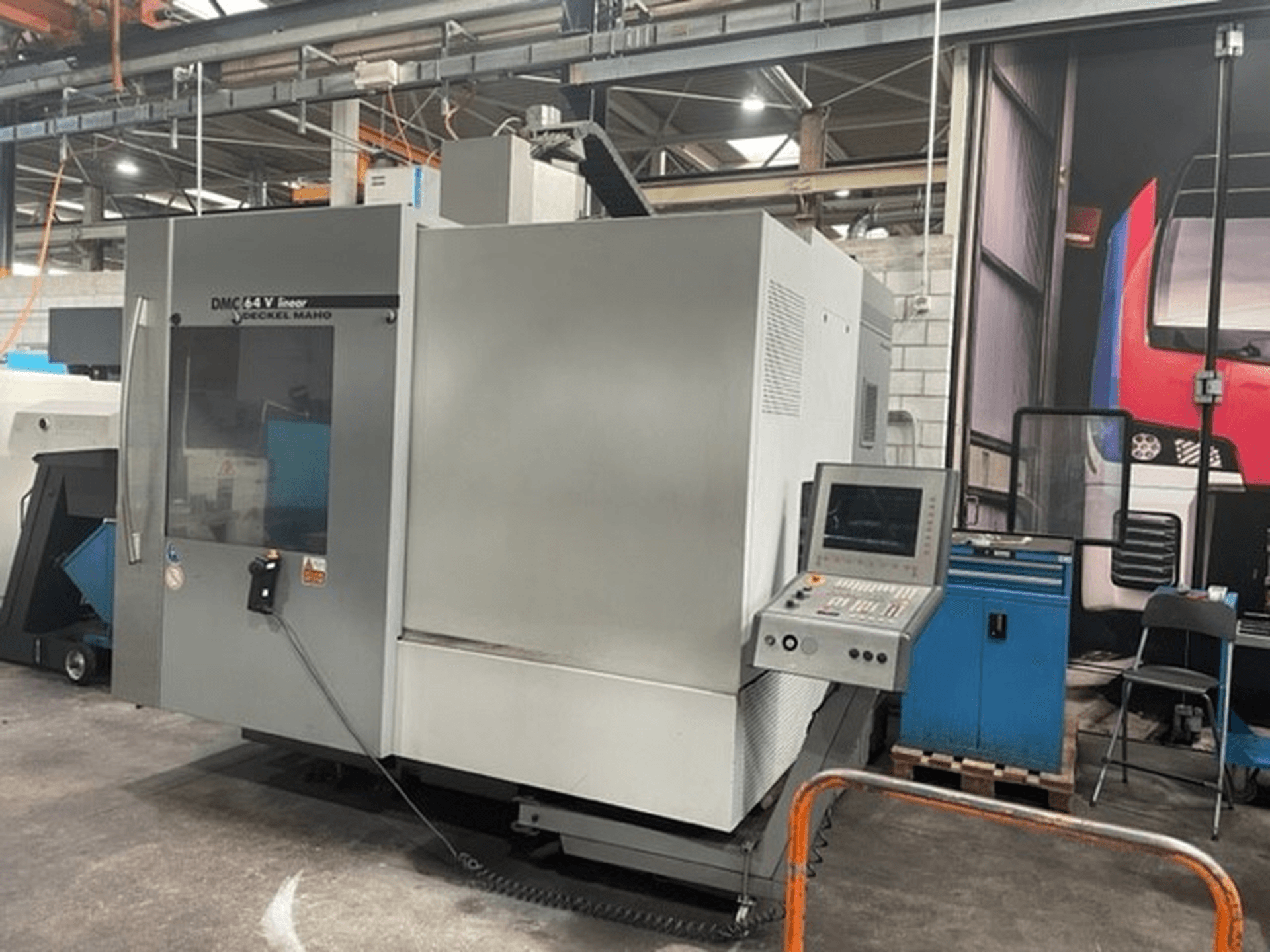

022074 - DMG DMC 64 V linear

Description

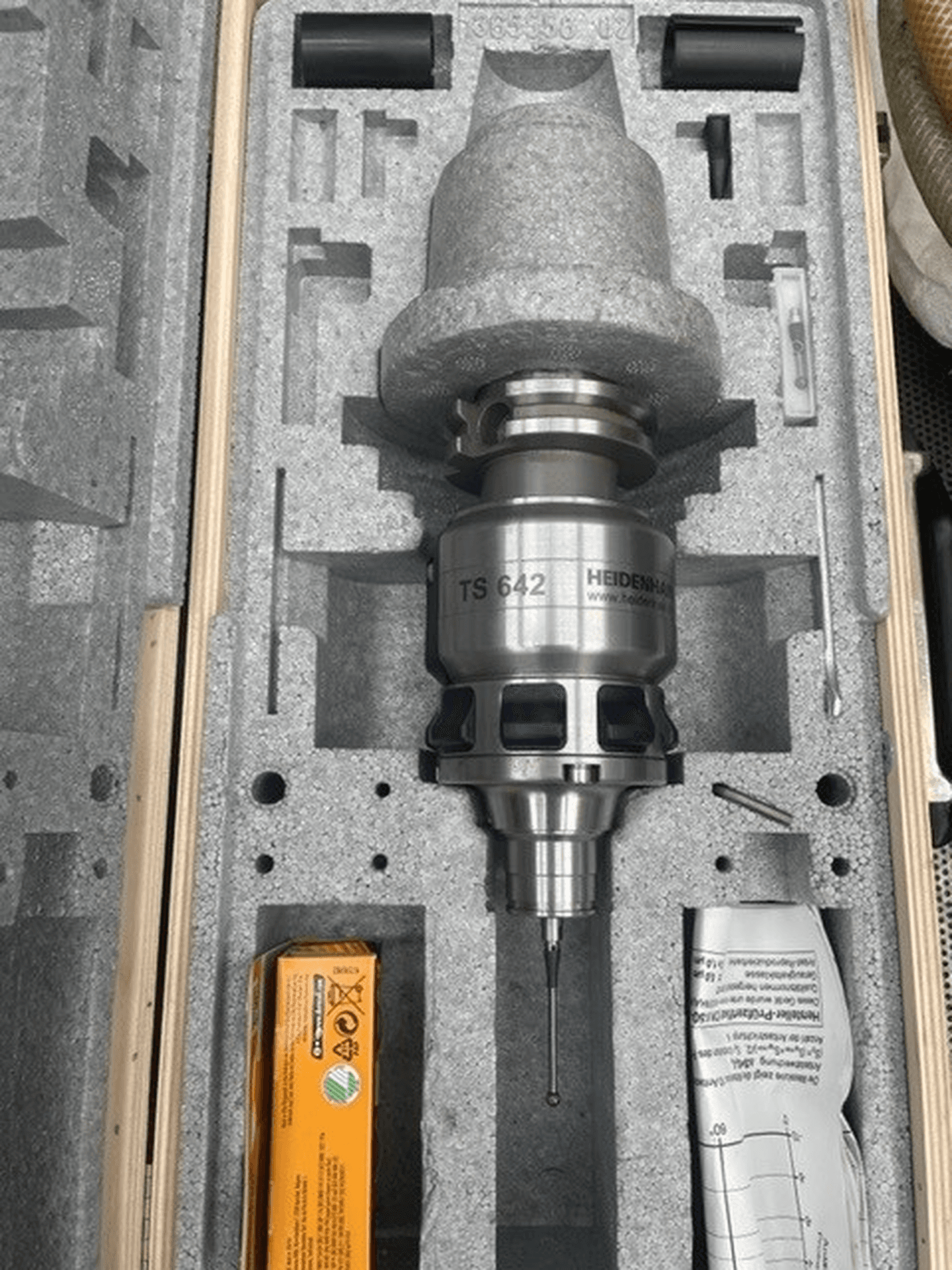

{"Table length": "850 mm", "Table width": "630 mm", "Table load max.": "600 kg", "Longitudinal travel (X-axis)": "640 mm", "Transversal travel (y-axis)": "600 mm", "Vertical travel (z axis)": "500 mm", "Tool changer:": "", "Number of tools": "30", "Tool diameter": "80 mm", "Tool diameter max.": "140 mm", "Diameter with free adjacent pockets": "140 mm", "Tool lenght": "300 mm", "Max. tool-weight": "7 kg", "Time of tool changing": "5 s", "Spindle nose: BT": "40", "Milling spindle speeds:": "", "stepless": "", "from": "1 t/min", "up to": "12000 t/min", "Feed range": "0 - 40000 mm/min", "Rapid traverse: long.": "60 m/min", "Rapid traverse: transversal": "40 m/min", "Rapid traverse: vertical": "40 m/min", "Air connect": "6 bar", "Voltage 50 Hz 3x": "400 Volt", "Spindle power": "19 / 13 kW", "Torque max.": "100 / 70 Nm", "Total power required": "42 kVA", "Machine's weight about": "6500 kg", "Overall dimensions machine:": "", "Length": "3400 mm", "Width": "2500 mm", "Height": "3300 mm", "Various accessories:": "", "Coolant system": "", "Touch Probe": "Heidenhain TS 642", "Handwheel electroinic": ""}
