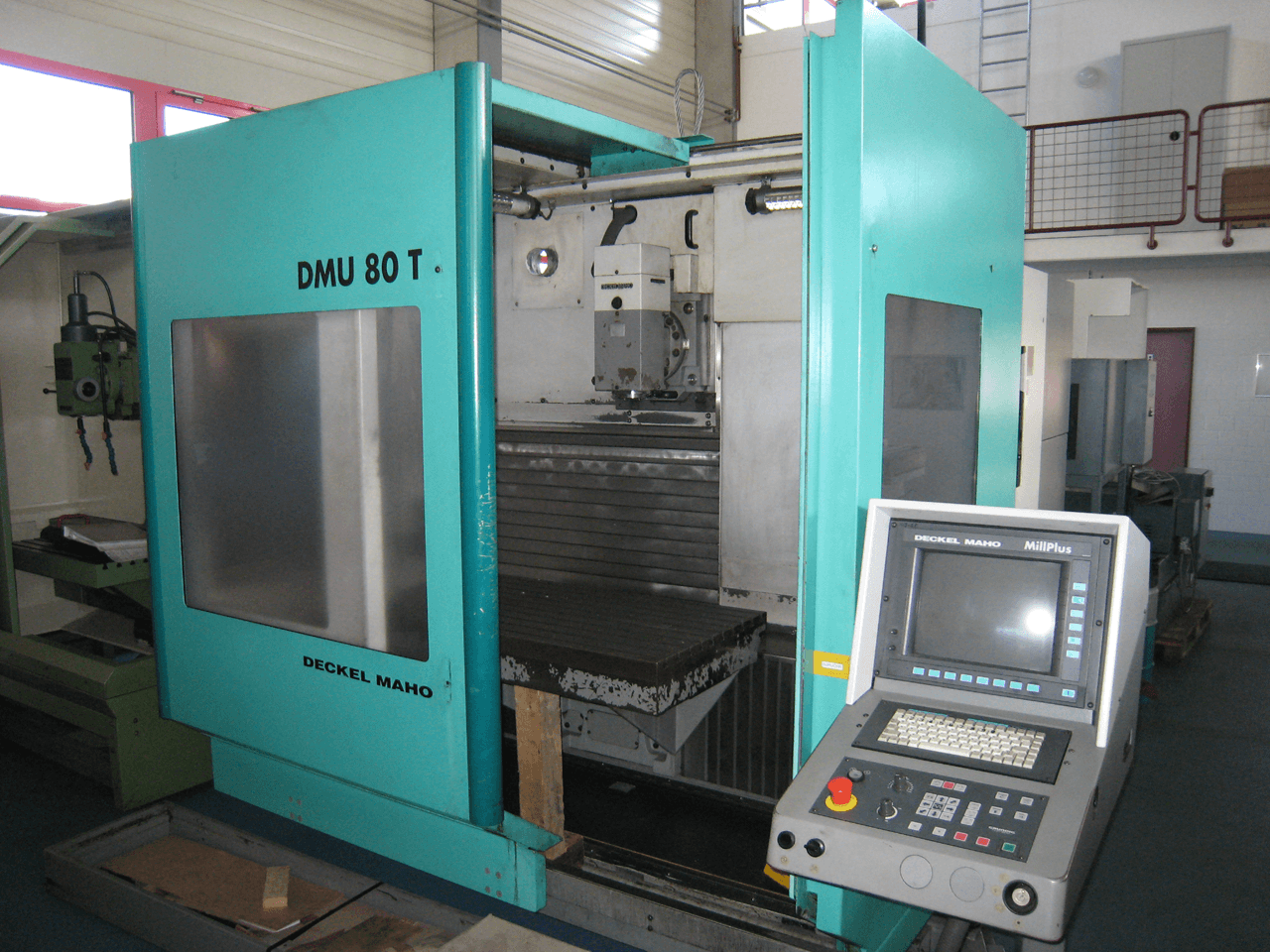

013146 - DMG DMU 80 T

Description

{"Number of axis total": "3", "Table length": "1100 mm", "Table width": "650 mm", "Longitudinal travel (X-axis)": "800 mm", "Transversal travel (y-axis)": "650 mm", "Vertical travel (z axis)": "550 mm", "Milling head divisions (B)": "90 \u00b0", "Tool changer:": "", "with double gripper": "", "Number of tools": "25", "Tool diameter": "80 mm", "Diameter with free adjacent pockets": "160 mm", "Tool lenght": "315 mm", "Spindle nose: ISO": "40", "Spindle speeds:": "", "up to": "6300 t/min", "Vertical spindle speeds:": "", "Feed range": "1-15000 mm/min", "Rapid traverse:": "15 m/min", "Spindle motor": "16.2 kW", "Total power required": "29 kW", "Machine's weight about": "5500 kg", "Overall dimensions machine:": "", "Length": "3100 mm", "Width": "2300 mm", "Height": "2500 mm", "Various accessories:": "", "Coolant system": "", "Lamp": ""}
