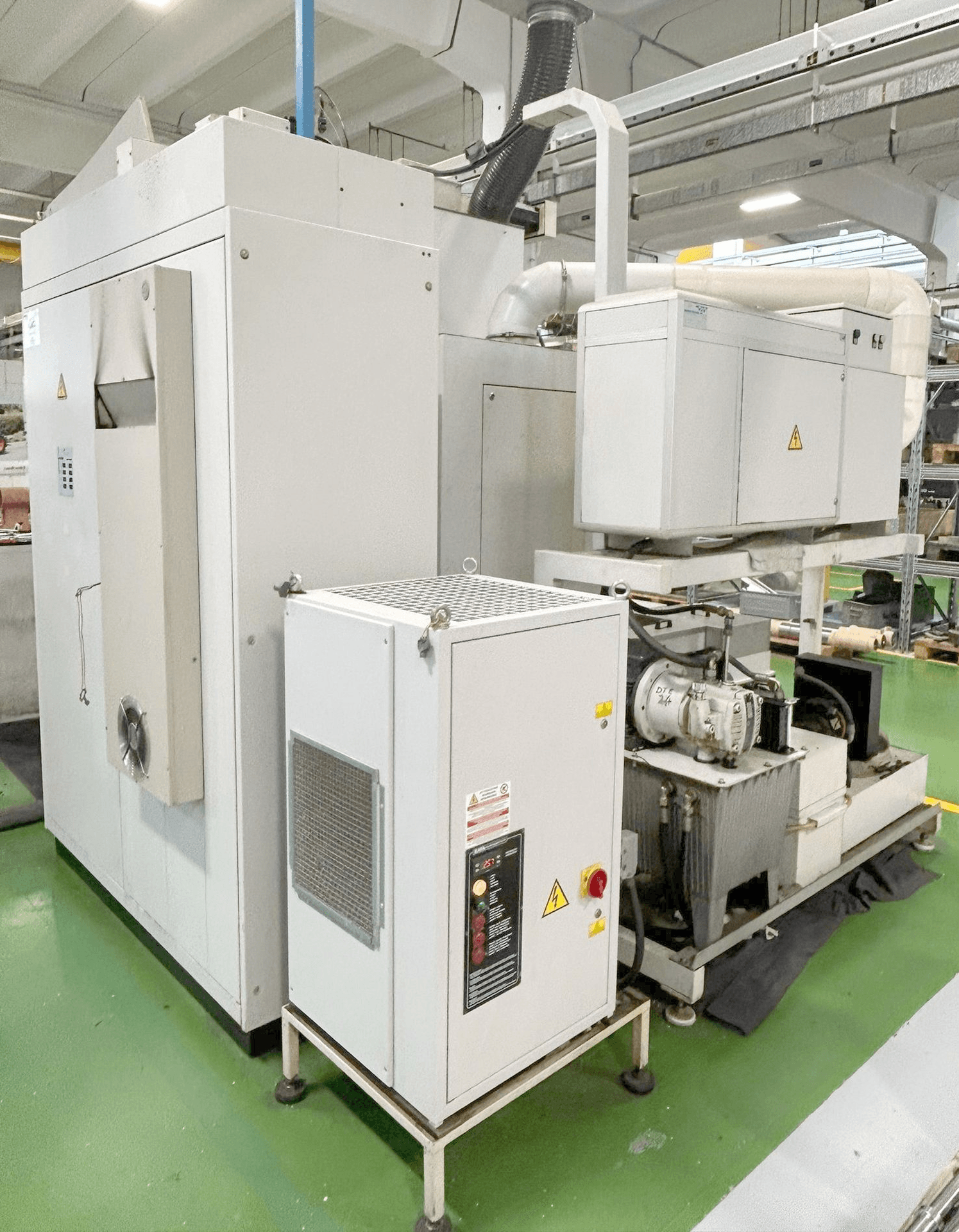

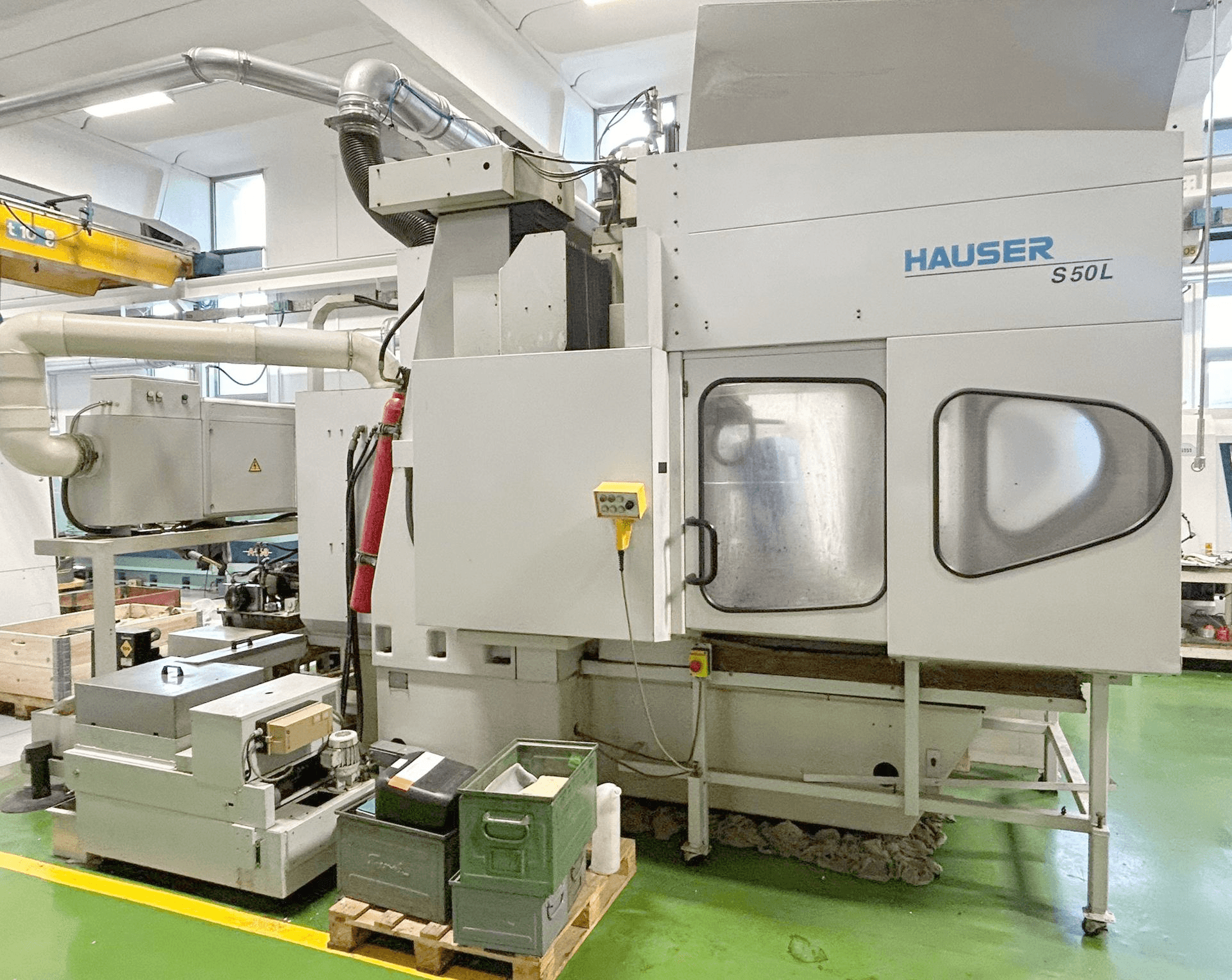

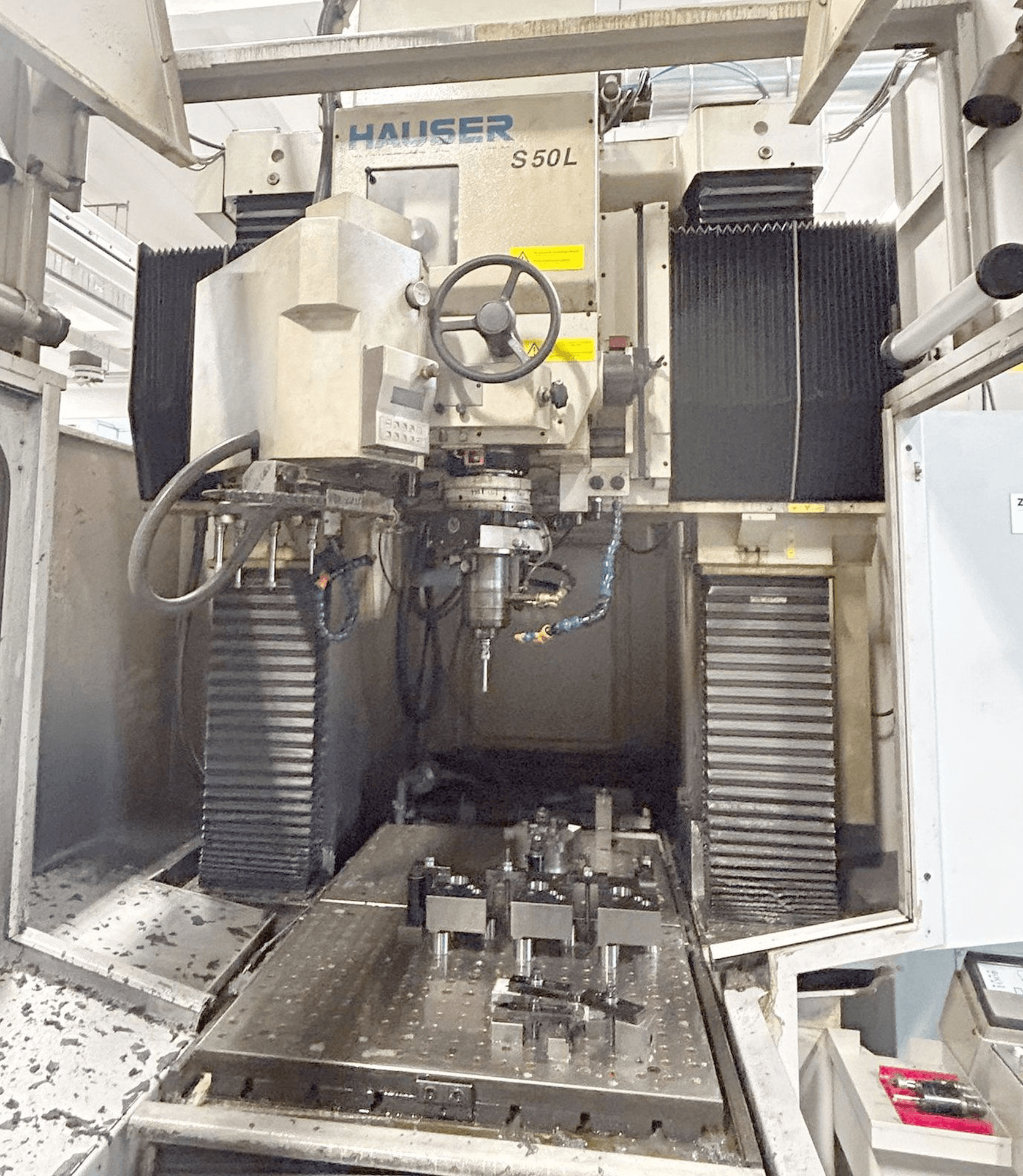

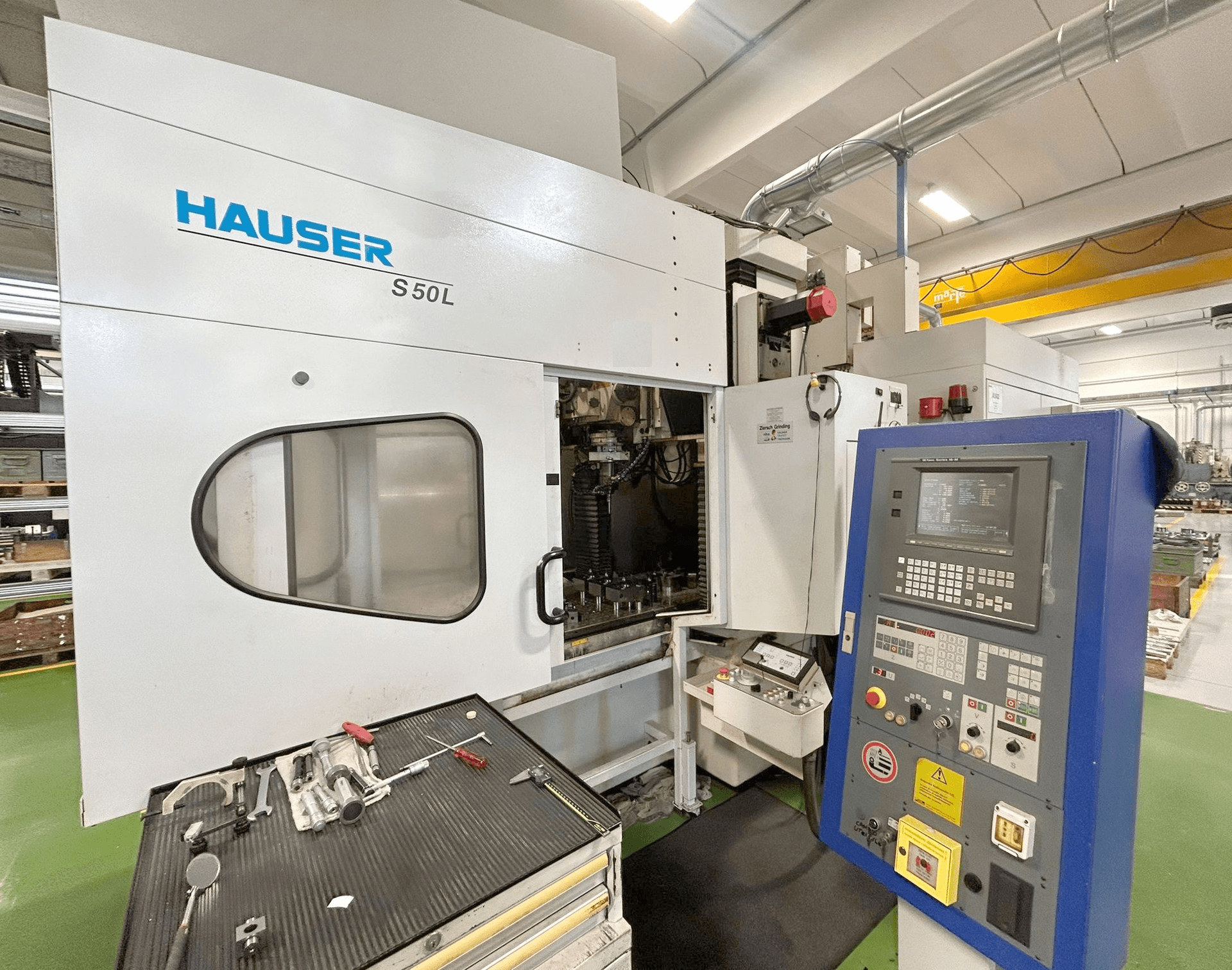

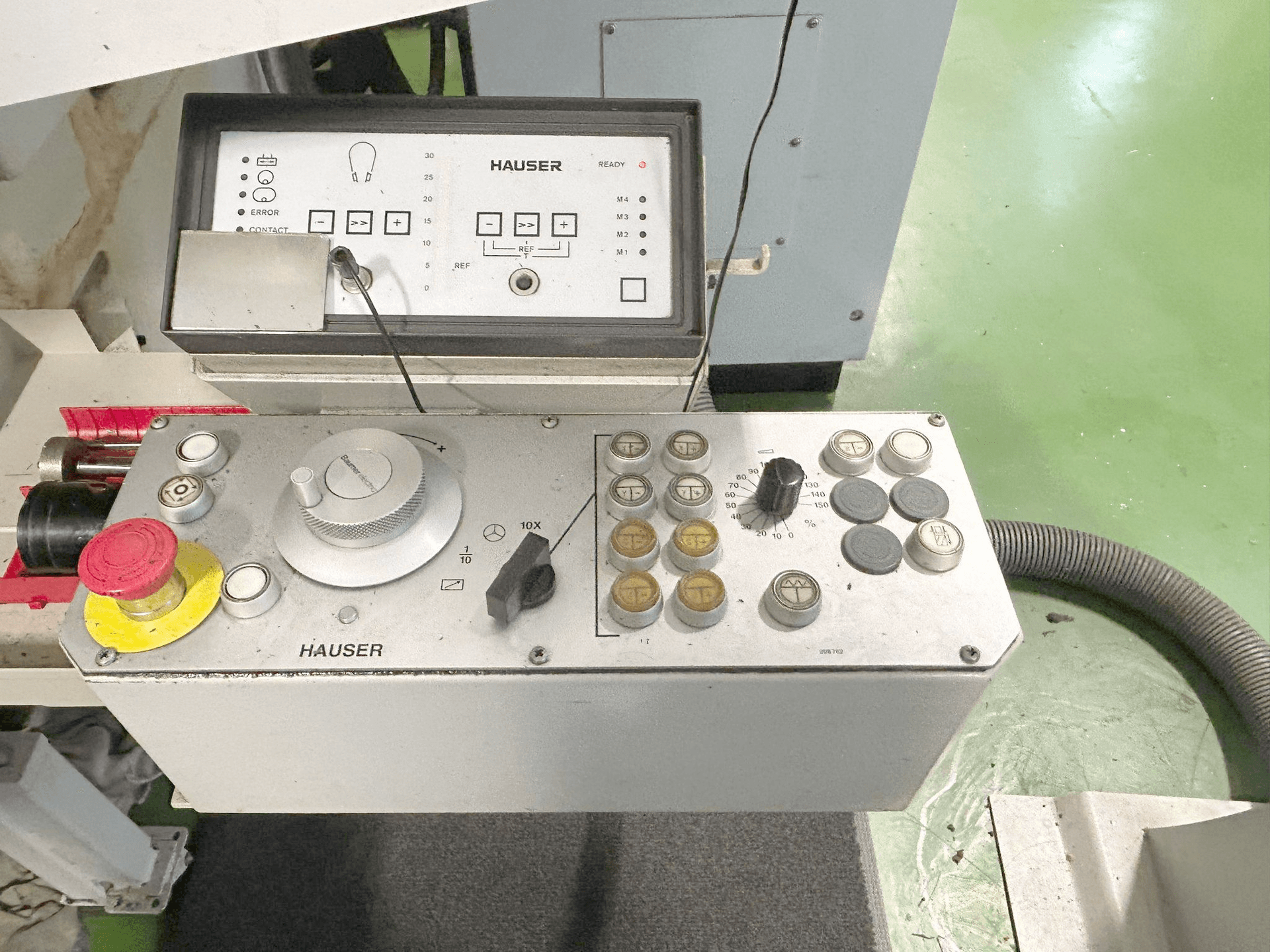

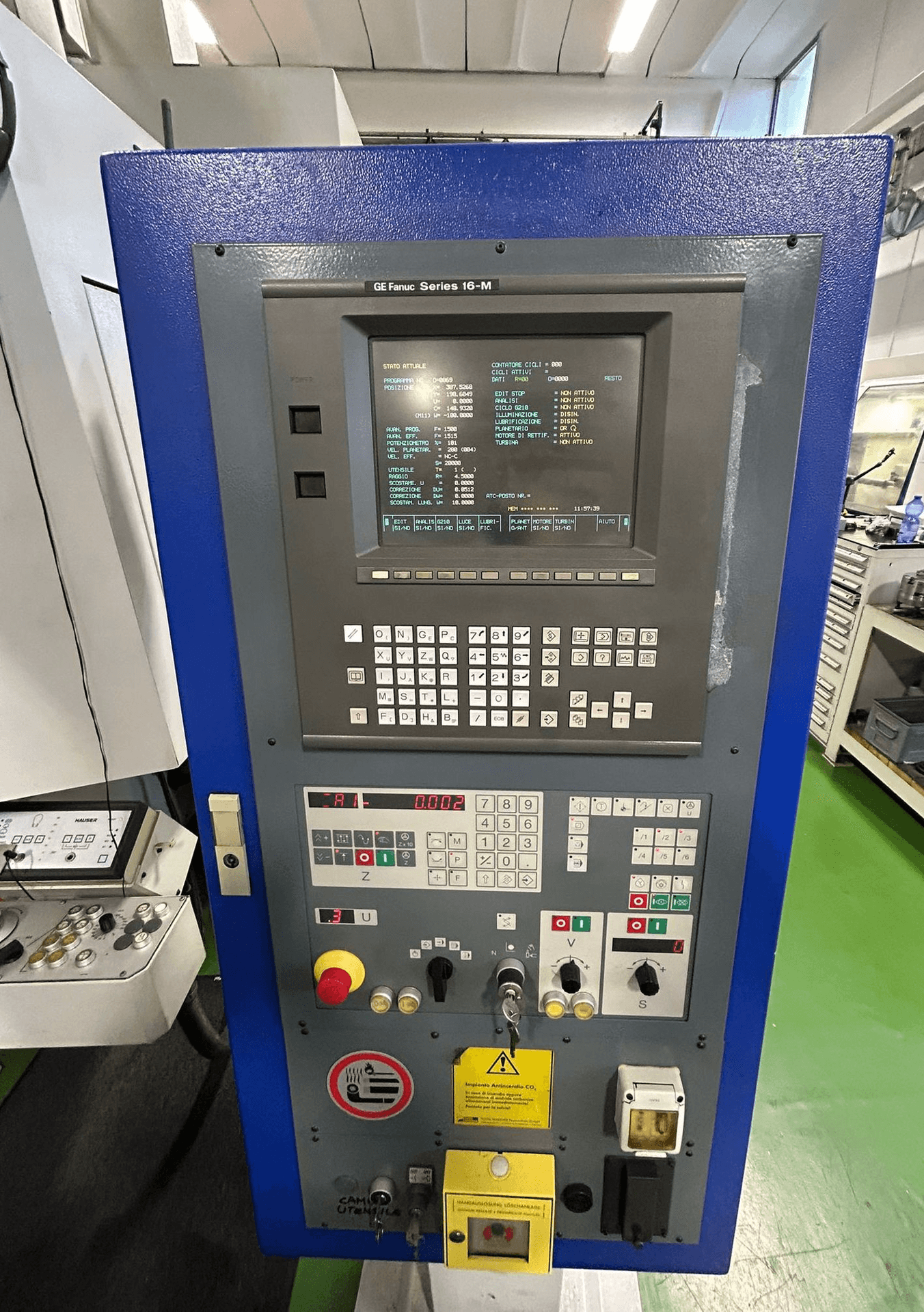

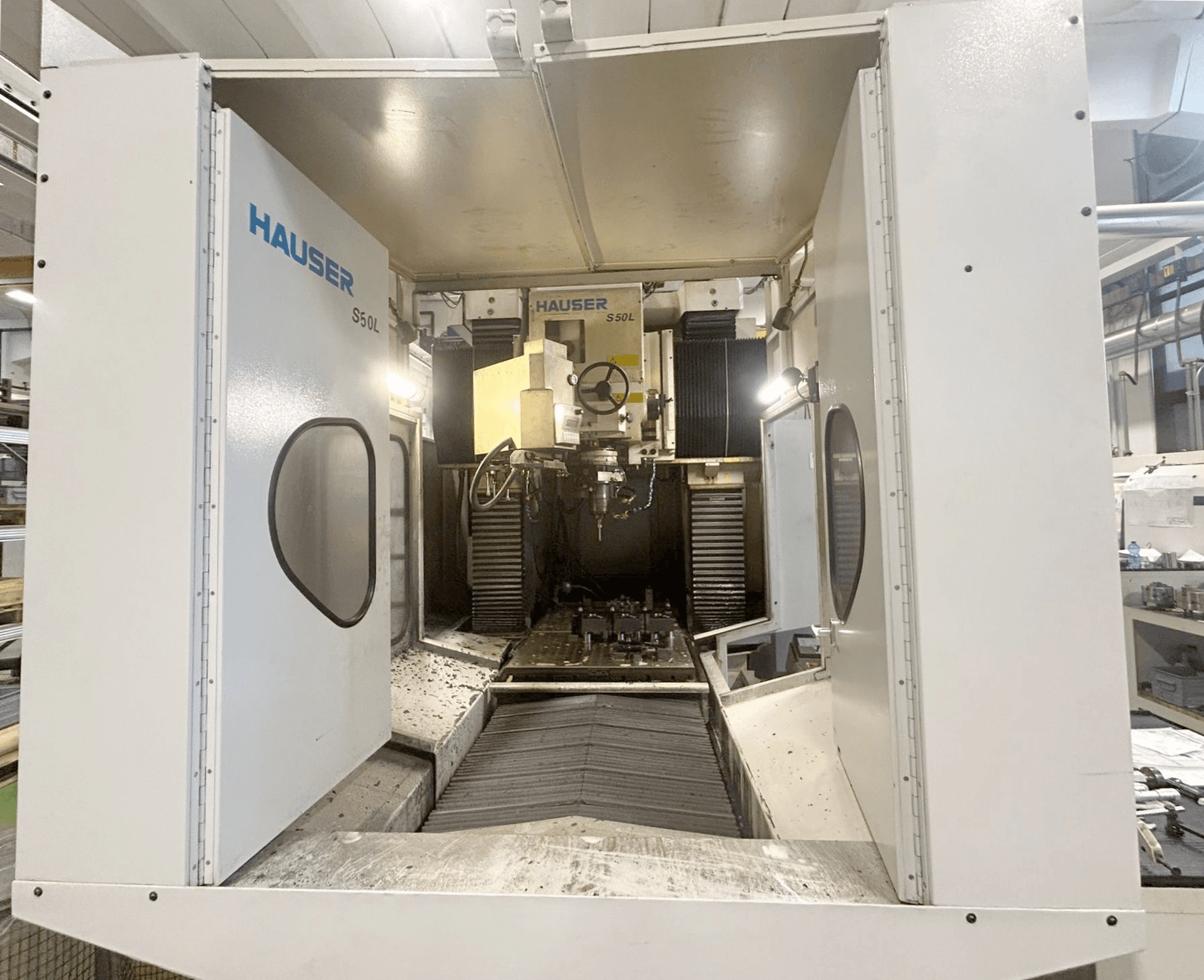

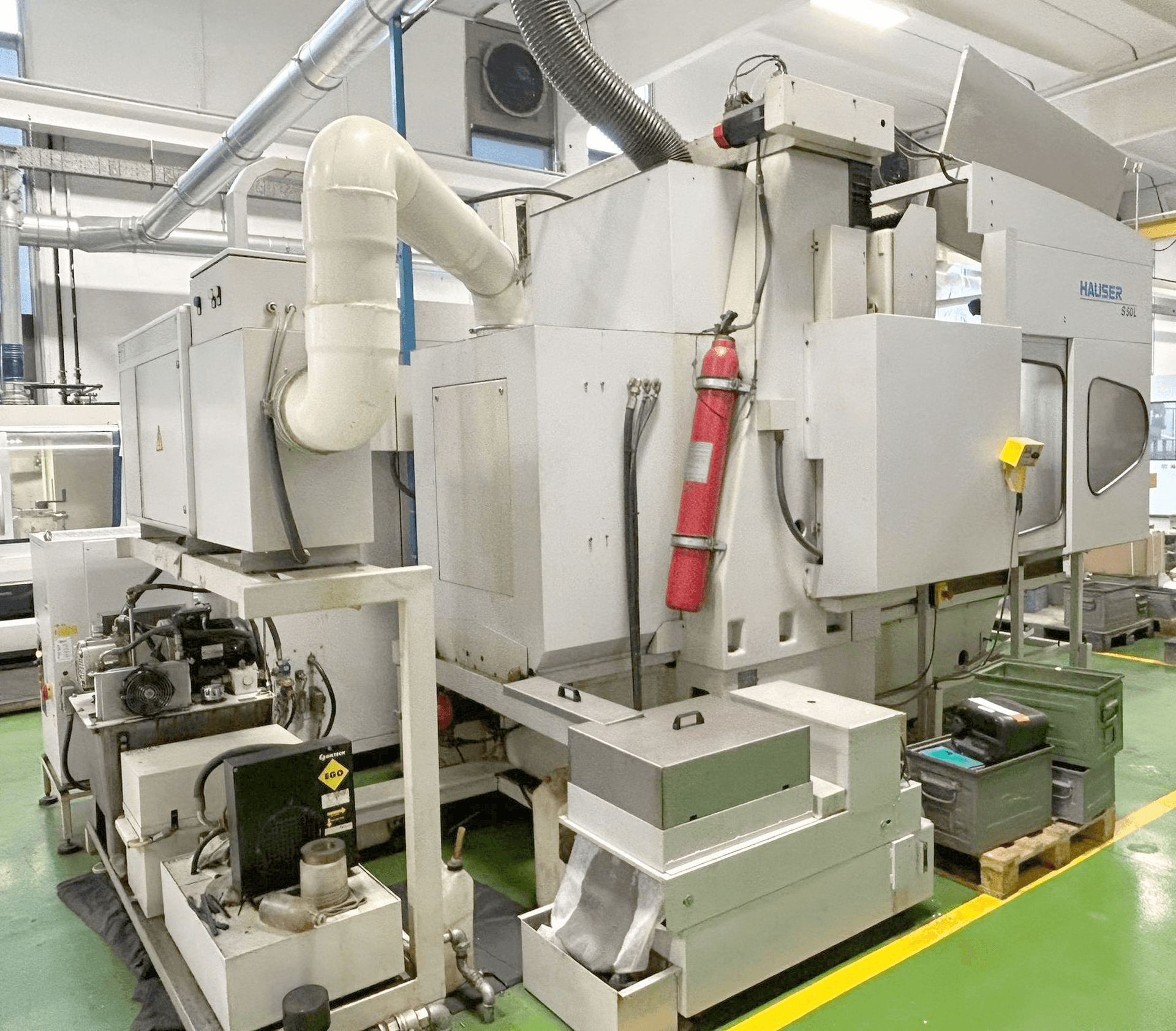

023058 - HAUSER S 50 L CNC 400

Description

{"2 columns execution": "", "Table length": "1320 mm", "Longitudinal travel (X-axis)": "1200 mm", "Transversal travel (y-axis)": "600 mm", "Travel of the vertical slide": "635 mm", "Passage from grinding motor to table": "750 mm", "Max. grinding diameter": "230 mm", "with display-plate": "360 mm", "Passage between the columns": "950 mm", "Max. angle with taper grinding:": "", "up to": "80000 t/min", "Planetary motion speeds: c axis": "", "stepless": "", "from": "9000 t/min", "Possible grinding-spindle speeds:": "", "With air-turbine max.": "160000 t/min", "Voltage 50 Hz 3x": "380 Volt", "Total power required": "9 kVA", "Machine's weight about": "6300 kg", "Overall dimensions machine:": "", "Length": "3000 mm", "Width": "2500 mm", "Height": "2870 mm", "Various accessories:": "", "Paper filtration system": "", "MSS Multi-Sensoric-System": "", "Fire extinguishing system": "", "Oil mist extractor": ""}
