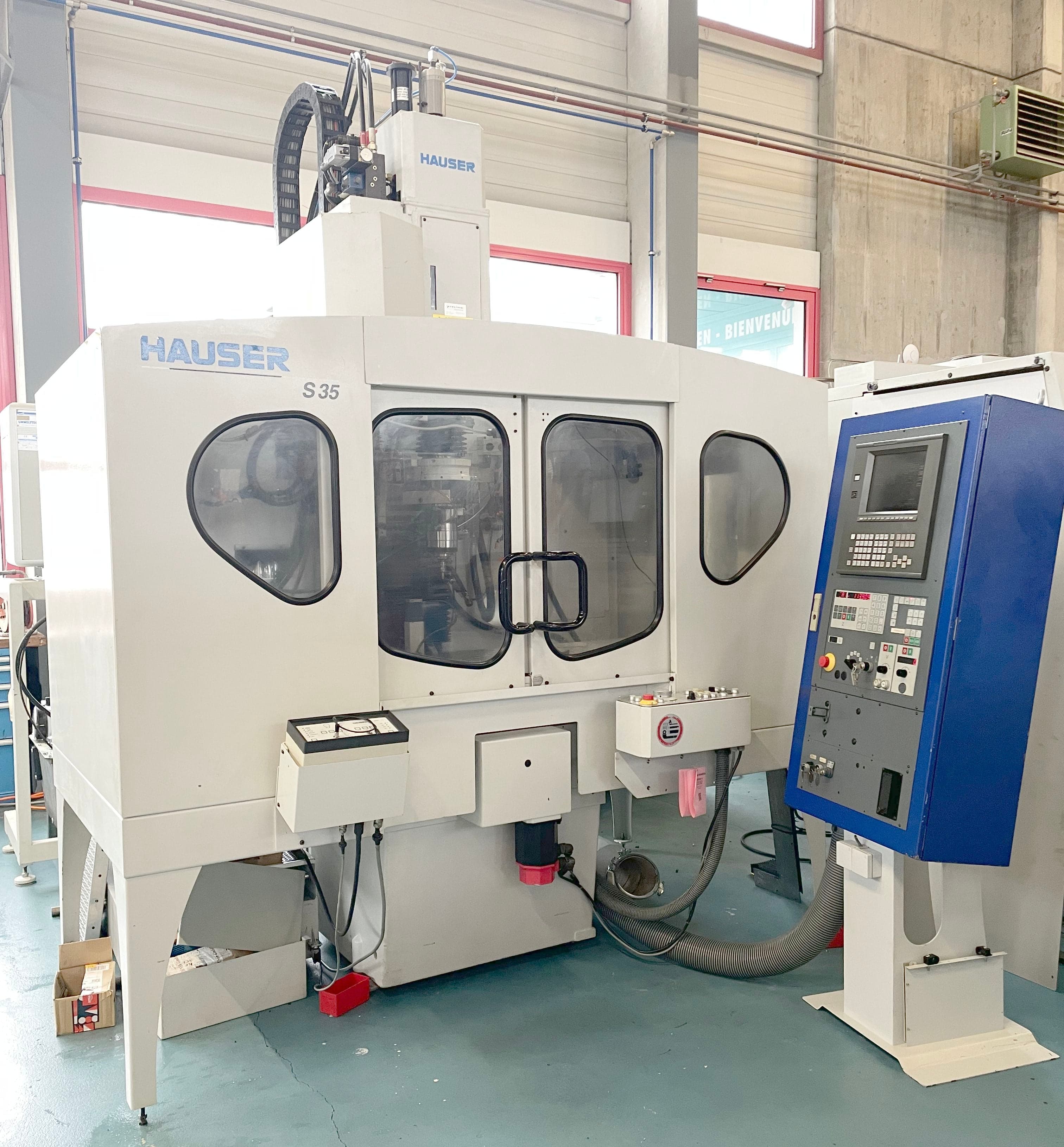

022352 - HAUSER S 35-400

Description

{"1 column execution": "", "Table:": "", "Table length": "600 mm", "Table width": "380 mm", "T-channel width": "10 mm", "Number of spline": "6", "Distance of the T-slots": "50 mm", "Table load max.": "200 kg", "Carriage:": "", "Longitudinal travel (X-axis)": "500 mm", "Transversal travel (y-axis)": "300 mm", "Travel of the vertical slide": "450 mm", "Passage from grinding motor to table": "485 mm", "Max. grinding diameter": "230 mm", "with display-plate": "360 mm", "Stroke of spindle-nose": "340 mm", "Max. angle with taper grinding:": "", "up to": "250 t/min", "Vertical travel of grinding spindle:": "", "stepless from": "1 mm", "Travel speeds:": "", "stepless": "", "from": "5 t/min", "Planetary motion speeds: c axis": "", "Feeds:": "", "X axis": "0 - 12 m/min", "Y axis": "0 - 12 m/min", "W axis": "900 mm/min", "Voltage 50 Hz 3x": "380 Volt", "Spindle motor": "7.5 kW", "Machine's weight about": "4000 kg", "Overall dimensions machine:": "", "Length": "2700 mm", "Width": "1700 mm", "Height": "2850 mm", "Various accessories:": "", "Coolant system": "", "Paper filtration system": "", "Oil mist extractor": "", "Tool changer: (number of tools)": "8", "Type": "EROWA", "RS-232 Interface": ""}
