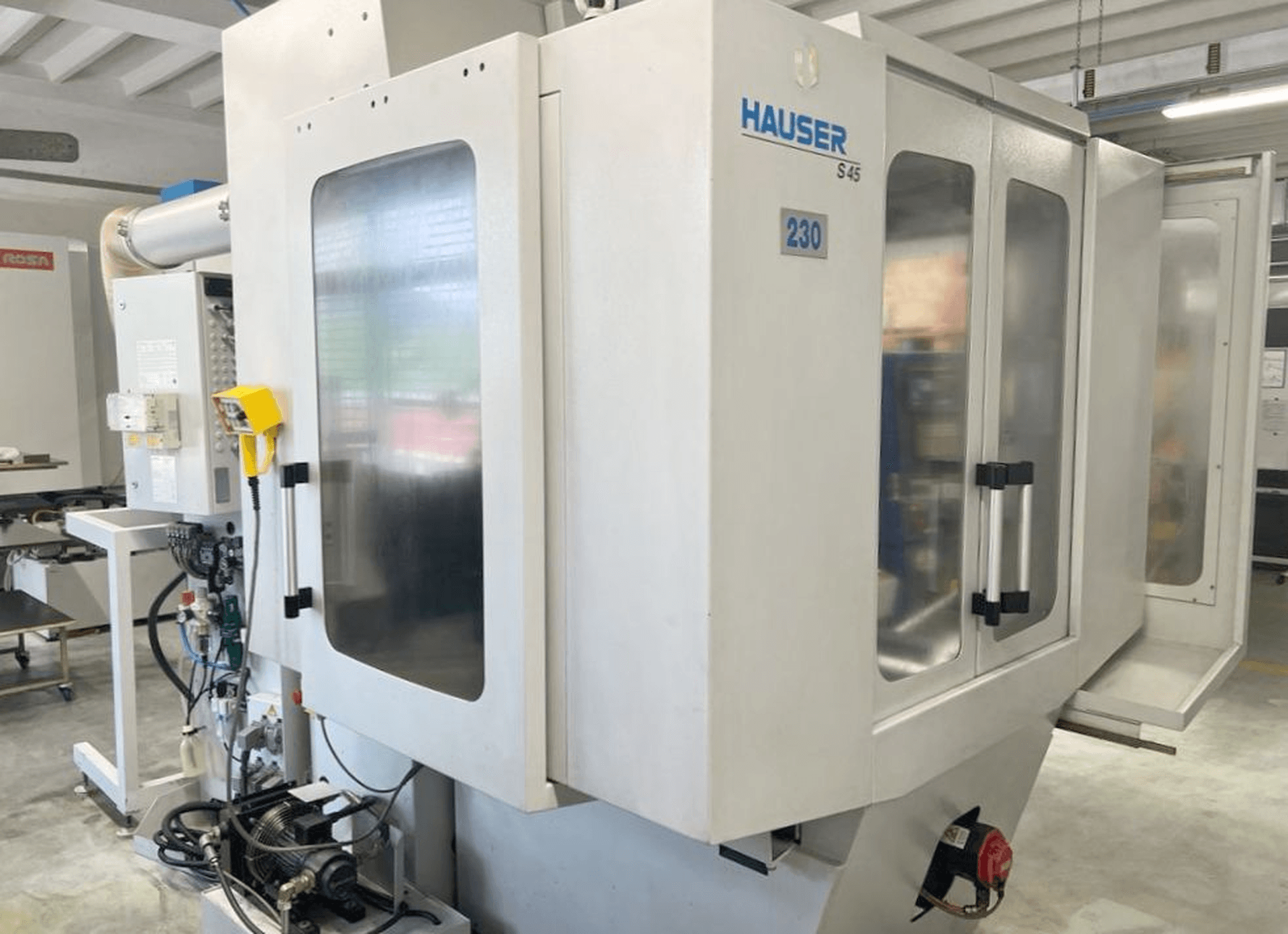

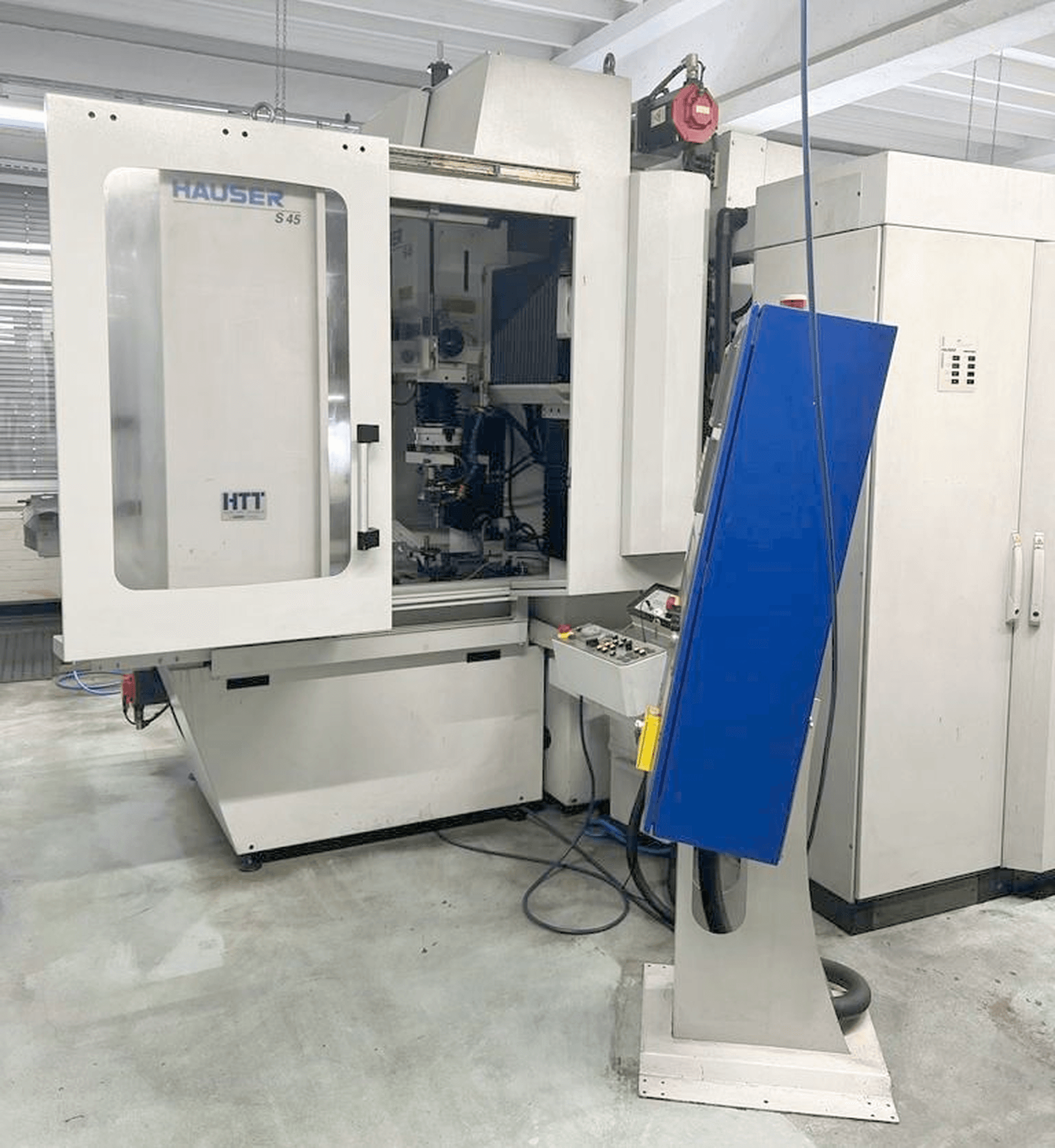

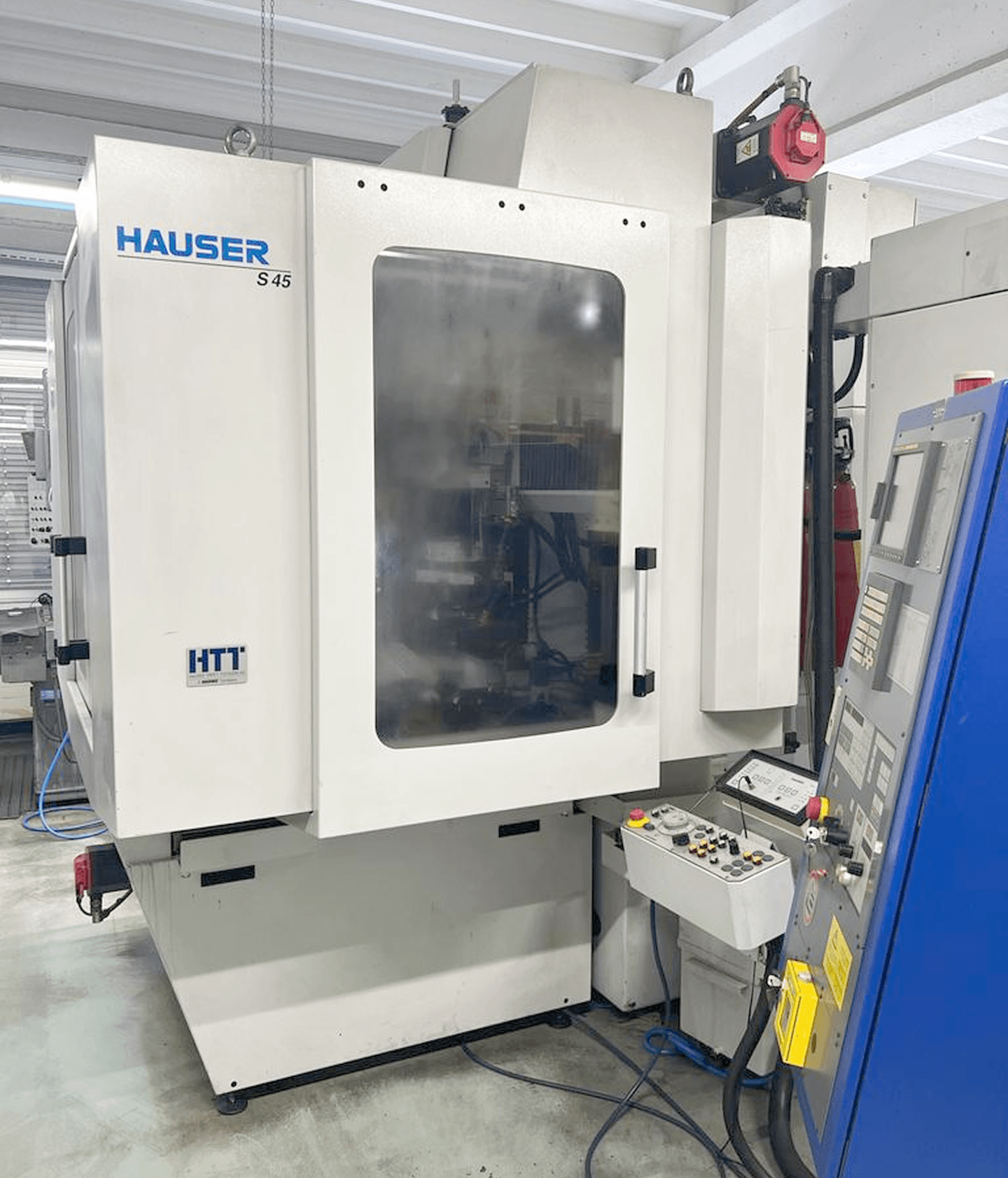

022495 - HAUSER S 45-400

Description

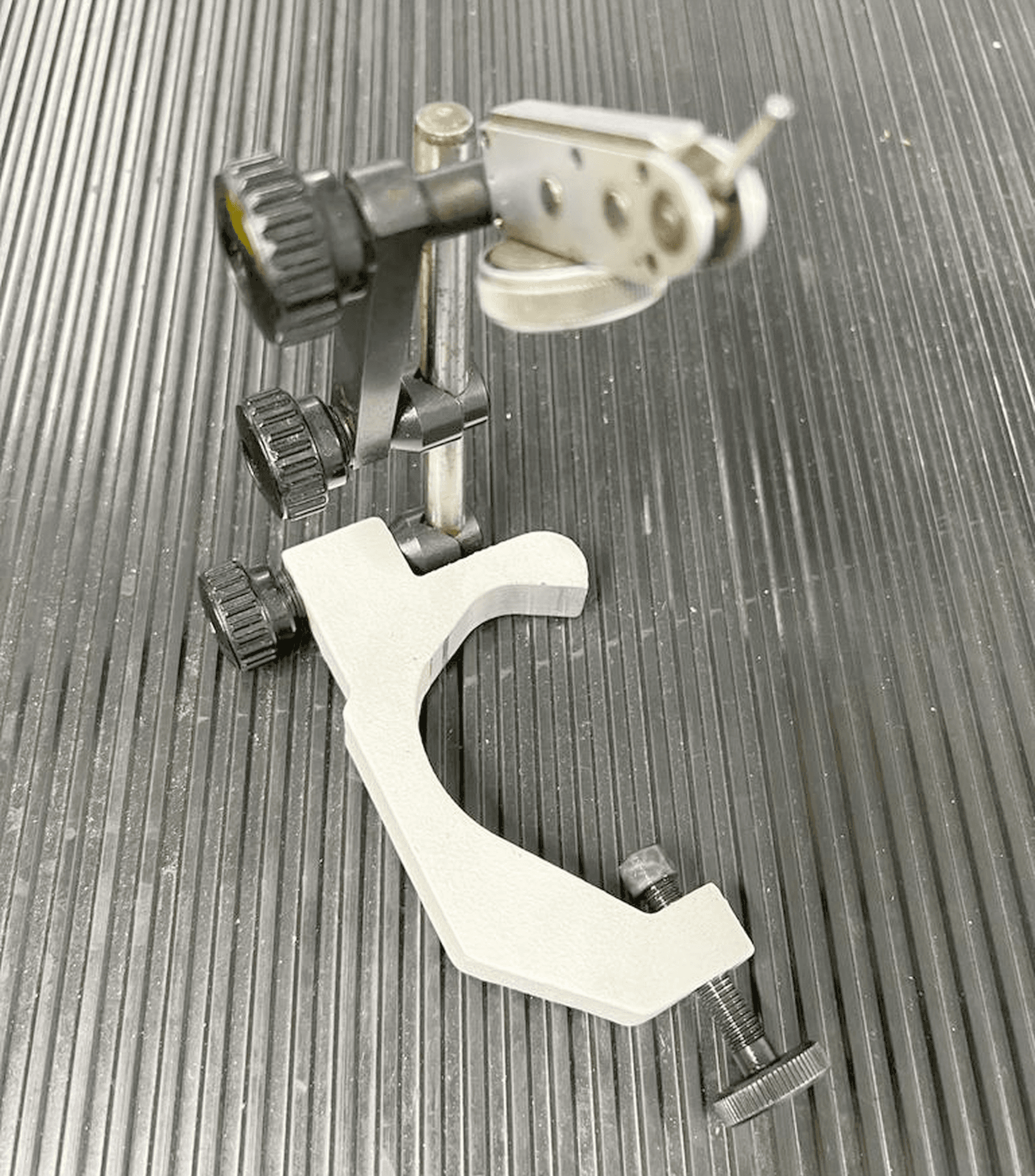

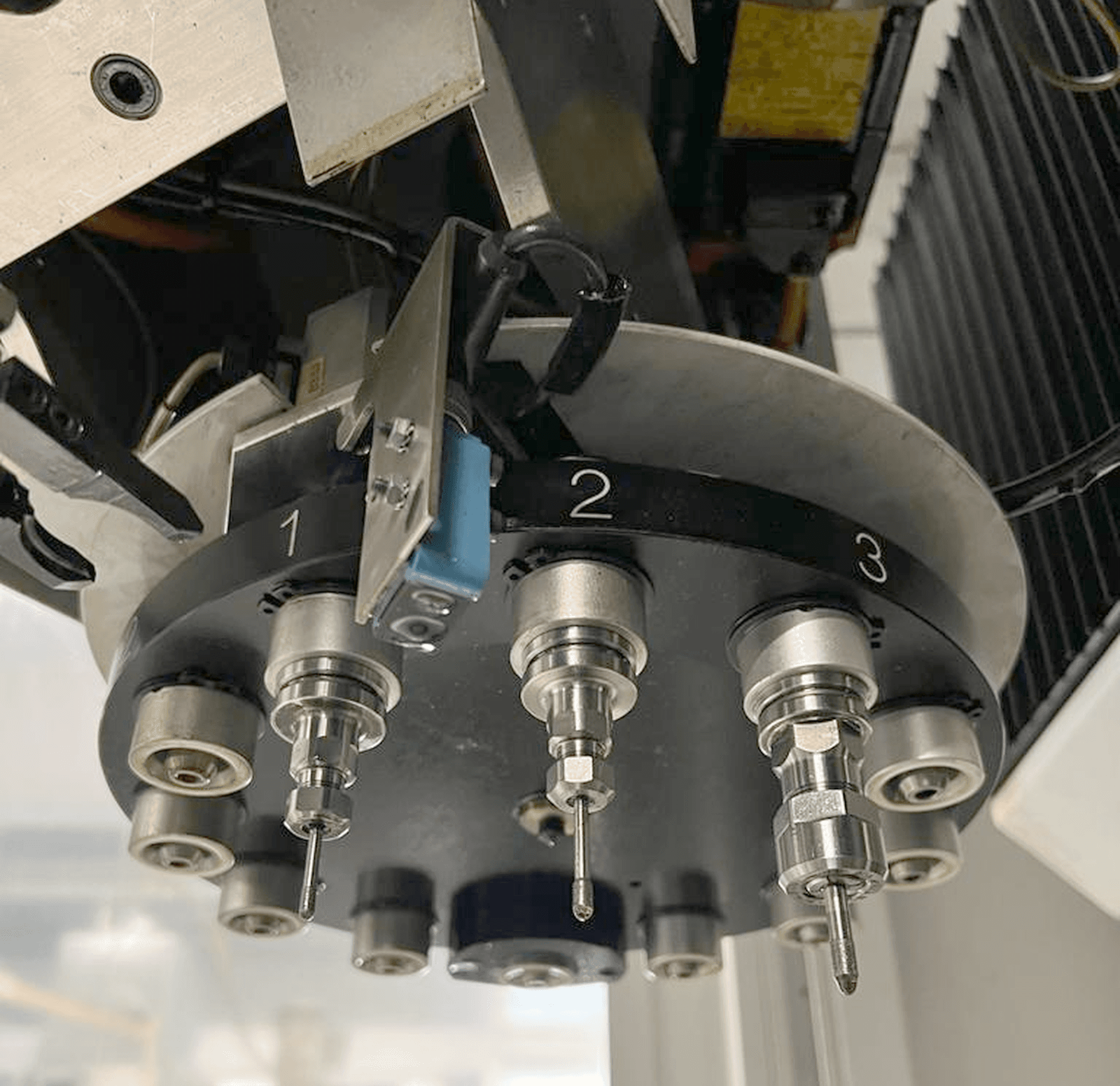

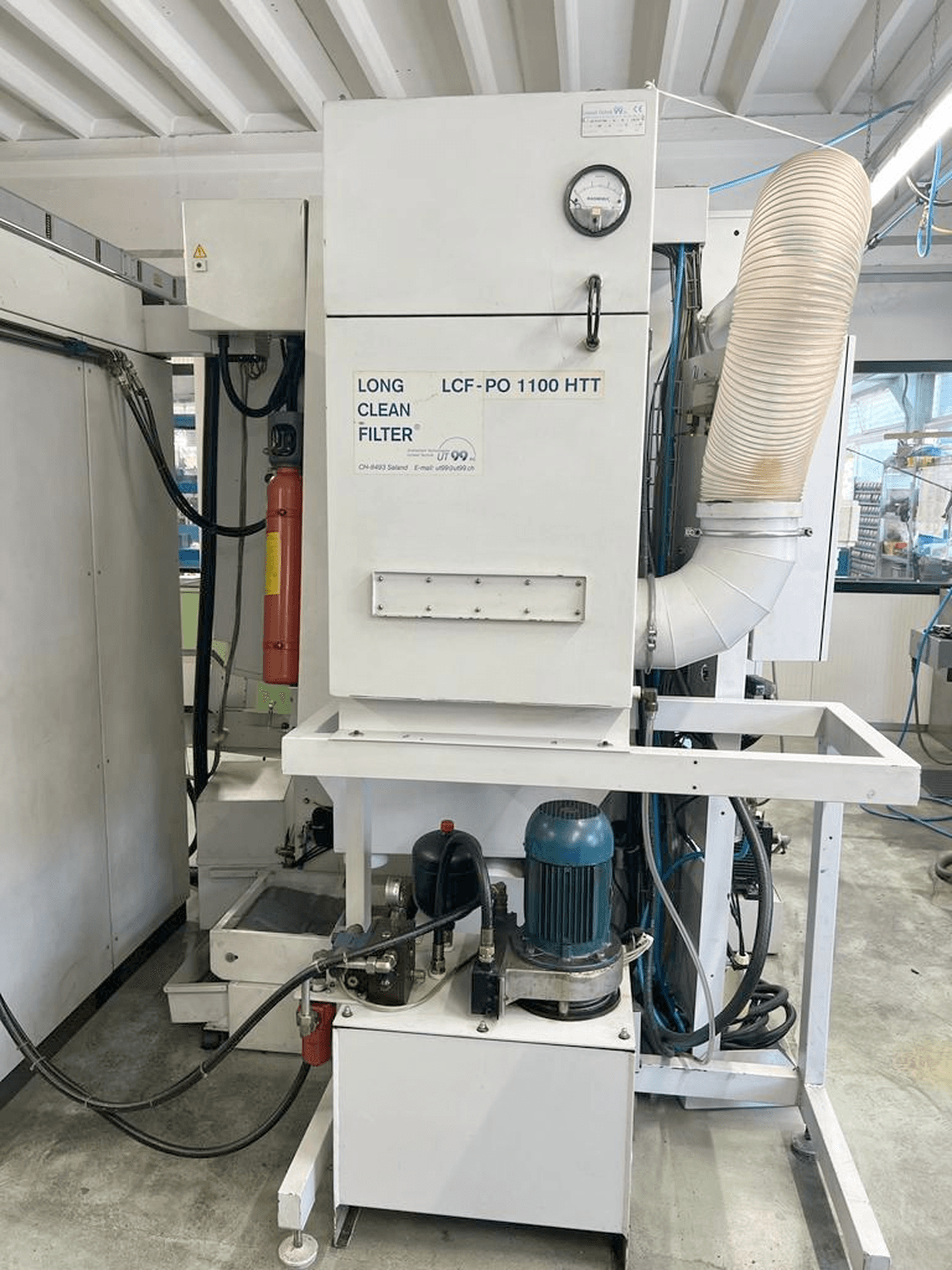

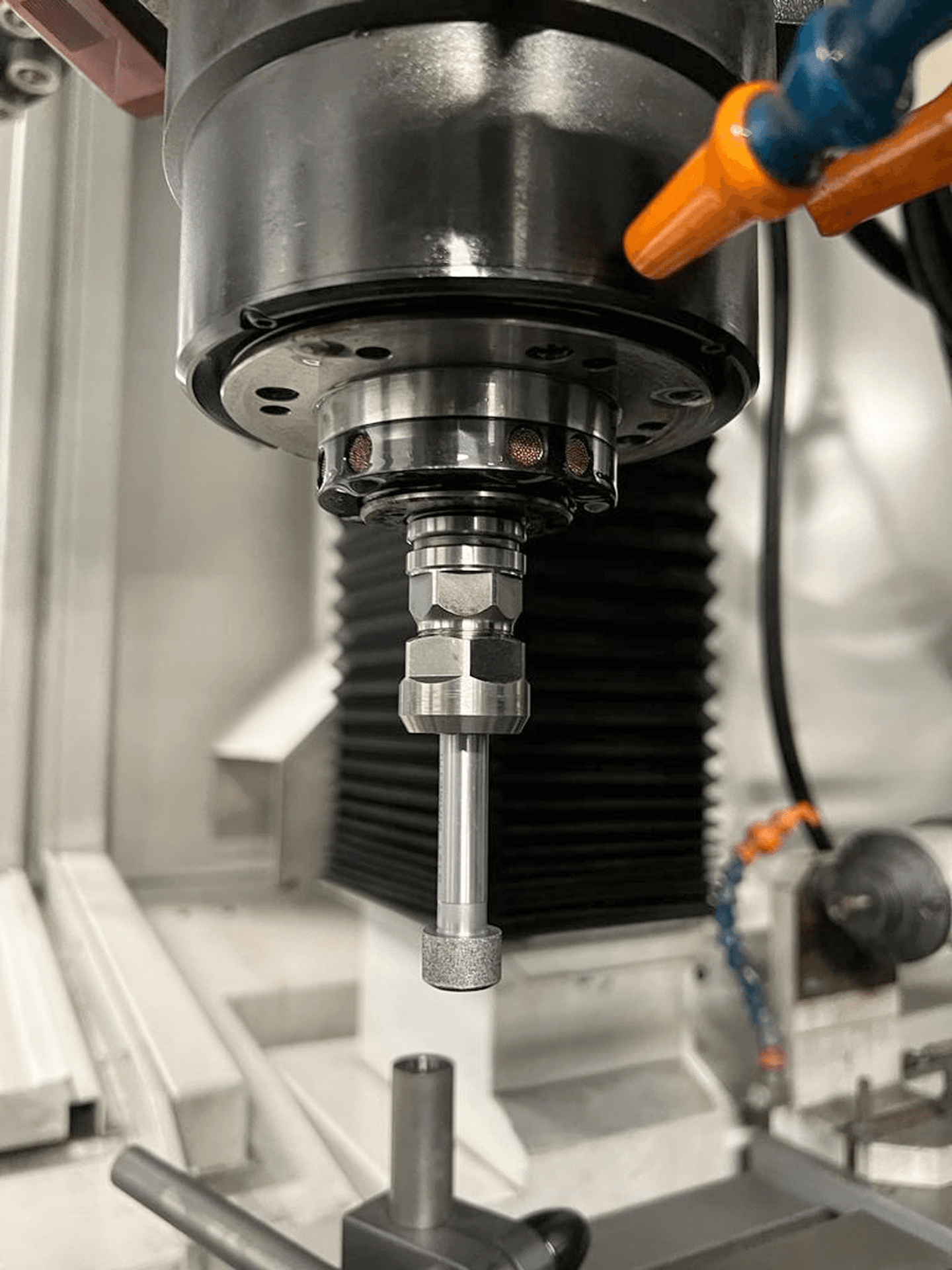

{"2 columns execution": "", "Table length": "770 mm", "Table width": "630 mm", "T-channel width": "14 mm", "Table load max.": "500 kg", "Longitudinal travel (X-axis)": "700 mm", "Transversal travel (y-axis)": "500 mm", "Verticla travel (W-axis)": "500 mm", "Feeds:": "", "X axis": "0 - 1800 mm/min", "Y axis": "0 - 1800 mm/min", "W axis": "0 - 1150 mm/min", "Passage from grinding motor to table": "0 - 600 mm", "Max. grinding diameter": "230 mm", "with display-plate": "360 mm", "Passage between the columns": "750 mm", "Max. angle with taper grinding:": "", "up to": "80000 t/min", "Stroke speed Z-Axis:": "", "Alternating stroke mouvement, infinitely adjust.": "", "from Vmin.": "1 mm/min", "up to Vmax.": "14000 mm/min", "Stroke frequency Z": "5 Hz", "Stroke length Z, infinitely adjustable": "130 mm", "grinding spindle:": "", "speeds:": "", "from": "4500 t/min", "Radiale fine feed U-axis up to": "6 mm", "Voltage 50 Hz 3x": "400 Volt", "Various accessories:": "", "Centering divice with dial indicator": "", "MSS Multi-Sensoric-System": "", "Oil mist extractor": "", "CBN Redresser with HF-drive": "", "Tool changer: (number of tools)": "12", "Type": "EROWA"}
