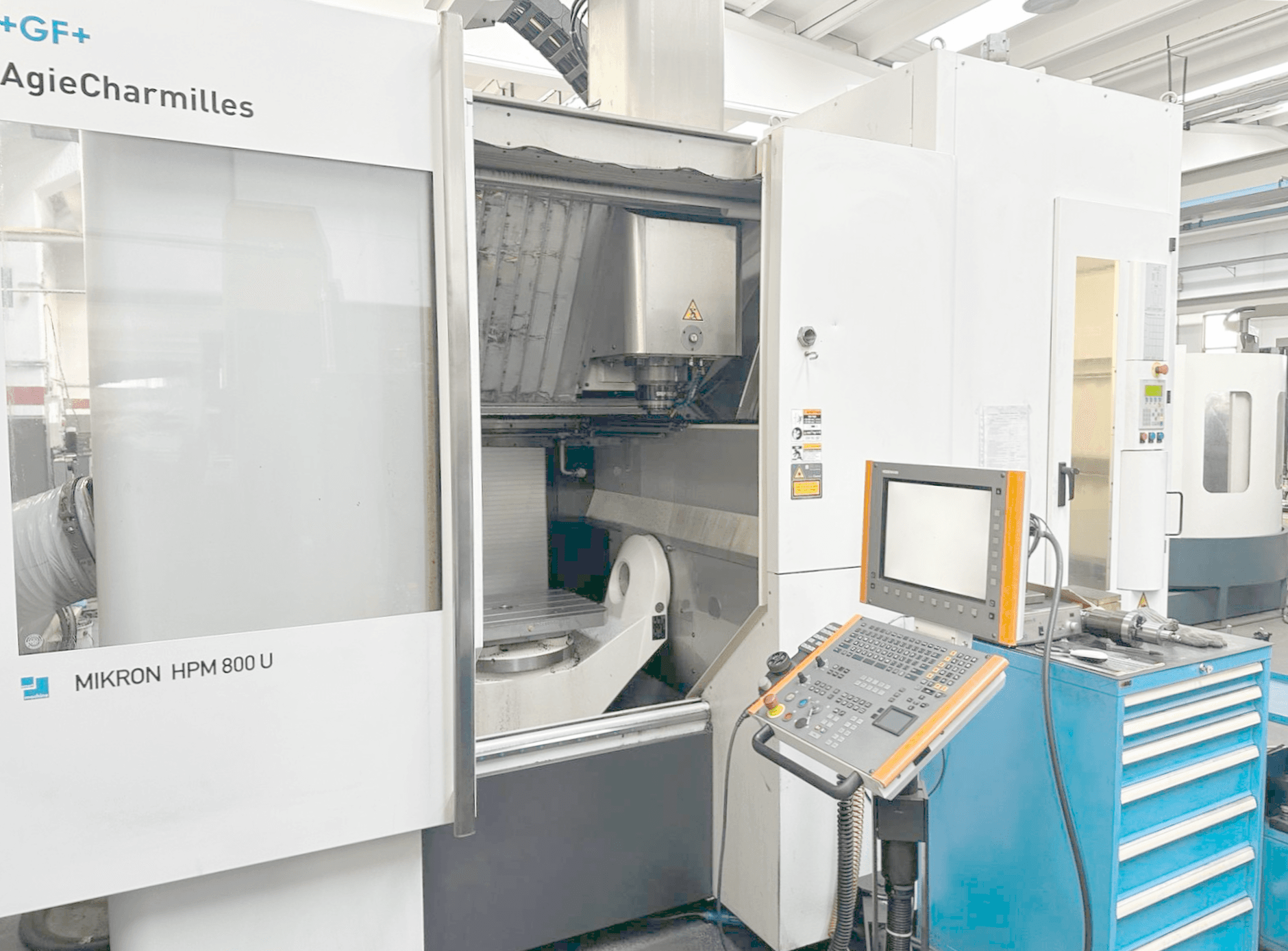

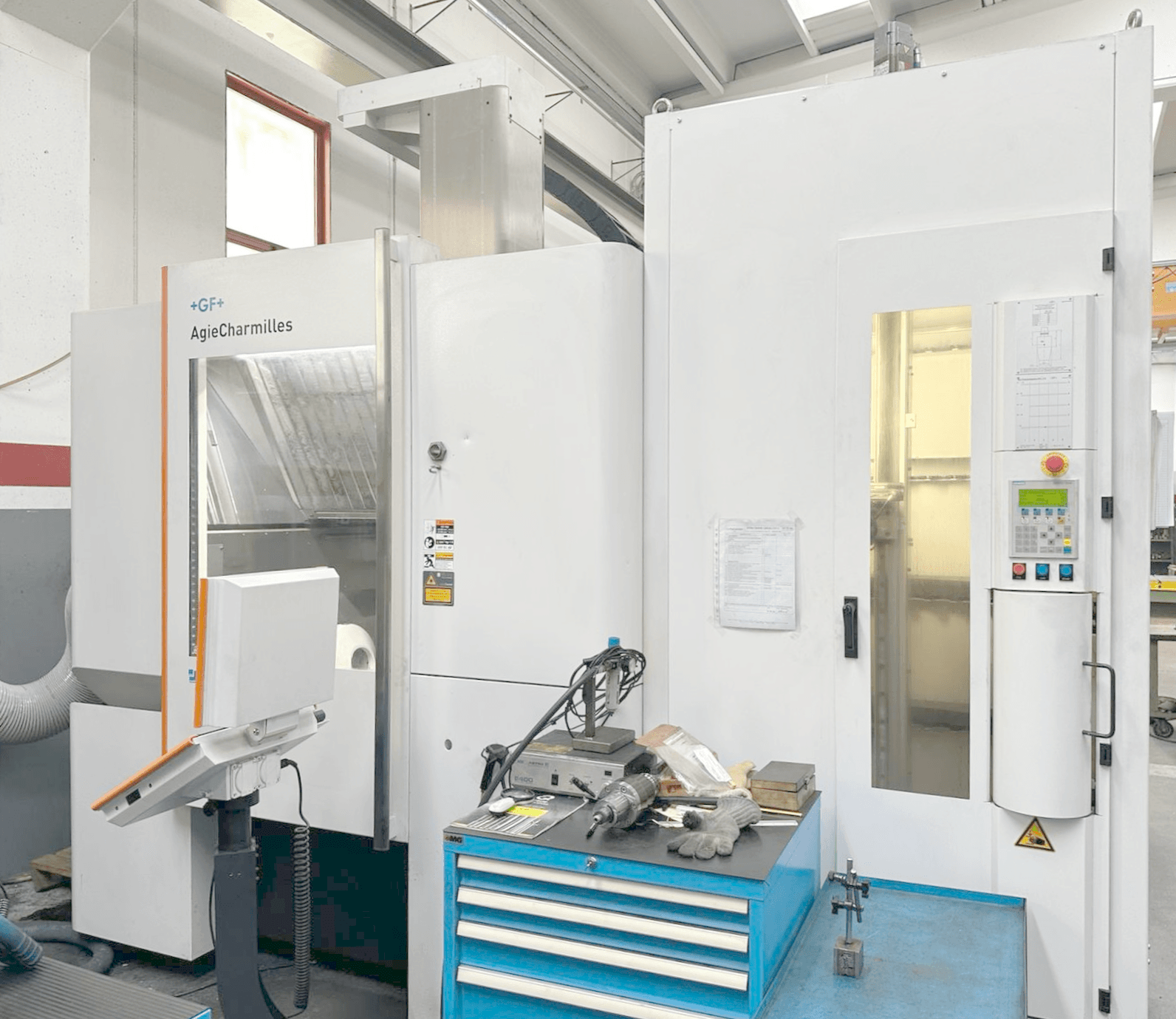

022738 - MIKRON HPM 800 U

Description

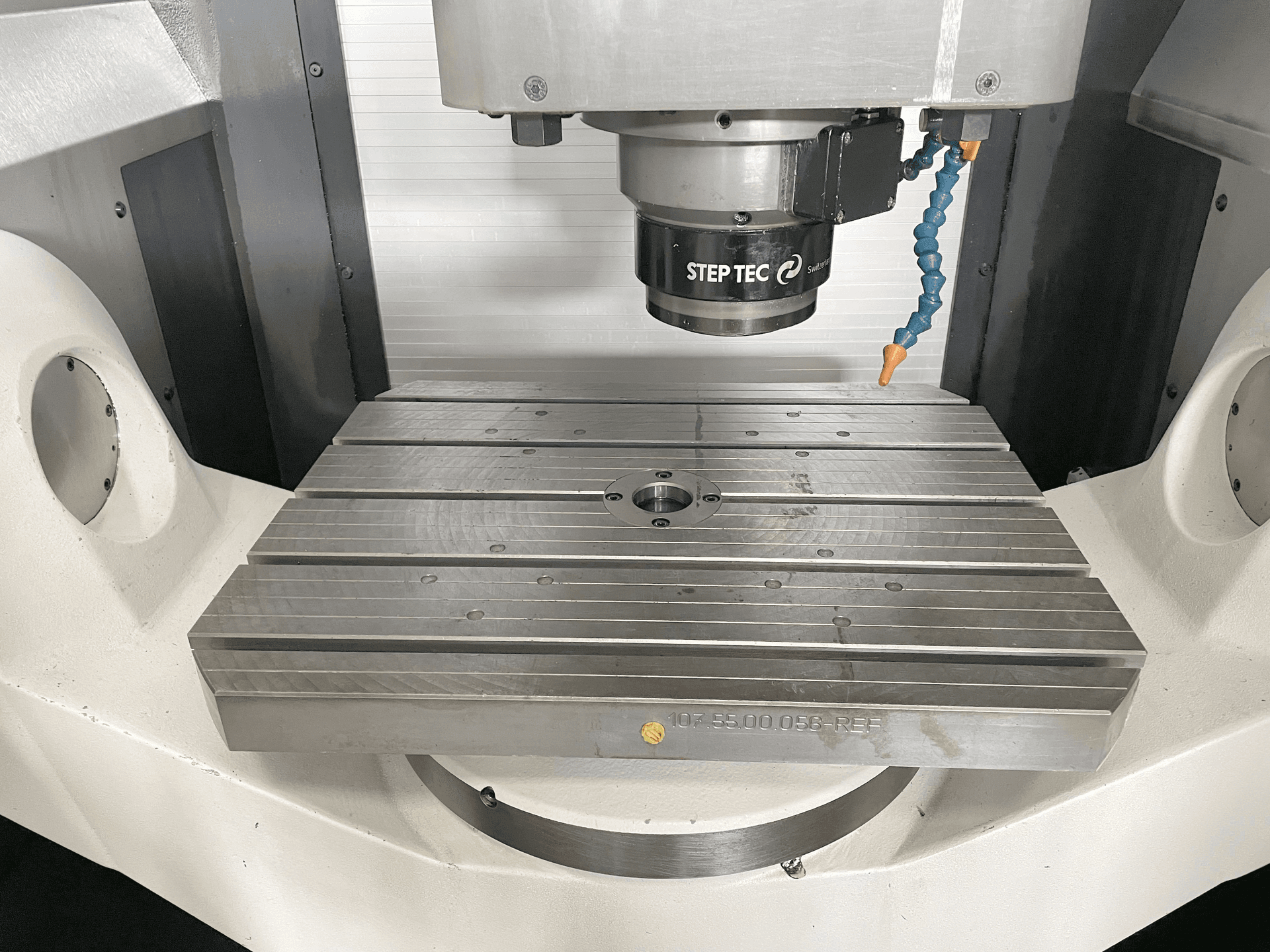

{"Number of axis simultaneous": "5", "Table length": "630 mm", "Table width": "440 mm", "Number of T-channels": "5", "Distance of the T-slots": "100 mm", "T-channel width": "16 mm", "Table load max.": "800 kg", "Maximum swing circle of up to": "800 mm", "Longitudinal travel (X-axis)": "800 mm", "Transversal travel (y-axis)": "800 mm", "Vertical travel (z axis)": "550 mm", "A axis": "+91 / -121\u00b0", "C axis": "360 \u00b0", "Resolution": "\u00b0", "Tool changer:": "", "Number of tools": "115", "Tool diameter max.": "80 mm", "Diameter with free adjacent pockets": "160 mm", "Tool lenght": "350 mm", "Max. tool-weight": "8 kg", "Spindle nose: HSK-A": "63", "Distance spindle nose to table": "600 mm", "Spindle speeds:": "", "stepless": "", "from": "0 t/min", "up to": "20000 t/min", "Feed range": "0 - 20000 mm/min", "Rapid traverse:": "45 m/min", "Acceleration": "6 m/s", "Max. Feed force": "6000 N", "Air connect": "6 bar", "Voltage 50 Hz 3x": "400 Volt", "Total power required": "55 kW", "Noise level": "75 dB (A)", "Machine's weight about": "15000 kg", "Overall dimensions machine:": "", "Length": "3505 mm", "Width": "3100 mm", "Height": "2980 mm", "Various accessories:": "", "Set of toolholders": "", "Set of shrink tool holders": "", "Set of collet-/ tool holder": "", "Set of collets": "", "High pression colant device": "", "Paper filtration system": "", "Water cooler": "", "Touch Probe": "", "Laser tool setting system": "", "Chip conveyor": "", "Pallets chanching device:": "", "Pallets: number": "2", "Handwheel electroinic": "", "Tool cabinet": "", "Reference ball": ""}
