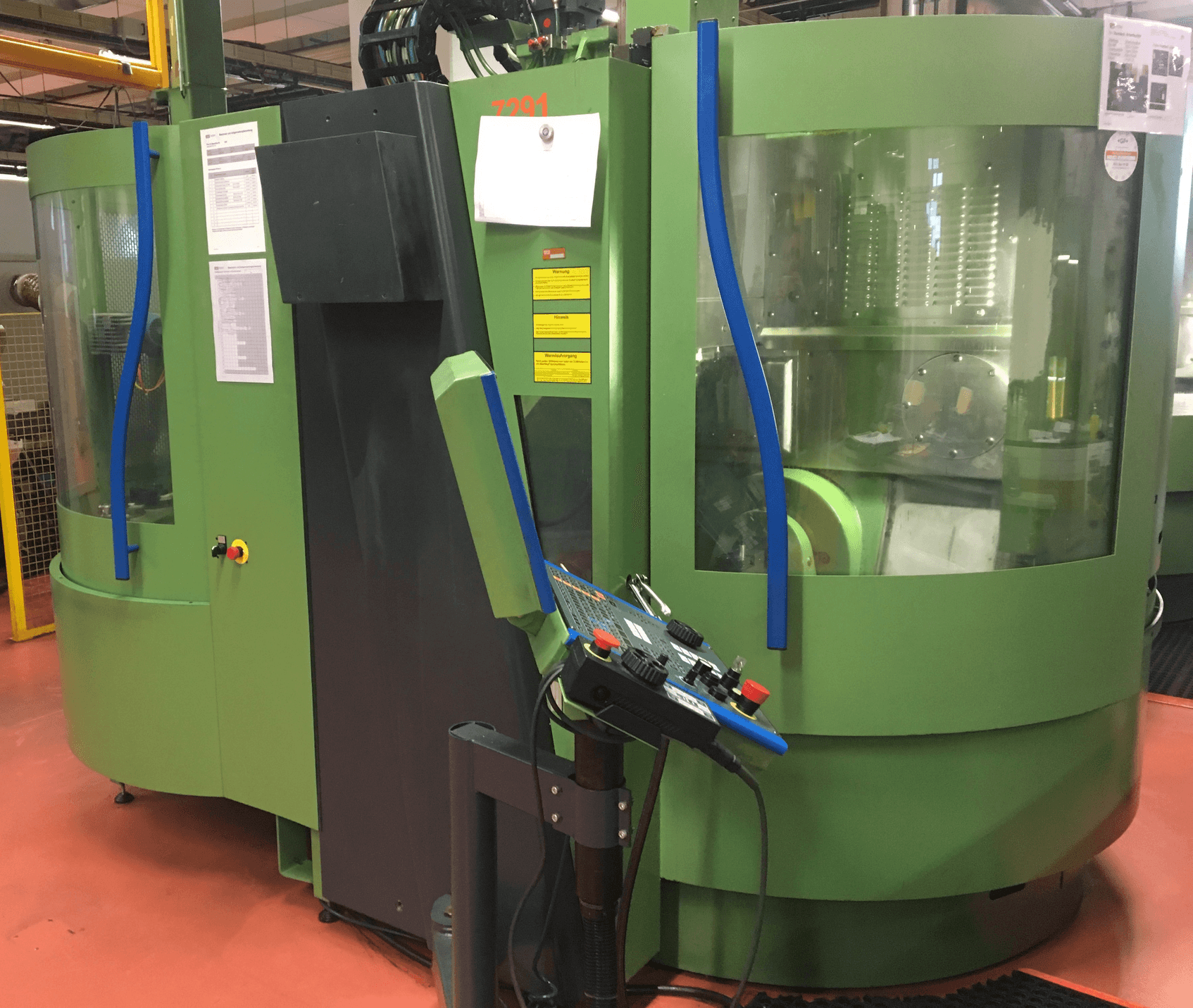

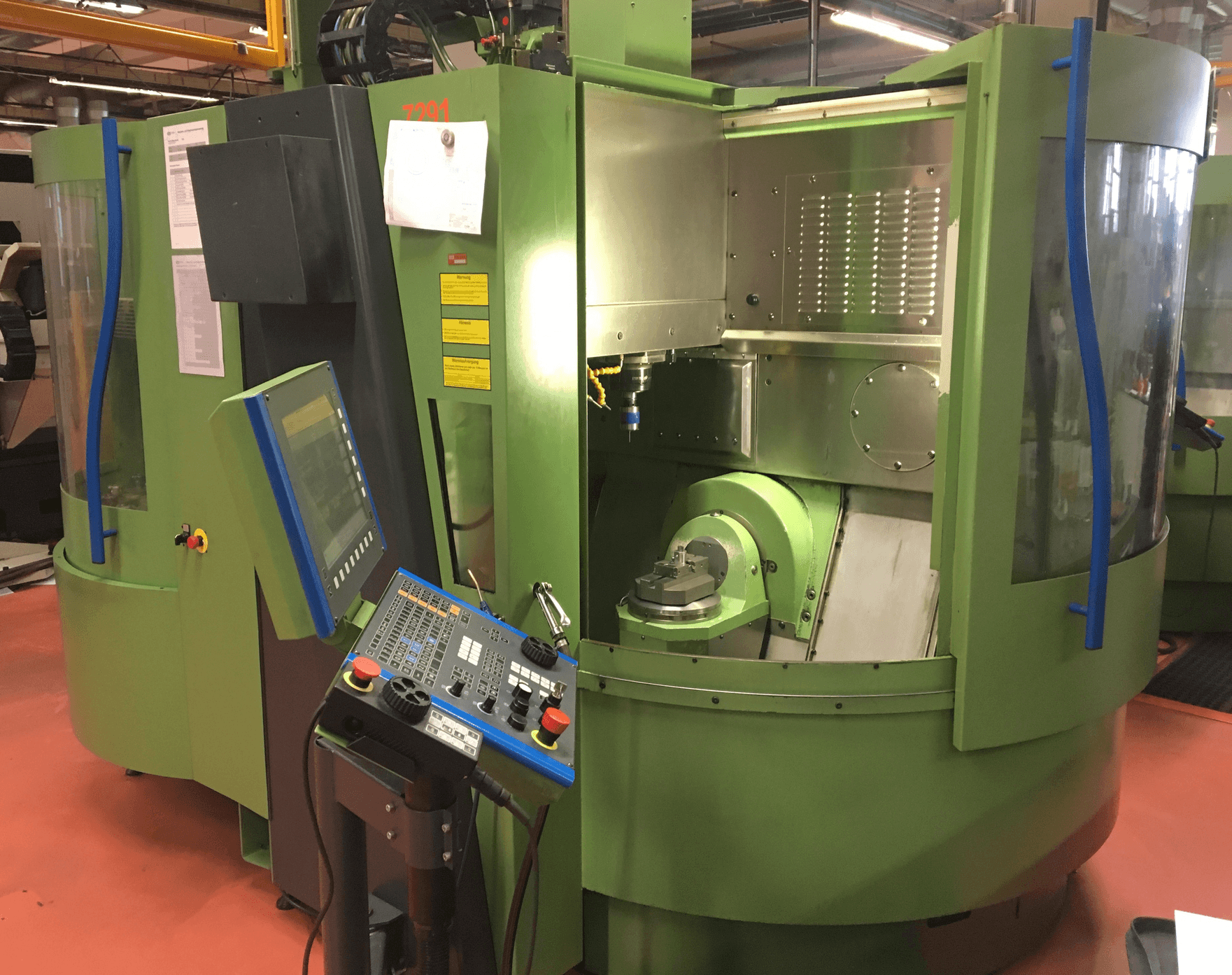

020569 - MIKRON HSM 400 U

Description

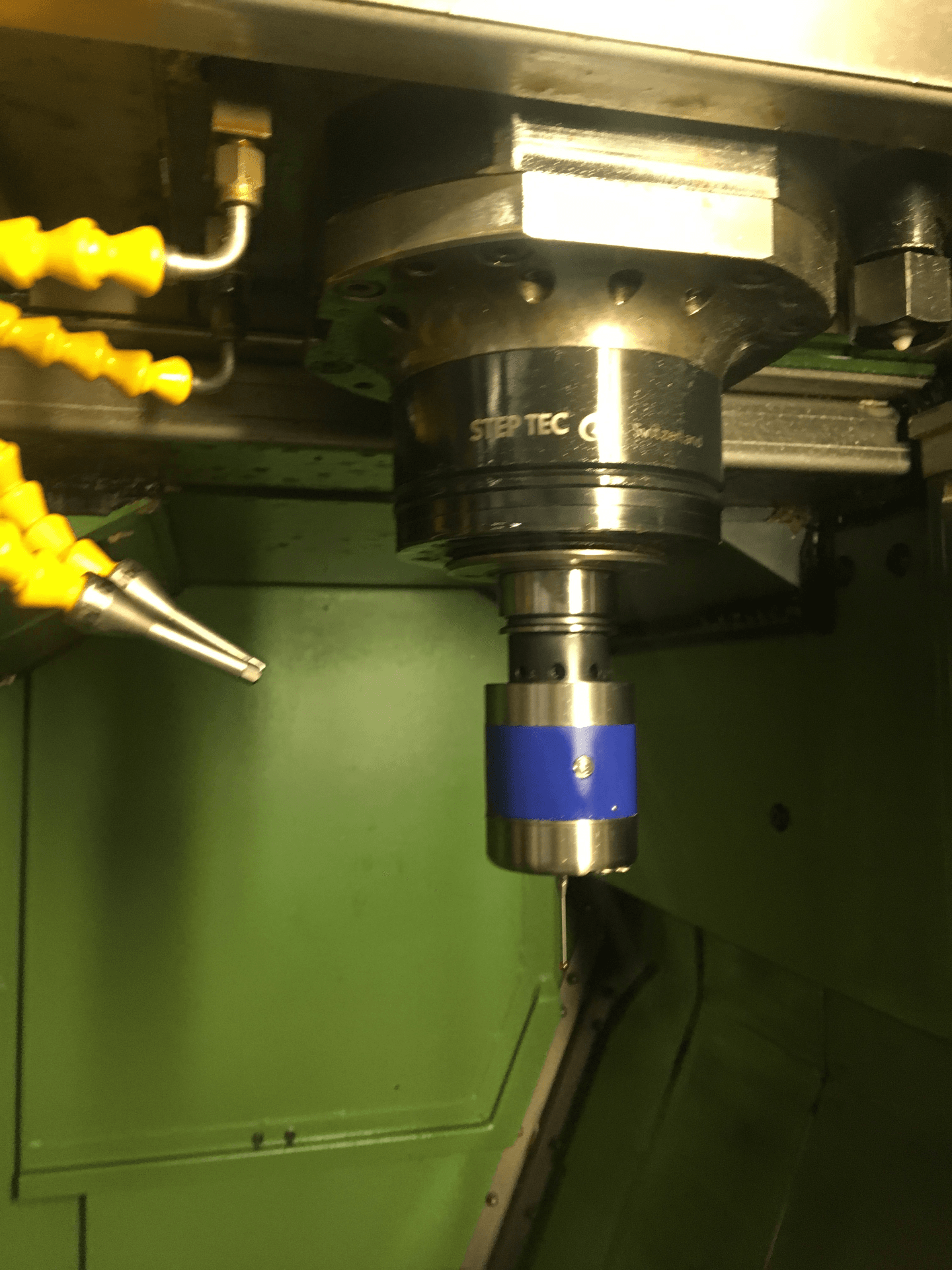

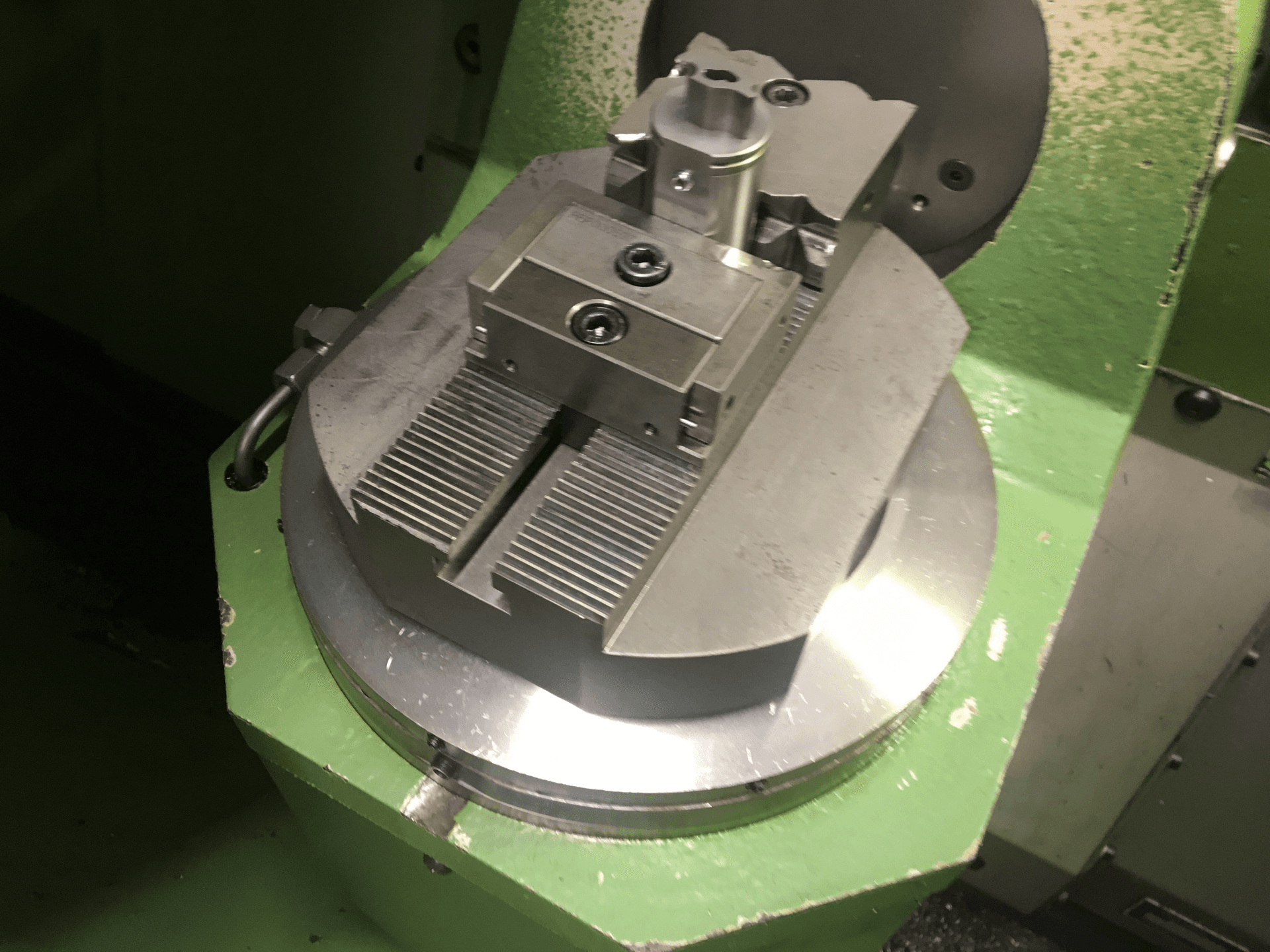

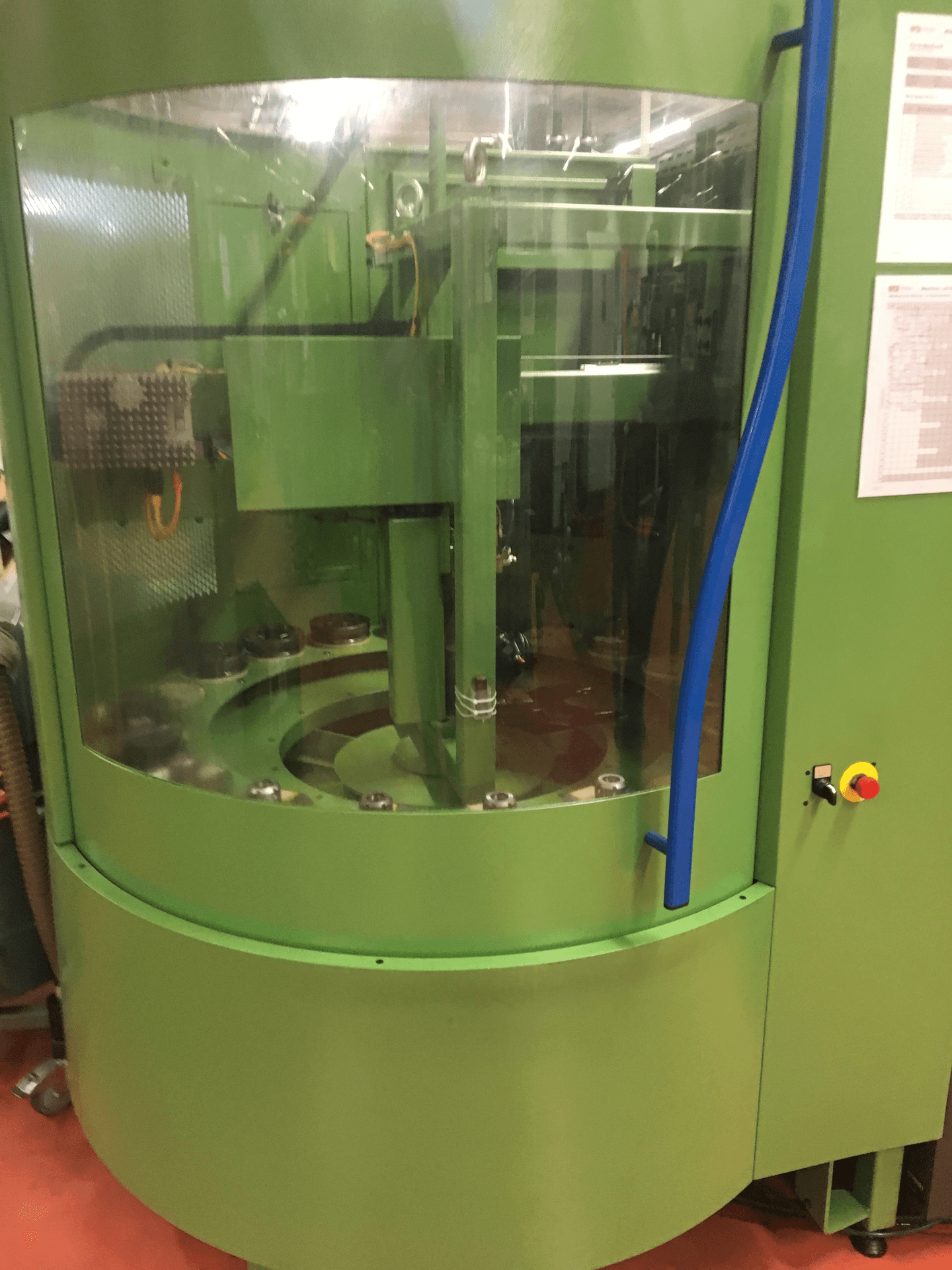

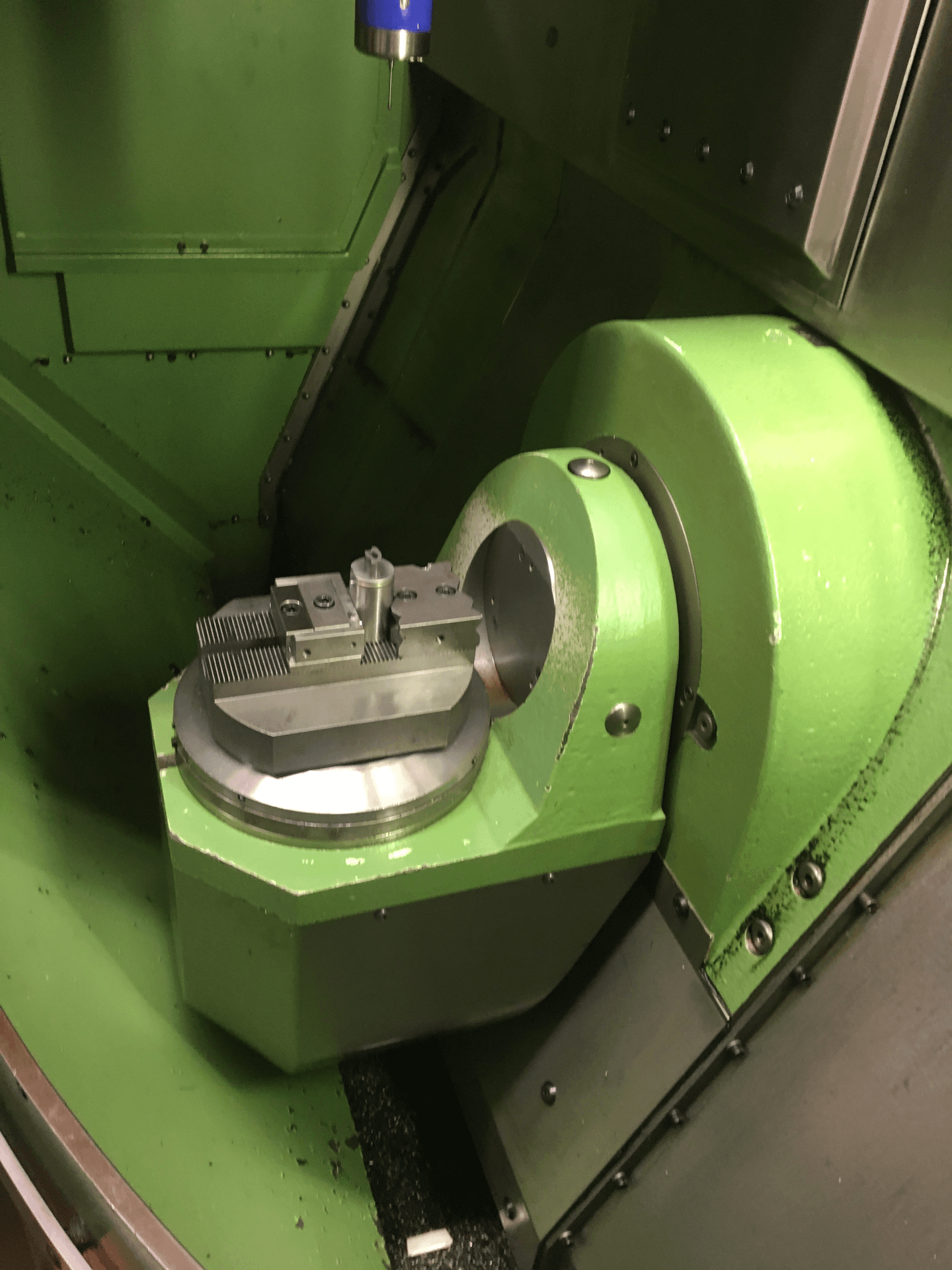

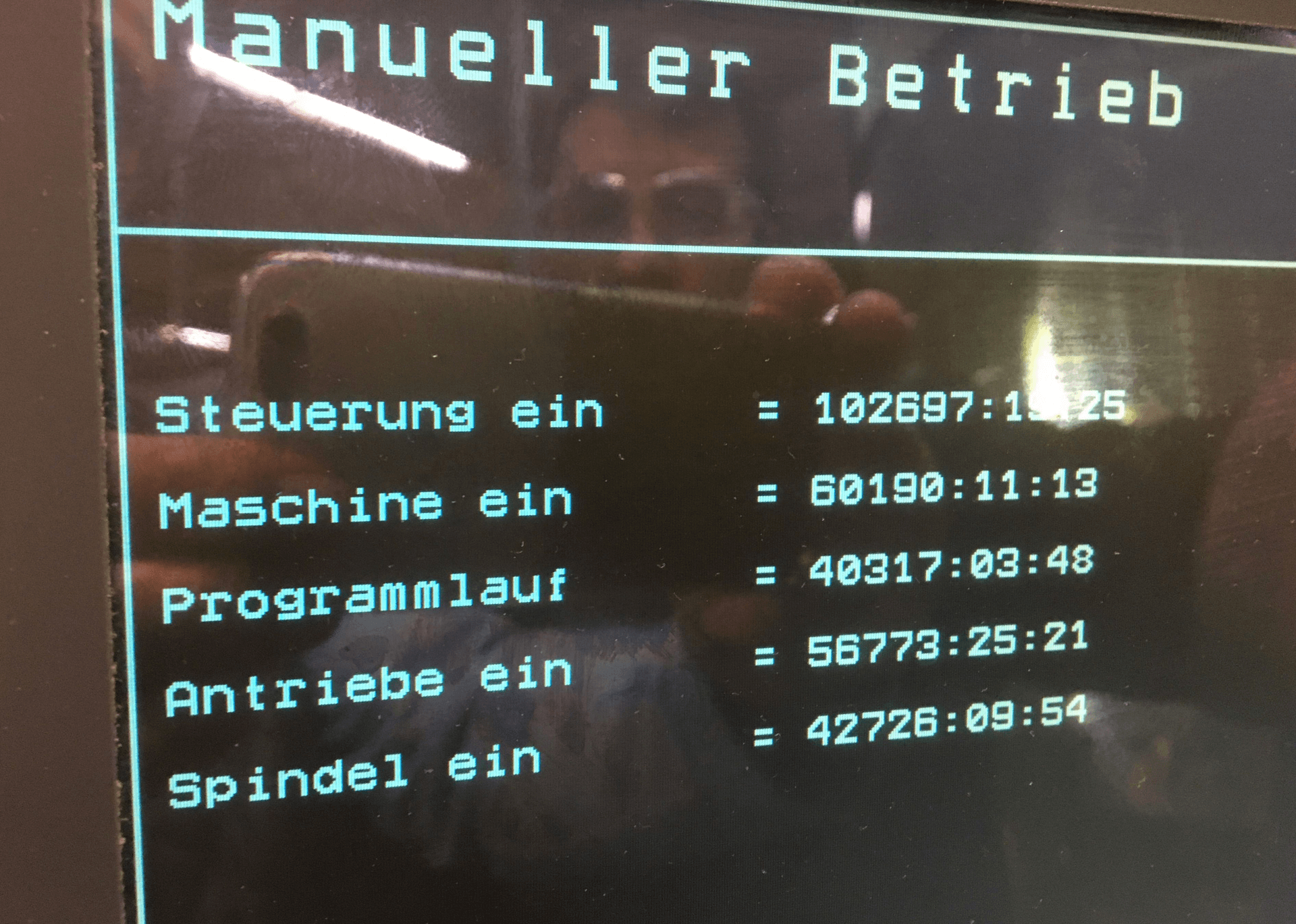

{"Time under power": "60190 Heures", "Operating time": "56773 Heures", "Spindle run time": "42726 Heures", "Number of axis total": "5", "Rotary table:diameter": "250 mm", "Longitudinal travel (X-axis)": "400 mm", "Transversal travel (y-axis)": "240 mm", "Vertical travel (z axis)": "350 mm", "B axis swivelling range": "+/-110 \u00b0", "C axis": "360 \u00b0", "Tool changer:": "TCD", "Number of tools": "36", "Spindle nose: HSK": "40E OptiCool", "Spindle speeds:": "StepTec", "stepless": "", "from": "100 t/min", "up to": "40000 mm/min", "Feeds:": "", "longitudinal from": "1 mm/min", "transversal from": "1 mm/min", "vertical from": "1 mm/min", "Rapid traverse:": "42 m/min", "Voltage 50 Hz 3x": "400 Volt", "Spindle motor": "13 kW", "Machine's weight about": "6500 kg", "Overall dimensions machine:": "", "Length": "3800 mm", "Width": "2900 mm", "Height": "2500 mm", "Various accessories:": "", "Touch Probe Renishaw": "", "Pallets chanching device:": "EROWA ITS 148mm", "Pallets: number": "20", "Handwheel electroinic": "", "Lamp": "", "Measuring feeler gauge": ""}
