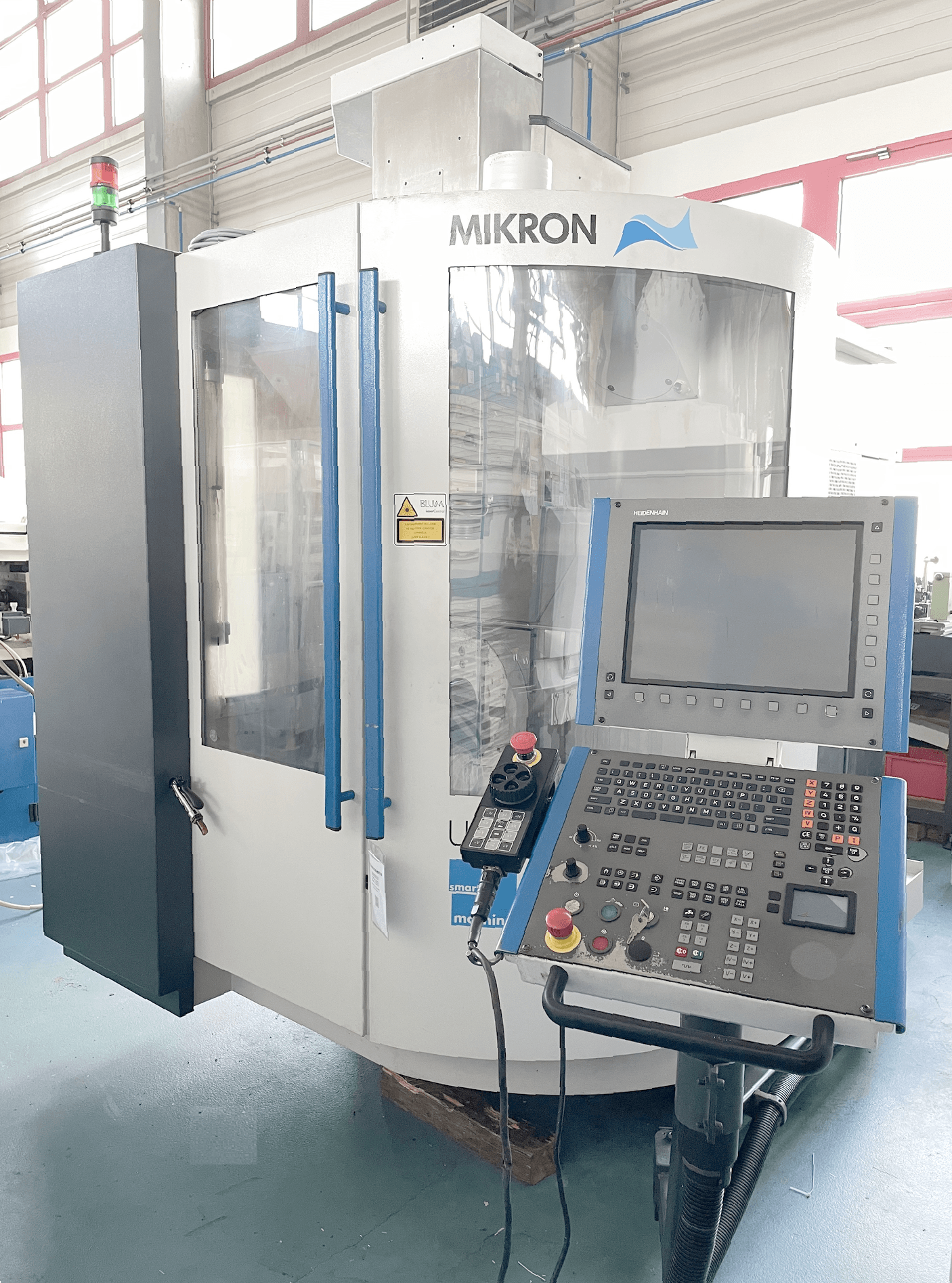

022150 - MIKRON UCP 600 VARIO

Description

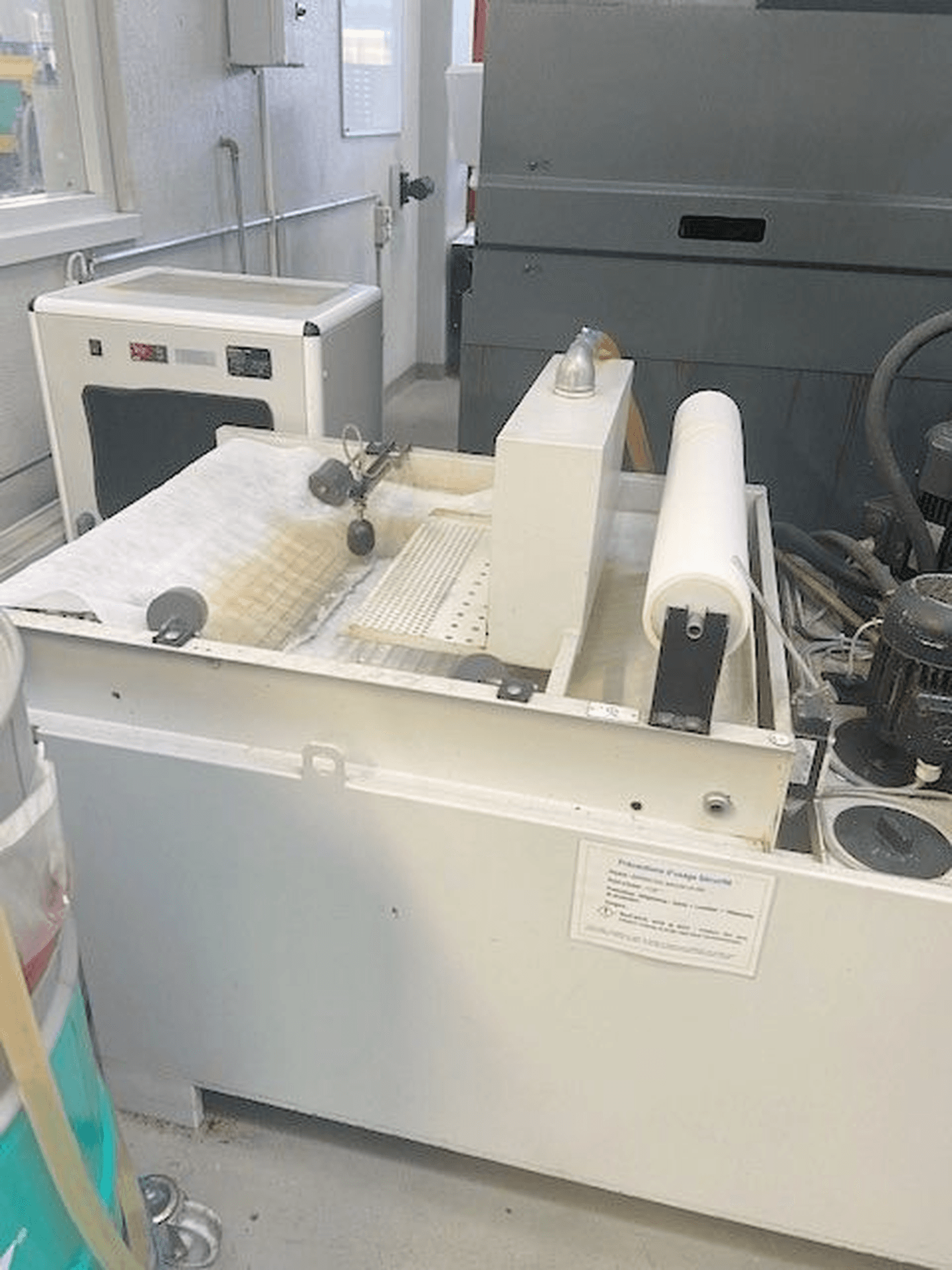

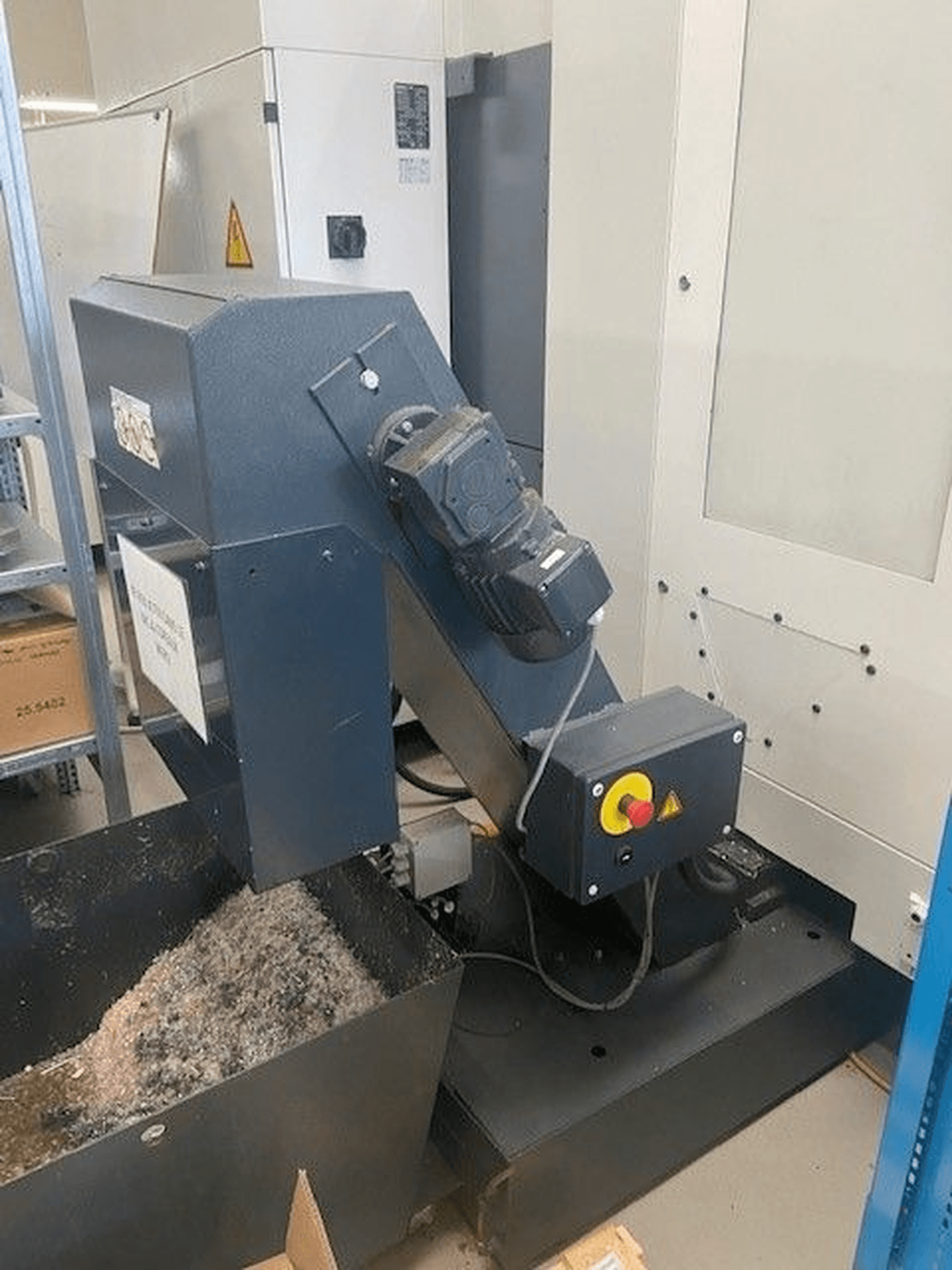

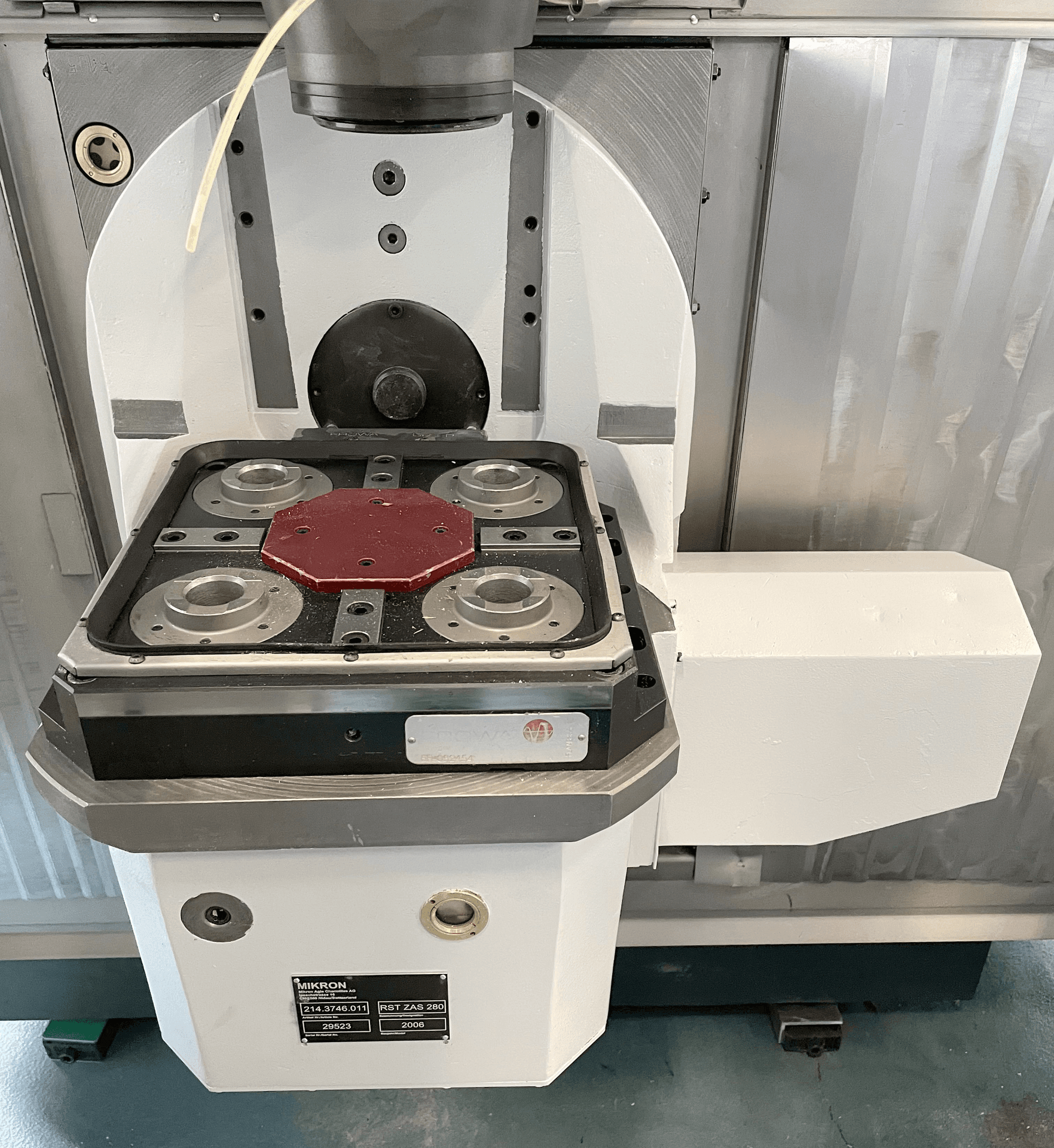

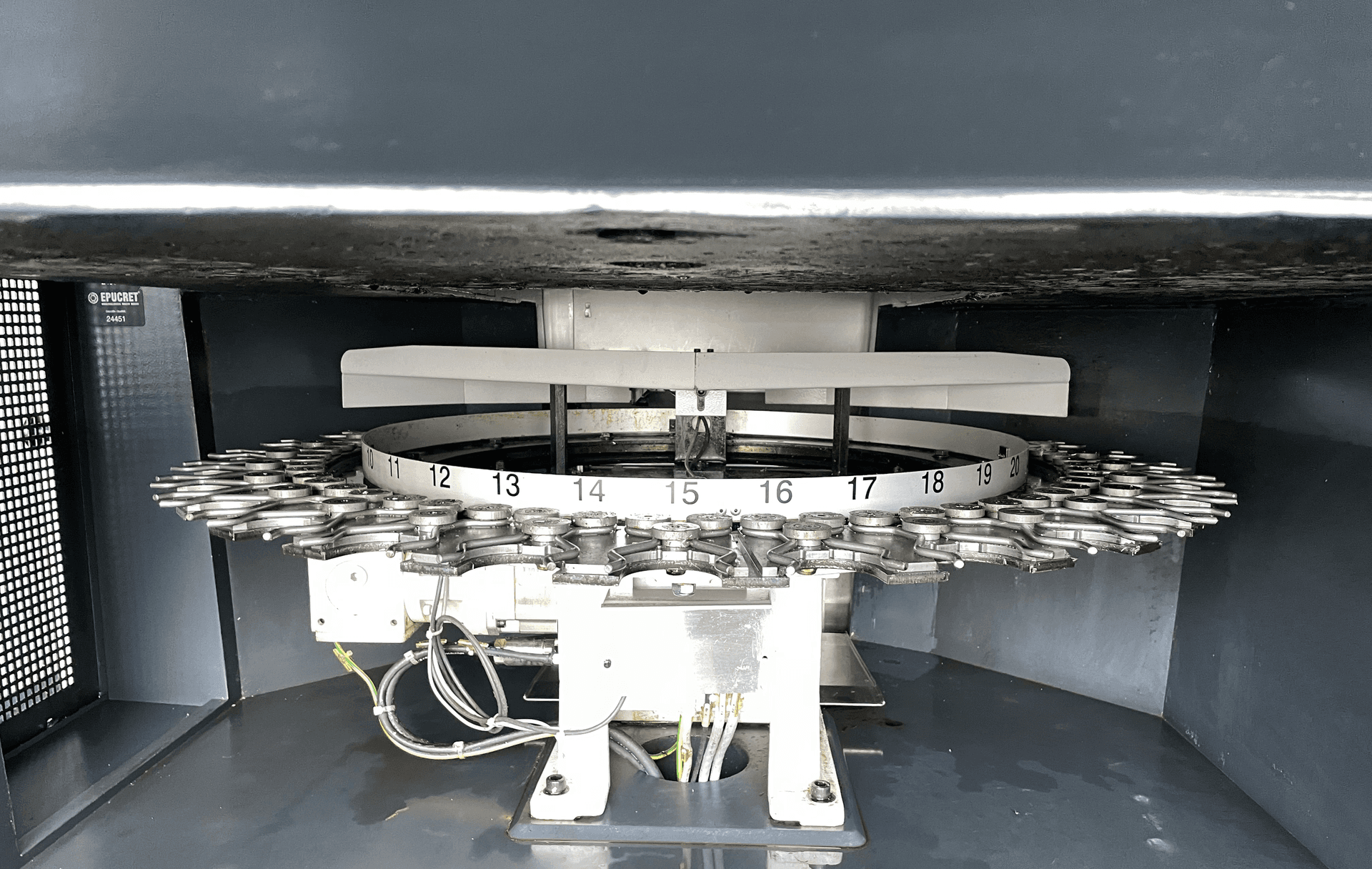

{"Time under power": "68163 Heures", "Operating time": "54350 Heures", "Working time": "20640 Heures", "Spindle run time": "19232 Heures", "Number of axis simultaneous": "5", "Table length": "320 mm", "Table width": "320 mm", "Longitudinal travel (X-axis)": "600 mm", "Transversal travel (y-axis)": "450 mm", "Vertical travel (z axis)": "450 mm", "Table divisions (C)": "n x 360 \u00b0", "Milling head divisions (B)": "-115/+30 \u00b0", "Tool changer:": "", "Number of tools": "30", "Tool diameter max.": "80 mm", "Tool lenght": "200 mm", "Max. tool-weight": "8 kg", "Spindle nose:": "HSK-A 63", "Spindle speeds:": "", "stepless": "", "from": "0 t/min", "up to": "20000 t/min", "Feed range": "15000 mm/min", "Rapid traverse:": "22 m/min", "Voltage 50 Hz 3x": "400 Volt", "Spindle power": "30 kW", "Torque max.": "91 Nm", "Noise level": "75 dB (A)", "Machine's weight about": "7700 kg", "Overall dimensions machine:": "", "Length": "6820 mm", "Width": "4800 mm", "Height": "2540 (2810) mm", "Various accessories:": "", "Paper filtration system": "", "Water cooler": "", "Chip conveyor": "", "Type of table": "EROWA UPC", "Handwheel electroinic": "", "Lamp": "", "Status light": "", "Notes:": "", "4+5 Axis revised": "2023"}
