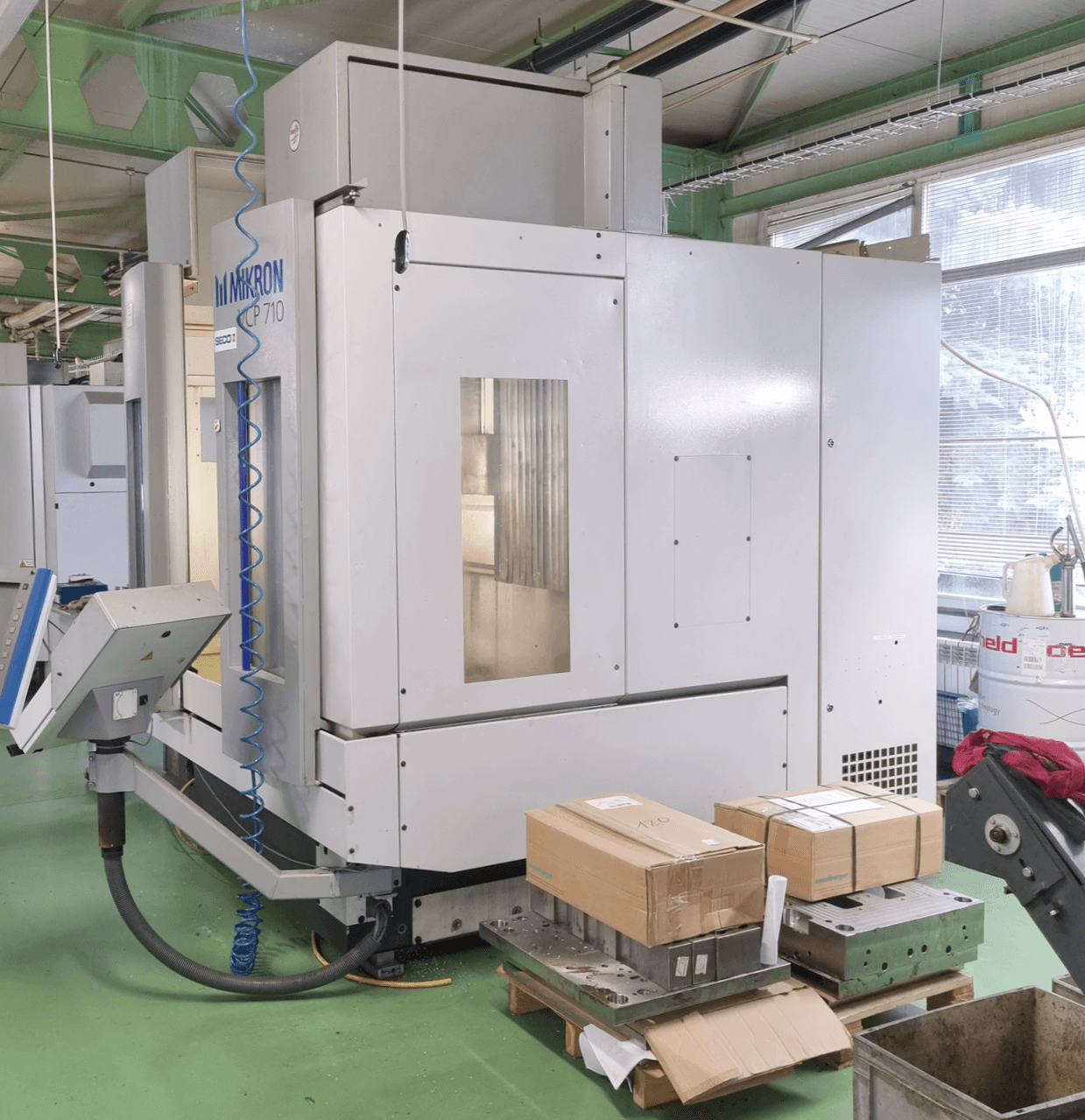

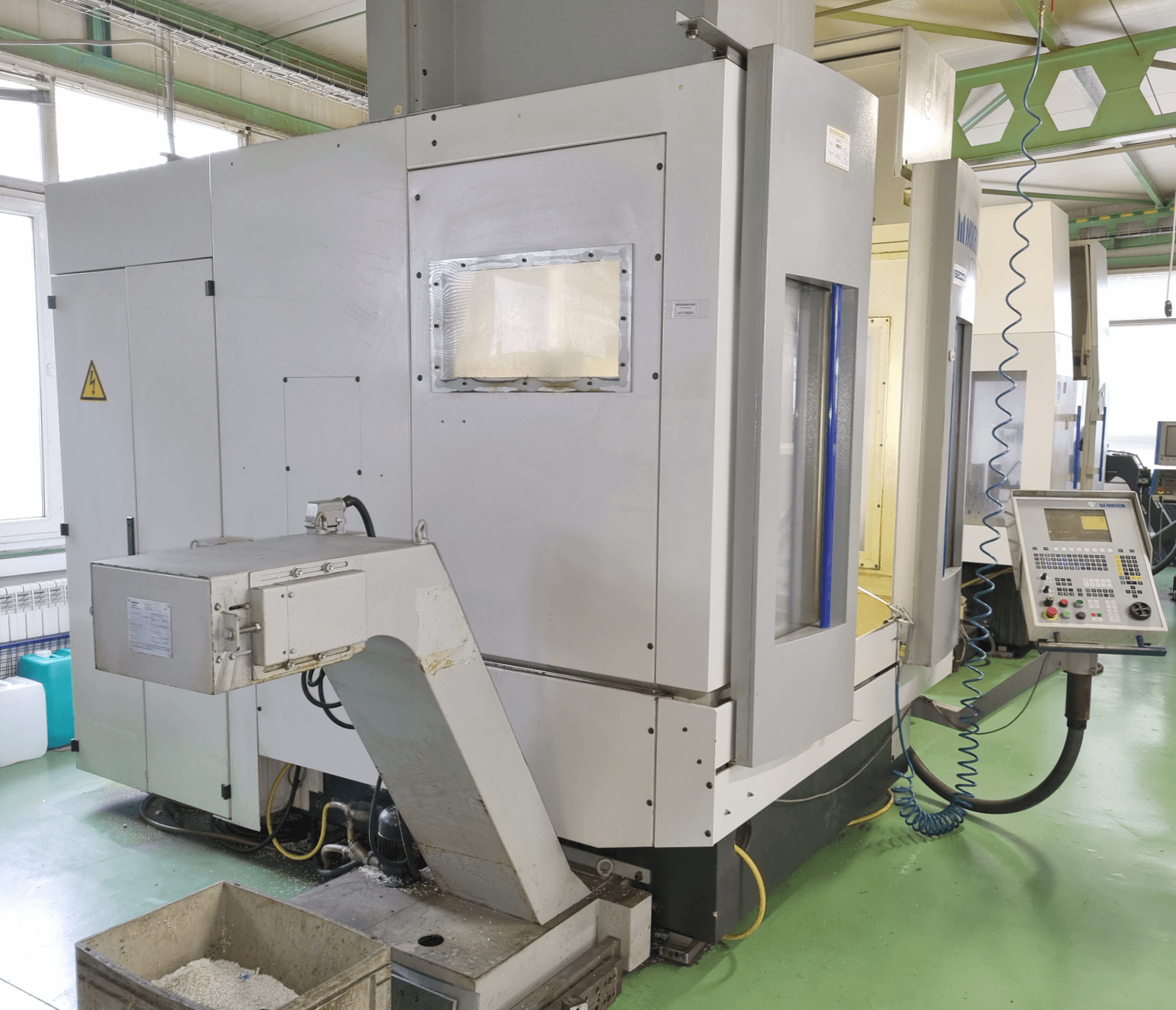

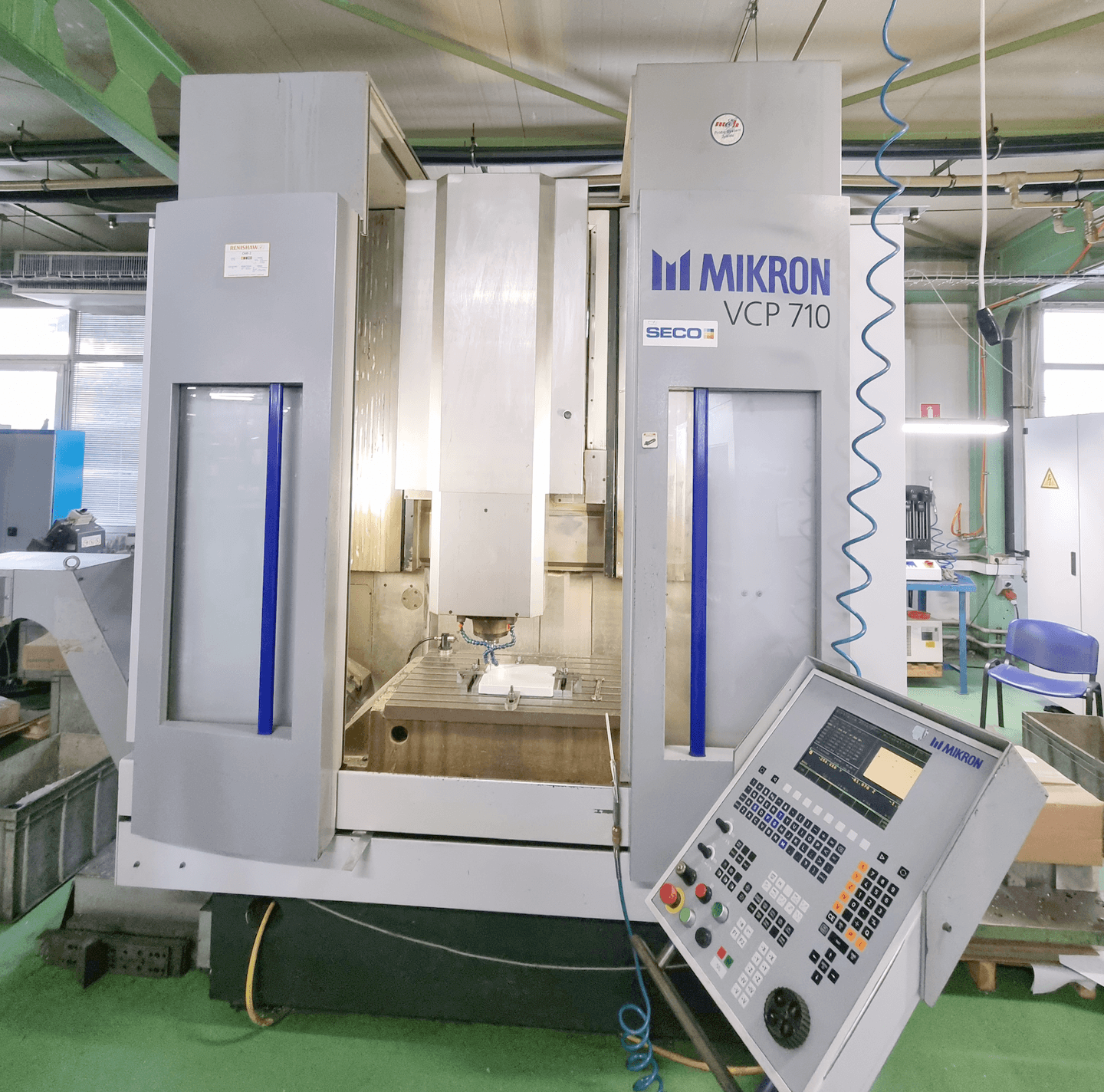

021763 - MIKRON VCP 710

Description

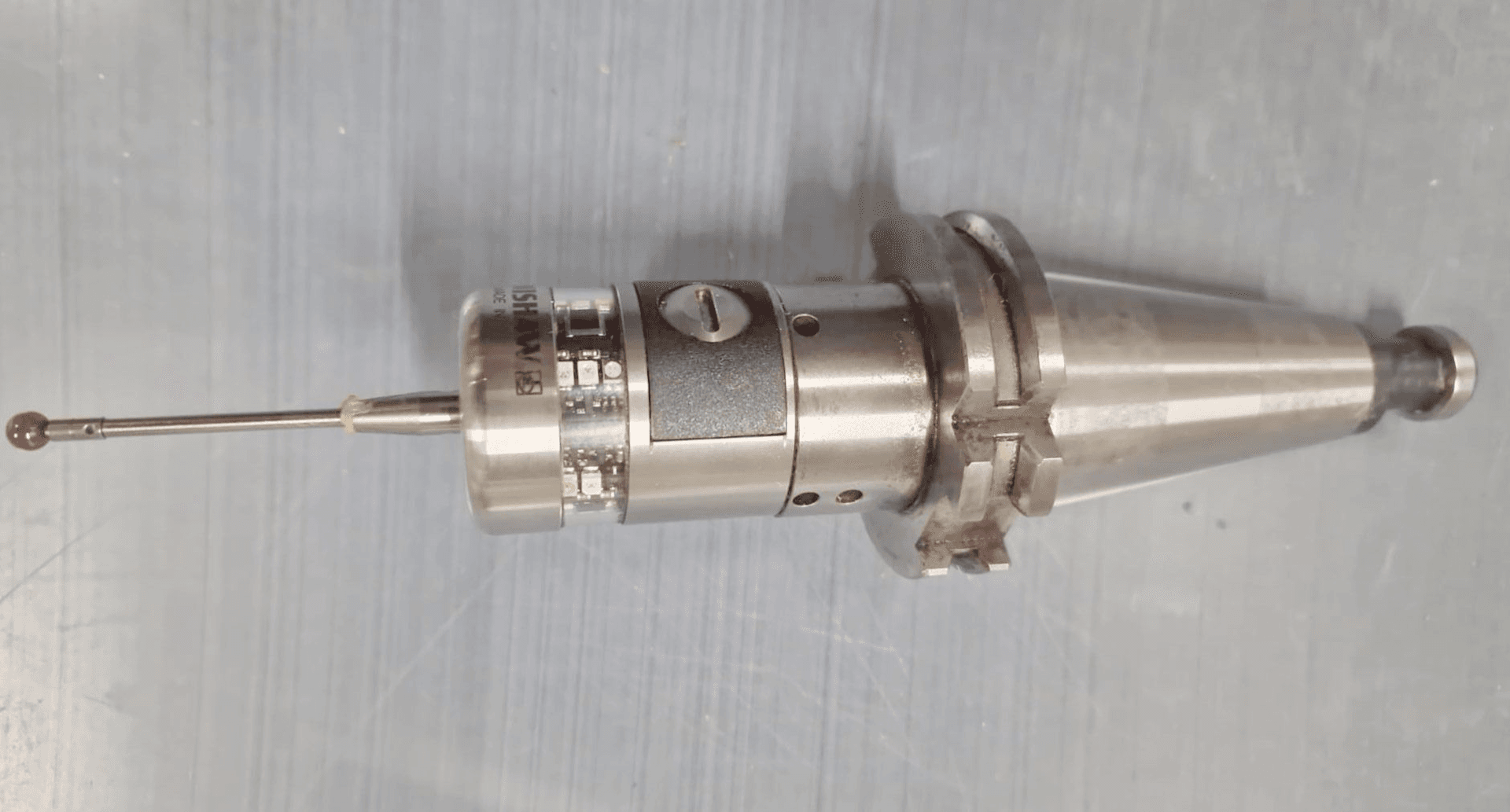

{"Number of axis total": "3", "Table length": "900 mm", "Table width": "600 mm", "Longitudinal travel (X-axis)": "710 mm", "Transversal travel (y-axis)": "550 mm", "Vertical travel (z axis)": "500 mm", "Table load max.": "1600 kg", "Tool changer:": "", "Number of tools": "30", "Tool diameter": "90 mm", "Diameter with free adjacent pockets": "140 mm", "Tool lenght": "300 mm", "Max. tool-weight": "8 kg", "Time of tool changing": "5 s", "Spindle nose: ISO": "B40", "Spindle speeds:": "", "from": "100 t/min", "up to": "1 mm/min", "Feeds:": "", "stepless": "", "longitudinal from": "1 mm/min", "transversal from": "1 mm/min", "vertical from": "1 mm/min", "Feed range": "10000 mm/min", "Rapid traverse: long.": "30 m/min", "Rapid traverse: transversal": "30 m/min", "Rapid traverse: vertical": "20 m/min", "Voltage 50 Hz 3x": "400 Volt", "Spindle motor": "12 kW", "Total power required": "40 kW", "Noise level": "75 dB (A)", "Machine's weight about": "10000 kg", "Overall dimensions machine:": "", "Length": "3085 mm", "Width": "2270 mm", "Height": "3055 mm", "Various accessories:": "", "Coolant system": "", "Touch Probe Renishaw": "", "Chip conveyor": "", "Lamp": ""}
