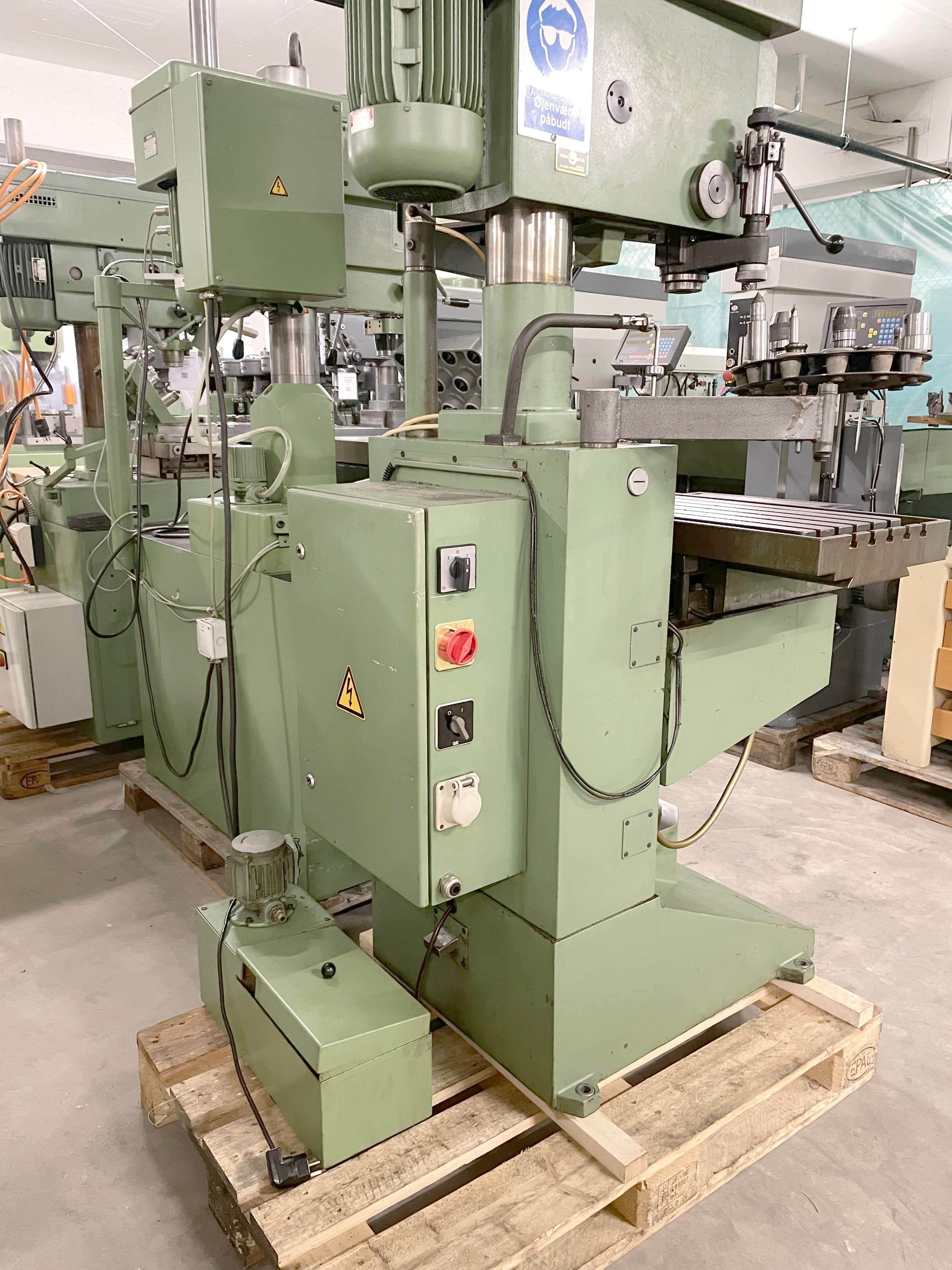

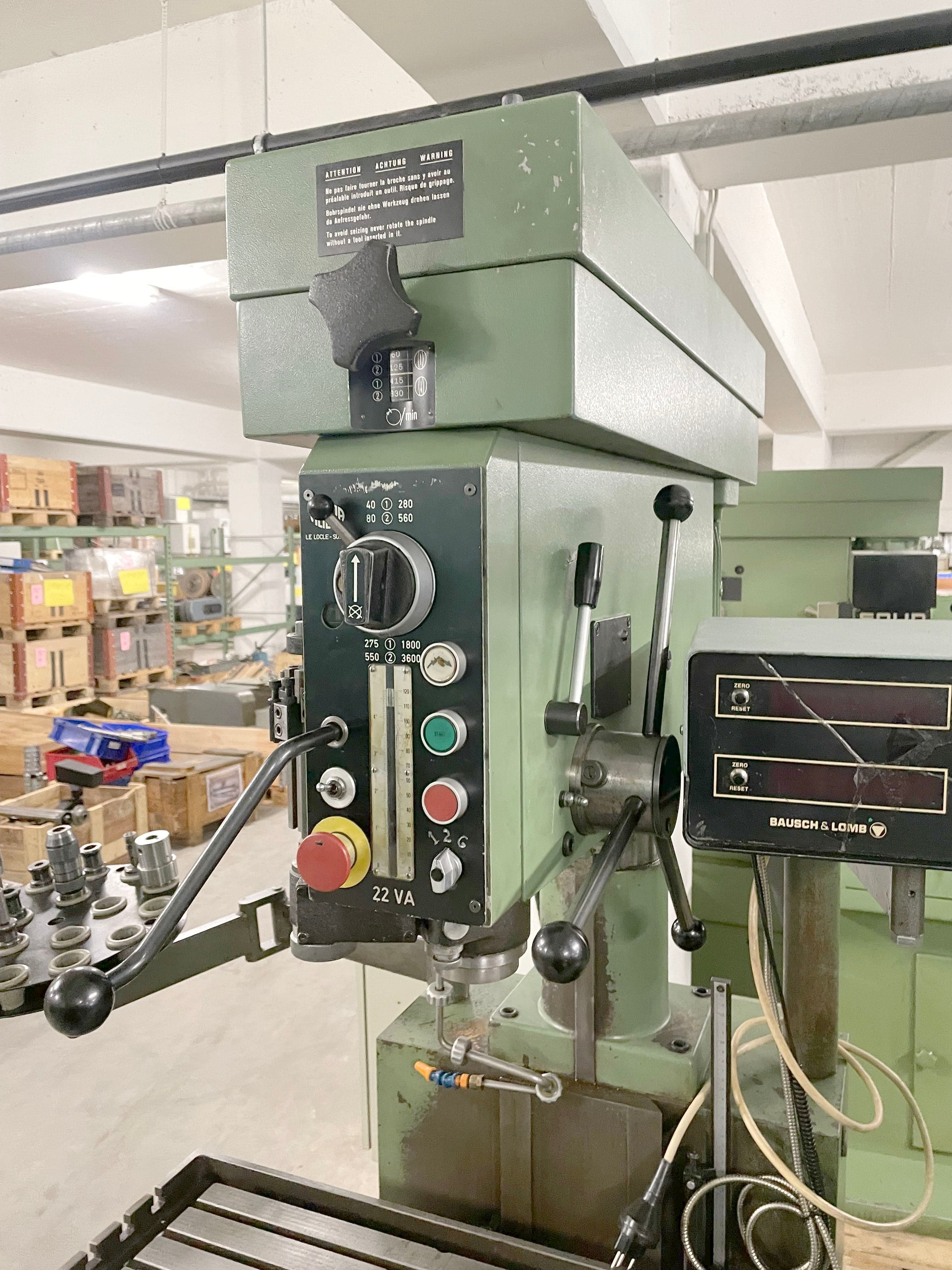

022340 - ACIERA 22 VA

Description

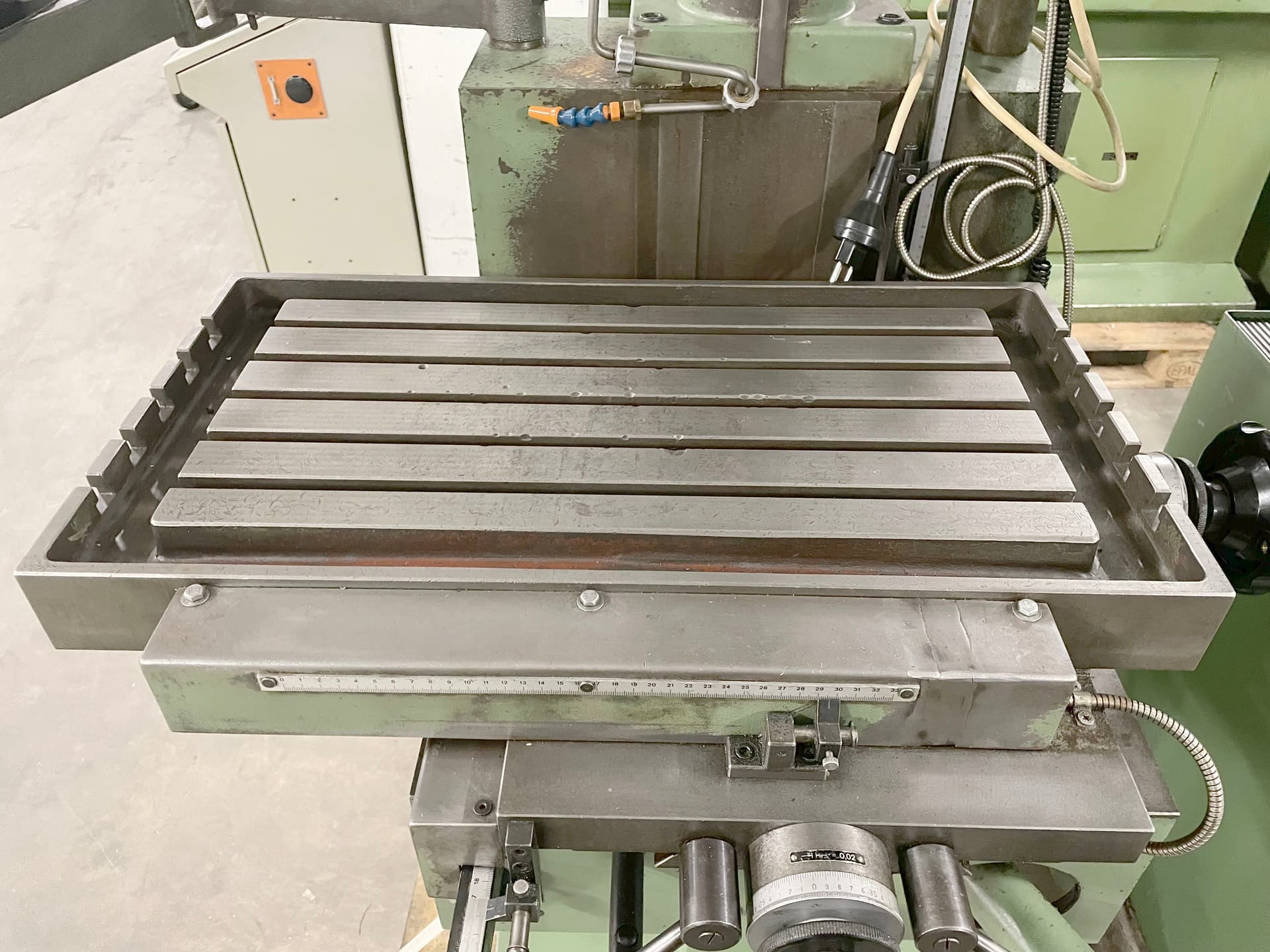

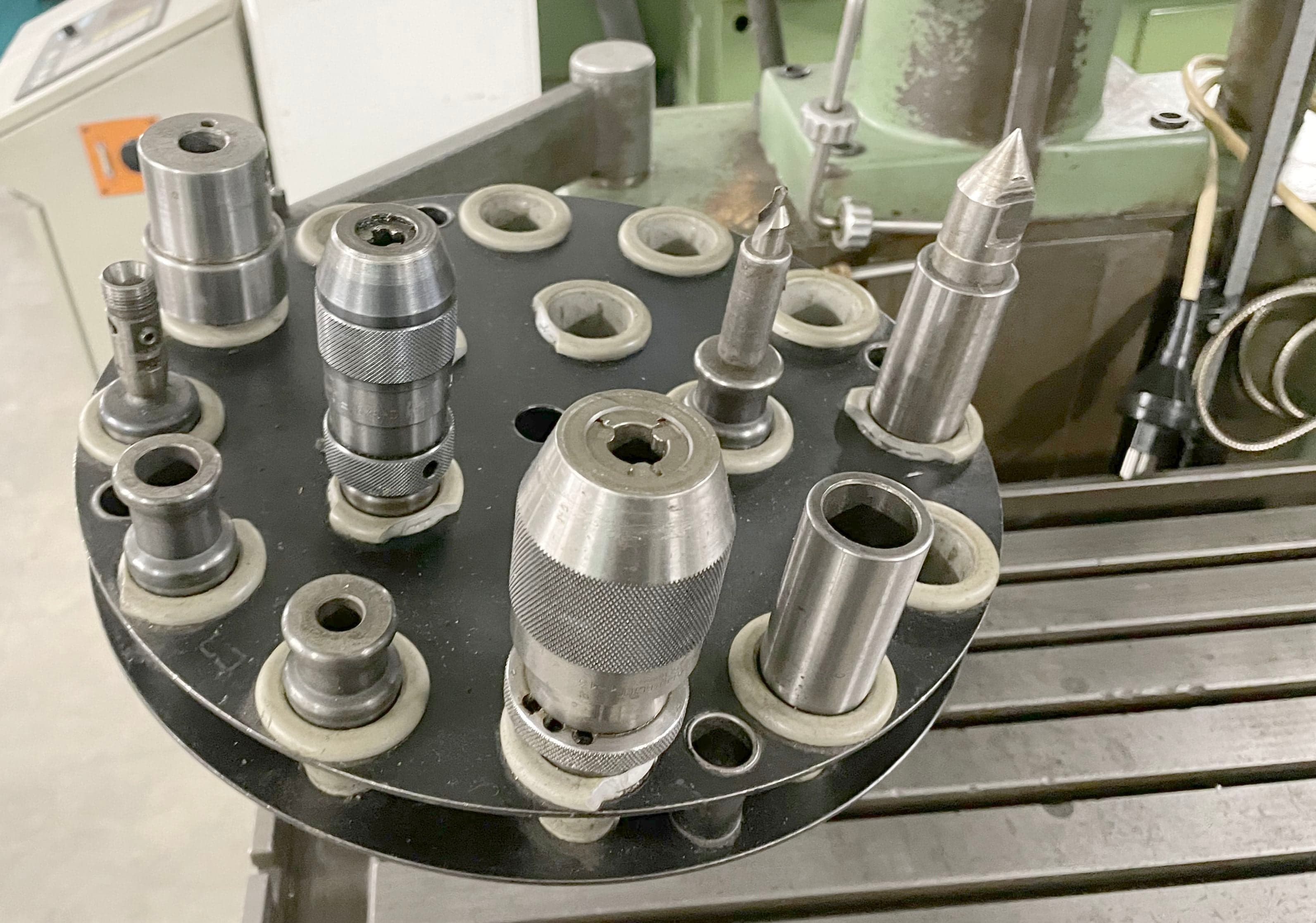

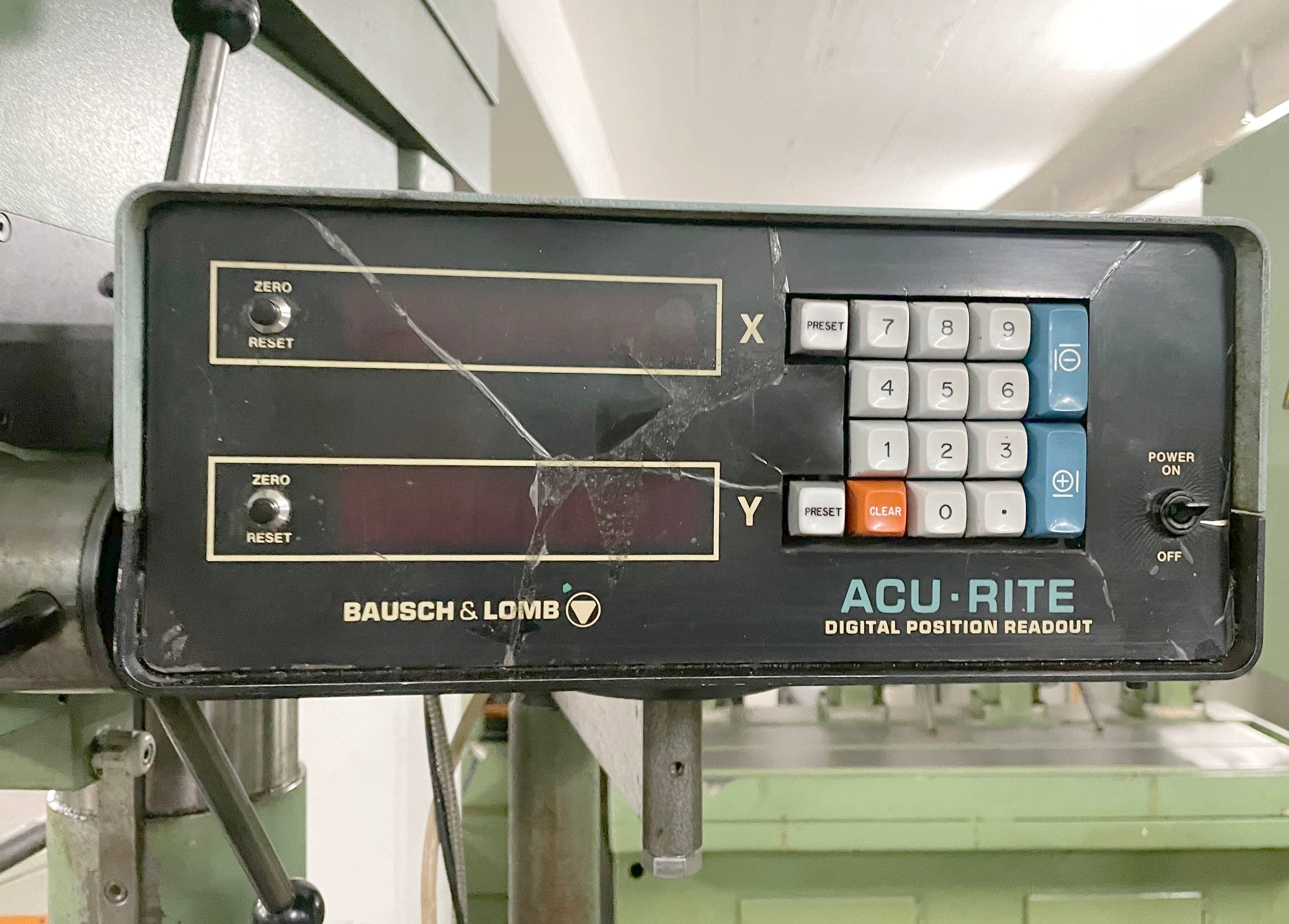

{"Table length": "700 mm", "Table width": "370 mm", "Clamping surface:": "", "Length": "1300 mm", "Width": "1000 mm", "Drill capacity in steel": "22 mm", "Drill capacity in cast-iron": "24 mm", "Depth of throat": "300 mm", "Drill depth (spindle stroke)": "120 mm", "Spindle head adjustment": "300 mm", "Table travels:": "", "Longitudinal travel (X-axis)": "330 mm", "Transversal travel (y-axis)": "210 mm", "Vertical travel (z axis)": "350 mm", "Spindle speeds:": "", "stepless": "", "from": "0.02 mm/t", "up to": "0.25 mm/t", "Feeds:": "", "Voltage 50 Hz 3x": "380 Volt", "Spindle motor": "1.0 / 1.5 CV", "Machine's weight about": "900 kg", "Overall dimensions machine:": "", "Height": "2000 mm", "Various accessories:": "", "Digital readout number of axis:": "2", "Threading device": "", "Tool storage": "", "Coolant system": "", "Drill chuck": "", "Quick change device": "", "Adjustable depth stop": "", "Set of toolholders": "", "Motorized table adjustment": ""}
