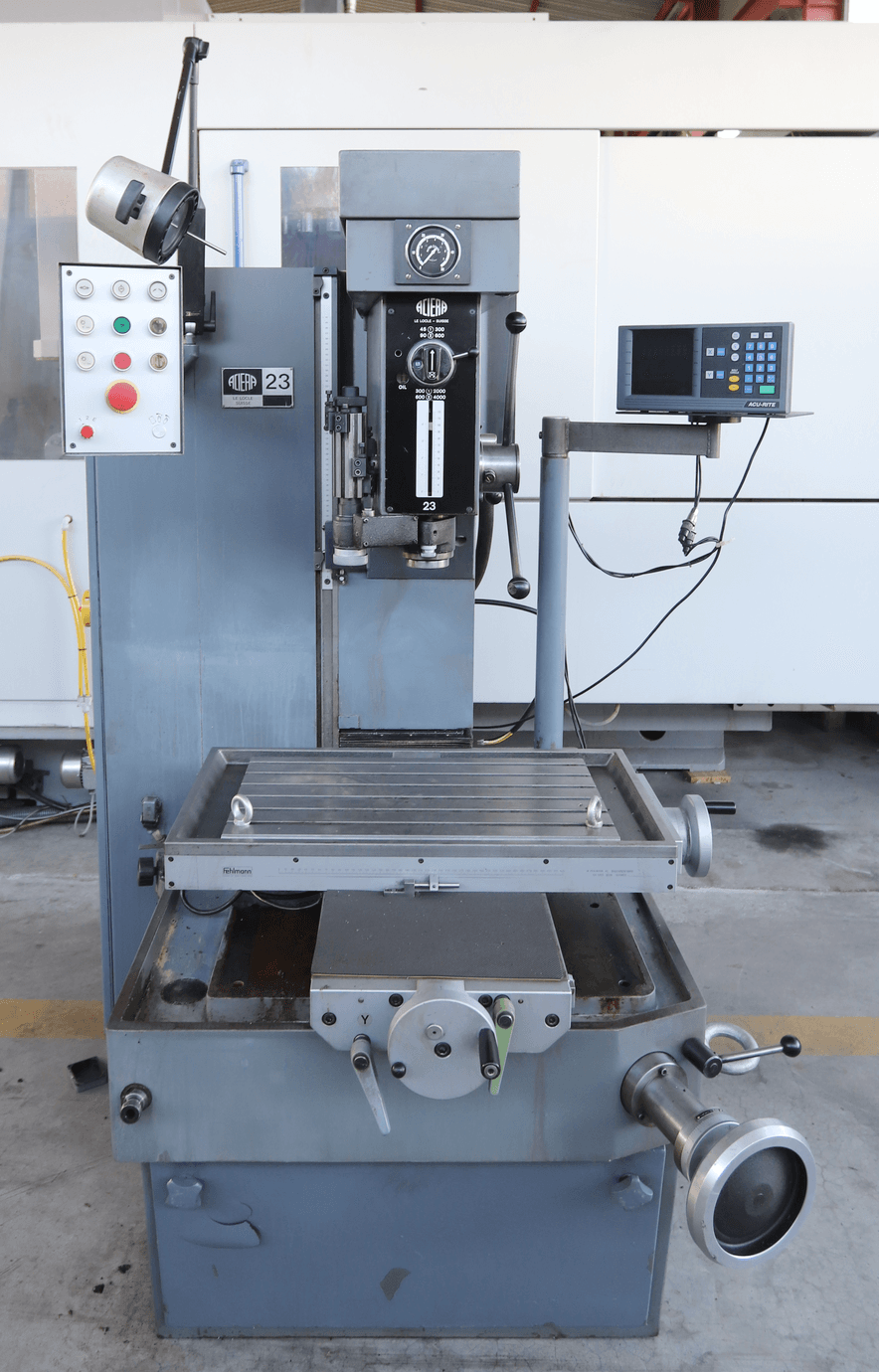

011899 - ACIERA 23

Description

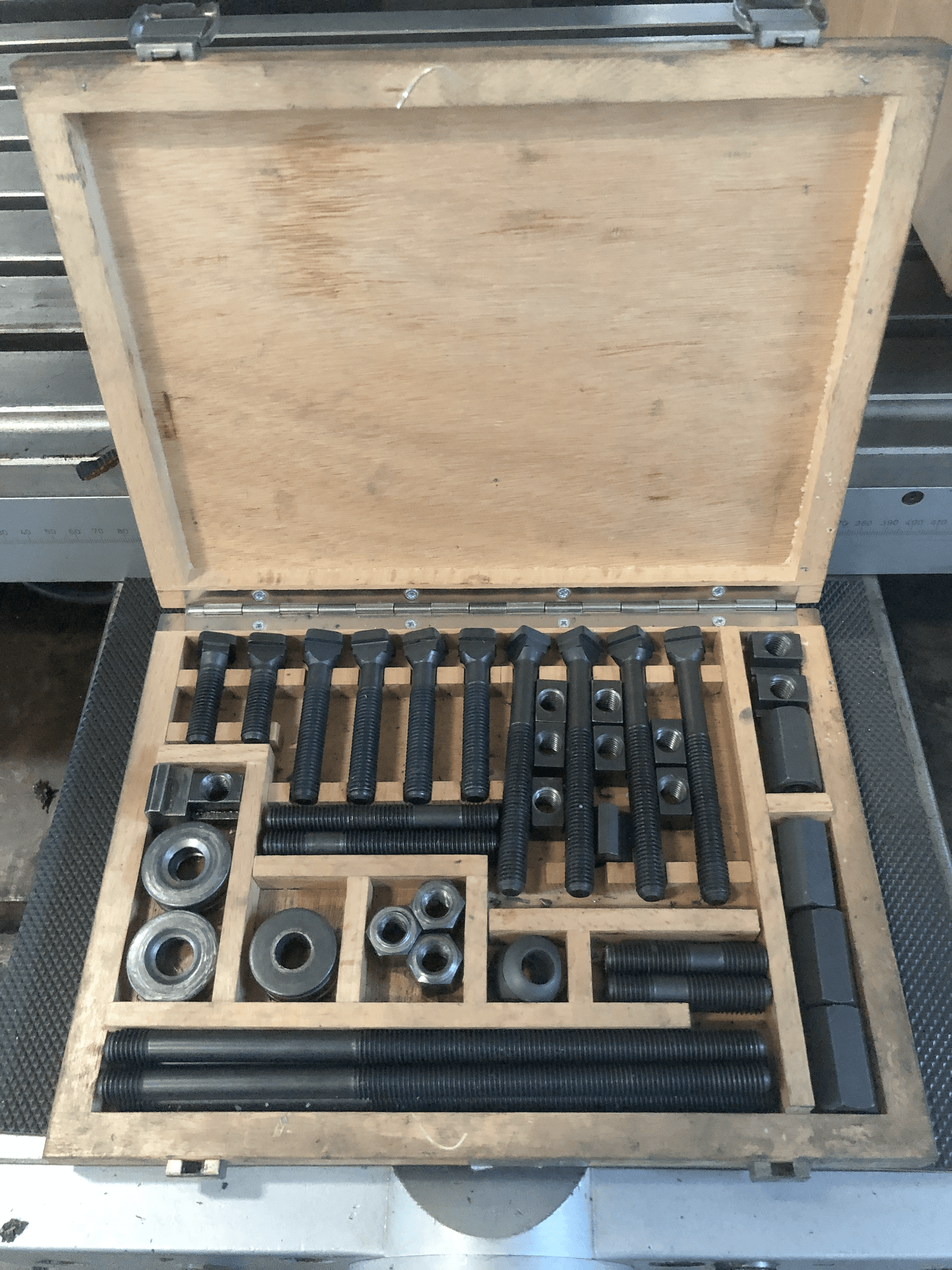

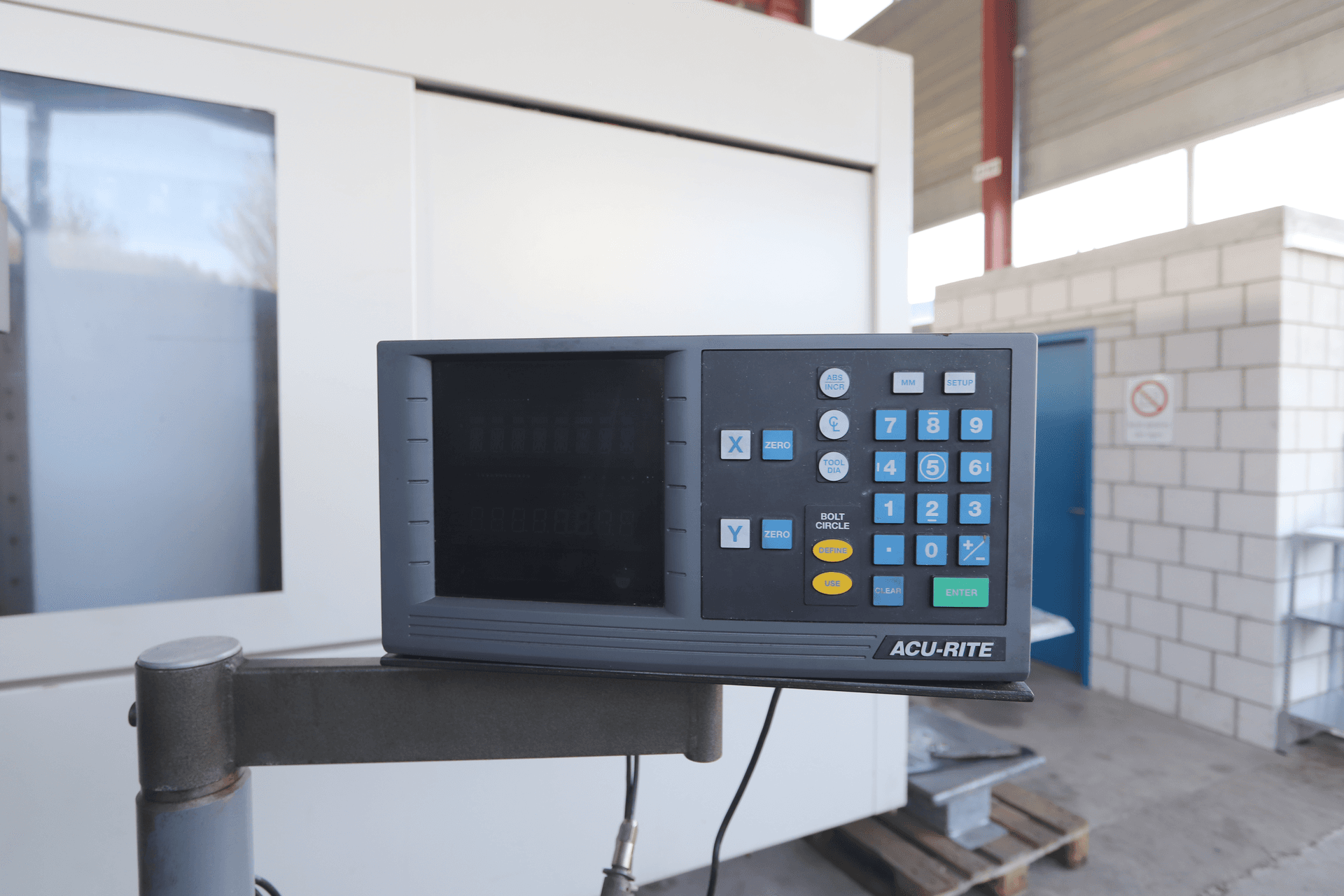

{"Table length": "760 mm", "Table width": "400 mm", "Clamping surface:": "", "Length": "1700 mm", "Width": "1400 mm", "T-channel width": "12H8 mm", "Height of table above floor": "810 mm", "Drill capacity in steel": "23 mm", "Threat cutting in steel M": "18", "Drill depth (spindle stroke)": "120 mm", "Max. distance from table": "", "to spindle nose": "110 - 570 mm", "Longitudinal travel (X-axis)": "500 mm", "Transversal travel (y-axis)": "300 mm", "Vertical travel (z axis)": "460 mm", "Spindle speeds:": "", "stepless": "", "from": "0.04 mm/t", "up to": "0.6 mm/t", "Vertical feeds:": "", "Quill feed speed:": "", "number (steps)": "6", "Voltage 50 Hz 3x": "380 Volt", "Machine's weight about": "2050 kg", "Overall dimensions machine:": "", "Height": "2100 mm", "Various accessories:": "", "Digital readout number of axis:": "2", "Manufacturer": "ACU RITE", "Threading device": "", "Lamp": "", "Quick change device": "", "Set of clamping tools": "", "Spindle brake": "", "Turret stopping device": ""}
