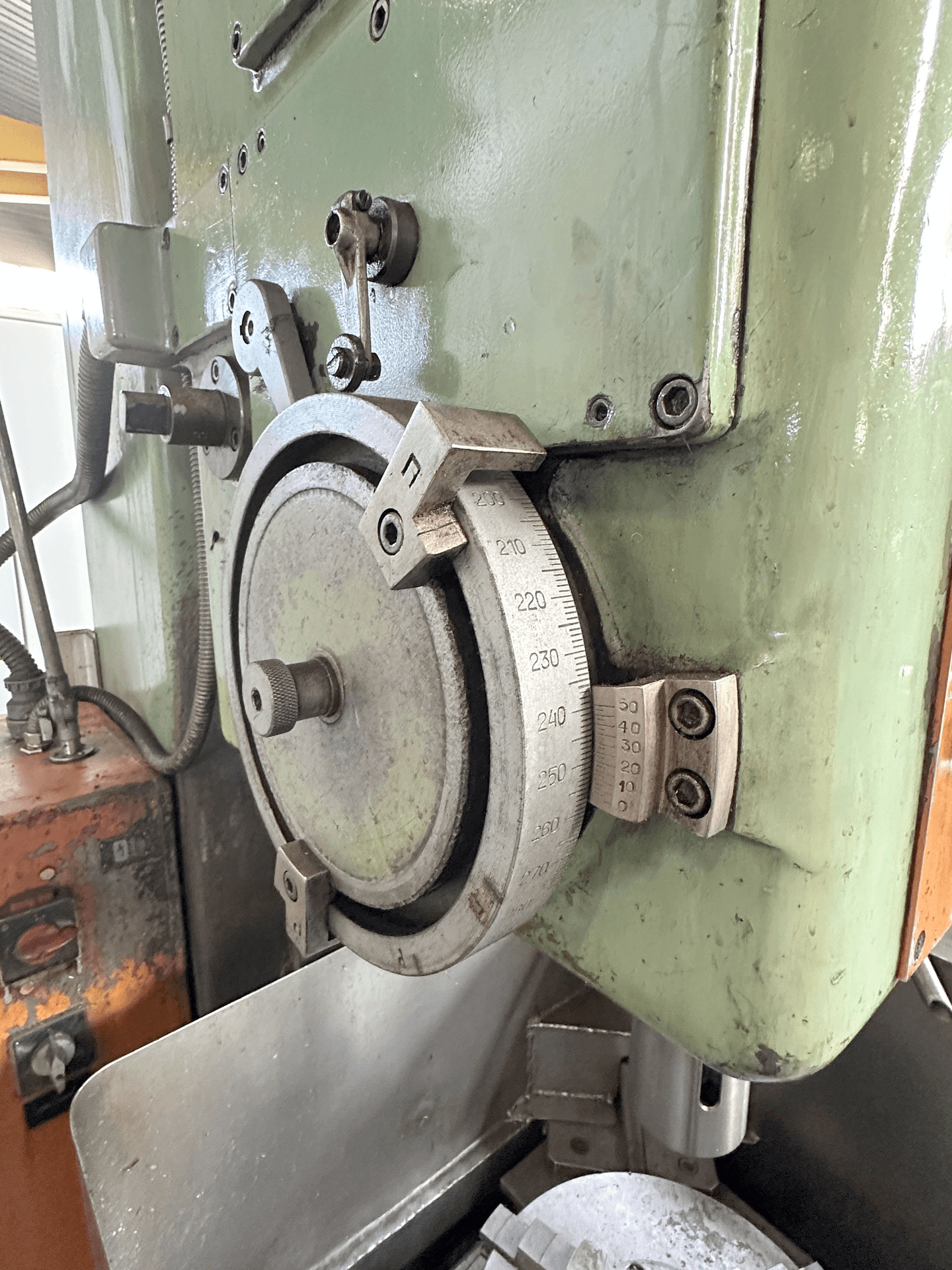

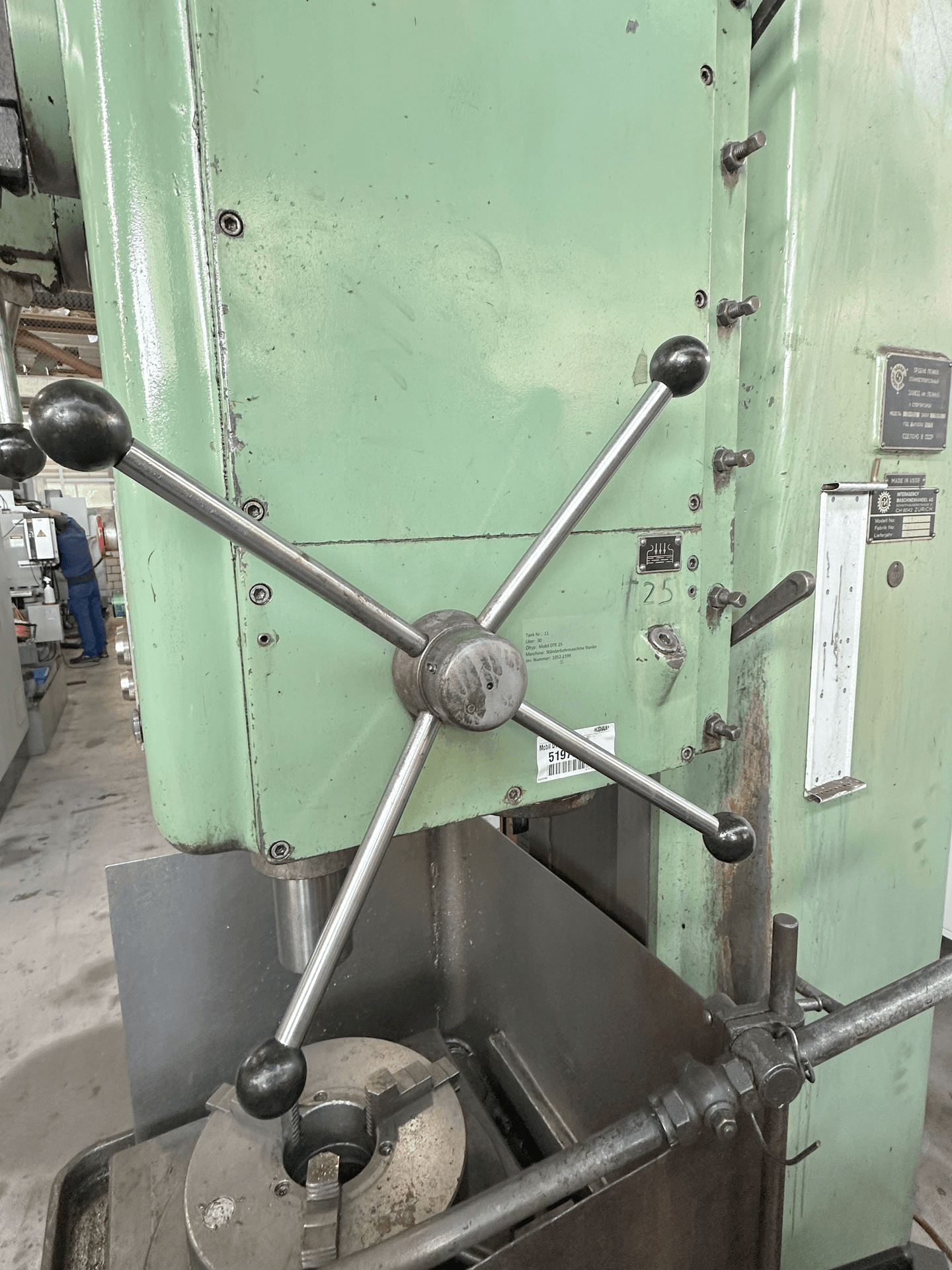

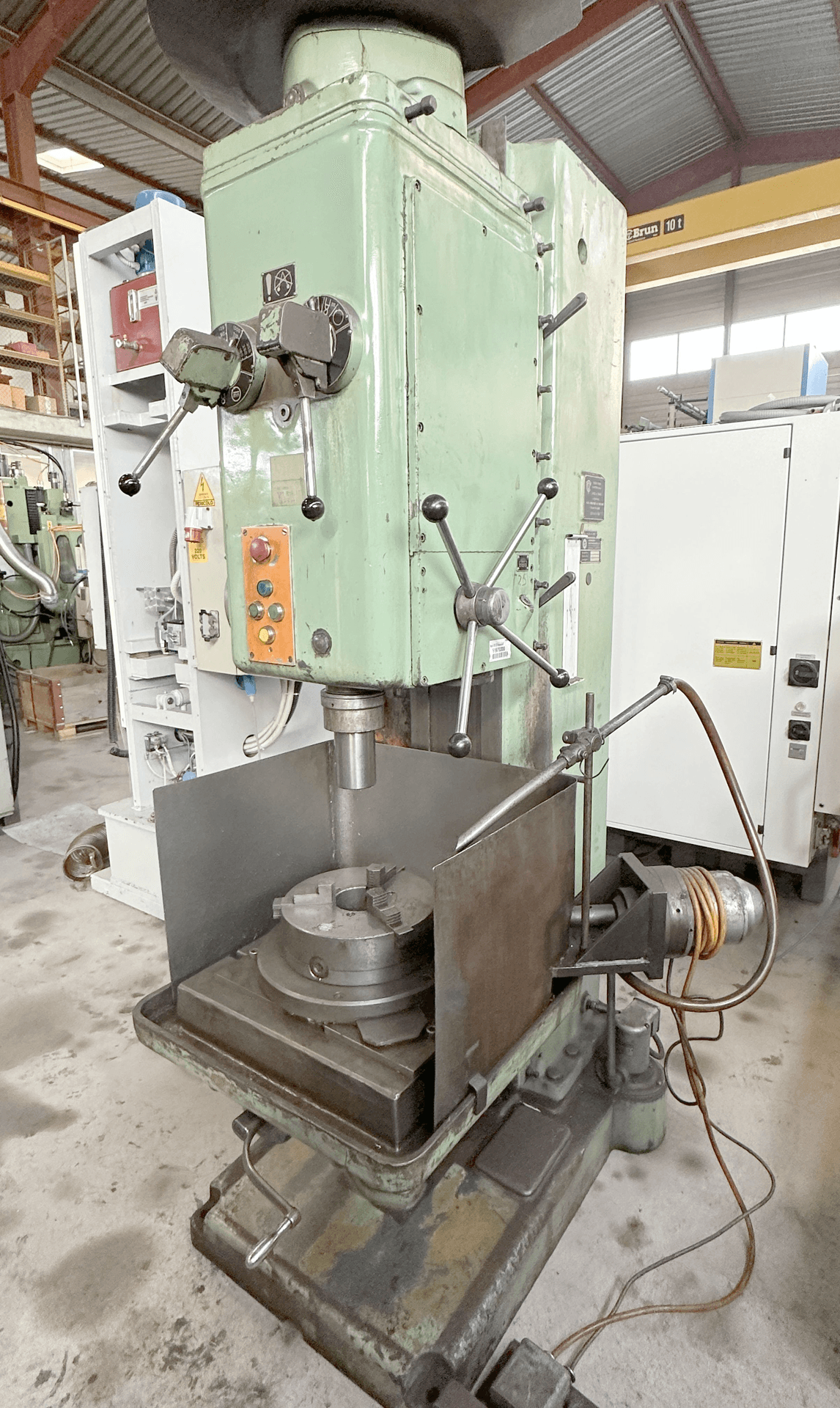

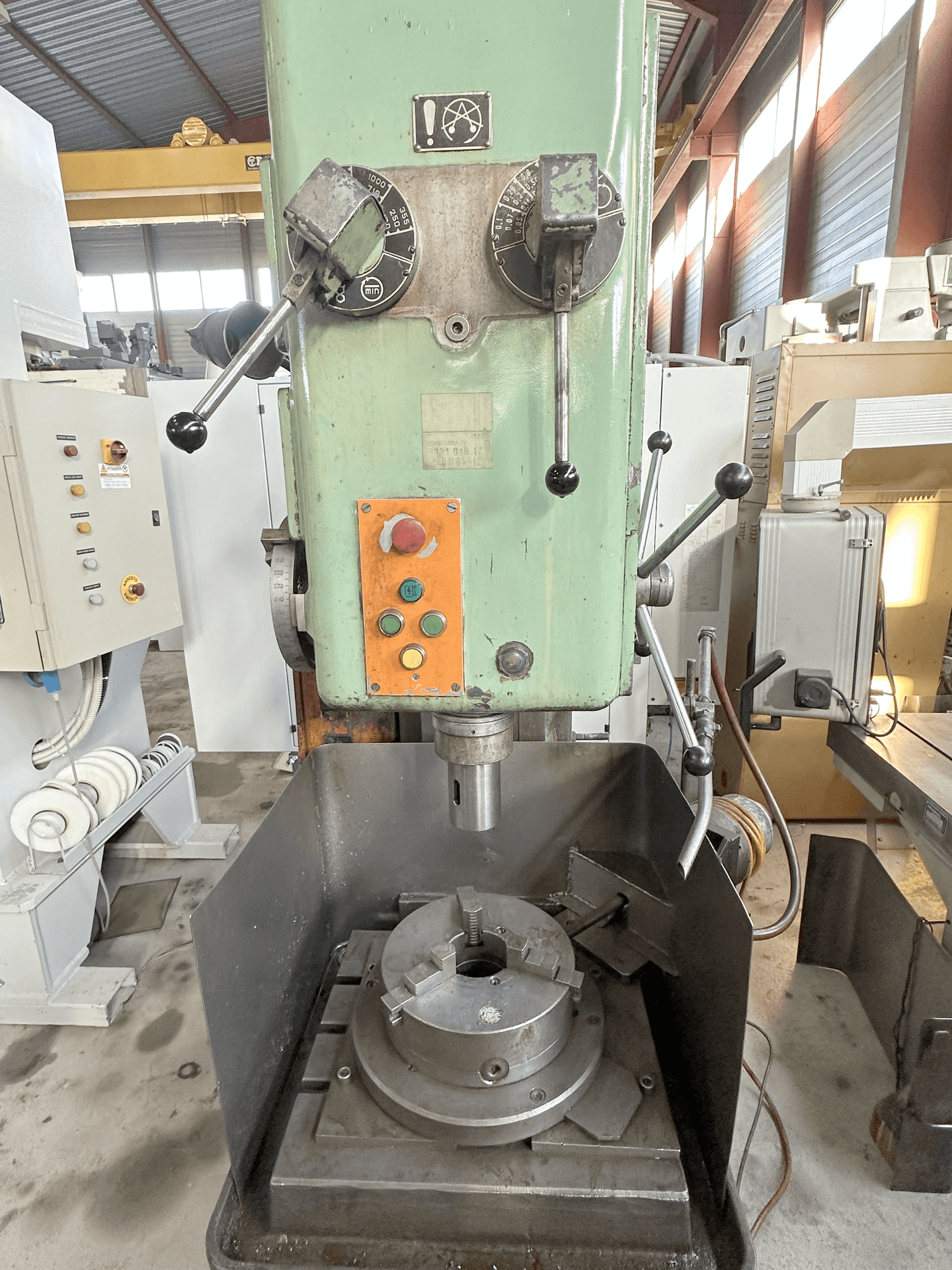

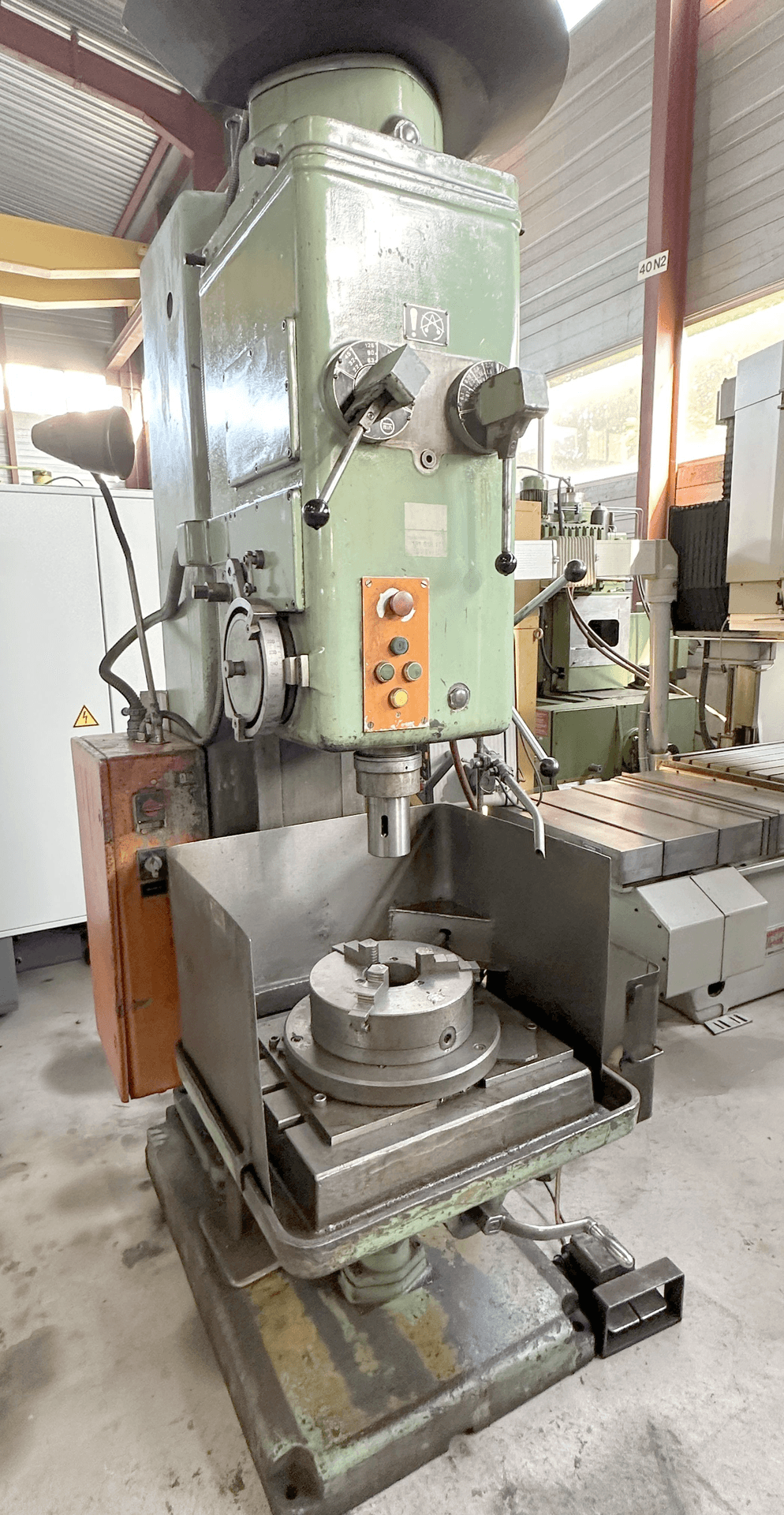

022299 - STANKO 2N 150

Price on request

Condition: NEW· Manufacturer: Stanko· Country: Switzerland

Description

{"Table length": "570 mm", "Table width": "500 mm", "Number of T-channels": "3", "Distance of the T-slots": "110 mm", "T-channel width": "22 mm", "Taper in spindle: MT": "5", "Depth of throat": "300 mm", "Drill depth (spindle stroke)": "300 mm", "Spindle diameter": "100 mm", "Spindle speeds:": "", "number (steps)": "12", "from": "0.05 mm/t", "up to": "2.24 mm/t", "Feeds:": "", "Voltage 50 Hz 3x": "380 Volt", "Spindle motor": "3 CV", "Machine's weight about": "1200 kg", "Overall dimensions machine:": "", "Length": "1200 mm", "Width": "1200 mm", "Height": "2500 mm", "Various accessories:": "", "Adjustable depth stop": "", "Dividing attachment": "", "with motor drive": "", "3-jaw chuck diameter": "315 mm", "Foot pedal": ""}

Send Enquiry

Seller

Muller Machines SA
