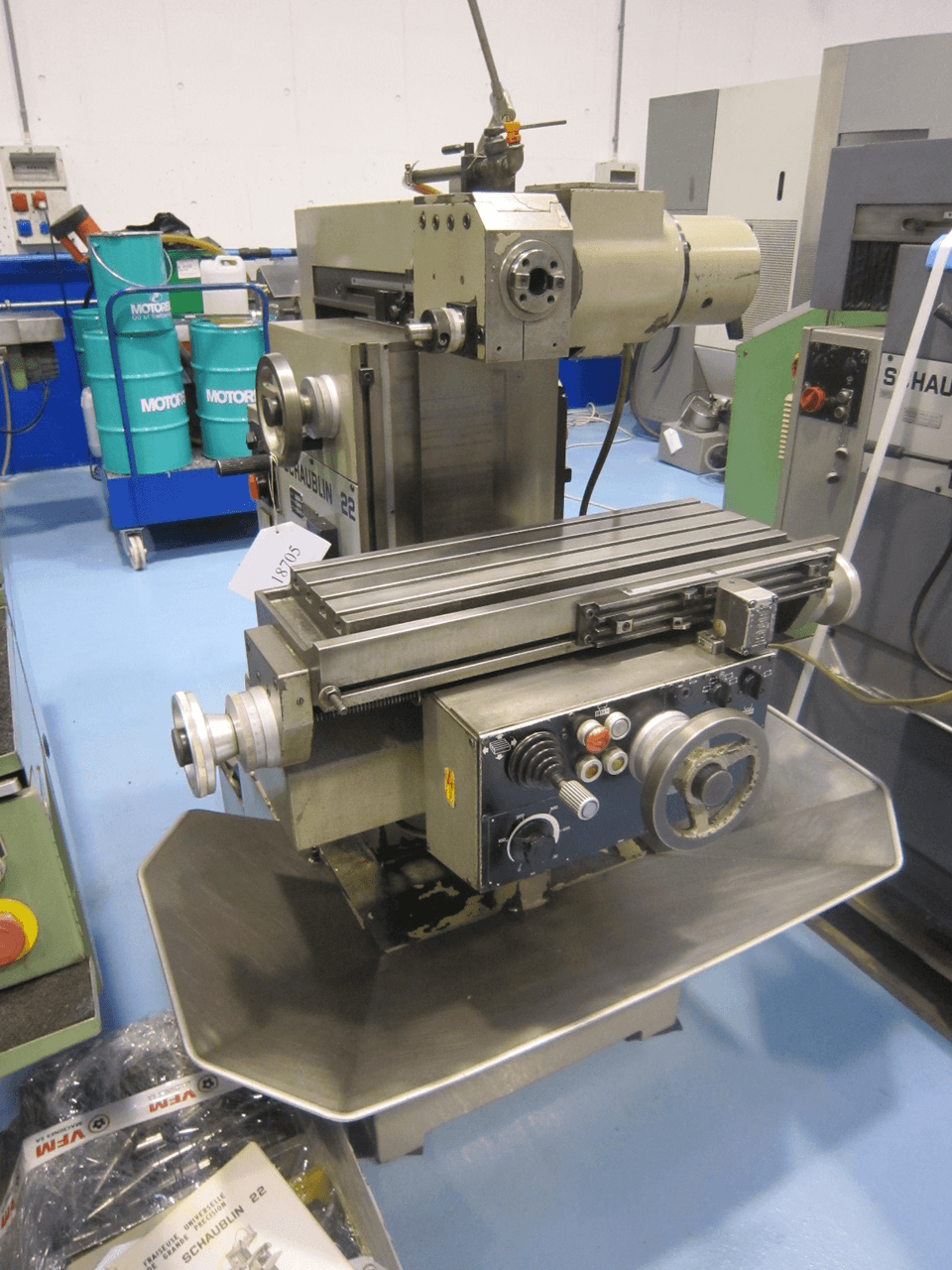

Machine image 1

Machine image 2

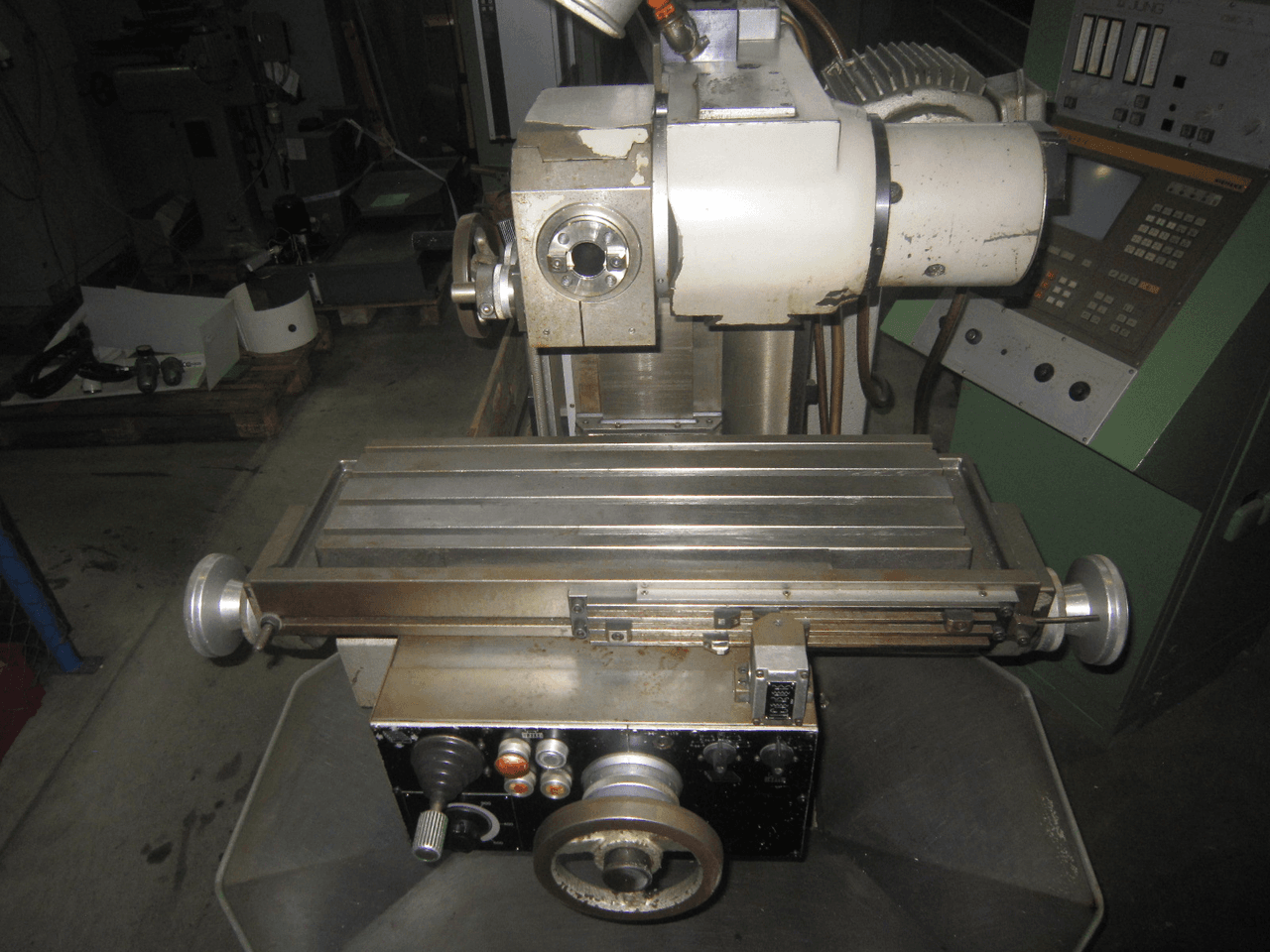

Machine image 3

018705 - SCHAUBLIN 22

Price on request

Condition: NEW· Manufacturer: SCHAUBLIN· Country: Switzerland

Description

{"Table length": "650 mm", "Table width": "250 mm", "Longitudinal travel (X-axis)": "330 mm", "Transversal travel (y axis)": "400 mm", "Vertical travel (z axis)": "475 mm", "Spindle speeds:": "", "number (steps)": "12", "from": "63 t/min", "up to": "200 mm/min", "Taper in spindle": "30 ISO", "Feeds stepless:": "", "longitudinal from": "4 mm/min", "vertical from": "2 mm/min", "Vertical quill travel": "60 mm", "Rapid traverse:": "", "longitudinal": "2.5 m/min", "vertical": "1.0 m/min", "Voltage 50 Hz 3x": "380 Volt", "Motor output": "2.2 CV", "Machine's weight about": "950 kg", "Overall dimensions machine:": "", "Length": "1600 mm", "Width": "1100 mm", "Height": "1650 mm"}

Send Enquiry

Seller

Muller Machines SA
