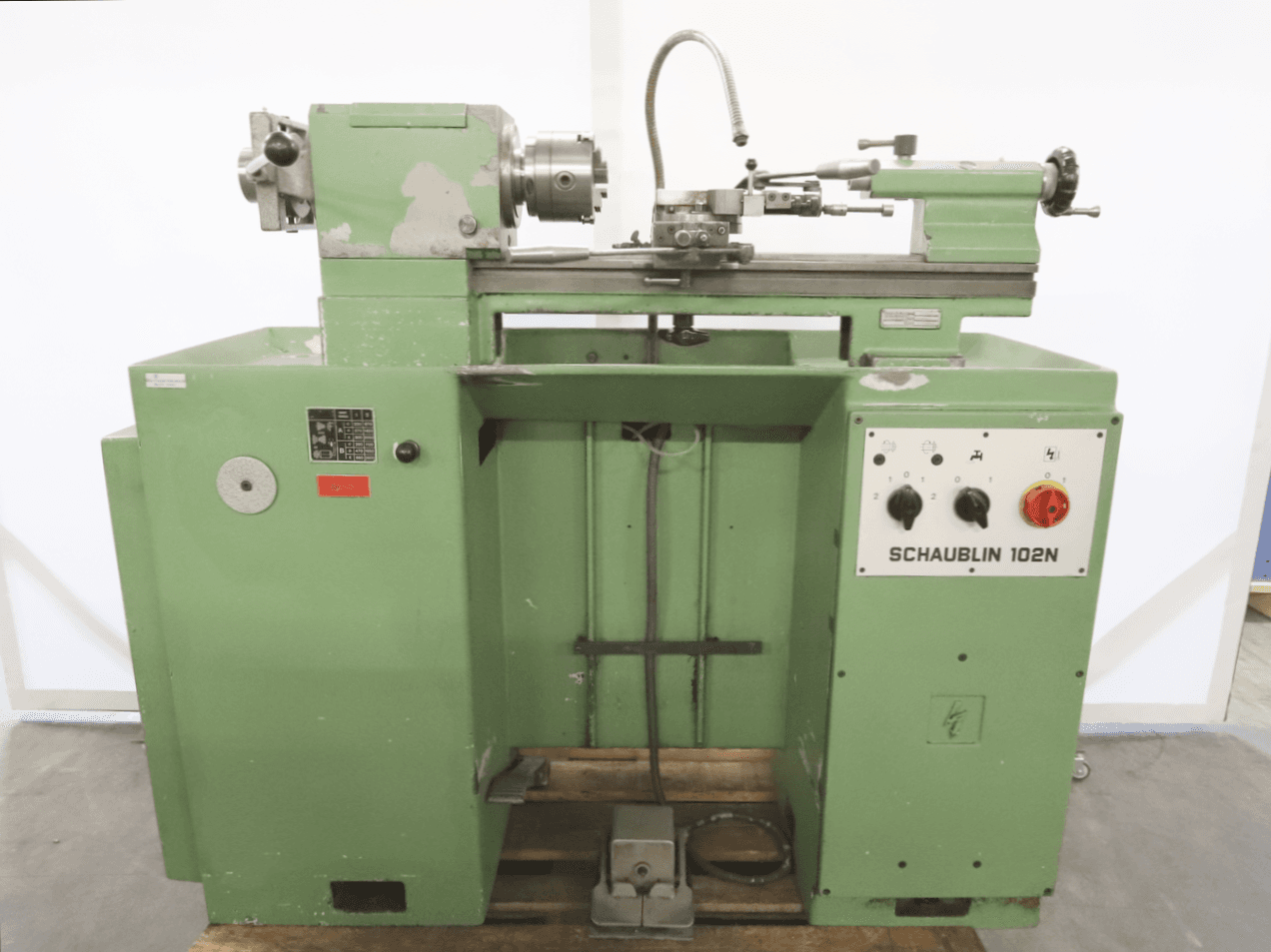

014402 - SCHAUBLIN 102 N-80

Price on request

Condition: NEW· Manufacturer: SCHAUBLIN· Country: Switzerland

Description

{"Centre height": "102 mm", "Distance between centres": "375 mm", "Swing over cross-slide": "120 mm", "Swing over bed": "200 mm", "Spindle hole": "45 mm", "Inner taper type": "38 F", "Taper spindle threaded": "", "Spindle speeds:": "", "stepless": "", "from": "90 t/min", "up to": "2600 t/min", "Taper in tailstock:": "2 CM", "Voltage 50 Hz 3x": "380 Volt", "Spindle motor": "1.5 CV", "Machine's weight about": "550 kg", "Overall dimensions machine:": "", "Length": "1200 mm", "Width": "600 mm", "Height": "1400 mm", "Various accessories:": "", "Base-mounted type:": "", "pedal-operadet reversing switch": "", "Coolant system": "", "3-jaw chuck diameter": "100 mm", "Quick closing attachment": "", "Drilling tailstock": ""}

Send Enquiry

Seller

Muller Machines SA
