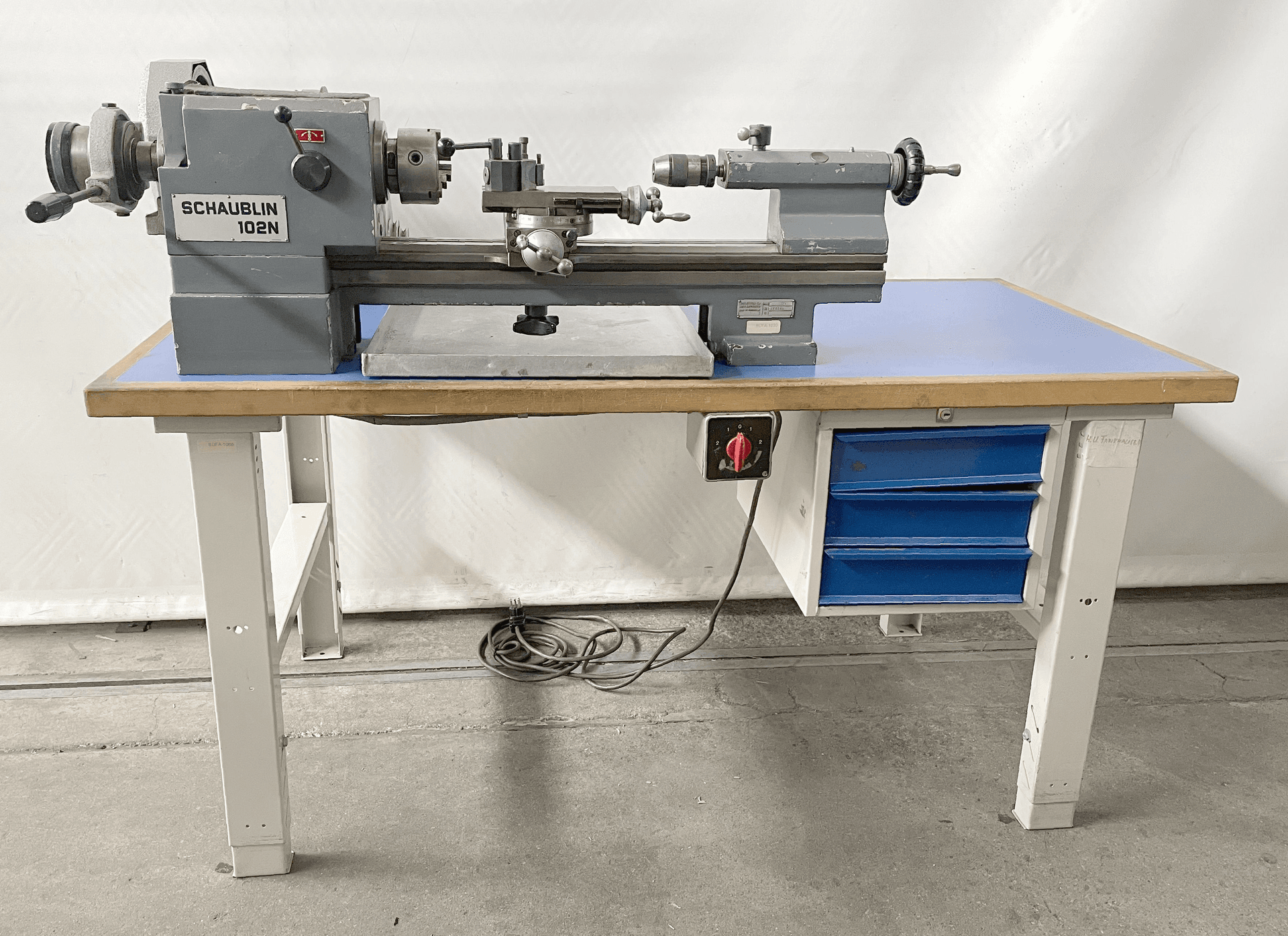

022338 - SCHAUBLIN 102 N

Price on request

Condition: NEW· Manufacturer: SCHAUBLIN· Country: Switzerland

Description

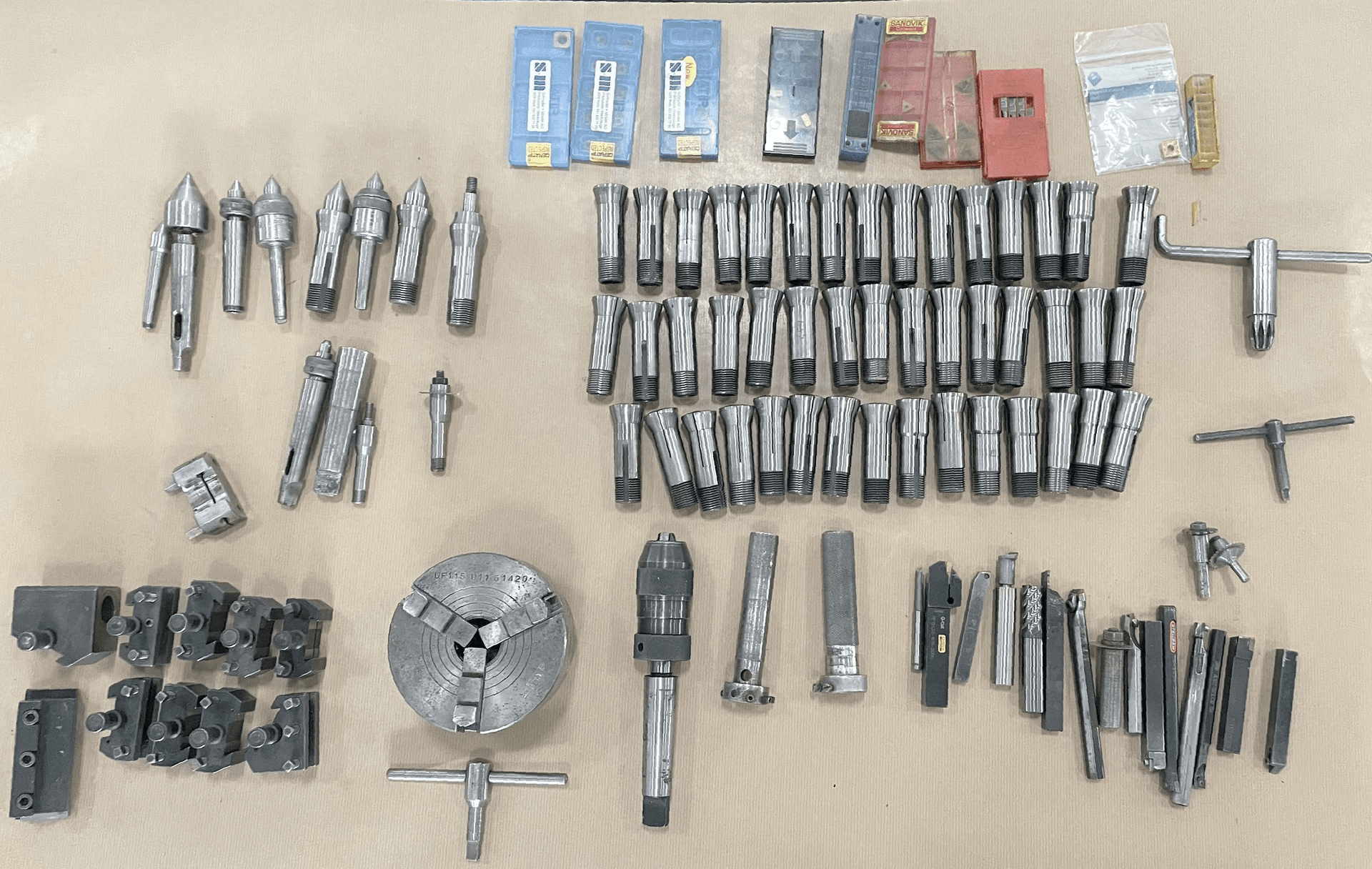

{"Centre height": "102 mm", "Distance between centres": "375 mm", "Swing over cross-slide": "120 mm", "Swing over bed": "200 mm", "Inner taper type": "20 W", "Spindle speeds:": "", "from": "45 t/min", "up to": "3100 t/min", "Step-down gear": "1:5", "Voltage 50 Hz 3x": "380 Volt", "Spindle motor": "0.5 / 0.9 kW", "Machine's weight about": "300 kg", "Overall dimensions machine:": "", "Length": "1600 mm", "Width": "800 mm", "Height": "800 mm", "Various accessories:": "", "Execution:": "", "Working bench:": "", "Drawer(s)": "3", "3-jaw chuck diameter": "100 mm", "Quick closing attachment": "", "Set of collets": "", "Drilling tailstock": "", "Rotary centre": "", "Set of centres": "", "Drill chuck": "", "Quick change tool": "", "Set of steel holders": ""}

Send Enquiry

Seller

Muller Machines SA
