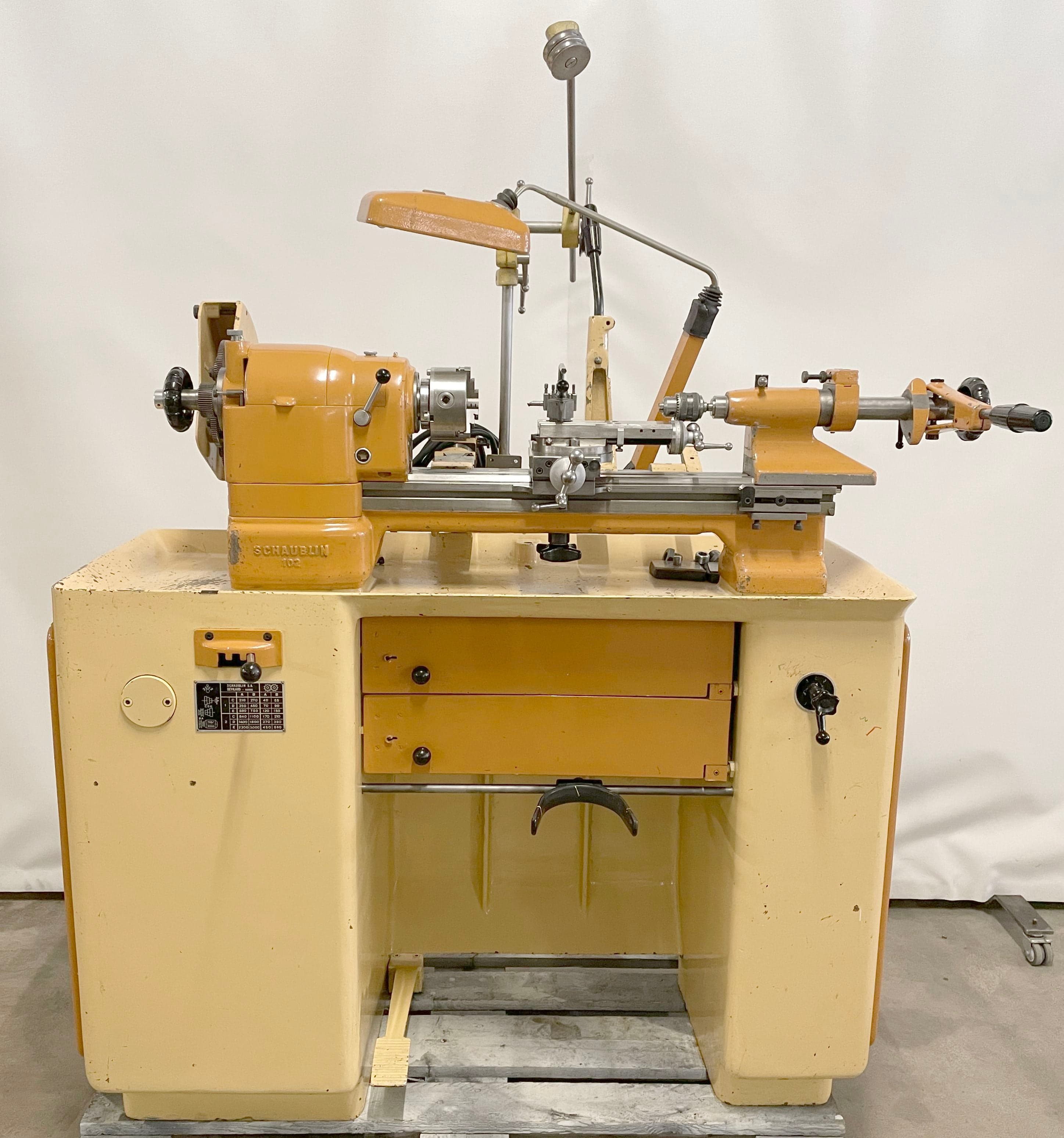

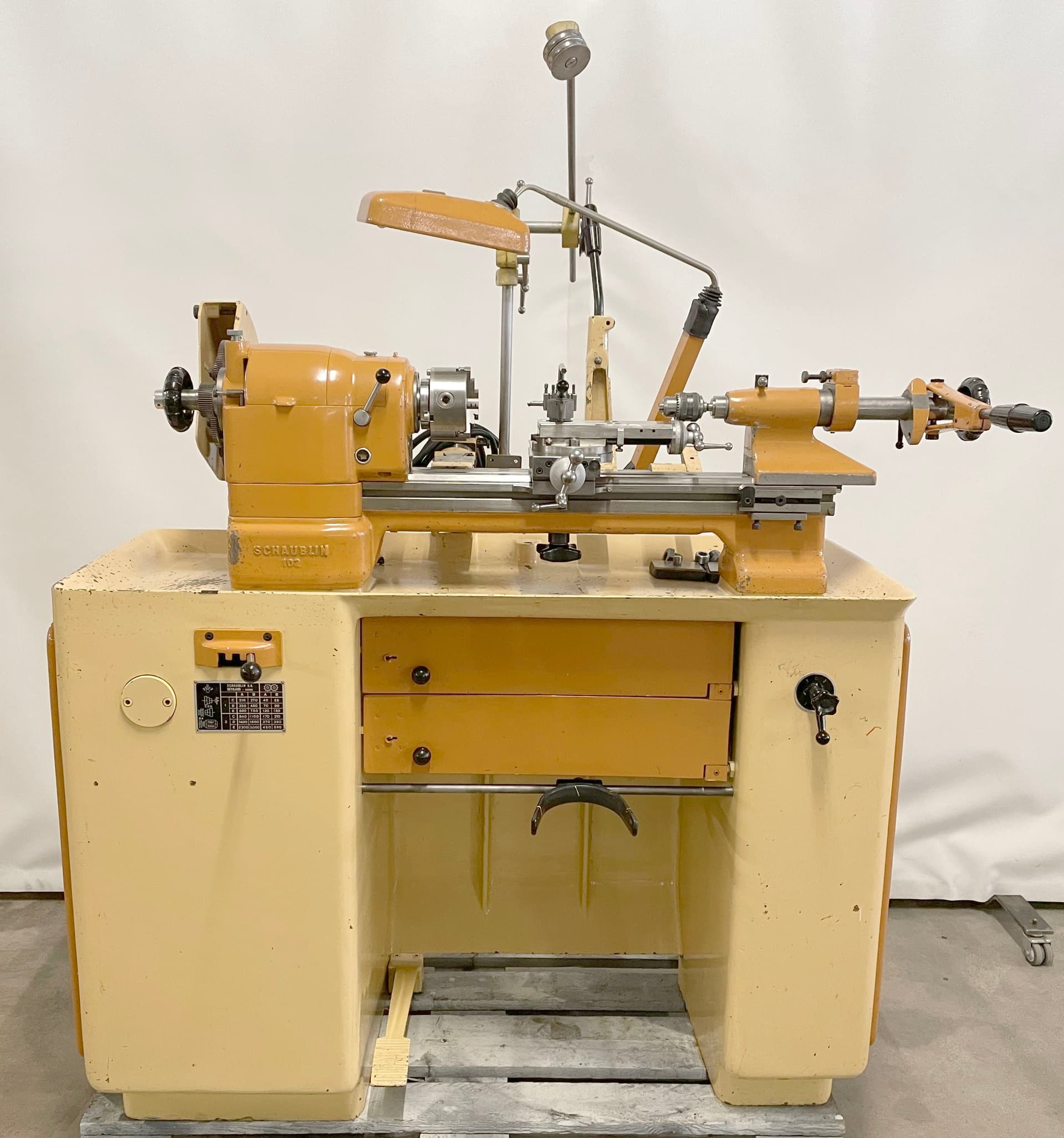

023102 - SCHAUBLIN 102

Description

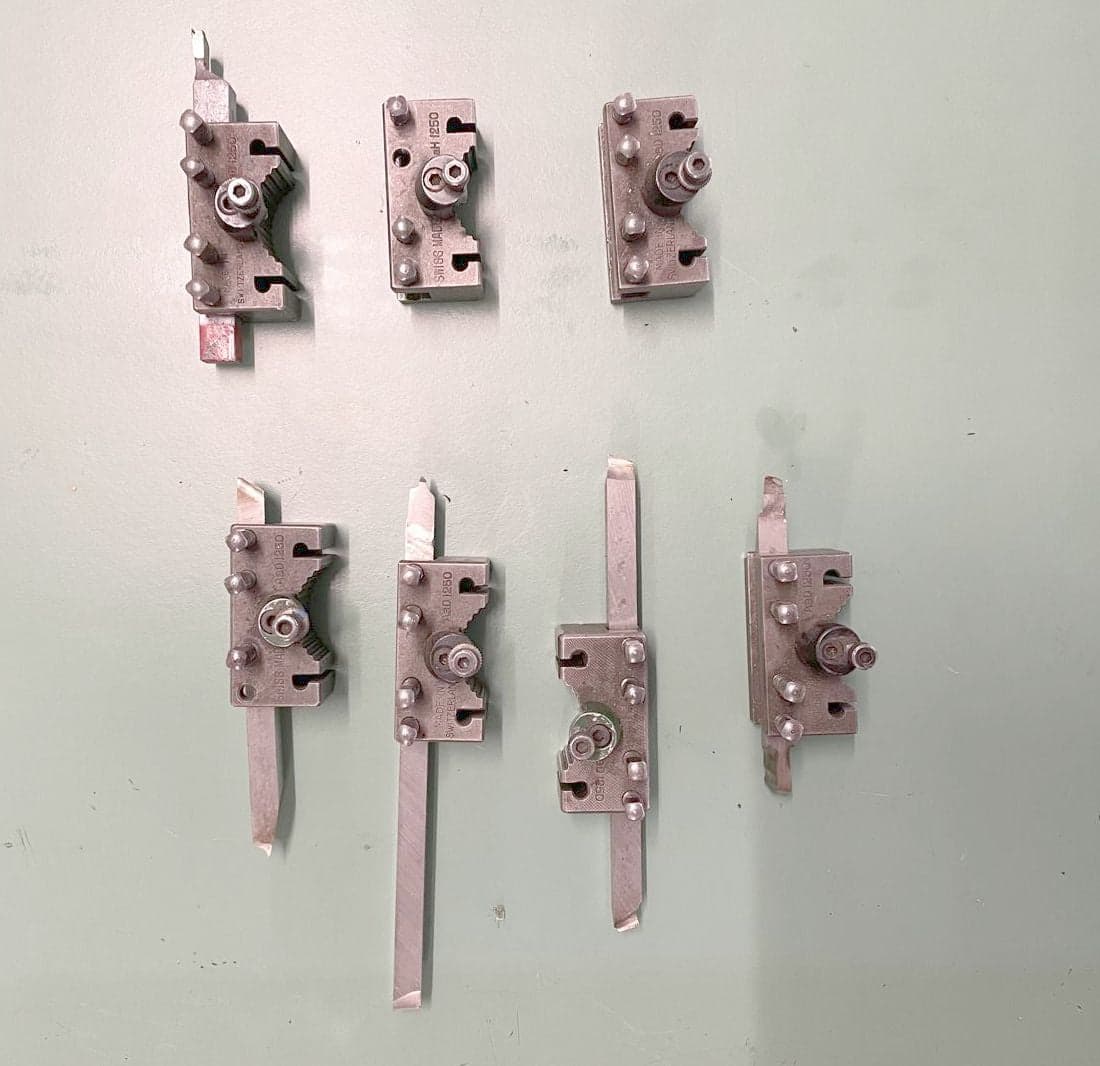

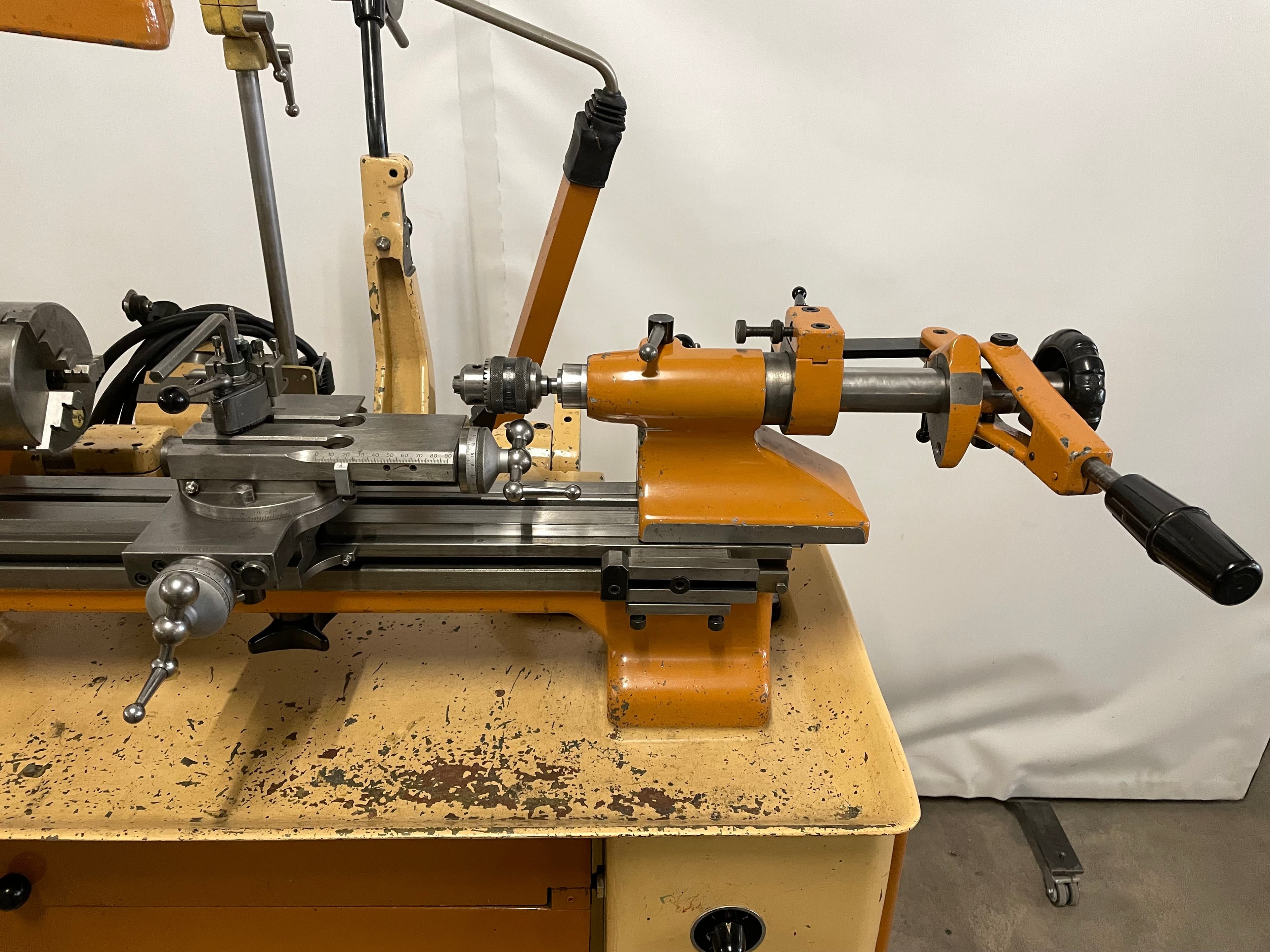

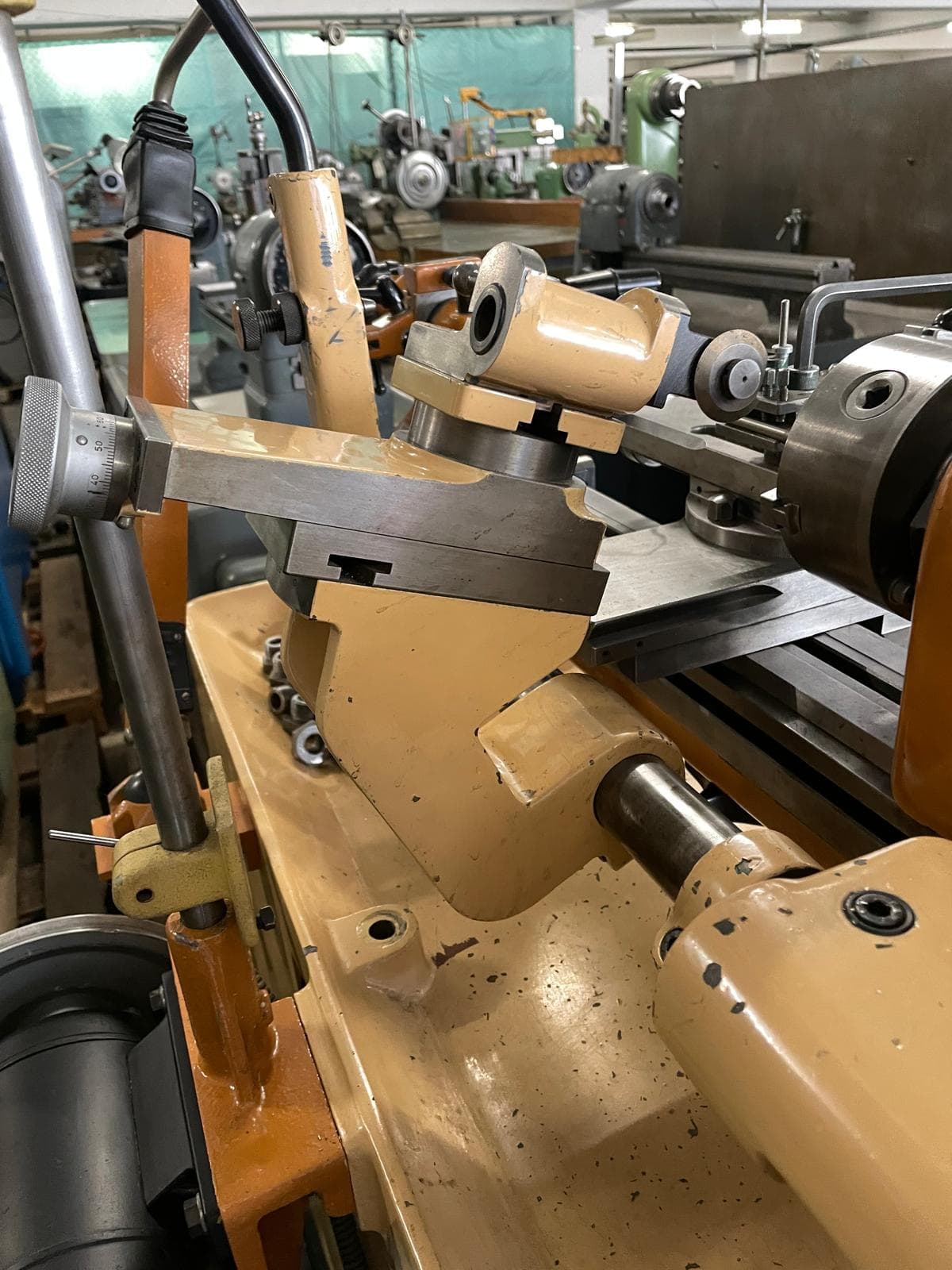

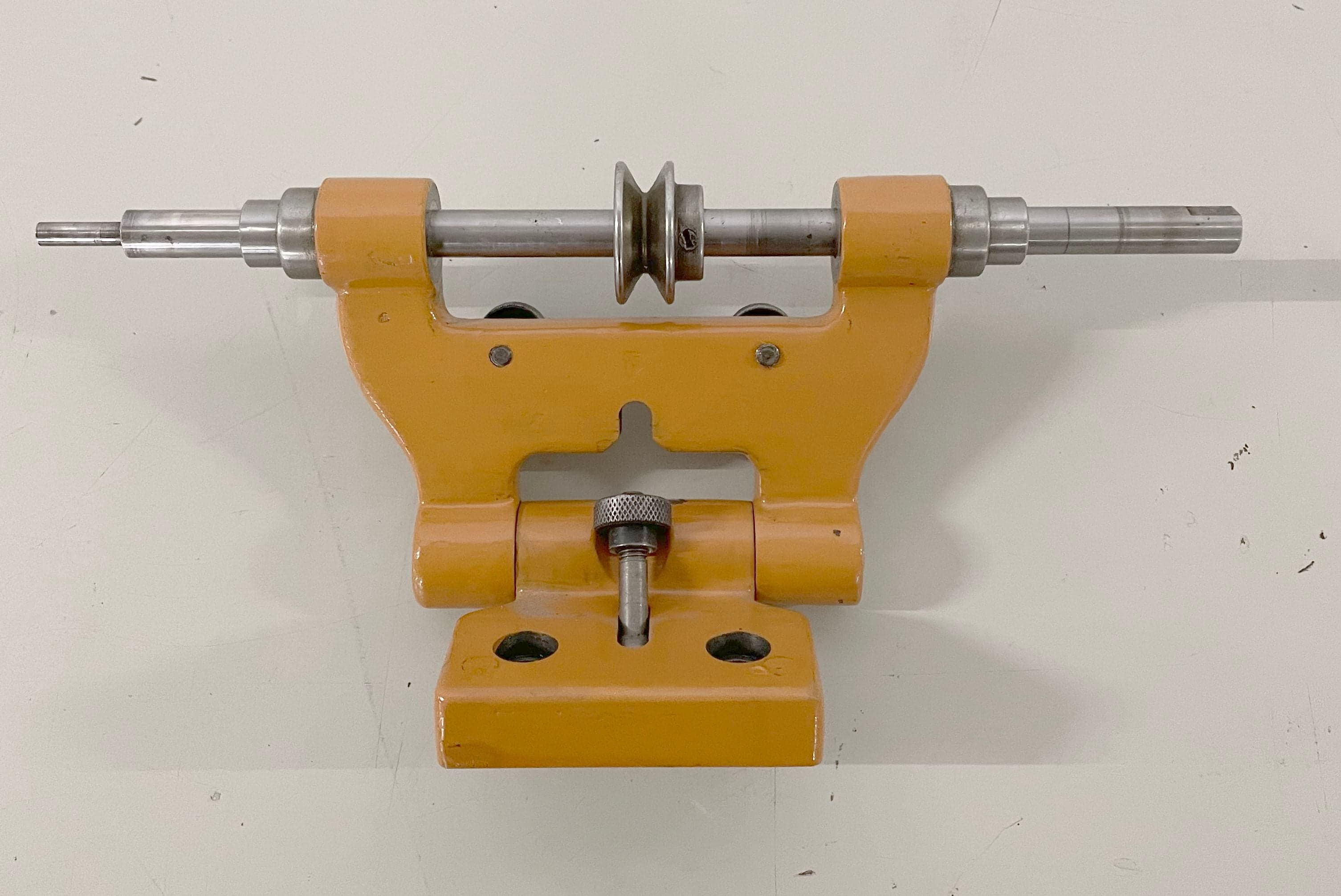

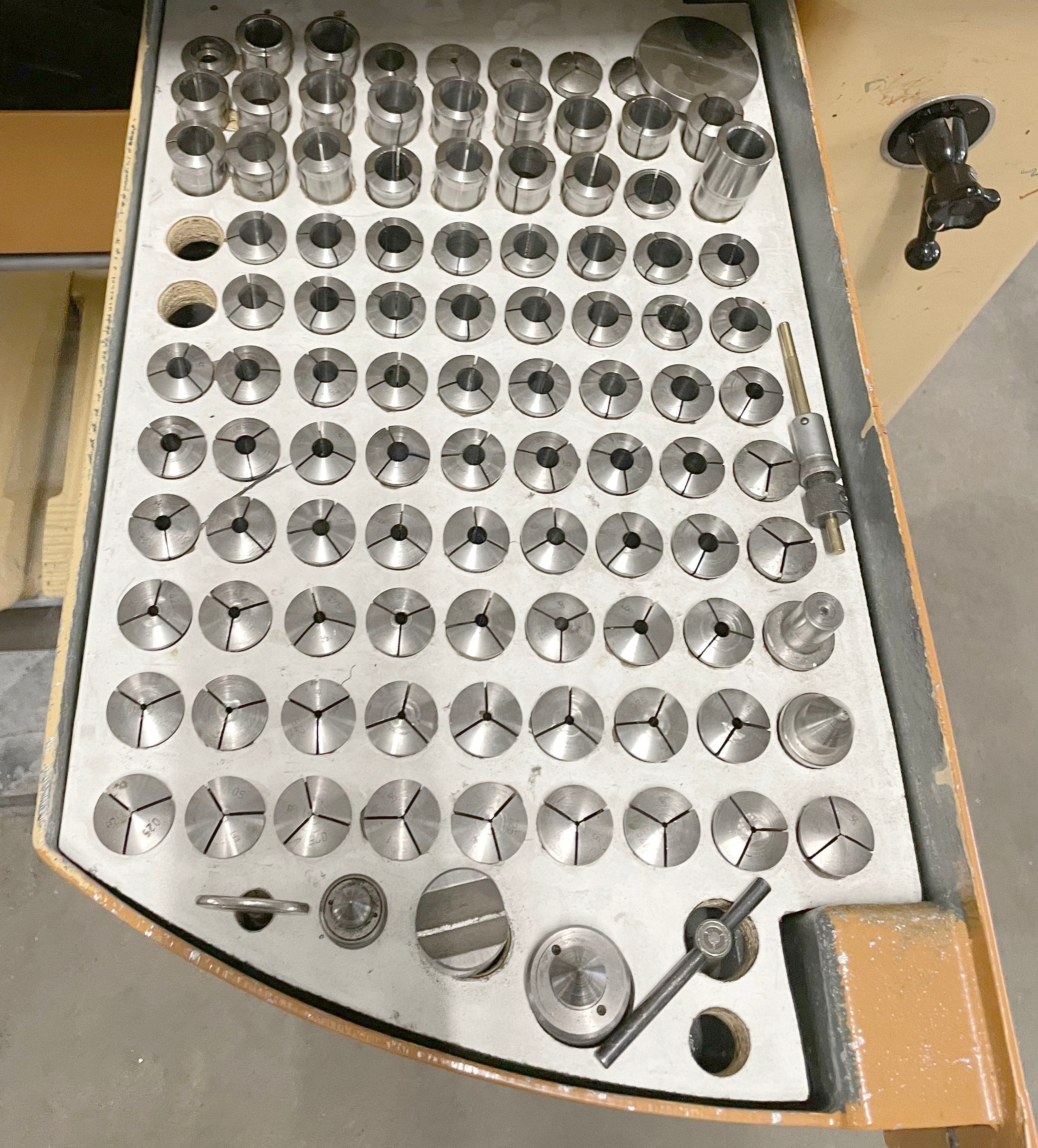

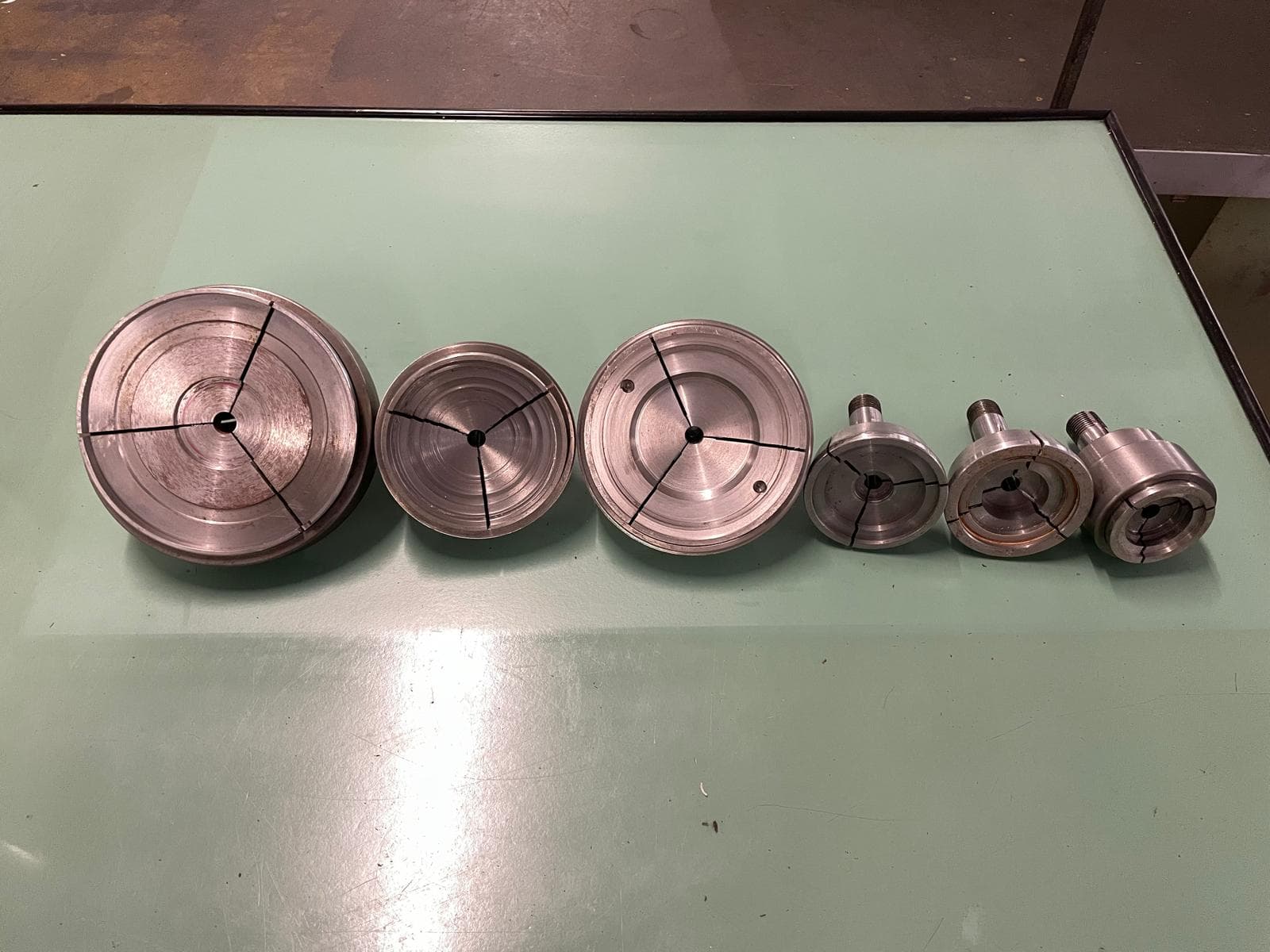

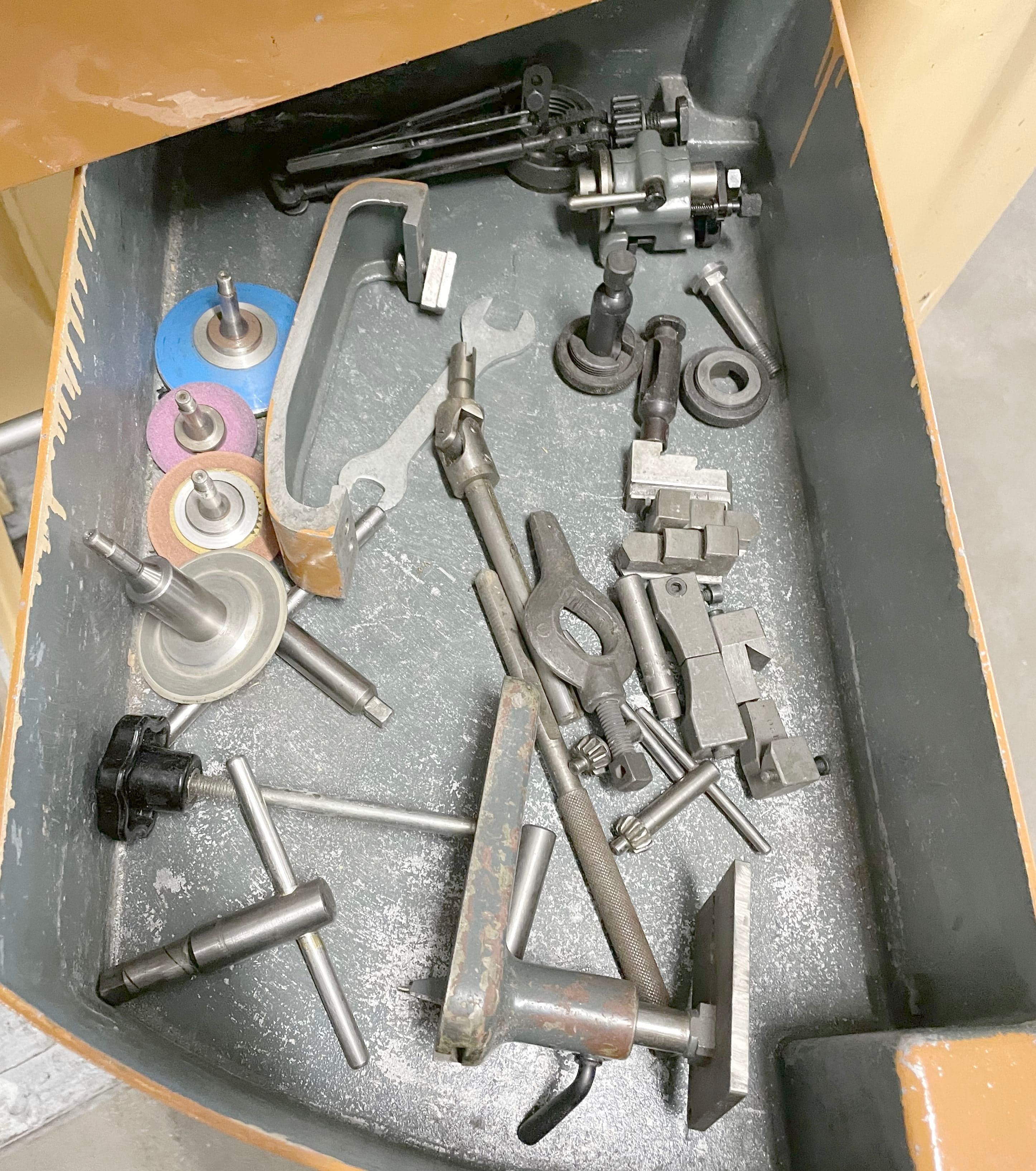

{"Centre height": "102 mm", "Distance between centres": "450 mm", "Swing over cross-slide": "120 mm", "Swing over bed": "200 mm", "Inner taper type": "W20", "Spindle speeds:": "", "number (steps)": "12", "from": "40 t/min", "up to": "3000 t/min", "Spindle motor": "1.5 CV", "Total power required": "2 CV", "Machine's weight about": "500 kg", "Length": "1200 mm", "Width": "600 mm", "Height": "1300 mm", "Various accessories:": "", "Knee-operated reversing switch": "", "2 drawers": "", "Lamp": "", "Driving system for milling and grinding attachment": "", "Belt-tensioning device for milling/grinding att.": "", "Headstock with reduction gear": "", "3-jaw chuck diameter": "110 mm", "Macnetic chuck diameter": "100 mm", "Set of collets": "", "Set bell collets": "", "Tailstock with hand lever": "", "Rotary centre": "", "Drill chuck": "", "Quick change tool": "MULTIFIX", "Set of steel holders": "", "Hand rest": ""}
