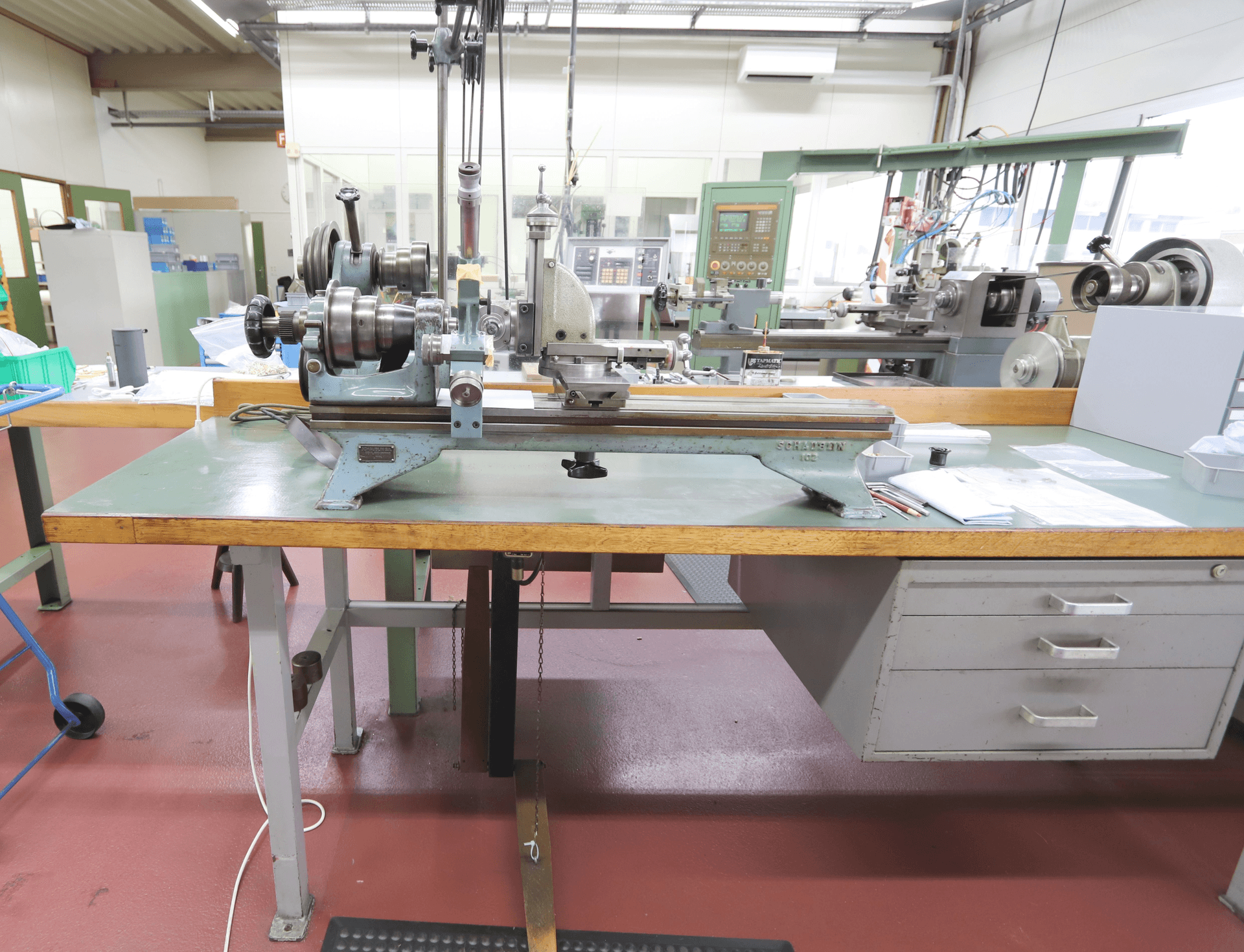

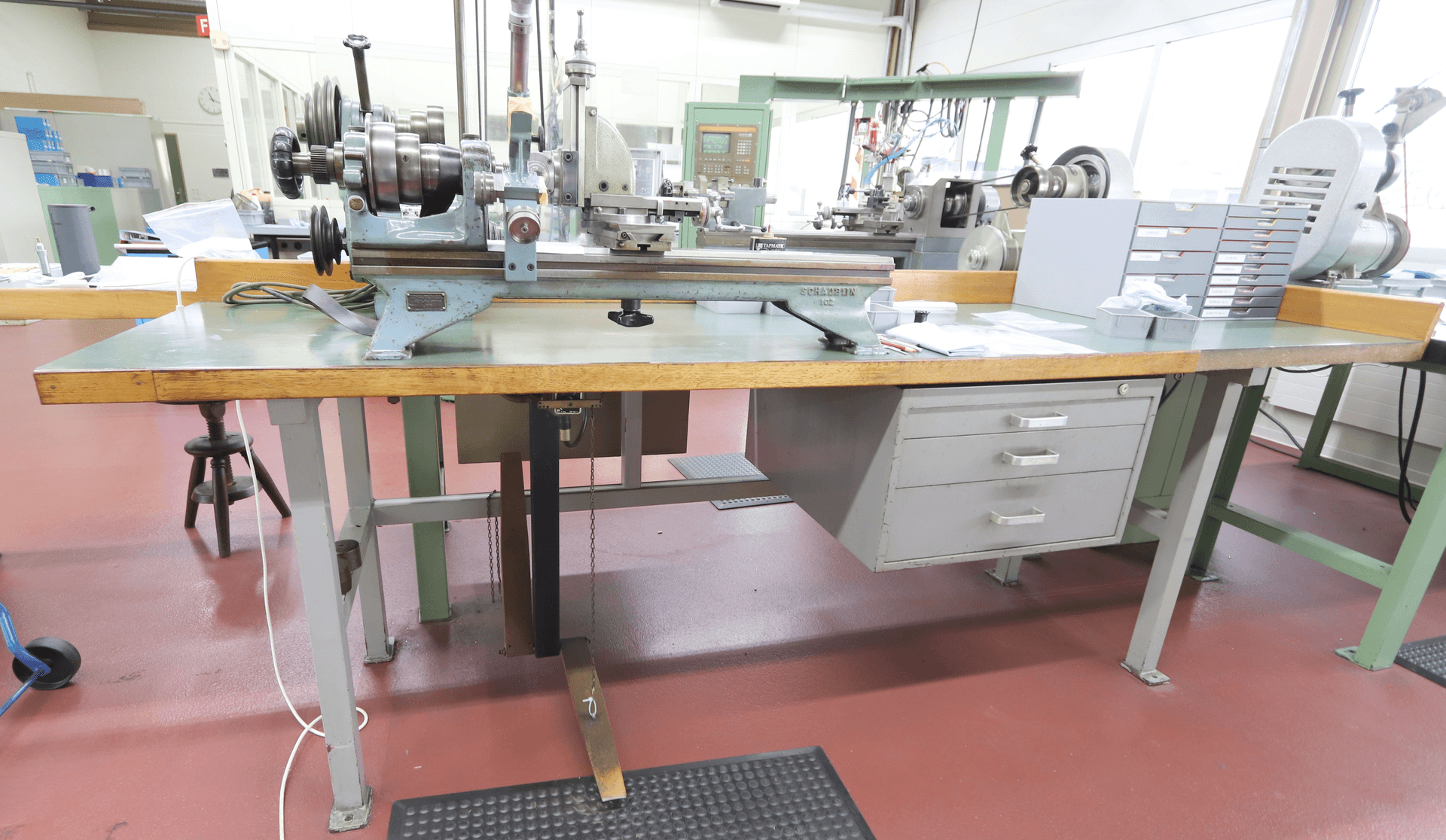

022798 - SCHAUBLIN 102 TO

Price on request

Condition: NEW· Manufacturer: SCHAUBLIN· Country: Switzerland

Description

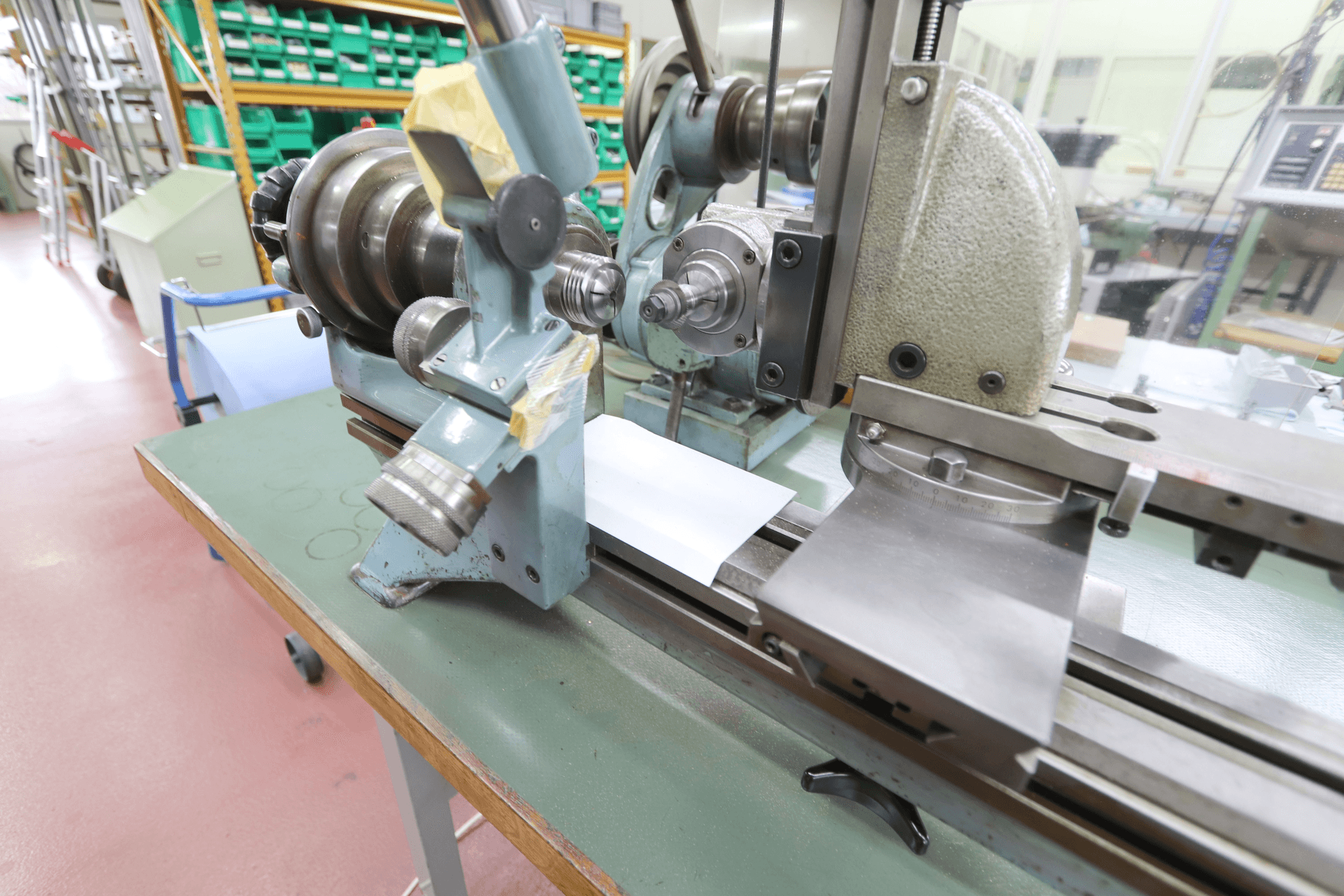

{"Centre height": "102 mm", "Distance between centres": "375 mm", "Swing over cross-slide": "120 mm", "Swing over bed": "200 mm", "Inner taper type": "20 W", "Spindle speeds:": "", "number (steps)": "12", "from": "45 t/min", "up to": "2800 t/min", "Voltage 50 Hz 3x": "380 Volt", "Spindle motor": "0.5 CV", "Machine's weight about": "300 kg", "Overall dimensions machine:": "", "Length": "2000 mm", "Width": "800 mm", "Height": "900 mm", "Various accessories:": "", "On work bench:": "", "Working bench:": "", "Rear drive": "", "Drawer(s)": "3", "Driving system for milling and grinding attachment": "", "Belt-tensioning device for milling/grinding att.": "", "Set of hard jaws": "", "Milling attachment": ""}

Send Enquiry

Seller

Muller Machines SA
