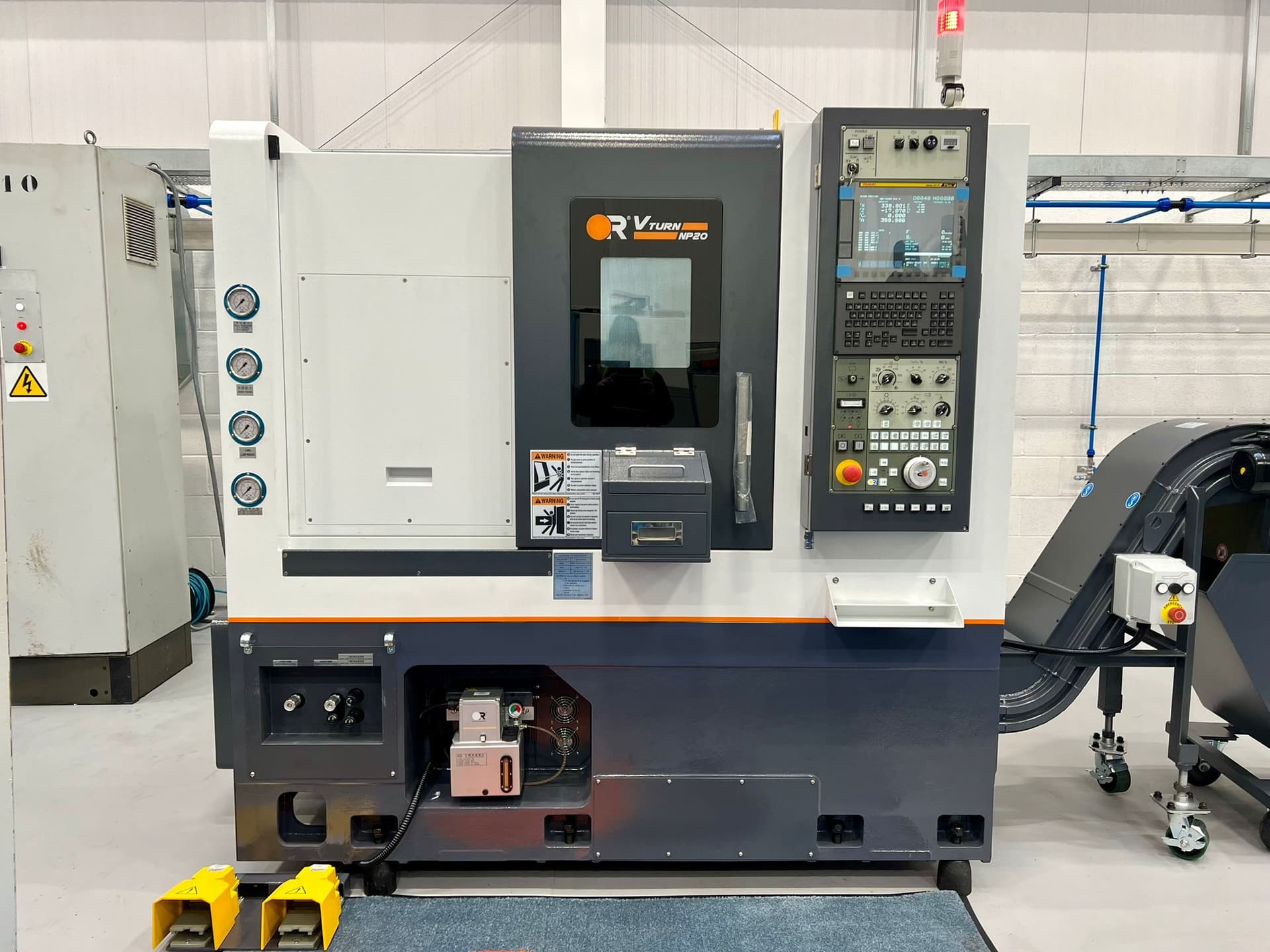

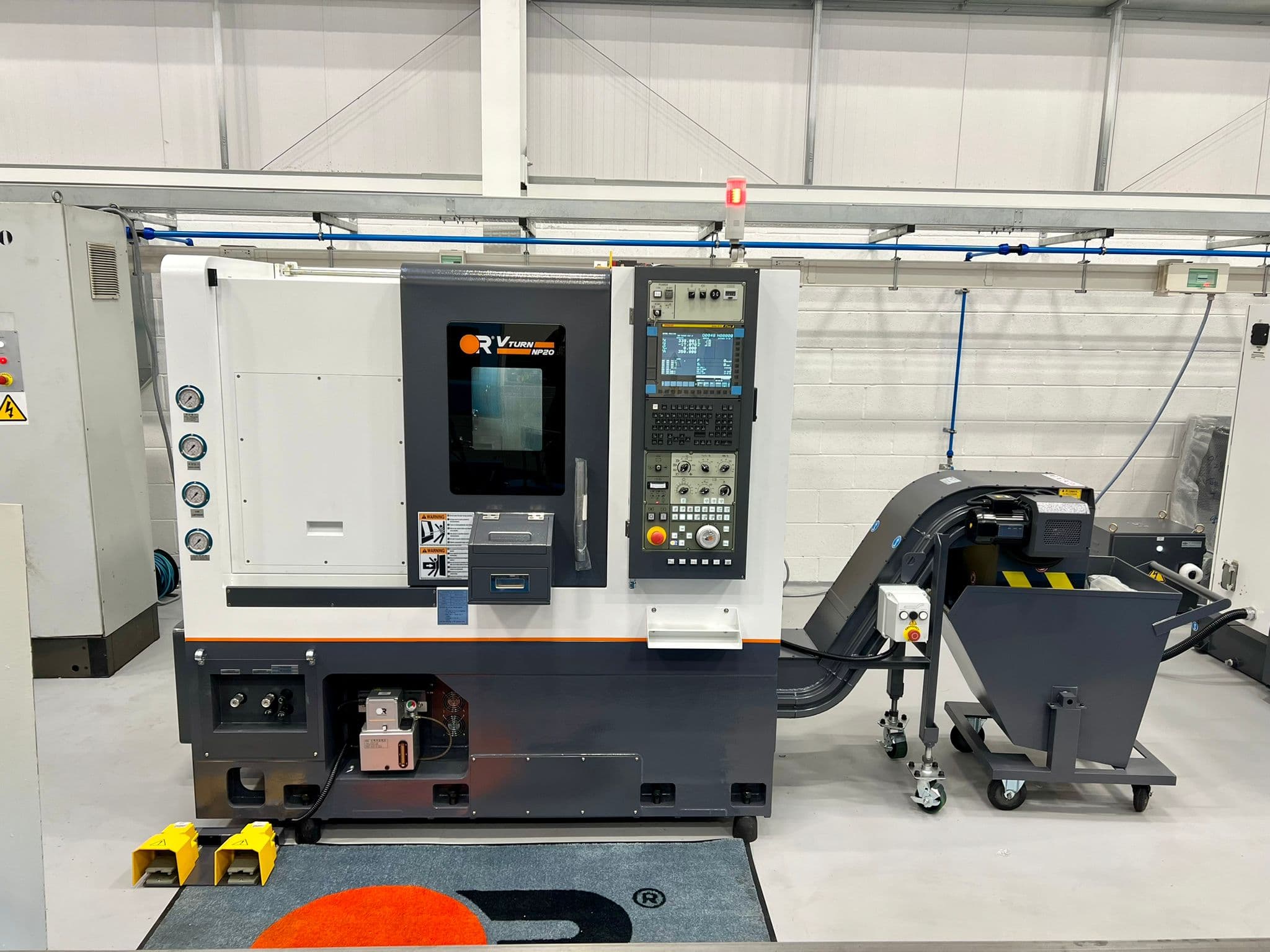

NEW VICTOR NP20CM CNC Lathe with Driven Tooling, Large Spindle Bore and Fanuc 0i-TF Control

Description

Swing over bed dia 650mm. Standard turning dia 234mm. Maximum turning dia 260mm. Swing over carriage dia 365mm. Distance between centres 520mm. Bar capacity 66mm. Travels X/Z 50 + 130/400 mm. Rapid feed – X/Z axis m/min 30/30. Feed motor X/Z axis kW 1.8 / 1.8. JOG feed mm/min X/Z: 0 ~ 1260. Ballscrew dia. x pitch mm 25 x P10 (X)40 x P10 (Z). Guideway width – X/Z axis mm 35/35. Spindle speed rpm 4200. Spindle nose (chuck) in A2-6 (8”). Spindle motor power (cont./30min/25%) kW 7.5 / 11 / 15. Spindle bearing inside dia. mm 100. Spindle taper mm 1/20. No. of tools (live) 12. Tool shank size 25mm. Max. boring bar dia 40mm (BMT-55). Exchange time (T-T) sec 0.9 (opposite). Milling speed rpm 6000. Milling motor kW 2.2. Tailstock quill dia. 75mm. Quill stroke 80mm. Quill taper M.T. #4. Fanuc 0i-TF Plus. 10.4” Colour display with QWERTY keypads. Manual Guide I. 2GB CF Card. BMT-55 turret (CM, belt-driven, max milling speed 6000rpm). 8” Hydraulic chuck with 66mm bar capacity. Oil Skimmer. Chip conveyor & cart (right exit). Parts catcher, head mounted, hydraulic. Bar feeder interface. Manual tailstock. Renishaw manual tool pre-setter. High-pressure coolant (Grundfos SPK4-8). AICC (40 Blocks). C-axis BMT turret (CM, belt driven, max milling speed 6000rpm). Large spindle bore – Bar capacity 66mm. Machine dimension (L x W x H) 1930 x 2257 x 1890 mmWeight 4370Kg
