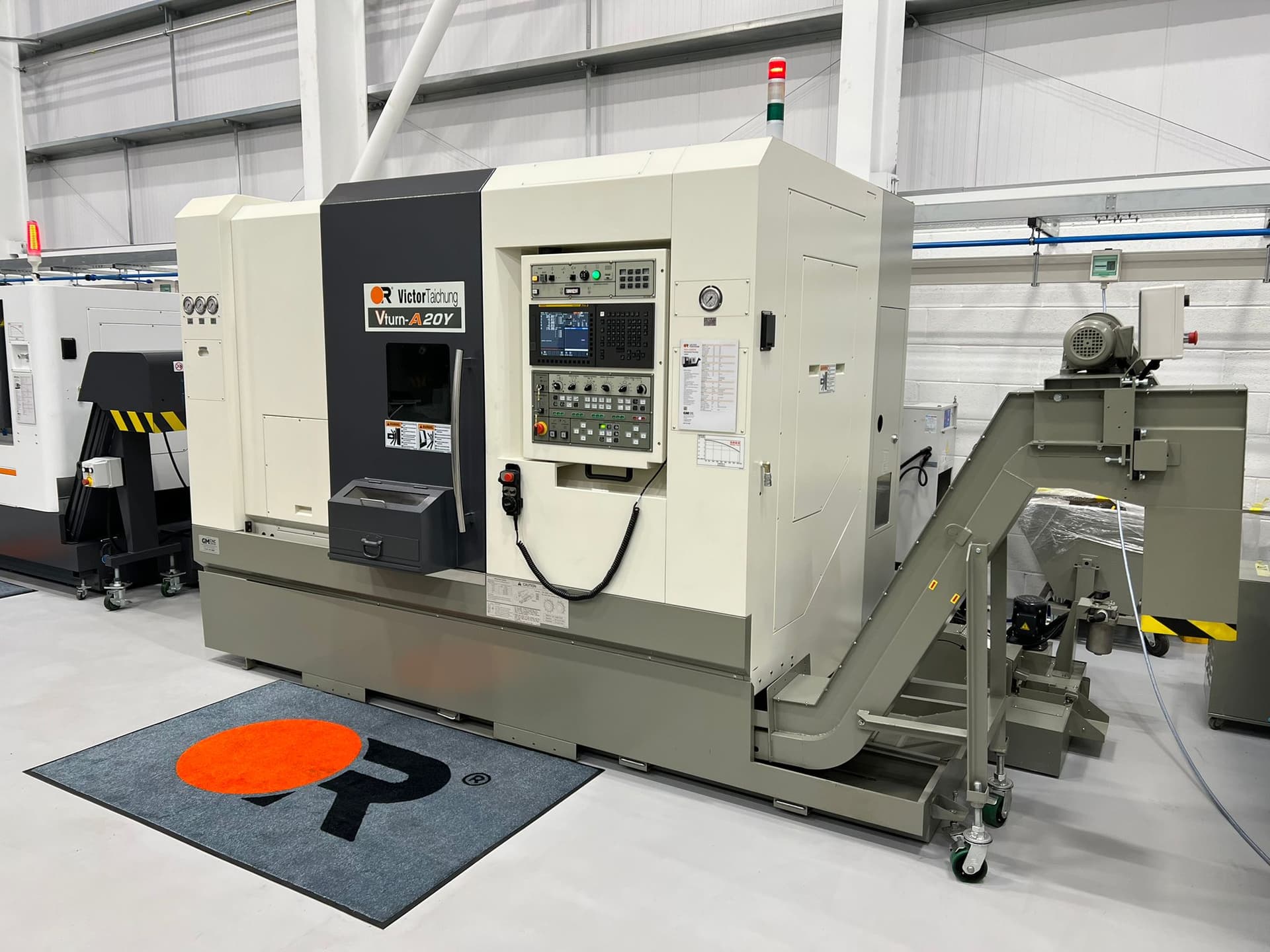

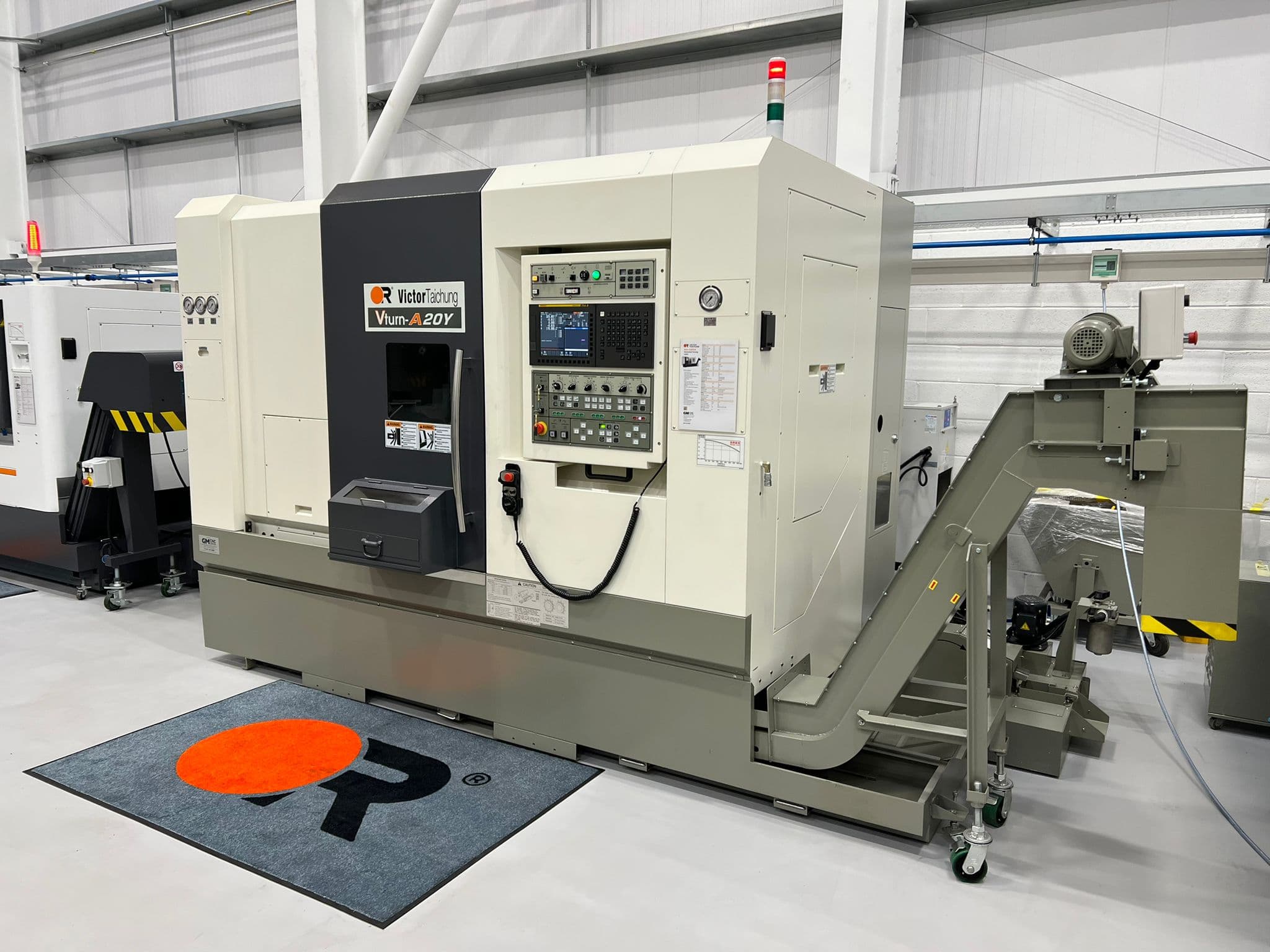

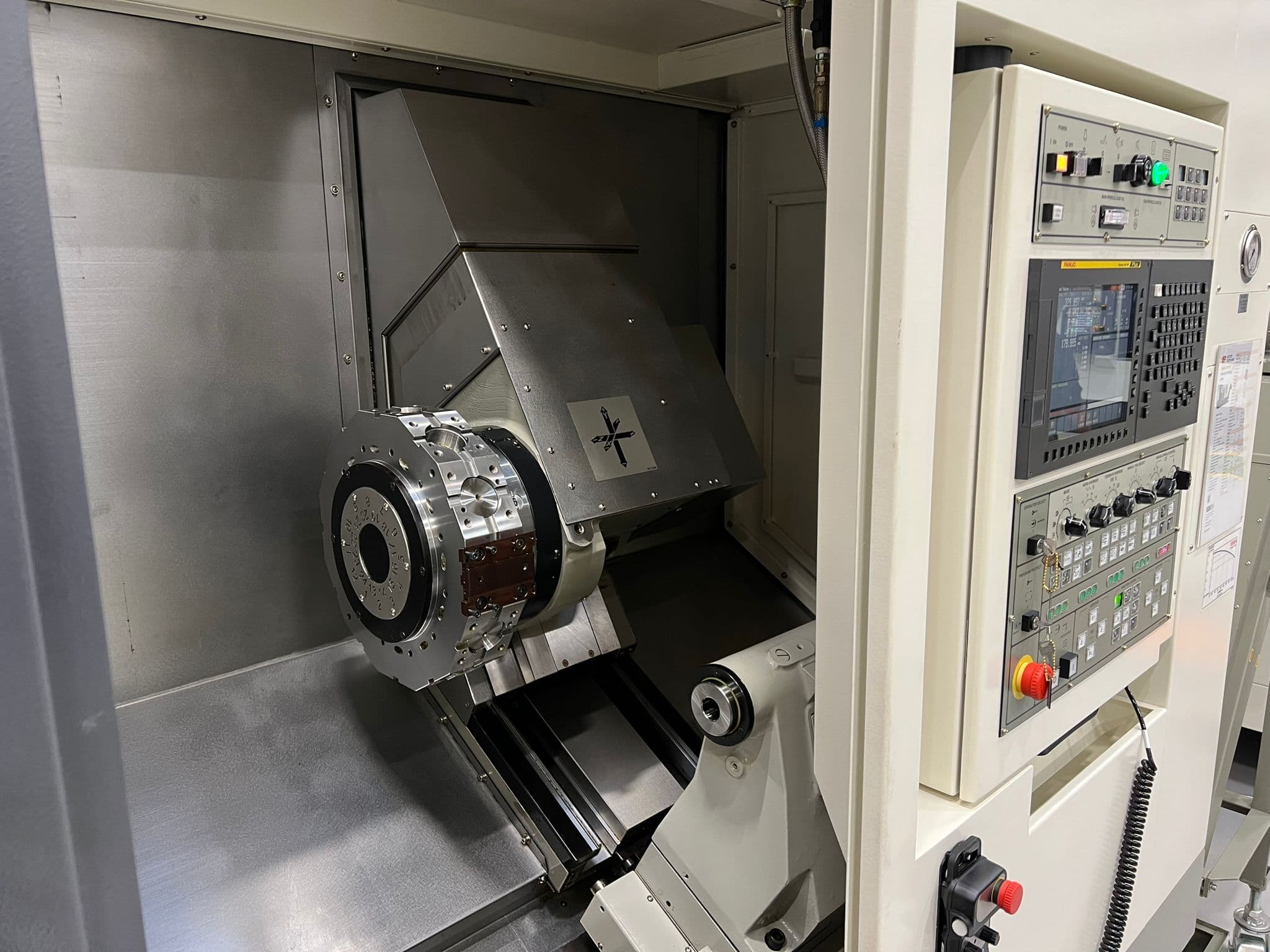

NEW VICTOR A20YCM CNC Lathe with Y axis and Driven Tooling. Fanuc 0i-TF Control

Description

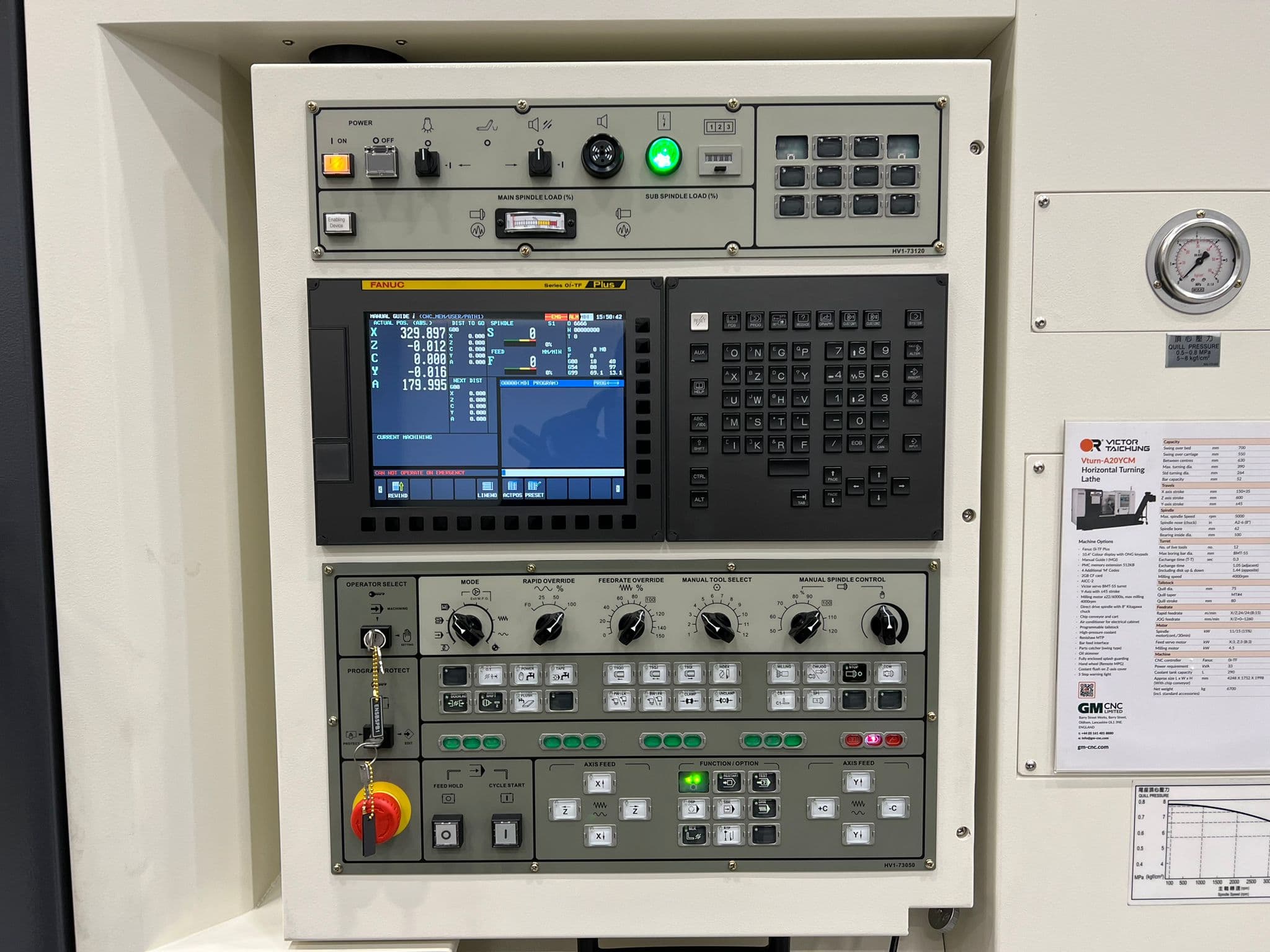

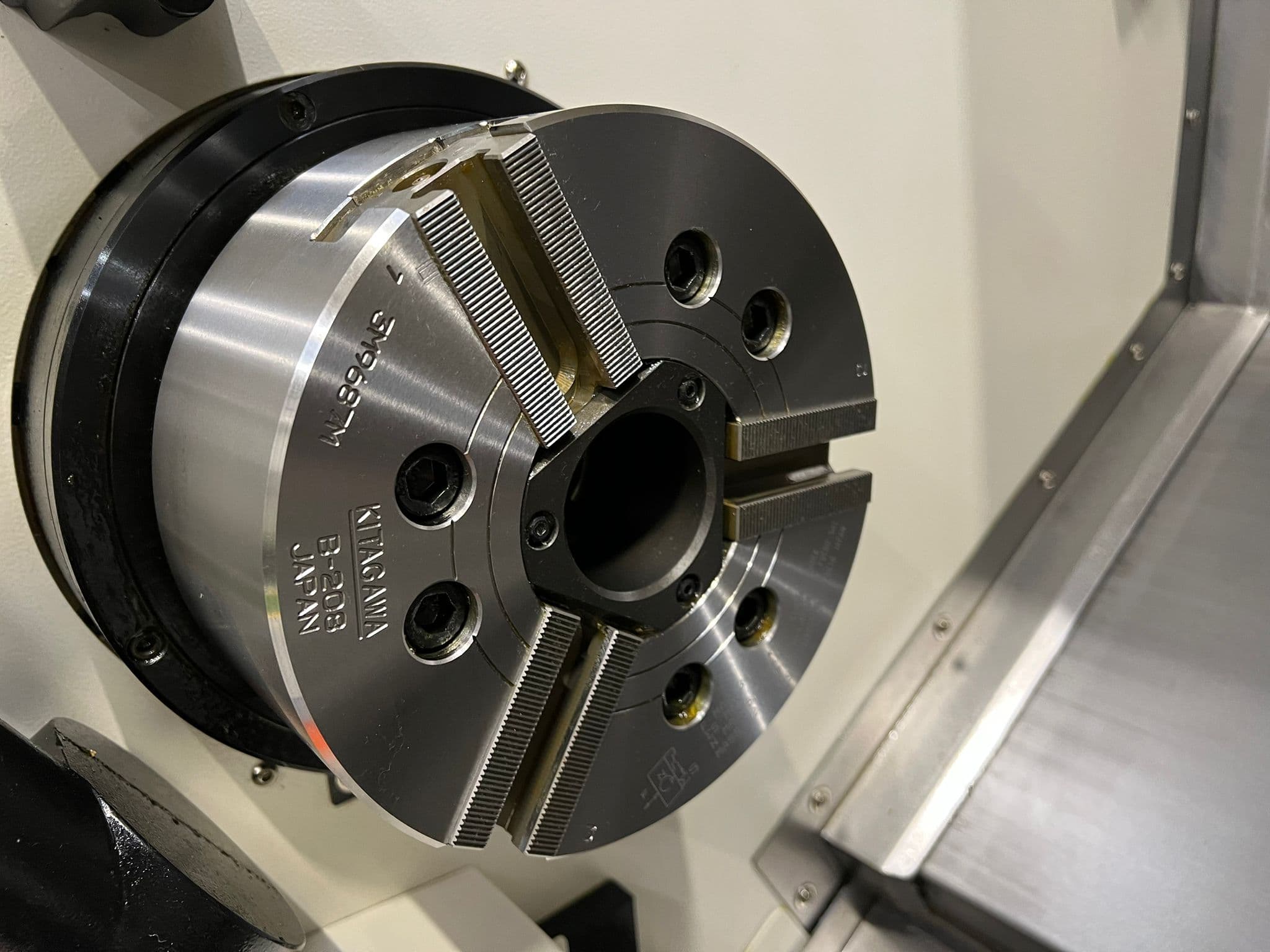

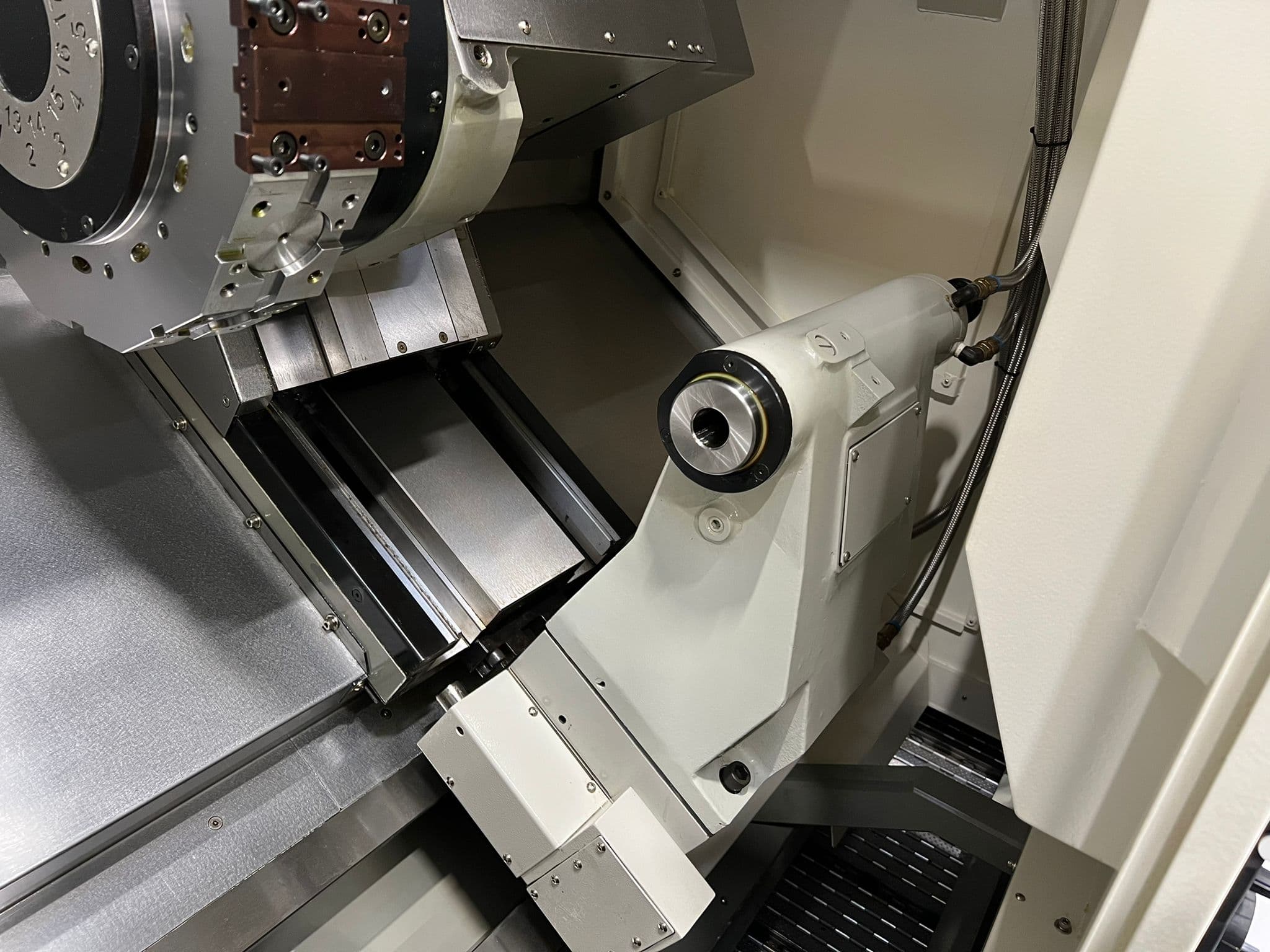

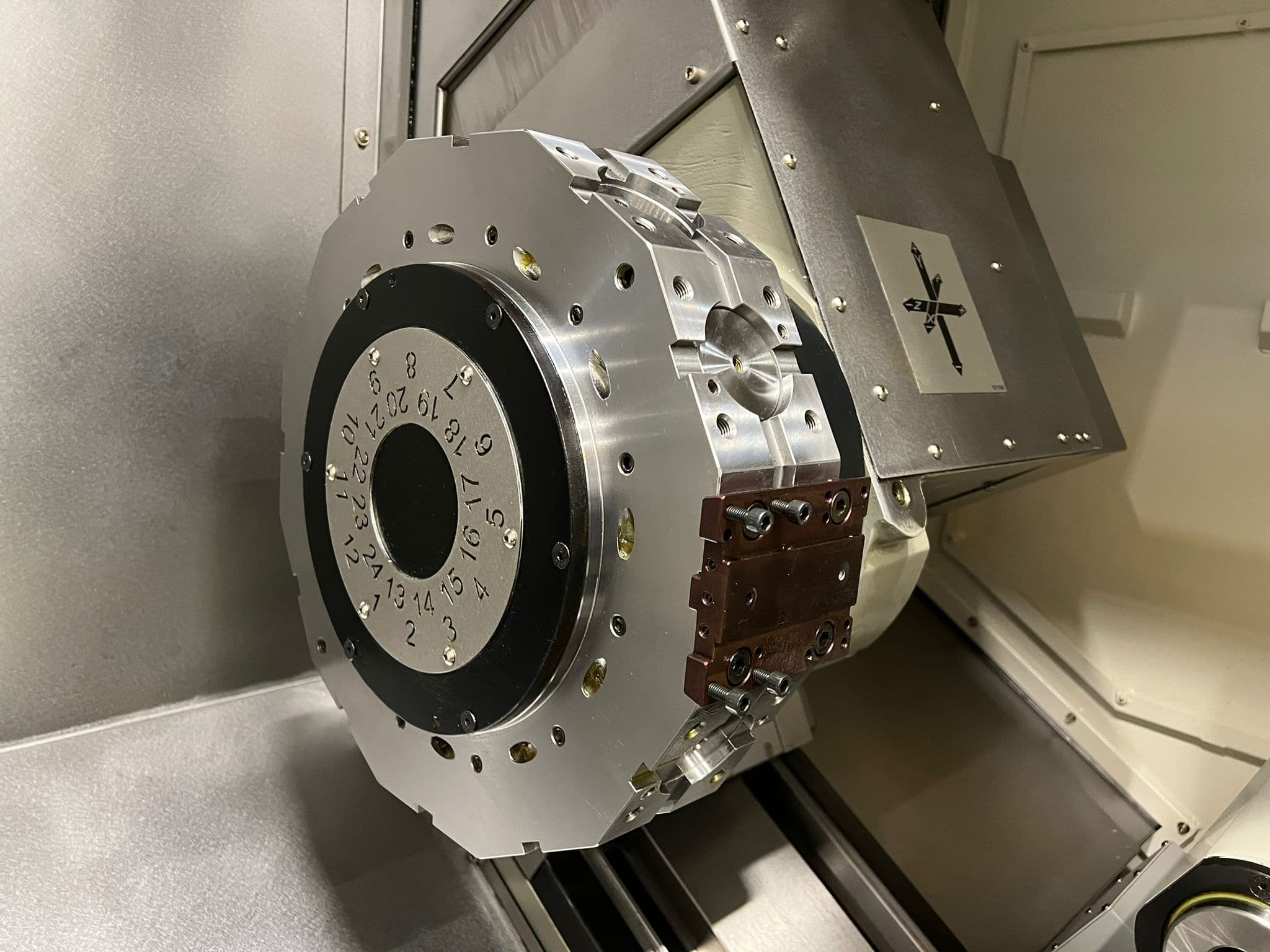

Swing over bed 700mm. Swing over carriage 550mm. Between centres 630mm. Max. turning dia. 390mm. Standard turning dia. 264mm. Bar capacity 52mm. Travels X/Y/Z 150 + 35/600/+-45. Max. spindle Speed rpm 5000. Spindle nose (chuck) in A2-6 (8”). Spindle bore 62mm. Bearing inside dia. 100mm. No. of live tools no. 12. Max boring bar dia. mm BMT-55. Exchange time (T-T) sec 0.3. Exchange time (including disk up & down) 1.05 (adjacent) 1.44 (opposite). Milling speed rpm 4000. Quill dia. 75mm. Quill taper MT#4. Quill stroke 80mm. Rapid feedrate m/min X/Z:24/24:(B:15). JOG feedrate mm/min X/Z=0~1260. Spindle motor(cont./30min) kW 11/15 (15%). Feed servo motor kW X:3, Z:3 (B:3). Milling motor kW 4.5. Fanuc 0i-TF Plus. 10.4” Colour display with ONG keypads. Manual Guide I (MGI). PMC memory extension 512KB. 4 Additional ‘M’ Codes. 2GB CF card. AICC-2. Victor servo BMT-55 turret. Y-Axis with ±45 stroke. Direct drive spindle with 8” Kitagawa chuck. Chip conveyor and cart. Air conditioner for electrical cabinet. Programmable tailstock. High-pressure coolant. Renishaw MTP. Bar feed interface. Parts catcher (swing type). Oil skimmer. Fully enclosed splash guarding. Hand wheel (Remote MPG). Coolant flush on Z-axis cover. 3 Step warning light Dimensions L x W x H 4248 x 1752 x 1998mm.Weight 6700Kg
