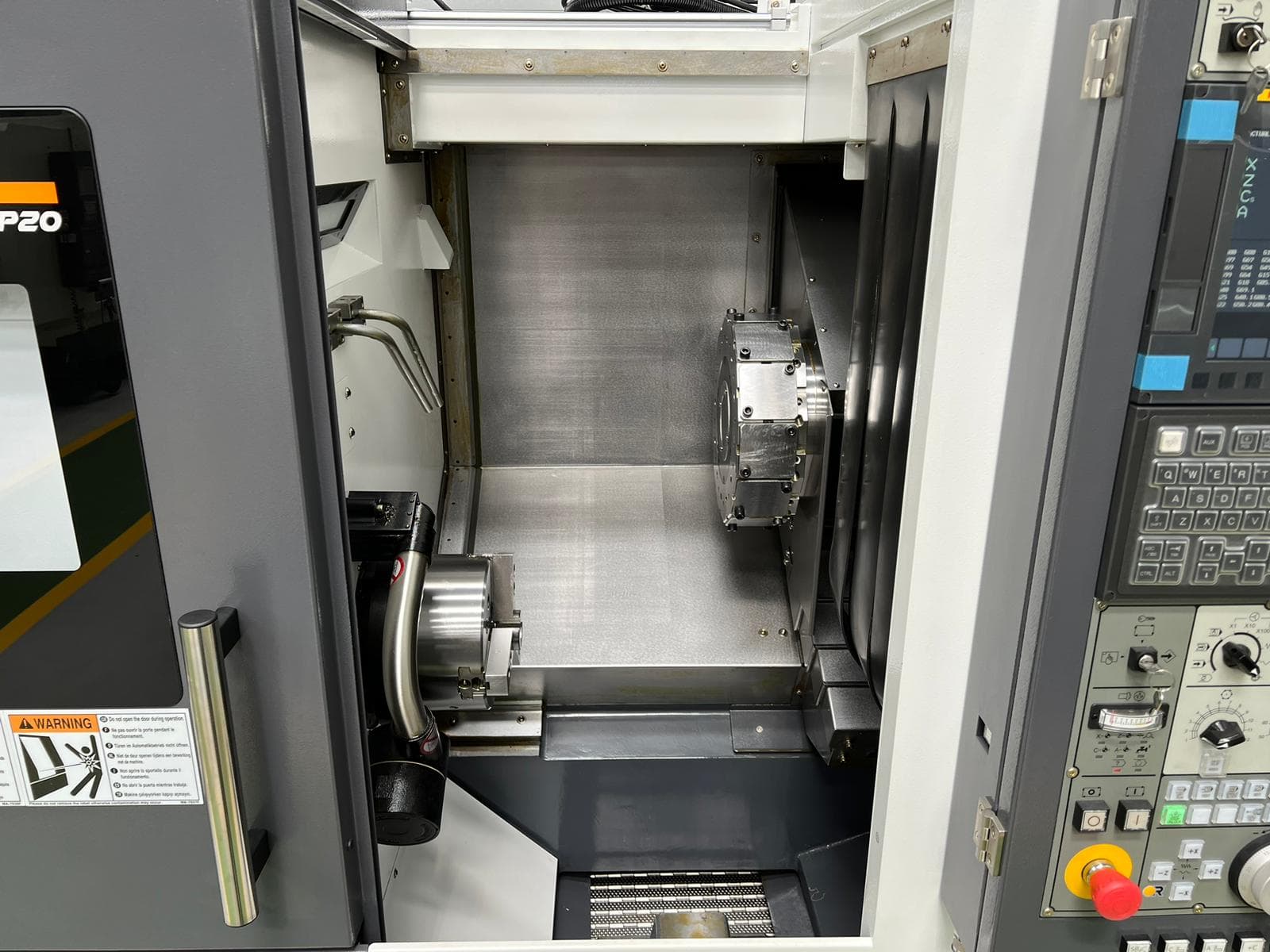

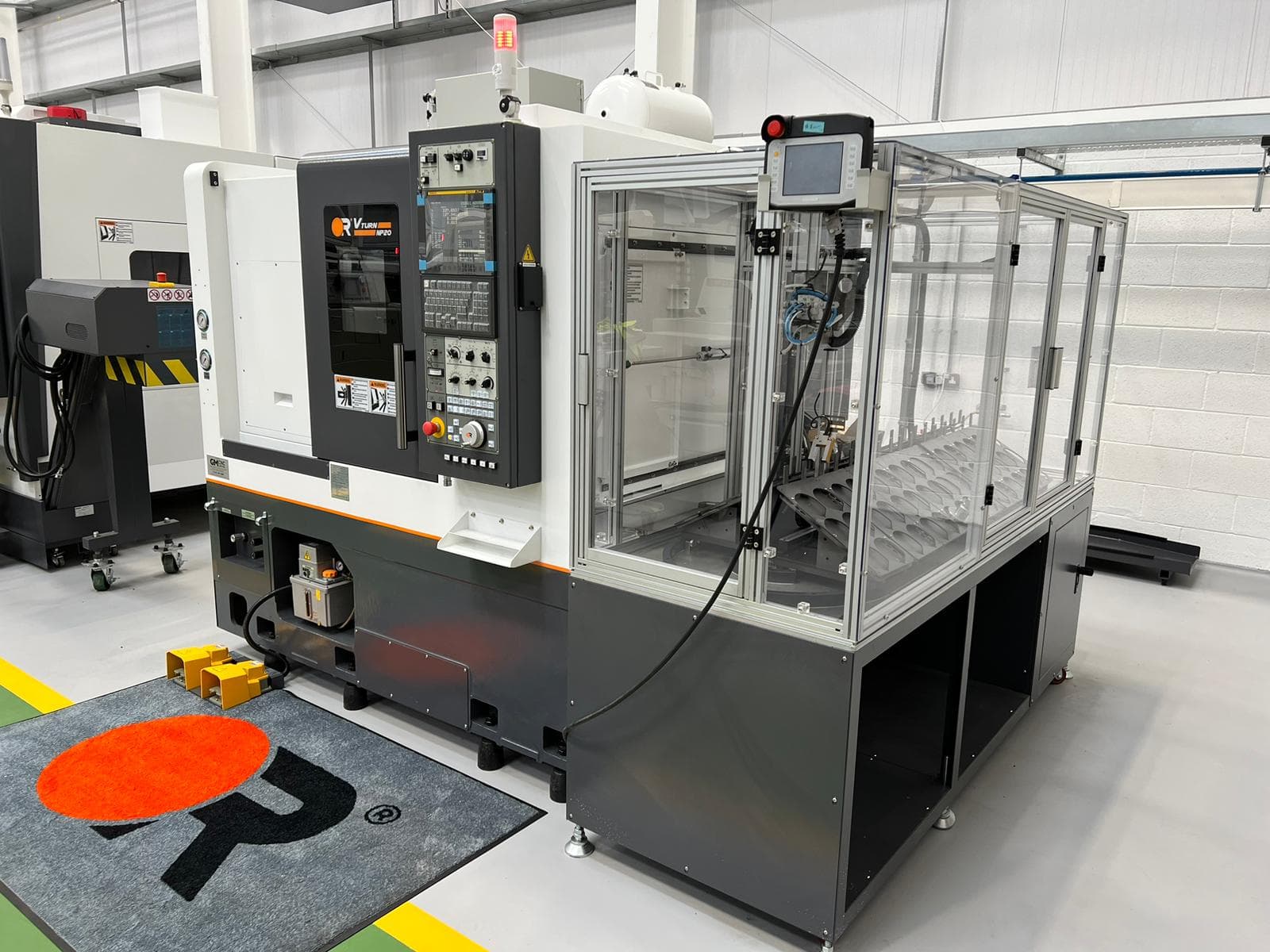

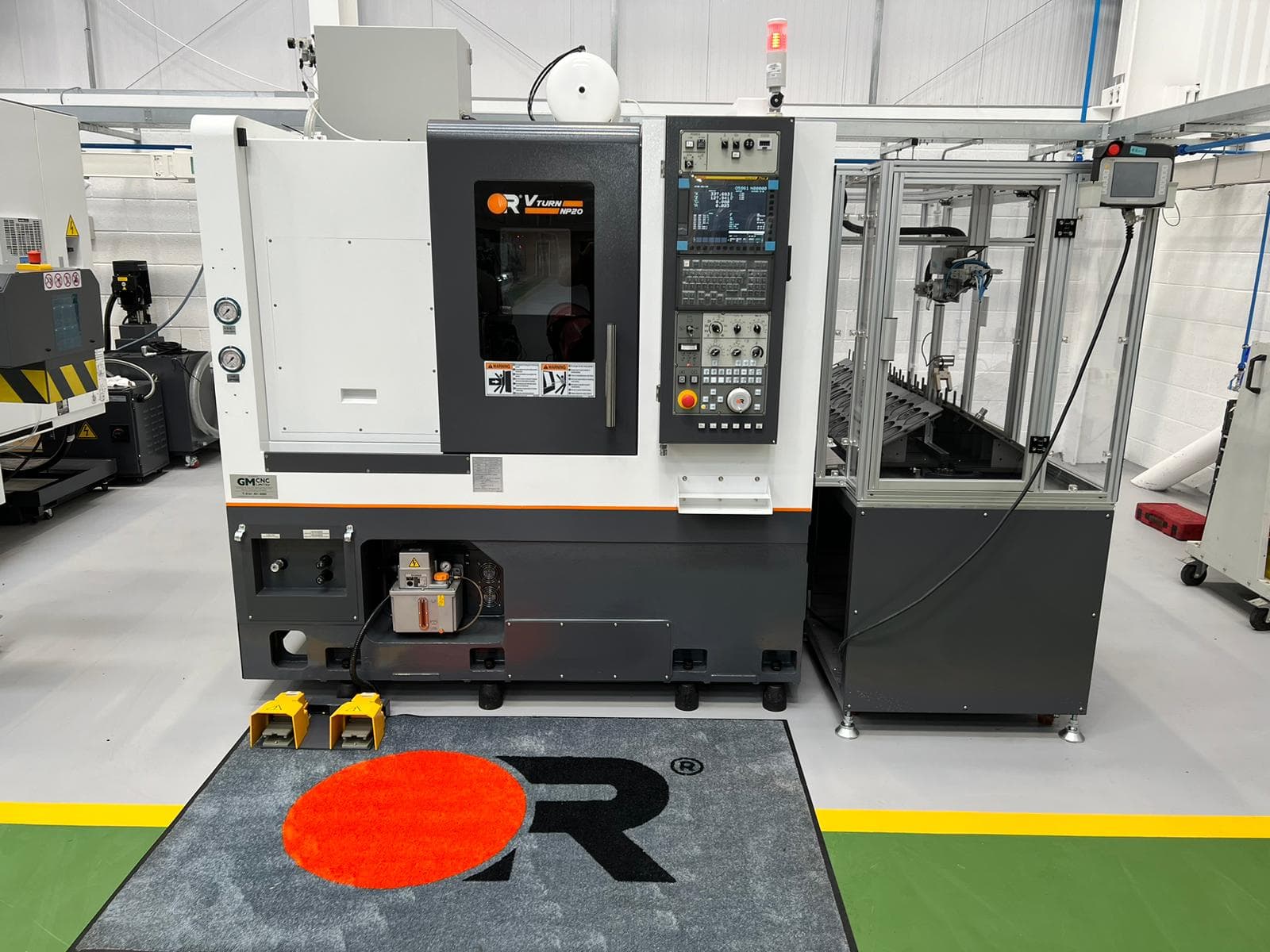

NEW VICTOR NP20CM CNC Lathe with Driven Tooling and Fanuc 0i-TF Control

Description

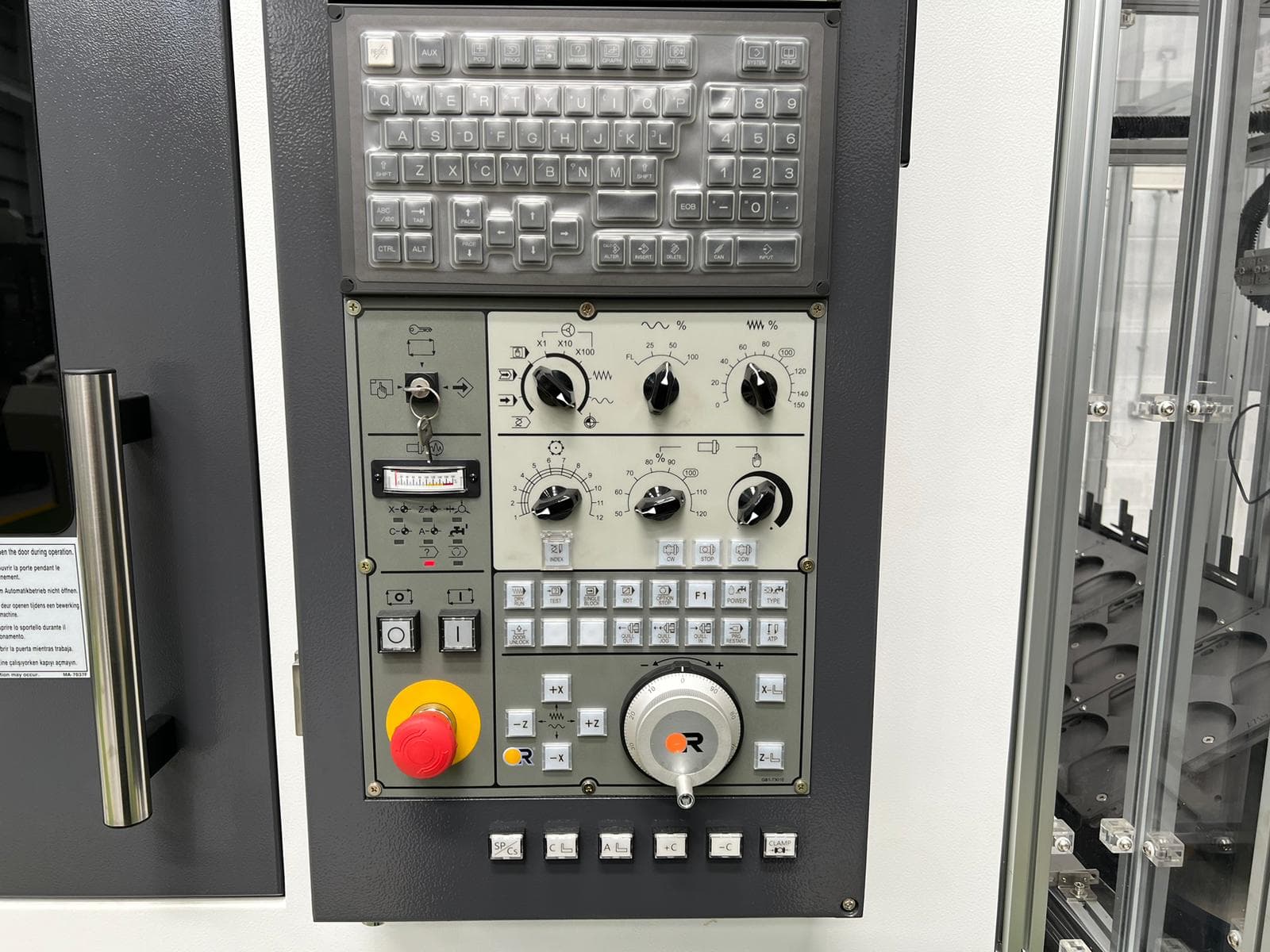

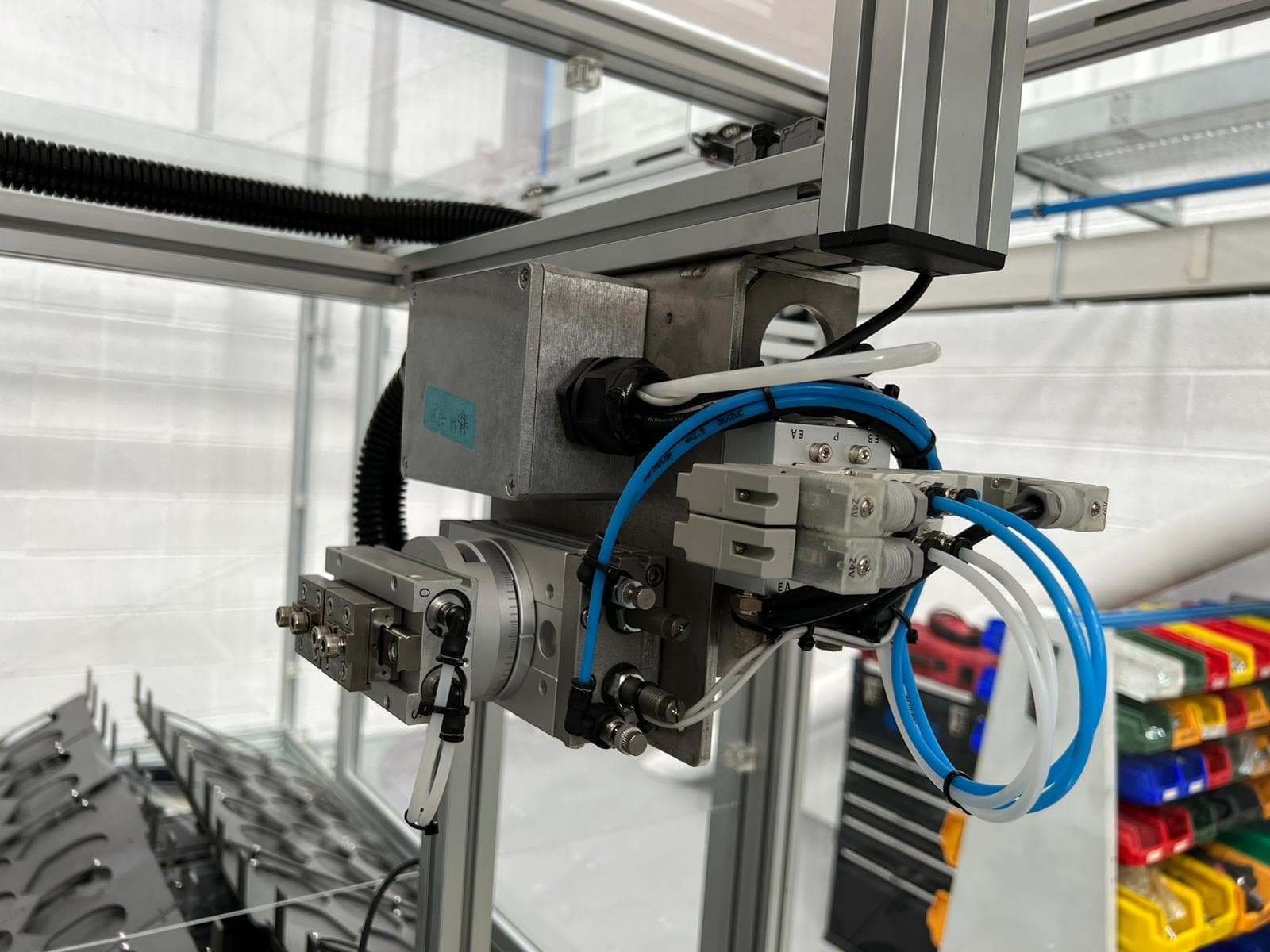

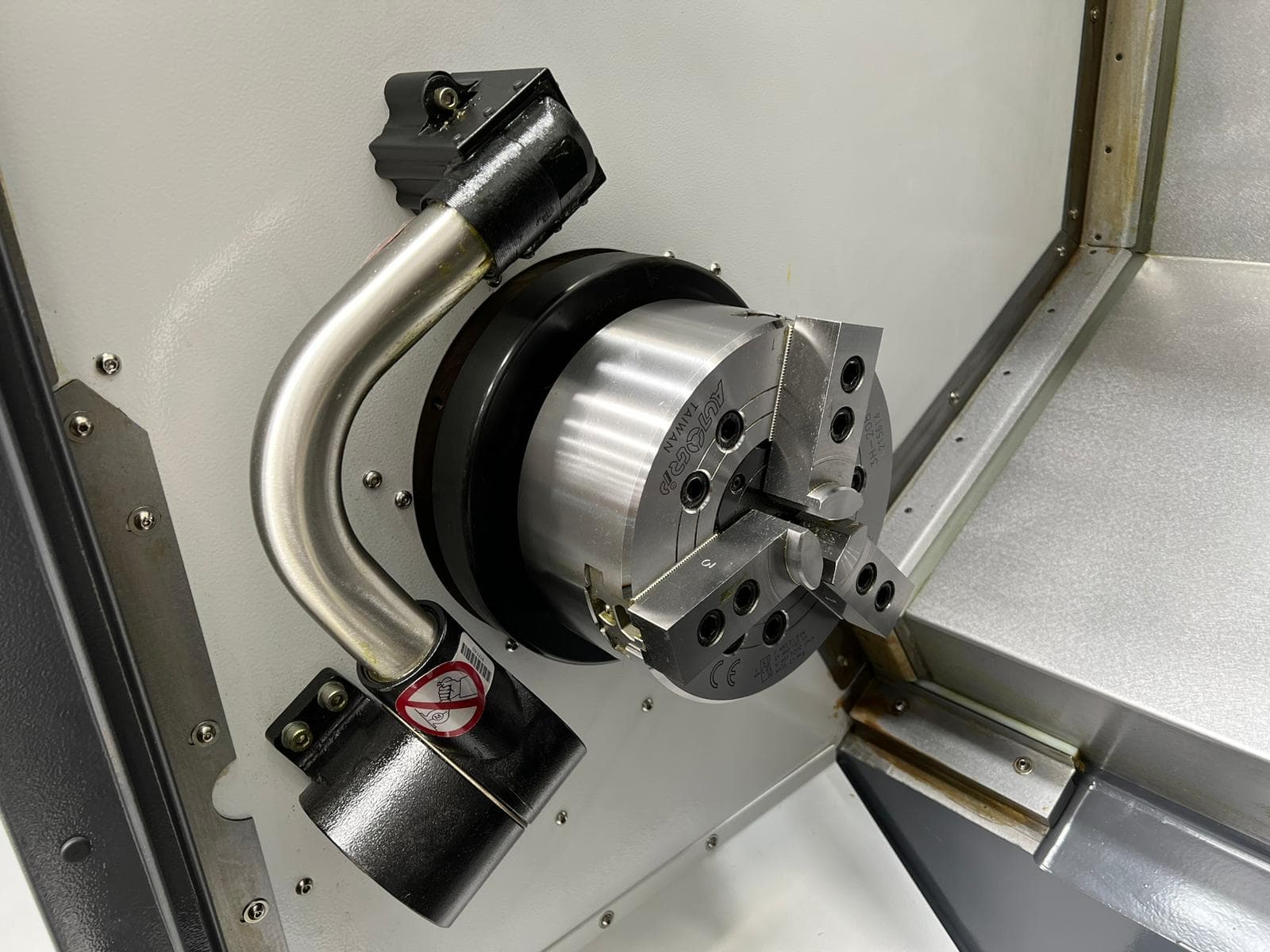

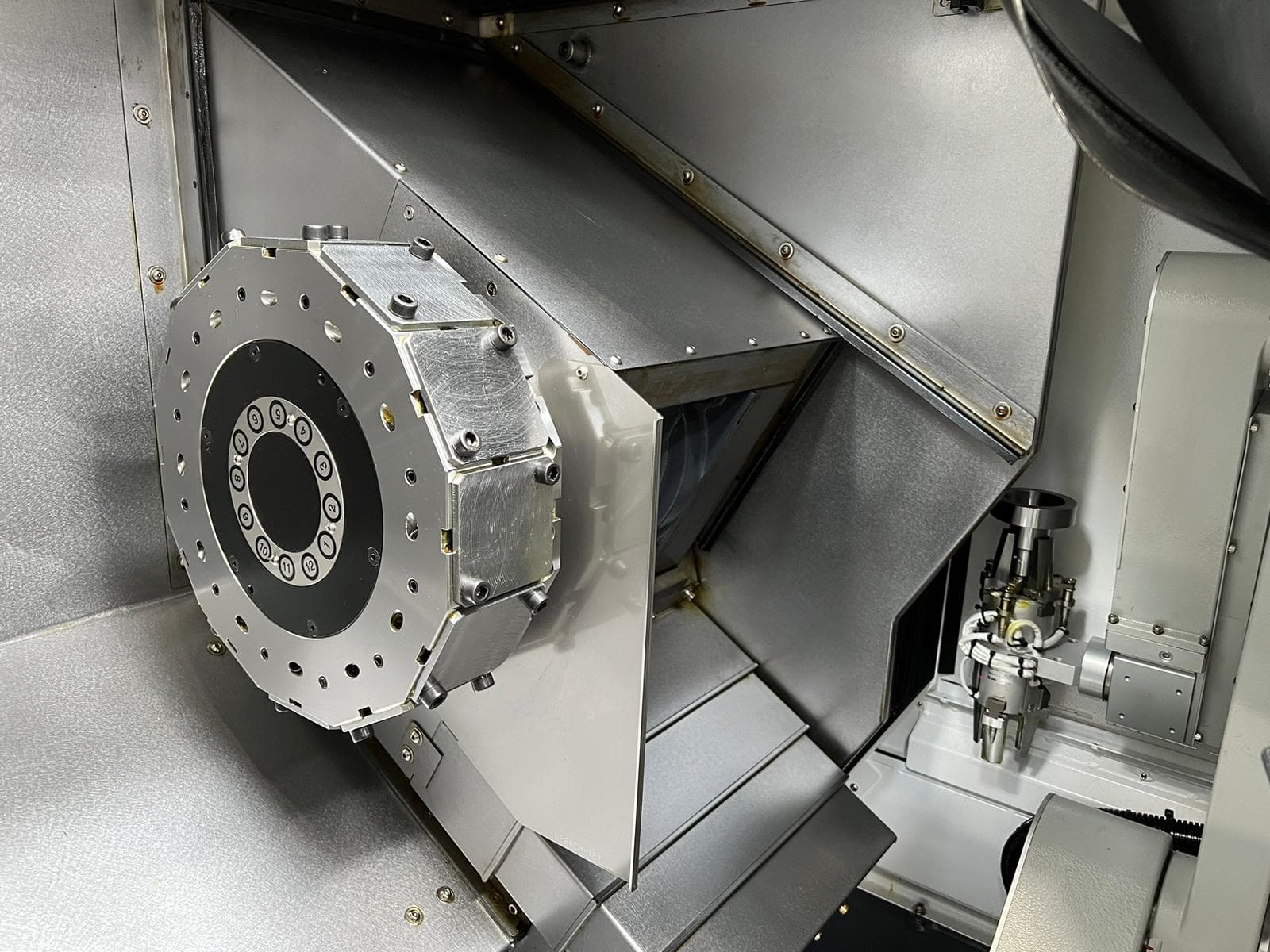

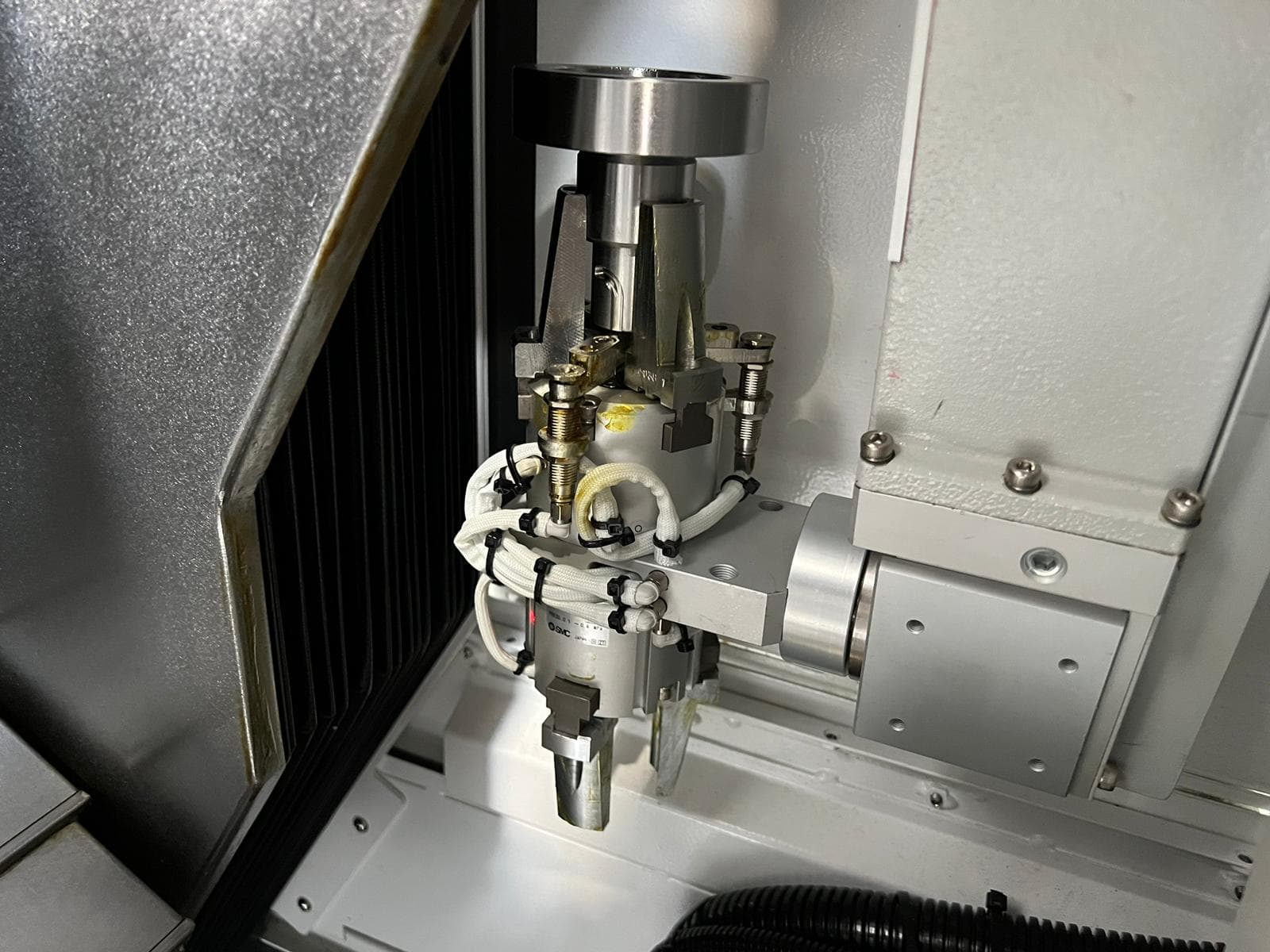

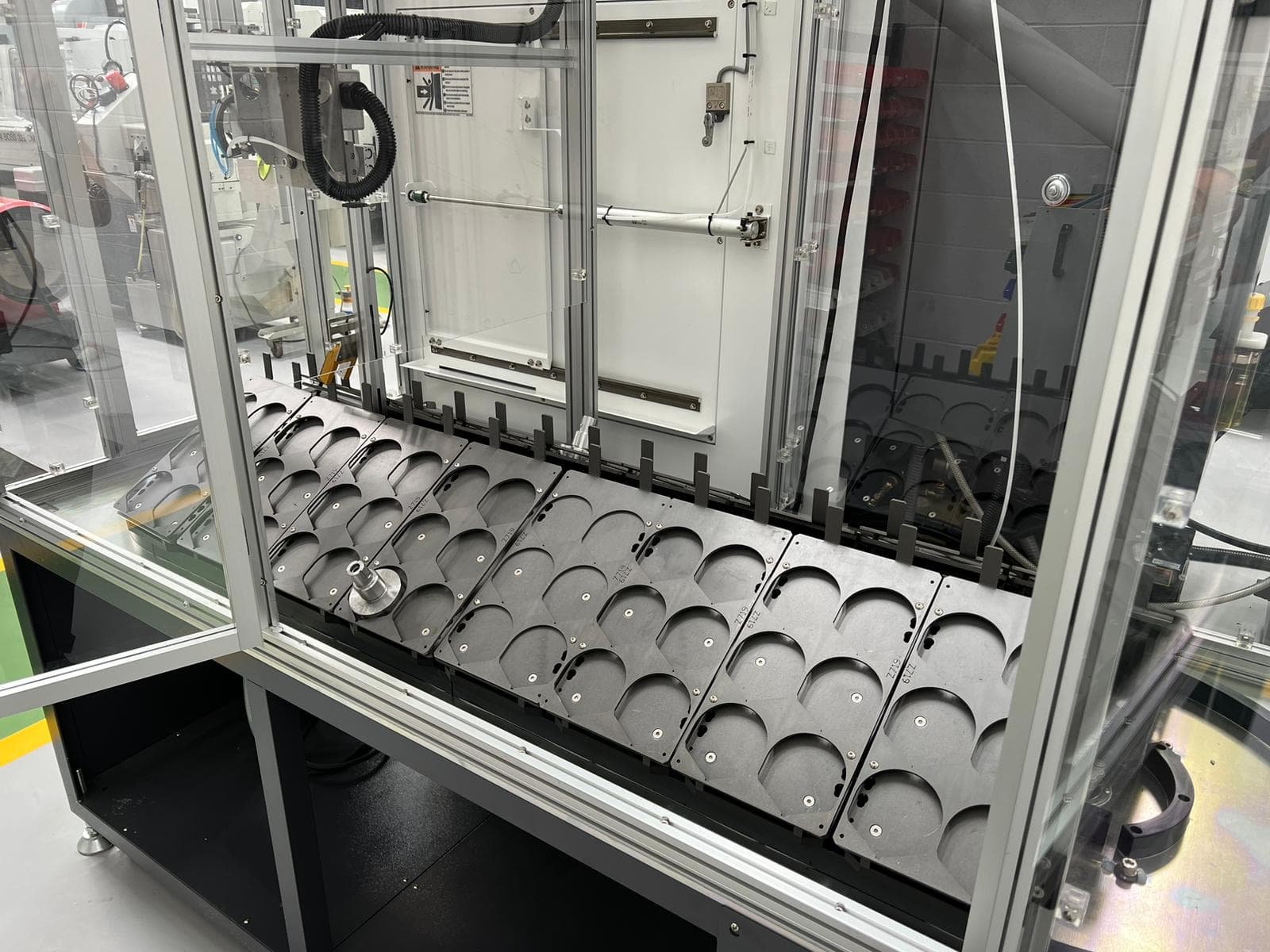

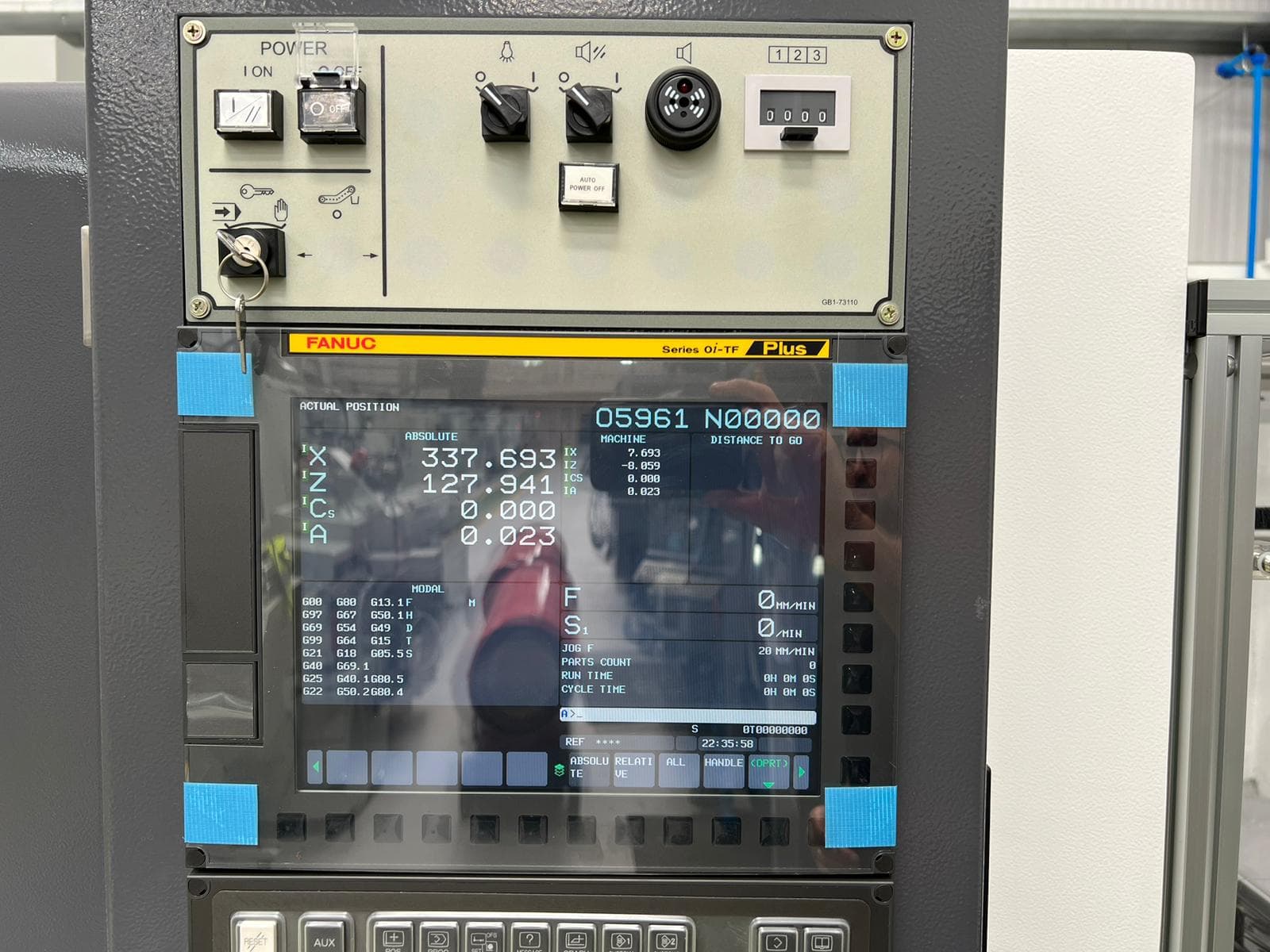

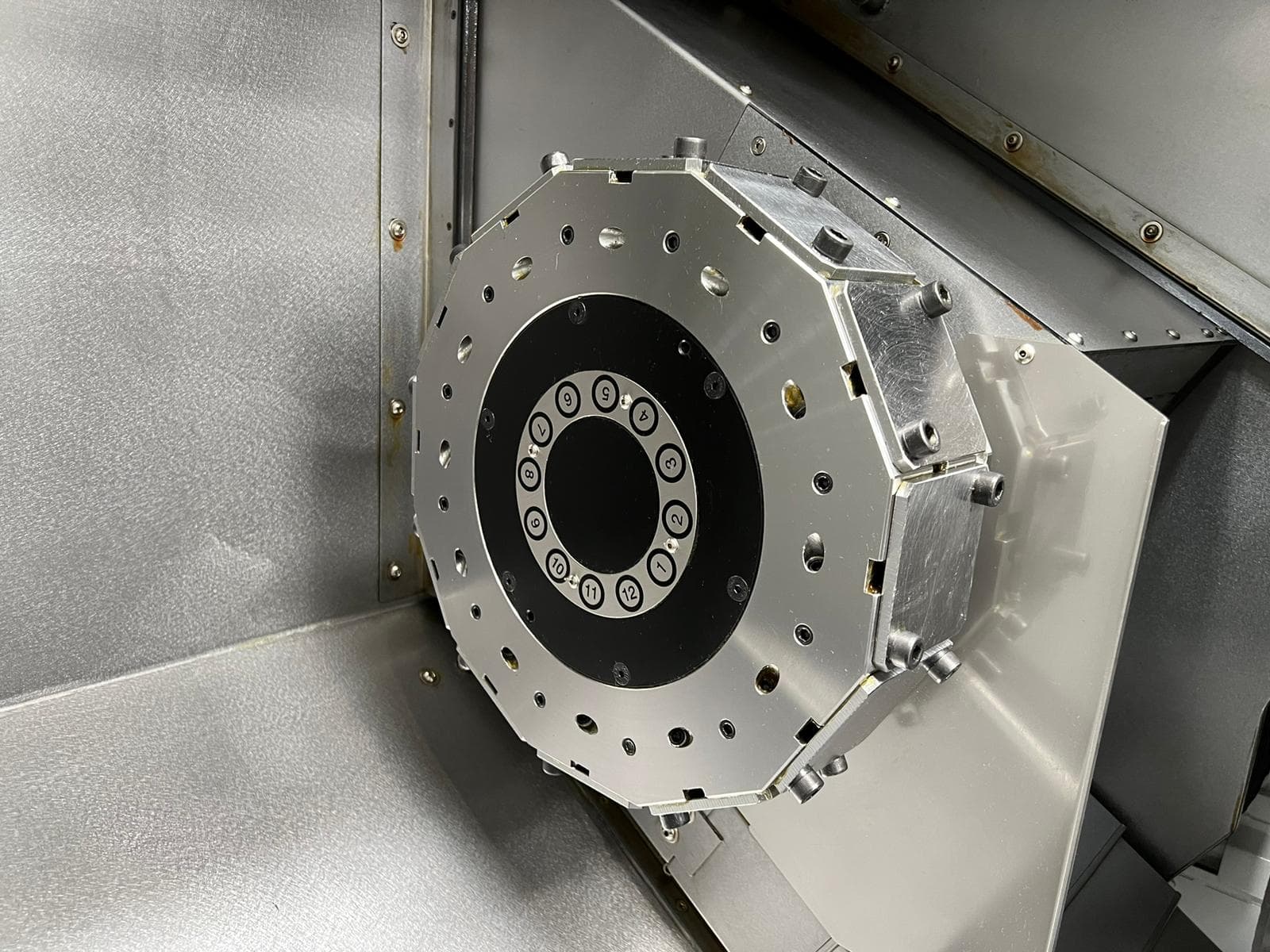

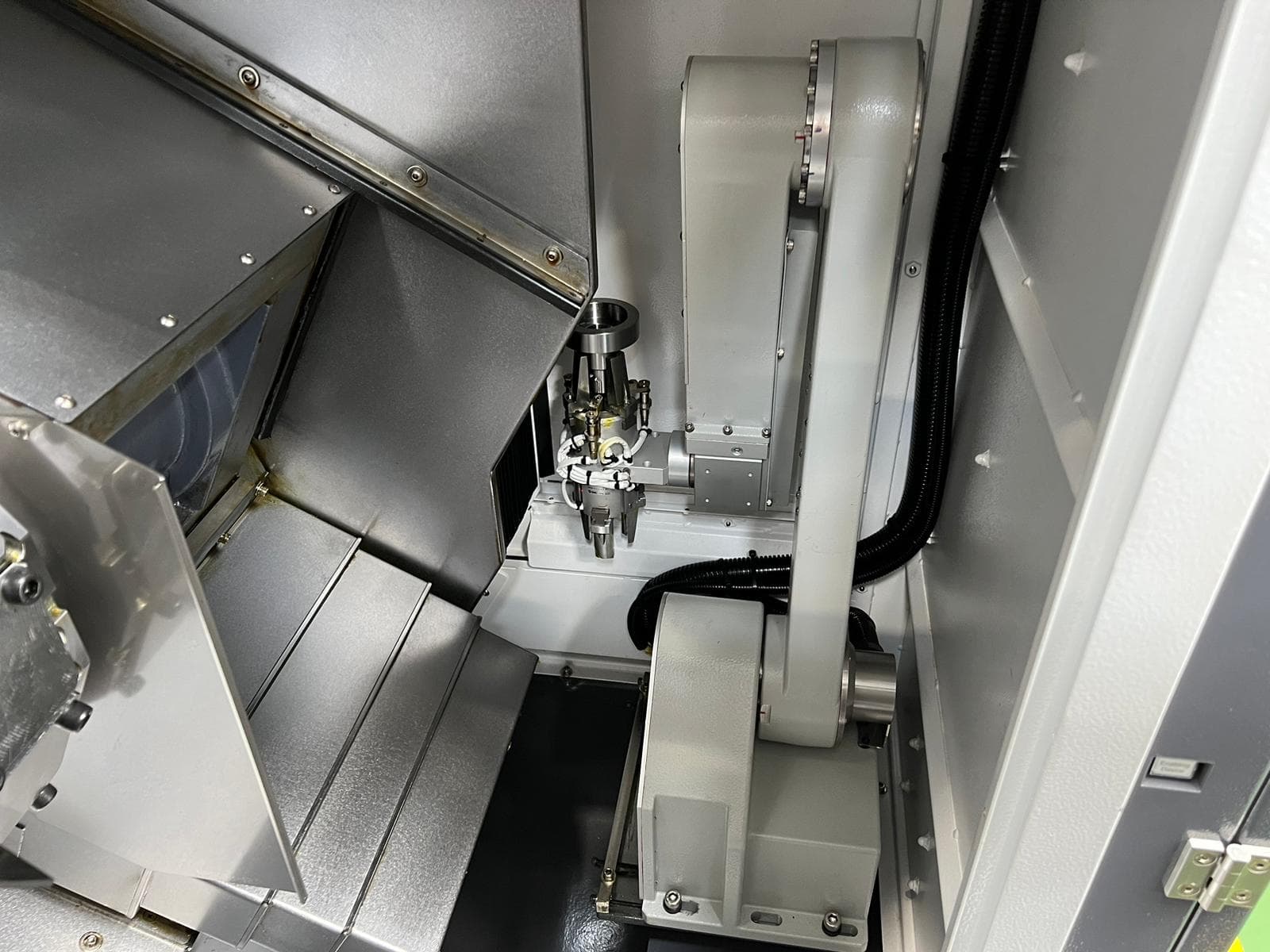

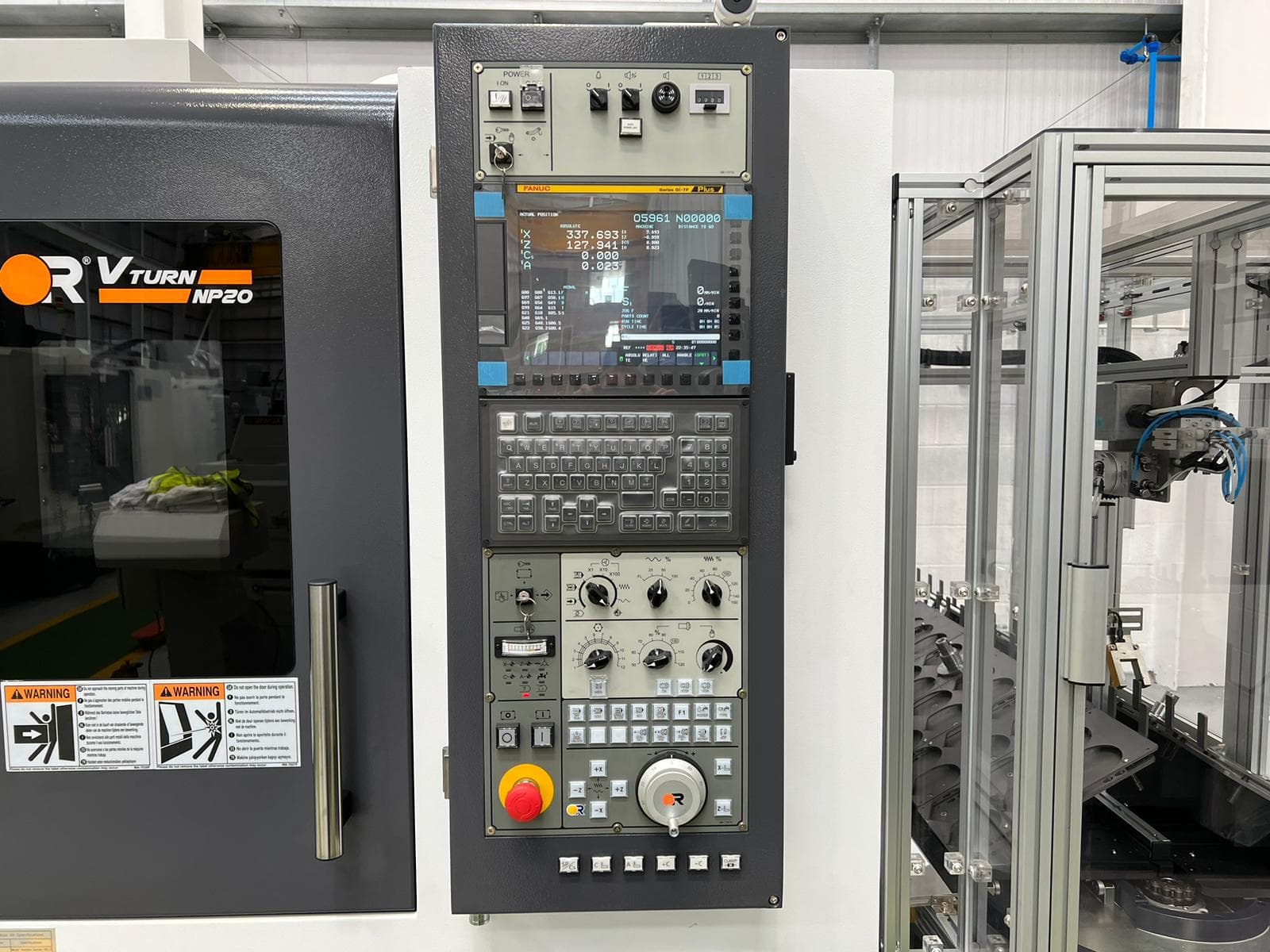

Swing over bed dia 650mm. Standard turning dia 234mm. Maximum turning dia 260mm. Swing over carriage dia 365mm. Distance Between centres 520mm. Bar capacity 52mm. Travels X/Z 50 + 130/400 mm. Rapid feed – X/Z axis m/min 30/30. Feed motor X/Z axis kW 1.8 / 1.8. JOG feed mm/min X/Z: 0 ~ 1260. Ballscrew dia. x pitch mm 25 x P10 (X)40 x P10 (Z). Guideway width – X/Z axis mm 35/35. Spindle speed rpm 4200. Spindle nose (chuck) in A2-6 (8”). Spindle motor power (cont./30min/25%) kW 7.5 / 11 / 15. Spindle bearing inside dia. mm 100. Spindle taper mm 1/20. No. of tools (live) 12. Tool shank size 25mm. Max. boring bar dia 40mm (BMT-55). Exchange time (T-T) sec 0.9 (opposite). Milling speed rpm 6000. Milling motor kW 2.2.EASYWAY ROBOT(EWR-03) – Max part weight 3kg. Max part size 70xL100mm. Part loading / unloading 7 sec.WORK FEEDER(WF-E1000) – Feeder Dimensions     (L x W x H) 2230 x 800 x 1625 mm. Number of pallets 16 (WF10-Z705-003). Pallet dimension (L x W) 350 x 186 mm. Pieces per pallet – 8. Max part dia. 70mm. Turnover Station (TS-03) – Max Part weight 3Kg. Max. part size 70 x L100mm. Fanuc 0i-TF Plus. 10.4” Colour display with QWERTY keypads. Manual Guide I. 2GB CF Card. 12 Station BMT-55 turret (CM, belt-driven, max milling speed 6000rpm). 8” Autogrip hydraulic chuck with 52mm bar capacity. Easyway Robot (EWR-03). 16 Pallet Work Feeder. Auto power off. Renishaw ATP. Auto door. Air blow. Air accumulator. Turn-over station. Lubrication pump upgrade (2L to 4L). Chip conveyor & cart (left exit). High pressure coolant (Grundfos SPK4-8). Bar feed interface. Oil skimmer. Air conditioner for electrical cabinet. Fully enclosed splash guarding. Hand wheel. Coolant flush on Z-axis cover. 3 step warning light. Machine dimension with Chip Conveyor (excl. work feeder) (L x W x H) 1930 x 2257 x 1890 mmWeight 4370Kg
